Sun shield enclosures IP66

SERIE DESERT

Sun Shield Enclosures IP66 provides protection for single or multiple instruments, preventing Electrical & electronics devices,due to temperature changes caused by solar radiation.

Desert Enclosure Series will solar shield instruments from the sun and provide partial protection from falling objects, rain, snow, and wind blown sand.

Waterproof and Auto-Refrigerated. Protect from the Solar Rays the Enclosure Inside without Increasing the Temperature, is good to use for harsh environments.

Desert enclosure has been designed to outdoor in desert areas, and/or when we need a protection inside enclosure against solar rays of this way, we reduce the inside temperature of the cabinet up to 50%.

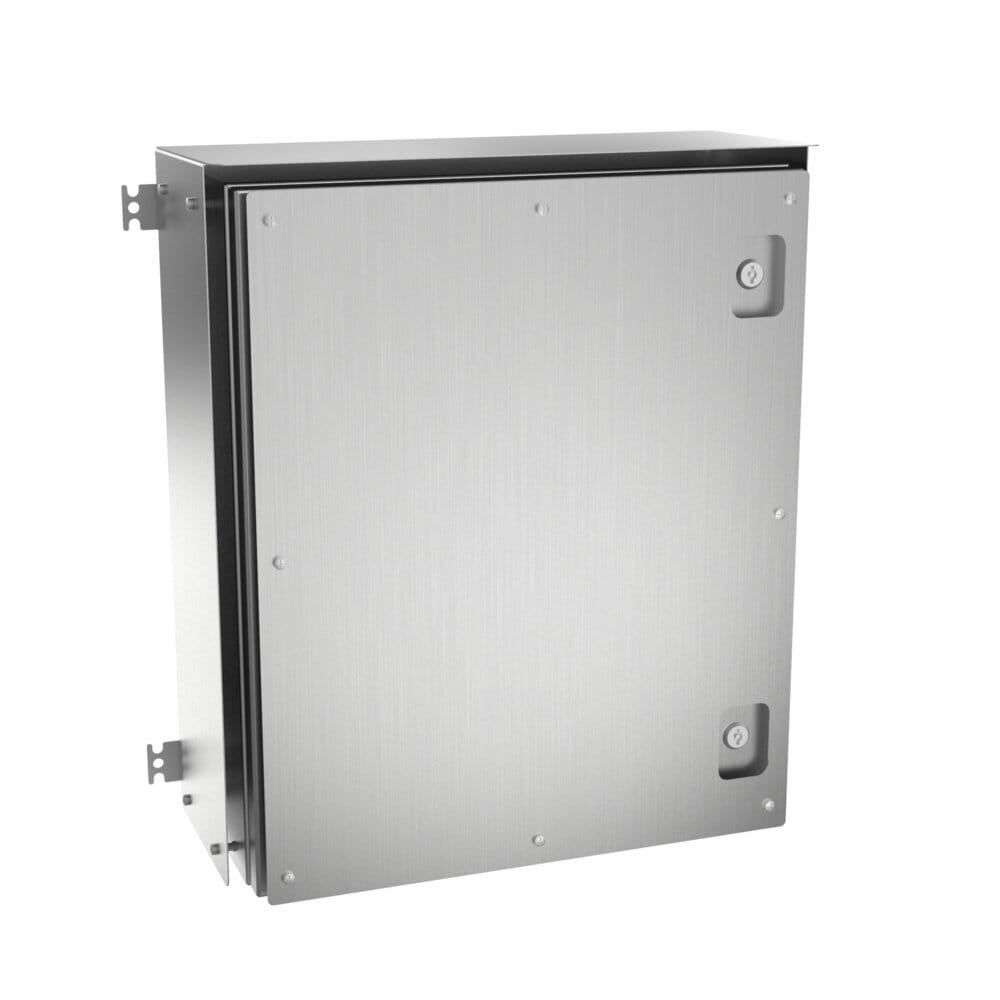

Sun shield enclosures IP66: main view of the product

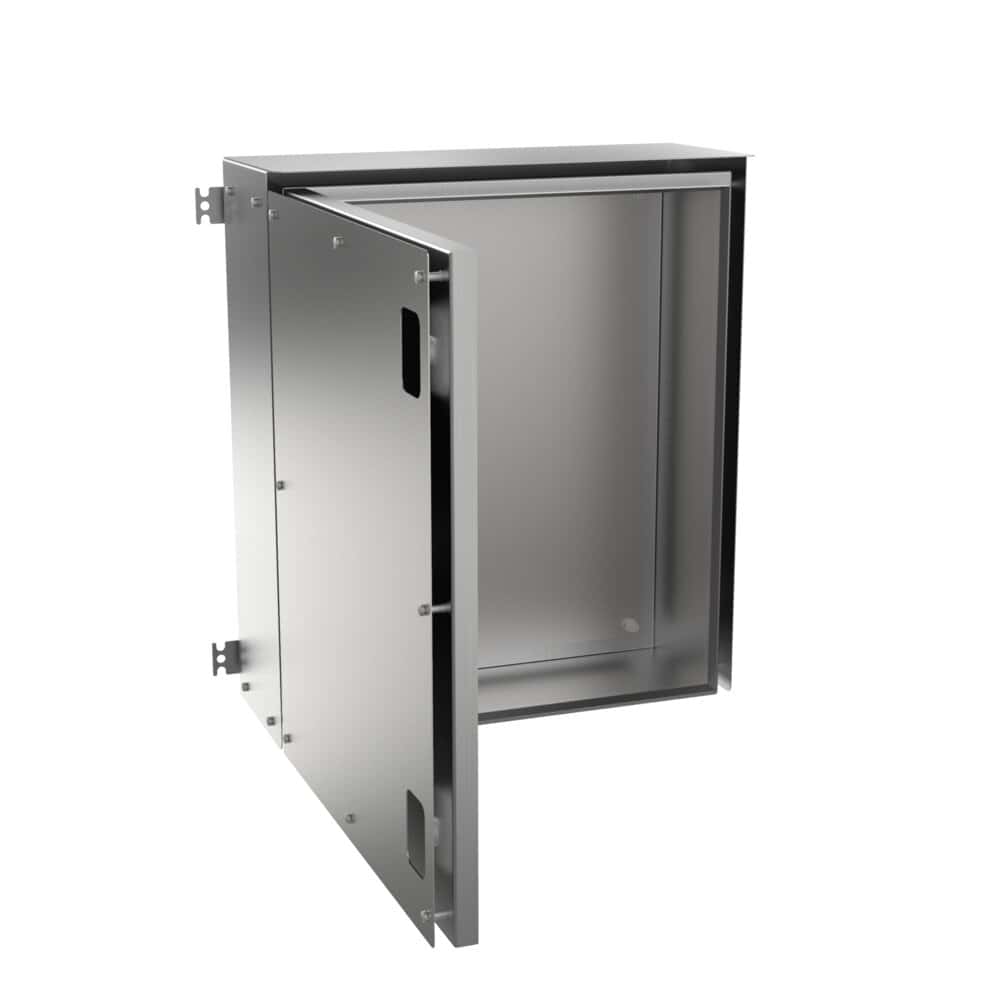

Sun shield enclosures IP66: detail view of the product

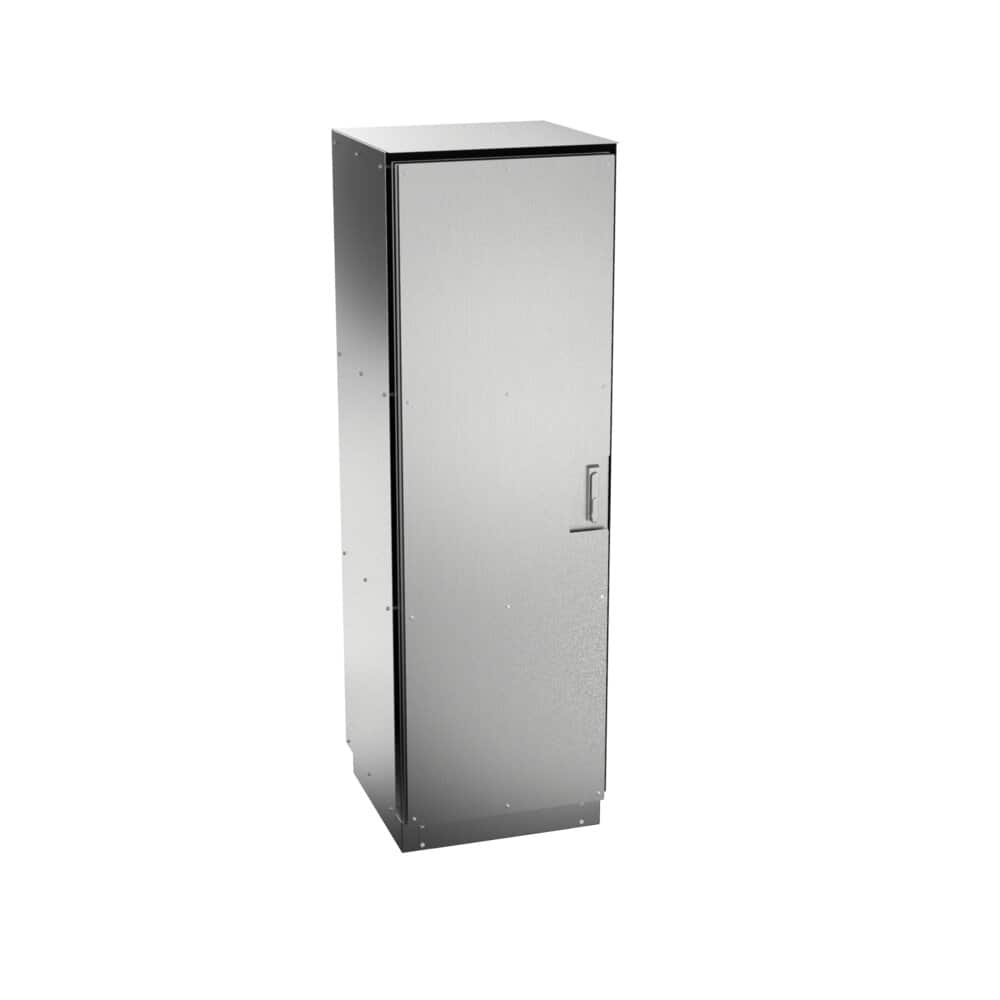

Sun shield enclosures IP66: additional view of the product

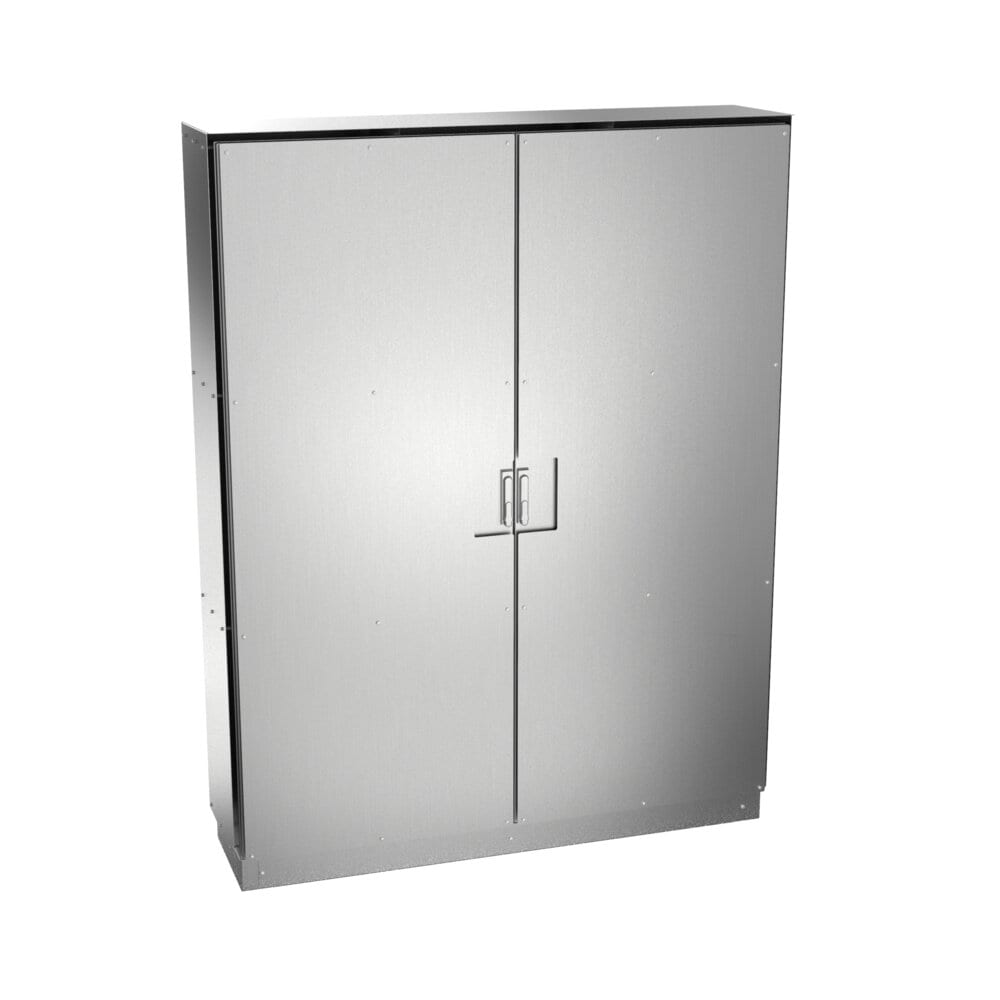

Sun shield enclosures IP66: side view of the product

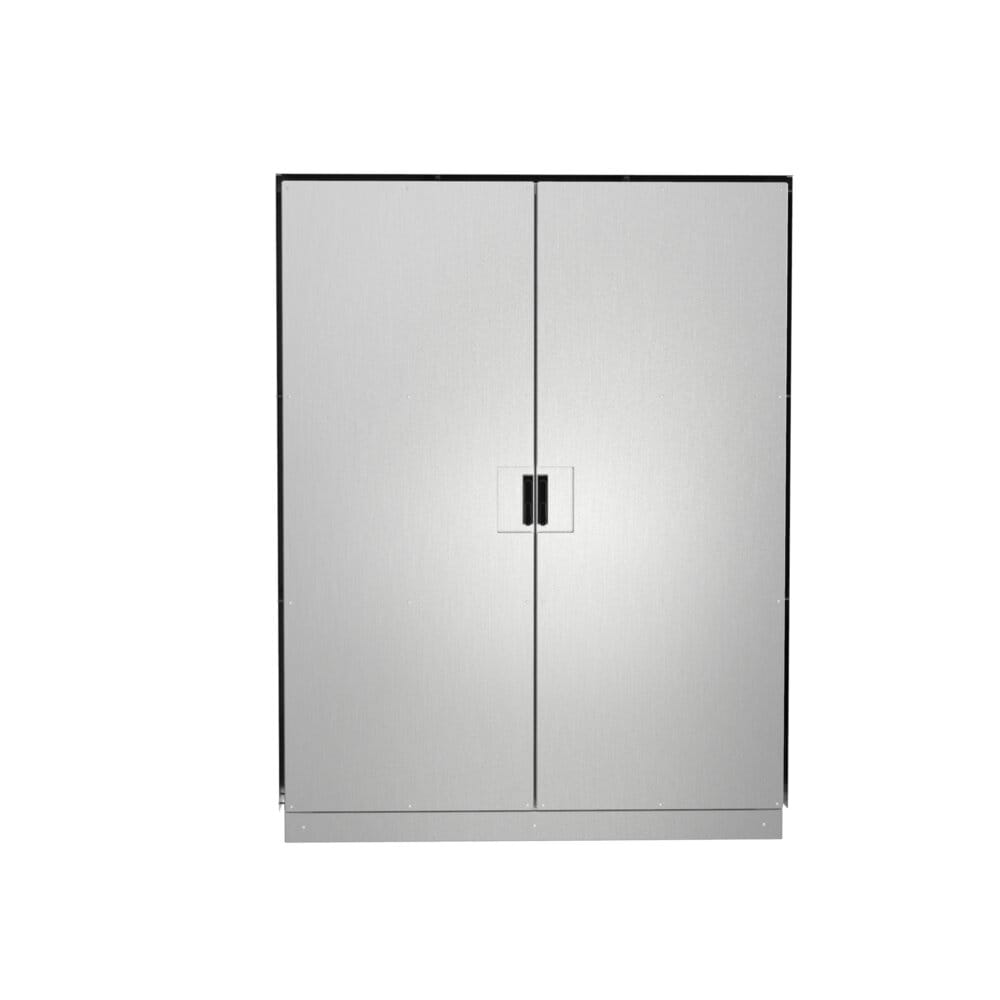

Sun shield enclosures IP66: rear view of the product

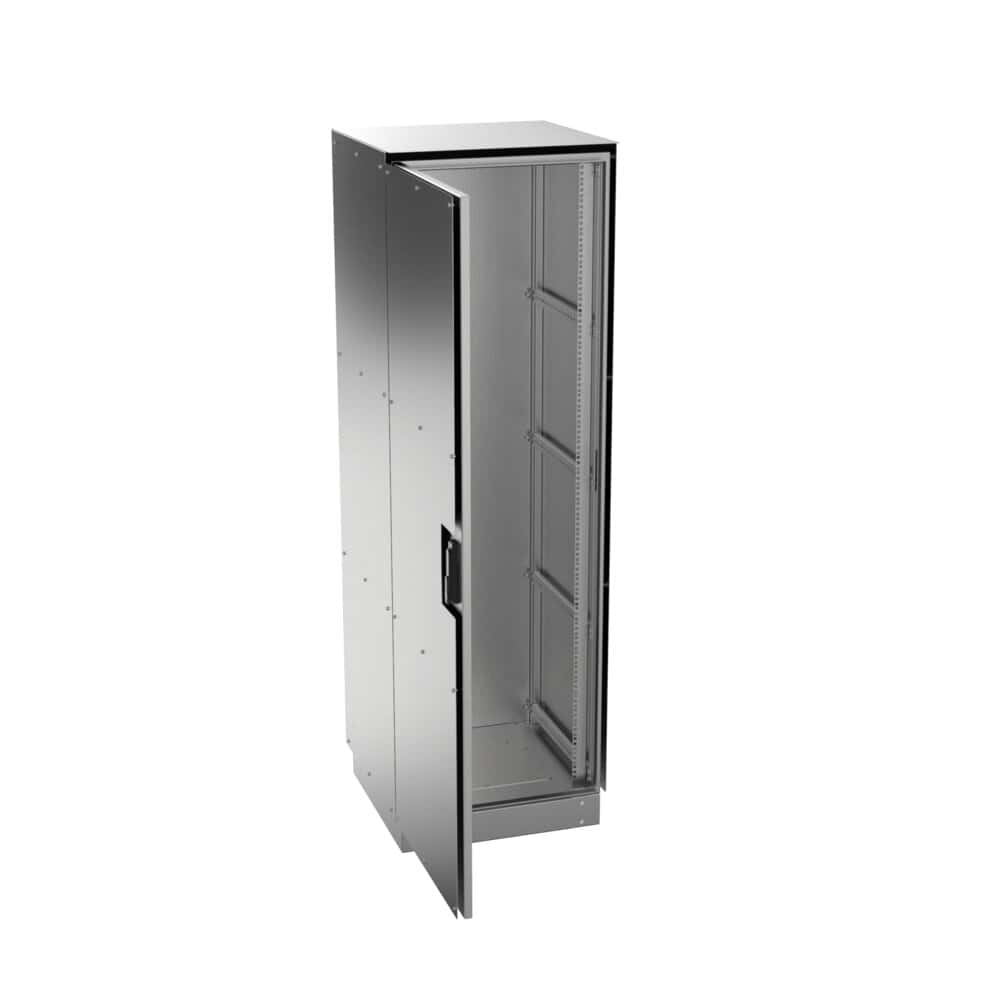

Sun shield enclosures IP66: alternative configuration of the product

📄 Technical specificationssun shield enclosures ip66

TECHNICAL DATA

Minimum Measurements	A=645-1045mm B=563-1263mm P=273-363mm
Maximum Double Door Measurements	A=1246mm B=1263mm P=363mm
Minimum Plate Measurements	A=565-1140mm
Minimum Plate Measurements	B=445-540mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Rotary handle
Useful Depth	180-270 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	silicone (-60°C to +180°C), EMC

Surface treatment with special pigment that reduces approximately 50% of solar radiation caused by infrared rays

Galvanized Steel Painted in Polyester RAL 7035

In AISI304L or AISI316L in Especially Aggressive Environments

Aluminum in Cabinets

Suitable for Desert Areas or Areas with High Solar Radiation

Protected Against Dust, Sand, and Weather Conditions

No need for cooling or ventilation equipment

Avoid up to 90% of direct solar radiation

IP66 waterproof protects the interior from sand, rain, etc.

Maintenance free

Robust and durable

Desert Areas

Port Areas

Agricultural Zones

IEC 60529:2004

Delvalle cabinets with IK10 rating

EN 61969-3

Compliance with IEC 60068-2-30 and IEC 60068-2-11 Standards

UL certification of cabinets

EN 60439-5

Voltage withstand capacity of cabinets

Standard Installation of 19” Equipment

IEC 917 regulations

IEC TS 61587-3

1-DOOR REFERENCES	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	INTERNAL HEIGHT	INTERNAL WIDTH	INTERNAL DEPTH	ACCESS OPENING	USABLE DEPTH	PLATE DIMENSIONS
MVAB645627SOL	645	563	273	600	500	210	560×453	180	565×445
MVAB646627SOL	645	663	273	600	600	210	560×553	180	565×545
MVAB846636SOL	845	663	363	800	600	300	760×553	270	765×545
MVAB848636SOL	845	863	363	800	800	300	760×753	270	765×745
MVAB108636SOL	1045	863	363	1000	800	300	960×753	270	965×745
MVAB128636SOL	1245	863	363	1200	800	300	1160×753	270	1165×745
MVAB101036SOL	1045	1063	363	1000	1000	300	960×953	270	965×945
MVAB121036SOL	1245	1063	363	1200	1000	300	1160×953	270	1165×945
MVAB101236SOL	1045	1263	363	1000	1200	300	960×1153	270	965×1145
MVAB121236SOL	1245	1263	363	1200	1200	300	1160×1153	270	1165×1145
MVAC176646SOL	1700	663	463	1650	600	400	1540×490	375	1520×470
MVAC178646SOL	1700	863	463	1650	800	400	1540×690	375	1520×670
MVAC171046SOL	1700	1063	463	1650	1000	400	1540×890	375	1520×870
MVAC171246SOL	1700	1263	463	1650	1200	400	1540×1090	375	1520×1070
MVAC186646SOL	1850	663	463	1800	600	400	1690×490	375	1670×470
MVAC188646SOL	1850	863	463	1800	800	400	1690×690	375	1670×670
MVAC188656SOL	1850	863	563	1800	800	500	1690×690	475	1670×670
MVAC181046SOL	1850	1063	463	1800	1000	400	1690×890	375	1670×870
MVAC181056SOL	1850	1063	563	1800	1000	500	1690×890	475	1670×870
MVAC206656SOL	2050	663	563	2000	600	500	1890×490	475	1870×470
MVAC208646SOL	2050	863	463	2000	800	400	1890×690	375	1870×670
MVAC208656SOL	2050	863	563	2000	800	500	1890×690	475	1870×670
MVAC201046SOL	2050	1063	463	2000	1000	400	1890×890	375	1870×870
MVAC201056SOL	2050	1063	563	2000	1000	500	1890×890	475	1870×870
Version: UL Nema 4x, 12, 3r and 1 Standard	Add "UL" to the reference.
Version: IP67	Add "67" to the reference.
Version: IP69K	Add "/69" to the reference.

* Desert IP66 Outdoor Enclosure Design – 20mm Plate to Back Separation

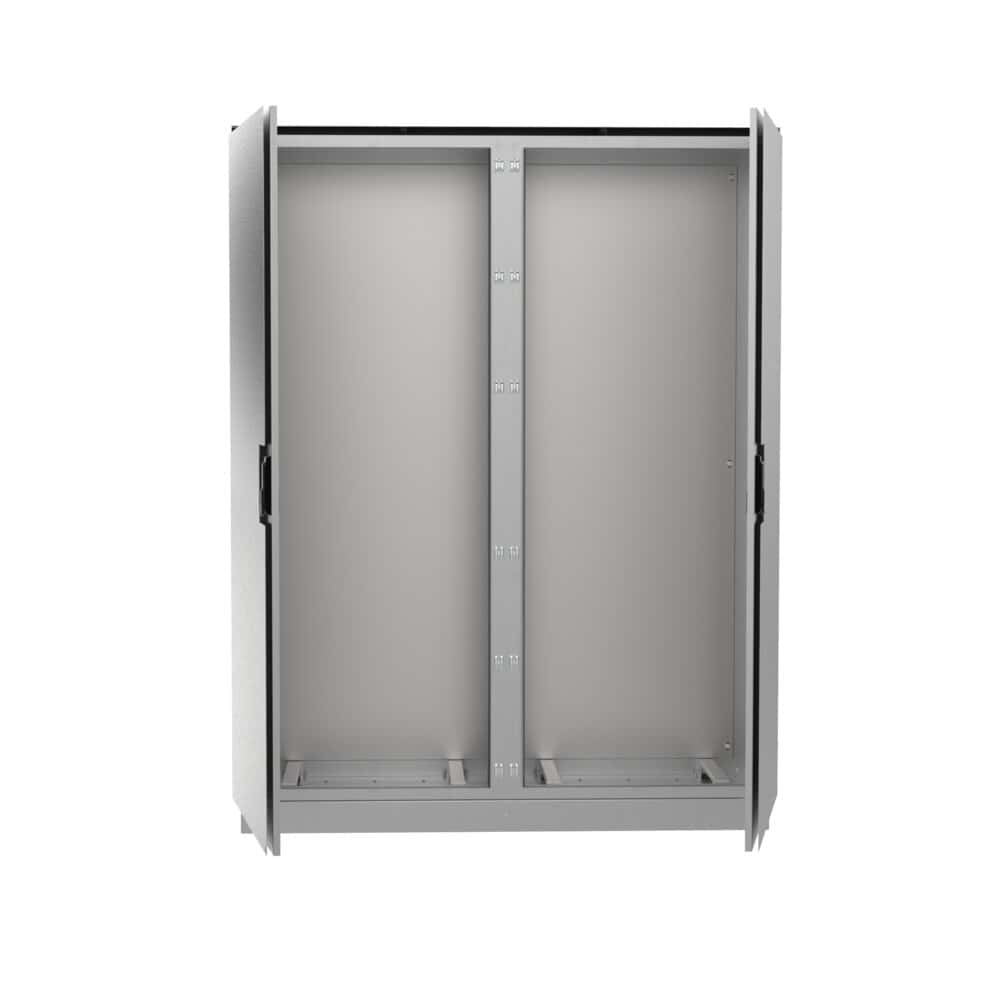

2-DOOR REFERENCES	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	INTERNAL HEIGHT	INTERNAL WIDTH	INTERNAL DEPTH	ACCESS OPENING	USABLE DEPTH	PLATE DIMENSIONS
MVAB846636DSOL	845	663	363	800	600	300	746×246	270	740×240
MVAB848636DSOL	845	863	363	800	800	300	746×346	270	740×340
MVAB108636DSOL	1045	863	363	1000	800	300	946×346	270	940×340
MVAB128636DSOL	1245	863	363	1200	800	300	1146×346	270	1140×340
MVAB101036DSOL	1045	1063	363	1000	1000	300	946×446	270	940×440
MVAB121036DSOL	1245	1063	363	1200	1000	300	1146×446	270	1140×440
MVAB121236DSOL	1245	1263	363	1200	1200	300	1146×546	270	1140×540
MVAC181246SOL	1850	1263	463	1800	1200	400	1690×490	375	1670×470
MVAC181256SOL	1850	1263	563	1800	1200	500	1690×490	475	1670×470
MVAC201246SOL	2050	1263	463	2000	1200	400	1890×490	375	1870×470
MVAC201256SOL	2050	1263	563	2000	1200	500	1890×490	475	1870×470
MVAC201446SOL	2050	1463	463	2000	1400	400	1890×590	375	1870×570
MVAC201456SOL	2050	1463	563	2000	1400	500	1890×590	475	1870×570
MVAC201646SOL	2050	1663	463	2000	1600	400	1890×690	375	1870×670
MVAC201656SOL	2050	1663	563	2000	1600	500	1890×690	475	1870×670

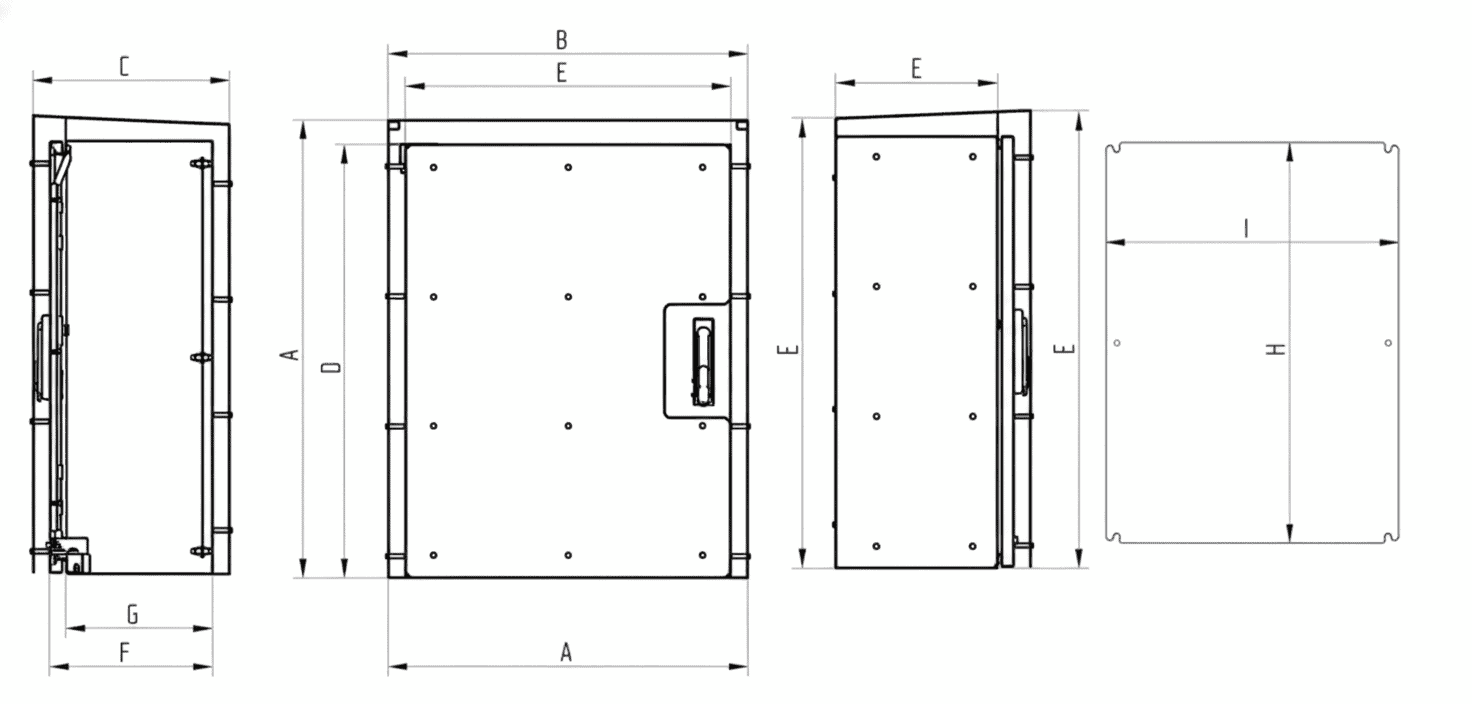

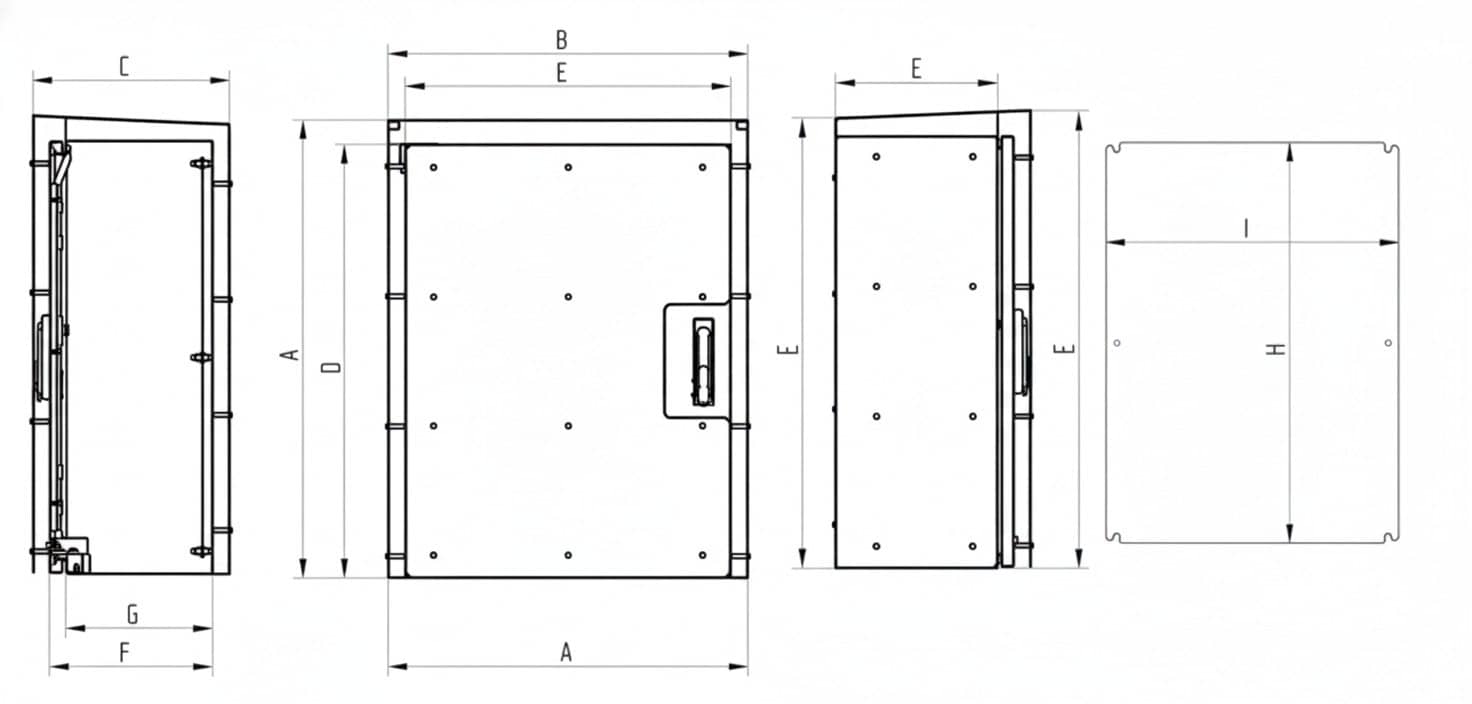

Croquis:
