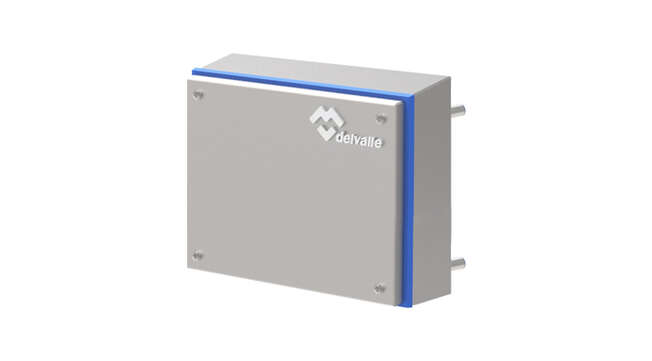

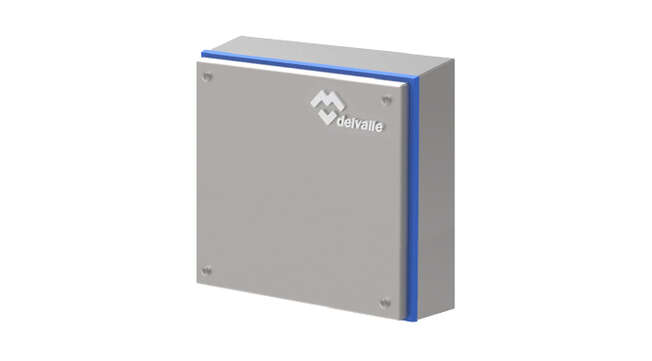

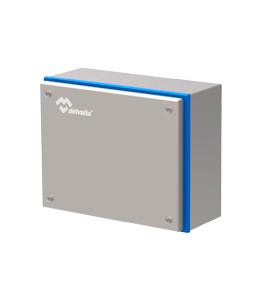

Terminal Push Geo Hygienic IP66

HYGIENIC SERIES

Stainless Steel  Terminal Push Button Boxes hygienic Design GEO Especially designed and officially approved for food, chemical, pharmaceutical, transformer and telecommunication industries for use both inside and outside, due to the advantages of high resistance to chemical agents and durability.

Terminal Push Geo Hygienic IP66 · Delvalle BoxDelvalle Box
Terminal Push Geo Hygienic IP66 · Delvalle BoxDelvalle Box

This product has the following certificates

  • Logo CE · Delvalle Box
  • Logo IK10 · Delvalle Box
  • Logo IP66 · Delvalle Box
  • Logo ROHS · Delvalle Box
  • Logo UL NEMA 1 · Delvalle Box
  • Logo UL NEMA 12 · Delvalle Box
  • Logo UL NEMA 3R · Delvalle Box
  • Logo UL NEMA 4X · Delvalle Box
  • Logo 10 year anti-corrosion · Delvalle Box
  • Logo 5 year mechanical parts · Delvalle Box
  • Logo Anti grafiti option · Delvalle Box
  • Logo Chemical resistant · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box
  • Logo Easy to clean · Delvalle Box
  • Logo Scrach resistant · Delvalle Box
  • Logo Temperature resistant · Delvalle Box
  • Logo Waterproof · Delvalle Box

Description

Stainless Steel  Terminal Push Button Boxes hygienic Design GEO Especially designed and officially approved for food, chemical, pharmaceutical, transformer and telecommunication industries for use both inside and outside, due to the advantages of high resistance to chemical agents and durability.

Discover the advantages

Supplied with protective film which prevents scratches and abrasions during handling.
The manufacture of the stainless steel monobloc allows sealing and ensures maximum resistance.
Water channel to prevent liquids coming into contact with the polyurethane seal and hidden hinges giving perfect sealing.
Resistant seal to temperatures from -60°C up to +200°C.
Captives srews.
Finished in textured paint RAL on request.
Up to IP69K.

Regulations

  • IP66 Norm IEC 60529 (IP67 on request).
  • DIN 40050-9² - IP69K.
  • DIN EN ISO 14159 Machine safety – hygiene requirements pertaining to the design of machinery.
  • Machinery Directive 2006/42/EC. Food machinery and cosmetic or pharmaceutic production.
  • EHEDG Guideline Hygienic Design doc.13 machinery for open processes.
  • Maximum IK10 resistance Norm IEC 62262.
  • DIN EN 1672-2:2006 for food industry machinery.
  • Manufactured following EU low voltage ruling 2014/35/UE.
  • RoHS Directive 2002/95/EC compliant.
  • UL approval Nema 4x, 12, 3r, 1. Nº File E342220.
  • Maximum voltage 1000 V.
  • Temperature resistant: -40°C +100°C (short time +160°C).
  • Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Custom Made Solutions
We offer multiple solutions

Terminal Push Geo Hygienic IP66 · Delvalle Box
Do you need solutions?
2020 product catalogues
  • Custom made based on your needs.
  • IP69K according IEC EN 60529.
  • Manufactured in stainless steel AISI 316L. EN 14404.
  • Metal legs, unloosable screws.
  • Transparent polycarbonate door or with tempered glass.
  • Mounting plate insulator (bakelite) or painted steel.
  • EMC version according to 2014/30/UE of electromagnetic compatibility
  • We have hygienic glands on request.
  • Option painted galvanized steel finish in RAL 7035 or another color.
Terminal Push Geo Hygienic IP66 · Delvalle Box

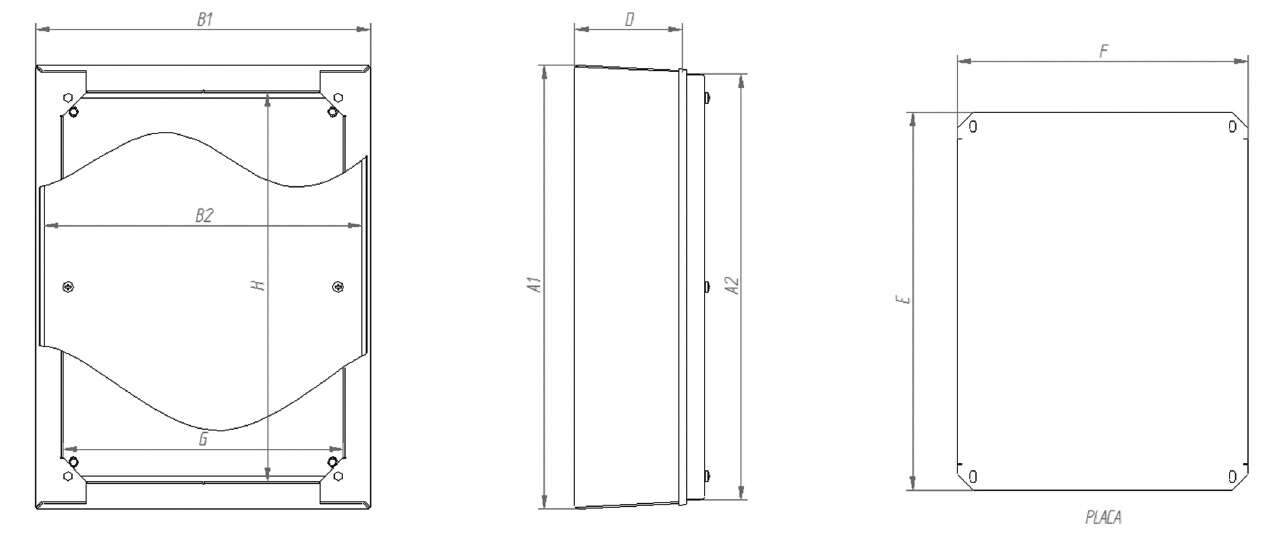

Sketches

Product · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
HDG151580HYGIENIC ANTI-BACTERIA STAINLESS ENCLOSURE IP65-6615615080HDG151580
HDG151512HYGIENIC ANTI-BACTERIA STAINLESS ENCLOSURE IP65-66160150120HDG151512
HDG202012HYGIENIC ANTI-BACTERIA STAINLESS ENCLOSURE IP65-66210200120HDG202012
HDG203012HYGIENIC ANTI-BACTERIA STAINLESS ENCLOSURE IP65-66310200120HDG203012
HDG204012HYGIENIC ANTI-BACTERIA STAINLESS ENCLOSURE IP65-66410200120HDG204012
HDG304012HYGIENIC ANTI-BACTERIA STAINLESS ENCLOSURE IP65-66410300120HDG304012
HDG151580ULHYGIENIC STAINLESS ENCLOSURE IP65-6615615080HDG151580UL
HDG151512ULHYGIENIC STAINLESS ENCLOSURE IP65-66160150120HDG151512UL
HDG202012ULHYGIENIC STAINLESS ENCLOSURE IP65-66210200120HDG202012UL
HDG203012ULHYGIENIC STAINLESS ENCLOSURE IP65-66310200120HDG203012UL
HDG204012ULHYGIENIC STAINLESS ENCLOSURE IP65-66410200120HDG204012UL
HDG304012ULHYGIENIC STAINLESS ENCLOSURE IP65-66410300120HDG304012UL
