Terminal push geo hygienic IP66

SERIE GEO IP66

Stainless Steel Terminal Push Button Boxes hygienic Design GEO Especially designed and officially approved for food, chemical, pharmaceutical, transformer and telecommunication industries for use both inside and outside, due to the advantages of high resistance to chemical agents and durability.

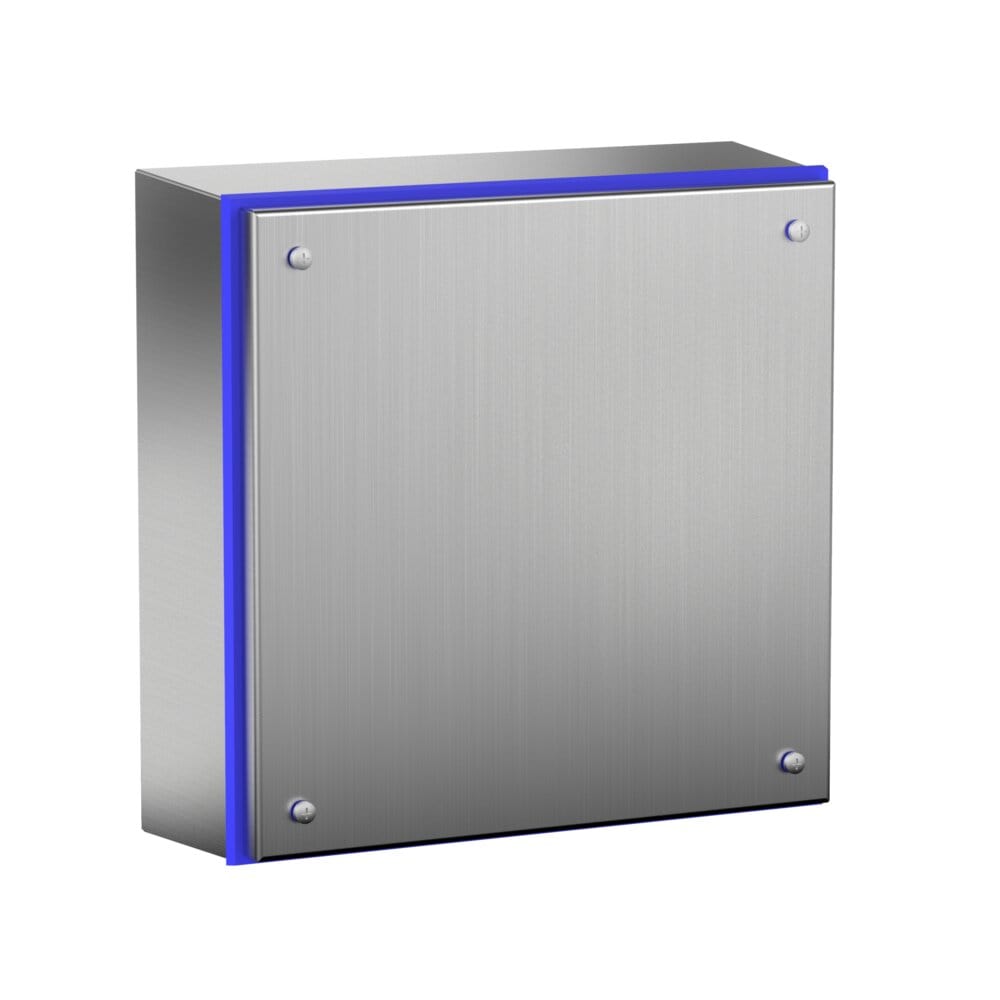

Terminal push geo hygienic IP66 · main view

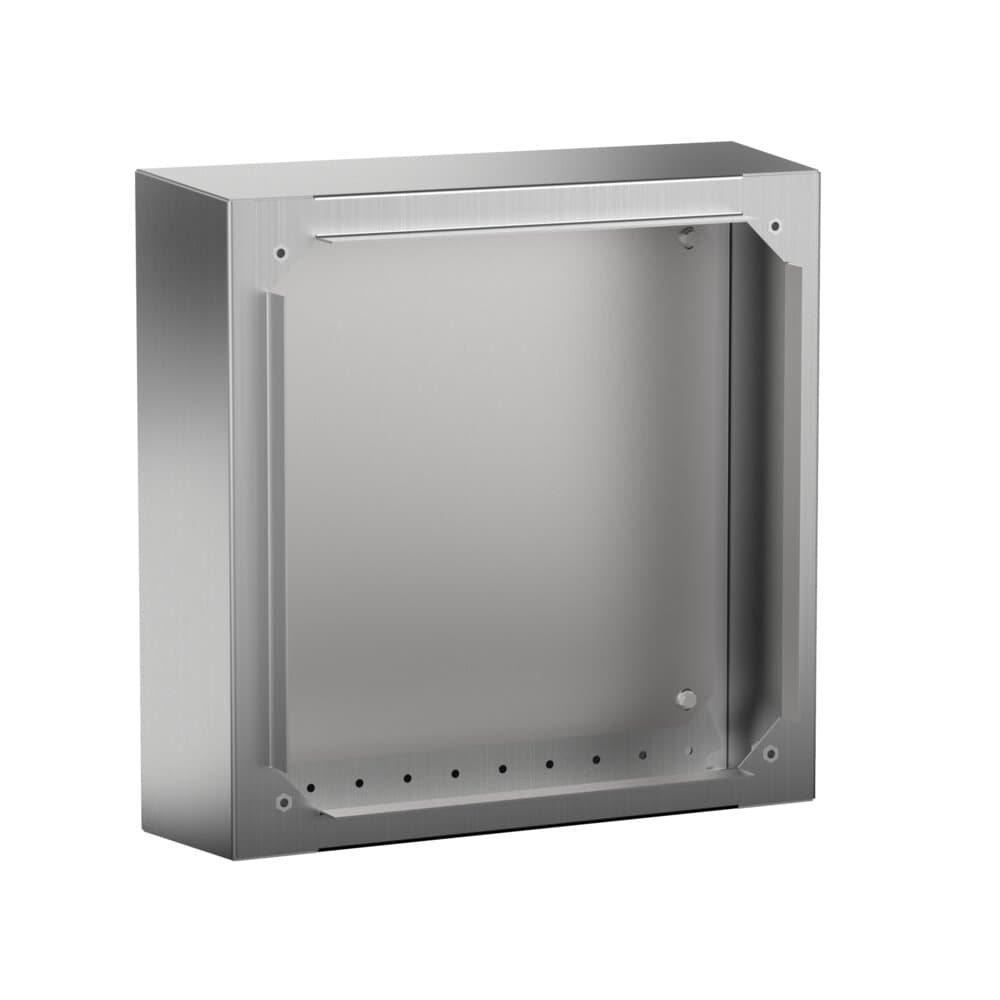

Terminal push geo hygienic IP66: detail view of the product

TECHNICAL DATA

Minimum Measurements	A=150-410mm B=150-310mm P=80-120mm
Minimum Plate Measurements	A=100-350mm
Minimum Plate Measurements	B=120-270mm
Body Thickness	1.5 mm \| 12/10 mm 0.0472 " \| 18 Gauge
Door Type	Blind door
Opening Type	Screwed
Useful Depth	59,8-99,8 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Silicone
Working Temperature	-60°C a +180°C (reducida exposición hasta +350°C)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Aluminum, Galvanized
Alternative Finishes	Painted RAL 7035
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Machinable Area	Tapa: 80x80 - 330x230, Lateral: 124,6x26,1 - 378,8x66,2

IP69K extends IEC 60529

In stainless steel AISI 316L EN 14404

Safety screws

Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand

Delivered with protective film that prevents scratches and abrasions during handling.

Monobloc construction for perfect watertightness and impact resistance

Perfect watertightness due to the gaskets used in the joints

Silicone gasket resistant to temperatures -60ºC to +200ºC

Captive Screws

The sides have a 3º slope

Delvalle customizes any size not found in this table. Available with a depth of up to 1000 mm

Pressure Hot Water Resistant IP69K

IP66(W) Protection Rating

DIN 40050-9²

DIN EN ISO 14159

European Directive 2006/42/EC

DIN EN 1672-2:2005

IK10 Protection Rating

European regulation CE 1935/2004

Directive 2014/35/EU

RoHS directive compliance

UL NEMA 4X, 12, 3R, and 1 standards

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

REFERENCES		DIMENSIONS (mm)
STAINLESS STEEL AISI 304L	STAINLESS STEEL AISI 316L	HEIGHT -A-	WIDTH -B-	DEPTH -C-
MVH1515	MVH1515316	150	150	100
MVH1520	MVH1520316	150	200	100
MVH2020	MVH2020316	200	200	100
MVH2030	MVH2030316	200	300	100
MVH2040	MVH2040316	200	400	100
MVH3030	MVH3030316	300	300	100
MVH3040	MVH3040316	300	400	100
MVH4040	MVH4040316	400	400	120
MVH4060	MVH4060316	400	600	120

Croquis:

📄 Certification terminal push geo hygienic ip66
