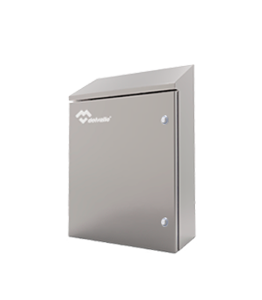

Electrical Wall Enclosure Luxor Fresh IP66


Electrical enclosure Fresh Series, specially designed for the food industry. No openings where bacter ia could lie but robust and easy lock opening with a big space inside to allow easy working.

Moreover the slopped of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.

Electrical Wall Enclosure Luxor Fresh IP66 · Delvalle BoxDelvalle Box

This product has the following certificates

  • Logo CE · Delvalle Box
  • Logo IK10 · Delvalle Box
  • Logo IP66 · Delvalle Box
  • Logo ROHS · Delvalle Box
  • Logo UL NEMA 1 · Delvalle Box
  • Logo UL NEMA 12 · Delvalle Box
  • Logo UL NEMA 3R · Delvalle Box
  • Logo UL NEMA 4X · Delvalle Box
  • Logo 10 year anti-corrosion · Delvalle Box
  • Logo 5 year mechanical parts · Delvalle Box
  • Logo Anti grafiti option · Delvalle Box
  • Logo Chemical resistant · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box
  • Logo Easy to clean · Delvalle Box
  • Logo Scrach resistant · Delvalle Box
  • Logo Temperature resistant · Delvalle Box
  • Logo Waterproof · Delvalle Box


Electrical enclosure Fresh Series, specially designed for the food industry. No openings, hinges, where bacter ia could lie but robust and easy lock opening with a big space inside to allow easy working. Moreover the inclination of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.

Discover the advantages

Supplied wrapped in protective film which prevents scratches and abrasions during handling.
The monobloc manufacture gives total sealing and maximum resistance.
No openings where bacteria could lie.
120º door opening. Standard opening to the left. Specify if you need opening to the right.
With electro-polished finish that helps dispel liquids and waterproof seal that prevents dirt and bacteria deposits.
Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.


  • IP66 Norm IEC 60529.
  • DIN 40050-9² - IP69K.
  • Maximum IK10 resistance Norm IEC 62262.
  • EC 1935/2004 rule compliant for materials intended to come into contact with food.
  • DIN EN ISO 14159 Machine safety –Hygienic requirements pertaining to the design of machinery.
  • DIN EN 1672-2:2006 for food industry machinery.
  • Follows EU low voltage ruling 2014/35/UE.
  • RoHS Directive 2011/65/UE compliant.
  • Machinery Directive 2006/42/EC (previously 89/37/EC) Food machinery and cosmetic or pharmaceutic production.
  • EHEDG Guideline Hygienic Design doc.13 machinery for open processes.
  • UL approval Nema 4x, 12, 3r, 1. Nº File E342220.
  • Maximum voltage 1000 V.
  • Temperature resistant: -40°C +100°C  (short time +160°C).
  • Option silicone gasket: from -60°C to +180°C (short time up to +350°C).


Especially designed for the food industry and sterile rooms, wineries, dairies and take away food outlets or any other place where cleanliness is essential as well as total absence of dust, dirt and bacteria.

Custom Made Solutions
We offer multiple solutions

Electrical Wall Enclosure Luxor Fresh IP66 · Delvalle Box
Do you need solutions?
2021 product catalogues
  • Custom made based on your needs.
  • IP69K according EN 60529.
  • Option painted galvanized steel finish in RAL 7035 or another color.
  • Also made with two doors (from 800x600).
  • Plinths at base. Metal legs.
  • Transparent polycarbonate door (no IP69K).
  • Manufactured in stainless steel AISI 316L.
  • Mounting plate insulator (bakelite) or sst.
Customers also bought:
Floor Mount Sloped Roof Enclosure · Delvalle BoxDelvalle Box
Electrical Hygienic Fresh Tribeca Series enclosure with a large capacity, specially designed for the...
Electrical Wall Enclosure Luxor Fresh IP66 · Delvalle Box

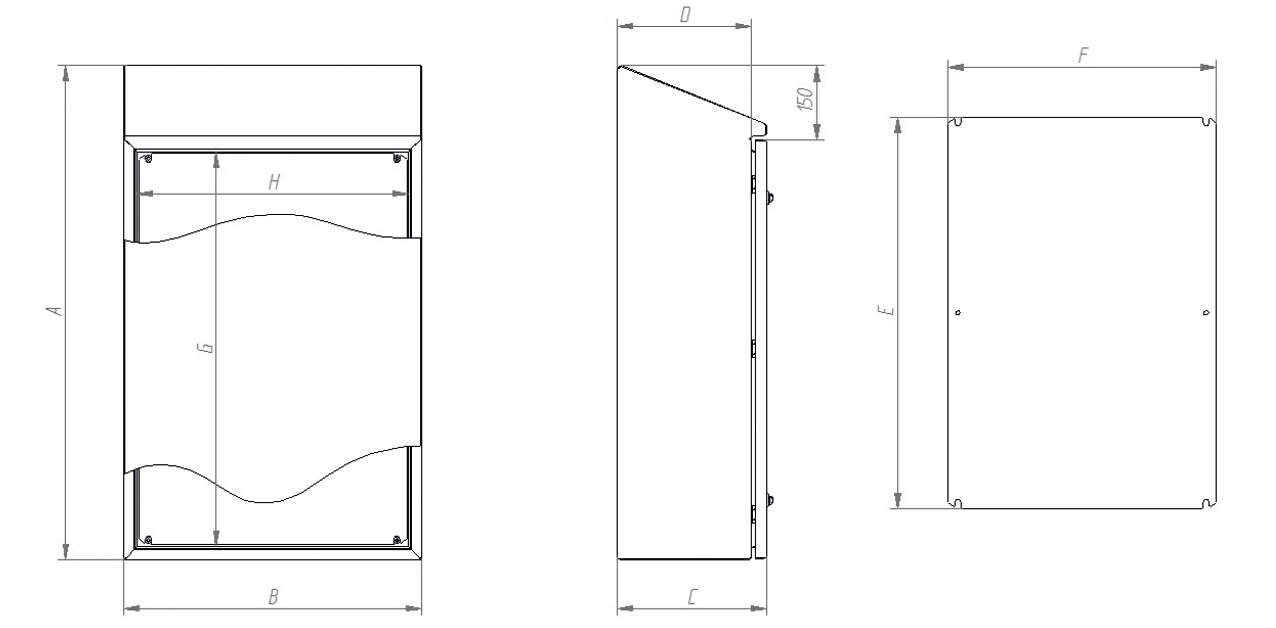

Dimensions · Delvalle Box


Show References
MVAJ503015Luxor fresh IP66500300155MVAJ503015
MVAJ723815Luxor fresh IP66720380155MVAJ723815
MVAJ753821Luxor fresh IP66750380210MVAJ753821
MVAJ554021Luxor fresh IP66550400210MVAJ554021
MVAJ655021Luxor fresh IP66650500210MVAJ655021
MVAJ855021Luxor fresh IP66850500210MVAJ855021
MVAJ756021Luxor fresh IP66750600210MVAJ756021
MVAJ106030Luxor fresh IP661000600300MVAJ106030
MVAJ108030Luxor fresh IP661000800300MVAJ108030
MVAJ128030Luxor fresh IP661200800300MVAJ128030
MVAJ148030Luxor fresh IP661400800300MVAJ148030
MVAJ121030Luxor fresh IP6612001000300MVAJ121030
ULAdd "UL" to reference Ex. MVAJ503015ULUL
