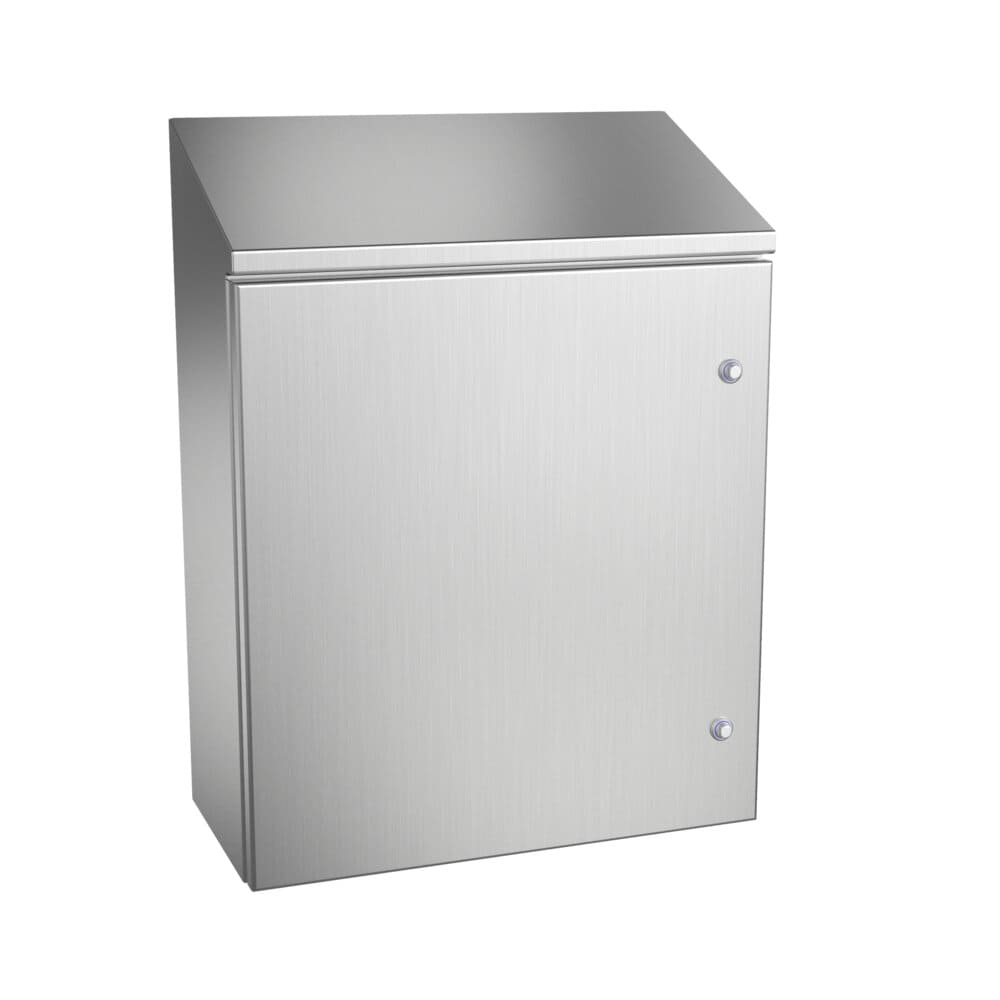

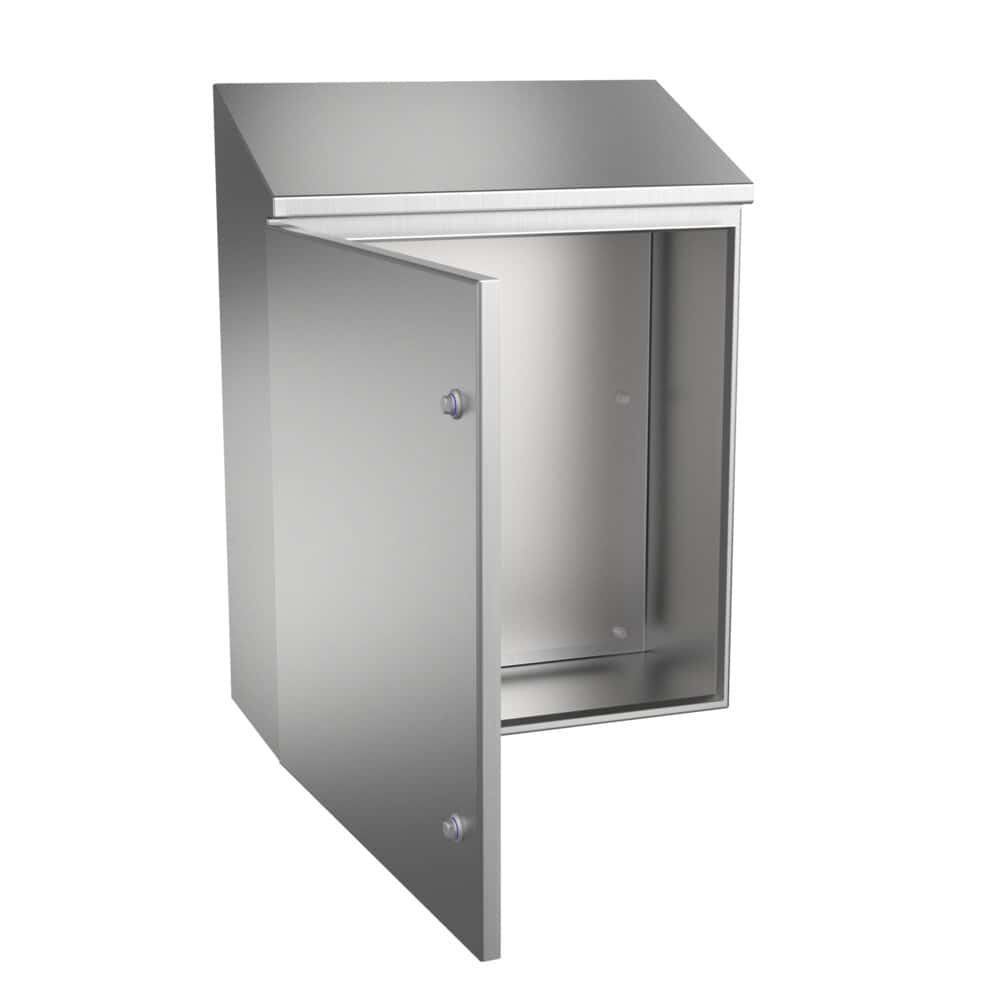

Electrical enclosure Fresh Series, specially designed for the food industry. No openings where bacter ia could lie but robust and easy lock opening with a big space inside to allow easy working.
Moreover the slopped of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.
| Minimum Measurements | A=500-1200mm B=300-1000mm P=155-300mm |
|---|---|
| Minimum Plate Measurements | A=290-990mm |
| Minimum Plate Measurements | B=240-940mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Opening | 120 ° |
| Door Type | Blind door |
| Opening Type | Swivel with concealed hinges |
| Closing System | Cierres Hygienic |
| Useful Depth | 125-270 mm |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Alternative Closing Systems | Double-bit quarter-turn locks |
| Alternative Door | Door with polycarbonate panel, Door with safety glass |
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate |
| Alternative Gaskets | silicone (-60°C to +180°C) |
| Machinable Area | Puerta: 280,2x195,2-928x835, Lateral: 459,2x95-1159,2x240 |
|
REFERENCES |
DIMENSIONS (mm) |
||||
|
STAINLESS STEEL AISI 304L |
STAINLESS STEEL AISI 316L |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
PLATE DIMENSIONS -ExF- |
|
MVF302015 |
MVF302015316 |
300 |
200 |
150 |
270×170 |
|
MVF403020 |
MVF403020316 |
400 |
300 |
200 |
370×270 |
|
MVF604021 |
MVF604021316 |
600 |
400 |
210 |
570×370 |
|
MVF606021 |
MVF606021316 |
600 |
600 |
210 |
570×570 |
|
MVF705025 |
MVF705025316 |
700 |
500 |
250 |
670×430 |
|
MVF806030 |
MVF806030316 |
800 |
600 |
300 |
770×570 |
|
MVF108030 |
MVF108030316 |
1000 |
800 |
300 |
970×770 |
|
MVF128030 |
MVF128030316 |
1200 |
800 |
300 |
1170×770 |

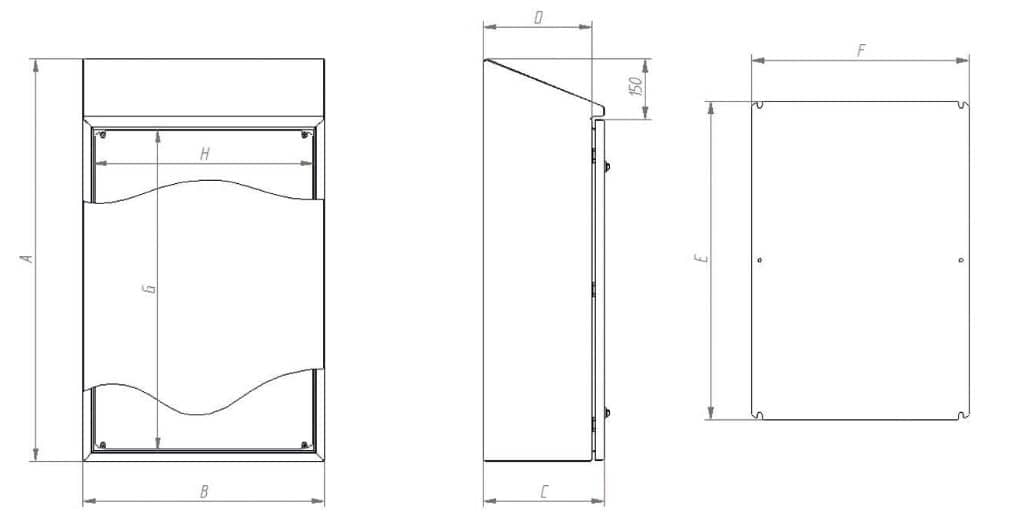

Croquis:
