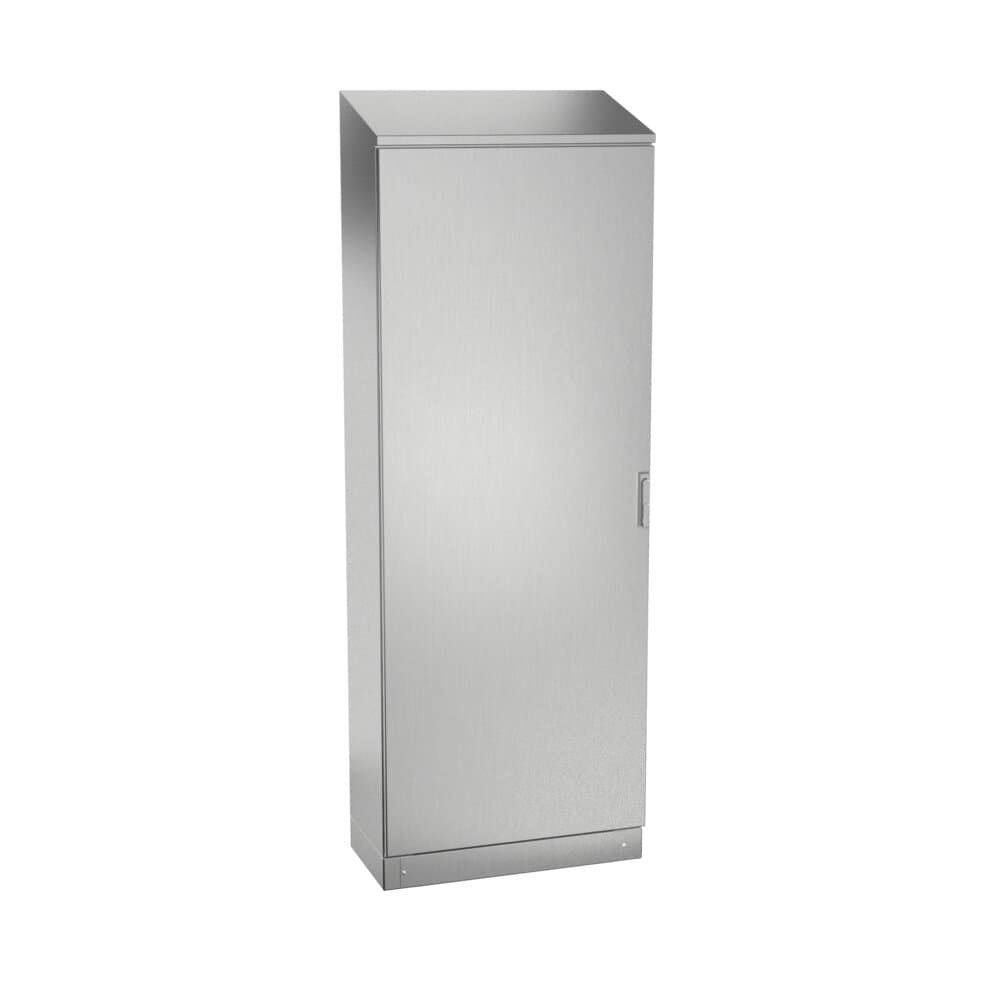

Electrical Hygienic Fresh Tribeca Series enclosure with a large capacity, specially designed for the food industry. No openings, hinges, where bacter ia could lie.
Easy opening by rotating handle and four point lock, easy placement on the floor, flexible, maximum working width Moreover the inclination of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.
| Minimum Measurements | A=1650-2000mm B=600-1000mm P=400-500mm |
|---|---|
| Maximum Double Door Measurements | A=2000mm B=1600mm P=500mm |
| Minimum Plate Measurements | A=1520-1870mm |
| Minimum Plate Measurements | B=470-1470mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Type | Blind door |
| Opening Type | Swivel with concealed hinges |
| Closing System | Rotary handle with 4 locking points |
| Useful Depth | 375-475 mm |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Alternative Door | Door with polycarbonate panel, Door with safety glass |
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate |
| Alternative Gaskets | silicone (-60°C to +180°C) |
|
REFERENCES 1 DOOR |
DIMENSIONS (mm) |
|||||||||
|
SOLID DOOR (x) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
ACCESS OPENING -GxH- |
USEFUL DEPTH -D- |
MACHINABLE AREA |
PLATE DIMENSIONS -ExF- |
WEIGHT (Kg) |
VOLUME (m³) |
|
|
DOOR |
SIDE |
|||||||||
|
HDT166040 |
1650 |
600 |
400 |
1447×500 |
375,5 |
1424×487,8 |
1614,8×344 |
1520×490 |
70,9 |
0,42 |
|
HDT168040 |
1650 |
800 |
400 |
1447×700 |
375,5 |
1424×687,8 |
1614,8×344 |
1520×690 |
93,05 |
0,56 |
|
HDT161040 |
1650 |
1000 |
400 |
1447×900 |
375,5 |
1424×887,8 |
1614,8×344 |
1520×890 |
111,4 |
0,70 |
|
HDT186040 |
1800 |
600 |
400 |
1597×500 |
375,5 |
1574×487,8 |
1764,8×344 |
1670×490 |
76,61 |
0,46 |
|
HDT186050 |
1800 |
600 |
500 |
1597×500 |
475,5 |
1574×487,8 |
1766×444 |
1670×490 |
84,69 |
0,57 |
|
HDT188040 |
1800 |
800 |
400 |
1597×700 |
375,5 |
1574×687,8 |
1764,8×344 |
1670×690 |
100,76 |
0,61 |
|
HDT188050 |
1800 |
800 |
500 |
1597×700 |
475,5 |
1574×687,8 |
1766×444 |
1670×690 |
107,21 |
0,76 |
|
HDT181040 |
1800 |
1000 |
400 |
1597×900 |
375,5 |
1574×887,8 |
1764,8×344 |
1670×890 |
120,24 |
0,76 |
|
HDT181050 |
1800 |
1000 |
500 |
1597×900 |
475,5 |
1574×887,8 |
1766×444 |
1670×890 |
127,18 |
0,95 |
|
HDT206040 |
2000 |
600 |
400 |
1797×500 |
375,5 |
1774×487,8 |
1964,8×344 |
1870×490 |
84,68 |
0,51 |
|
HDT206050 |
2000 |
600 |
500 |
1797×500 |
475,5 |
1774×487,8 |
1966×444 |
1870×490 |
93,46 |
0,64 |
|
HDT208040 |
2000 |
800 |
400 |
1797×700 |
375,5 |
1774×687,8 |
1964,8×344 |
1870×690 |
118,13 |
0,68 |
|
HDT208050 |
2000 |
800 |
500 |
1797×700 |
475,5 |
1774×687,8 |
1966×444 |
1870×690 |
118,13 |
0,85 |
|
HDT201040 |
2000 |
1000 |
400 |
1797×900 |
375,5 |
1774×887,8 |
1964,8×344 |
1870×890 |
133,58 |
0,85 |
|
HDT201050 |
2000 |
1000 |
500 |
1797×900 |
475,5 |
1774×887,8 |
1966×444 |
1870×890 |
140 |
1,05 |
