Modular Distribution Compact Cabinets Tribeca IP66

TRIBECA SERIES

Stainless steel modular distribution compact cabinets Tribeca is very robust and compact enclosures made with high quality materials which can withstand high electrical and mechanical stress. Made in A304L stainless steel (polished) with a capacity up to 962 modules for differential placement and circuit breakers.

Modular Distribution Compact Cabinets Tribeca IP66 · Delvalle Box

This product has the following certificates

Description

The enclosure and its wide range of accessories are designed for an easy, intuitive, fast and safe installation, also allowing compositions of one or more bodies. The rows are standard at 150mm interval. Transparent polycarbonate door combines high impact resistance (250 times stronger than glass) with excellent fire resistance ( UL94) . UV protection and suitable for outdoor applications.

A compact design with a drainage channel, polyurethane gasket and concealed hinges guaranteeing protection and resistance. All enclosures are delivered with a protective film. Easy smooth opening with a swing handle and four locking points, easy to fix on the floor itself (a plinth at base is recommended). Tribeca series is also available in mild steel (painted).

Download all documents and certificates

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Discover the advantages

Perfect vision into the module
Easy mounting on DIN rail.
Supports up to 1000 A and allows a sealing to IP66 (on request and with blind doors).
Two options: blind door or transparent polycarbonate door. One or two easily removable revolving doors (120°).
Great range of width and depth dimensions to allow total flexibility in the structure link.
100 % steel, from the handle to the opening system.
Standard enclosures include a locking system with handle and four locking points, also concealed stainless-steel hinges.
Delvalle any size to order to suit your needs manufactures, including holes, channels, shape for both doors and/or walls.

Regulations

Blind door properties:
- IP66 (IP55 for 2 doors) according to IEC EN 62208 and EN 60529.
- IK10 resistance according to IEC 62208 and EN 50102.
- UL Nema 4x, 12, 3r, 1. File No. E342220

Transparent polycarbonate door properties:
- IP55 according to IEC EN 62208 and EN 60529.
- IK7 resistance according to IEC 62208 and EN 50102.
- Light transmission of 89% and UV ray protection.
- Fire resistance: UL94
- Fire rating: BS476 part 7, class IA (5 and 6 mm)

System enabling all compartiments to meet the EN 60439-1 ruling.
Manufactured following EU low voltage ruling 2014/35/UE.
Materials intended to come into contact with food EC 1935/2004.
Meets all regulations regarding installment in public places, according to EN 60695-2-11 standard.
Maximum voltage 1000 V.
RoHs compliant.
Working temperature between -30°C and +60°C.

Applications

Specially designed for all types of low-voltage switchboards, secondary or tertiary terminals and industrial environments. Also for residential, tertiary and industrial environments up to 1000A.

Ideal for environments where higher aesthetics, durability and superior cleaning than for painted enclosures or outdoor installations is needed.

Custom Made Solutions
We offer multiple solutions

Do you need solutions?

Delvalle Box has the solution

2021 product catalogues

Download Zone

• Made to measure based on your needs with a choice of two doors (from 1200mm width).
• Plinths at base.
• Castors.
• Metal legs.
• Transparent door with safety glass.
• Manufactured in stainless steel AISI 316L EN 14404.
• Mounting plate insulation (bakelite) or stainless steel.
• EMC version according to 2014/30/UE of electromagnetic compatibility.

Lighting for Electrical Enclosures

Delvalle compact luminaires are specially designed for use in electrical cabinets. We have low...

Security lock

Security lock for placement it in electrical cabinets.

Locks

Depending on the enclosure and its use, we look for the best closure suited to the customer’s...

Assembly Frame

Chassis modular cabinets. Used to divide the front of the cabinets into several sections for quick...

Thermal Insulation for Electrical Panels TermoTisa

Delvalle I+D deparment has specially designed the insulating TermoTisa X100, in 15mm polyurethane...

Cable Entry Cover

Ideal accessory supplement, removable to make holes comfortably to suit your needs, and fitted so...

Clear Glass Door

All our cabinets are available with transparent exterior and interior doors for perfect vision of...

Roofs for Outdoor

In Delvalle we offer the possibility to ask for self-ventilated roofs....

Mounting Plates

Different mounting plates for multiple uses in electrical cabinets Delvalle.

Levelling Feet and Wheels

For enclosures that need to be leveled or have to be moved regularly.

Support Rails

Support rails used to incorporate cabinets with scroll ball.

Data Pocket

Useful to keep electrical drawings, maintenance records, etc.....

Transportation Angle

The transportation angles add strength in handling loading and unloading of the cabinets.

Switchboard Graffiti-Proof Paint

In Delvalle all cabinets may suminstrarse with a protective transparent anti-graffiti paint and...

Anti-Insect System

We know the problem for the placement of cooling systems posed by the entry of insects inside the...

Perforated Mounting Plate

Perforated plates for quick installation of electrical components.

Stainless Steel Ventilation Plugs IP68

Stainless steel ventilation plugs IP68 reduce the adverse effects of humidity in the environment...

Shock Absorbers for Electrical Enclosures

With the shock absorbers we get a better grip on the doors, and we define the opening angle of the...

Separating Plate

Fixed directly to the cabinet structure, to get separation as well as being a shelf for objects.

Pivot Frame

The ideal solution for the placement of all instrumentation, with easy and comfortable access from...

Ventilation Brackets

Placed both in the front enclosure and on the side, allowing a perfect flow of air inside.

Eyebolt

Galvanized in sizes M12 to M20....

DIN tray

Directly fixed to the structure. Galvanized 1.5 mm thick steel. Dimensions: 35mm by 7.5 or 5mm.

Safety Lock

Typically used in enclosures with temporary changes of user. You can also use the padlock seal,...

Set With Inner Door

Interior door designed for direct placement in the enclosure.

Open Door Security Device

This device prevents accidents, alerts the operator that the electrical system is functioning...

Designs / Doors

The possibility of placing a double door in the cabinet is given to meet the customer’s need to...

Limit Switches for Electrical Enclousure

Limit switches provided with support and fixings for direct fixing....

Reinforcing Frame

Using a reinforced frame in our enclosure gives us more confidence and consistency, especially in...

Sliding Cable Covers

These caps allow cable entry between them.

Cross Cable Guide

With this guide inside the door we get a perfectly ordered wiring. Ideal for the passage of...

Protection Frame Window

It is used to provide maximum viewing capacity of the indication elements and protection of the...

Outdoor Air Conditioner Electrical Enclosures Tropic

The largest range of IP54 air conditioners electrical enclosures refrigerators in the market, air...

Roof fan

Roof Fan, specially designed for extracting heat from the top of the cabinet, for achieving...

Waterproof Seal

Injected waterproof seal UL, TÜV, CE certified. ...

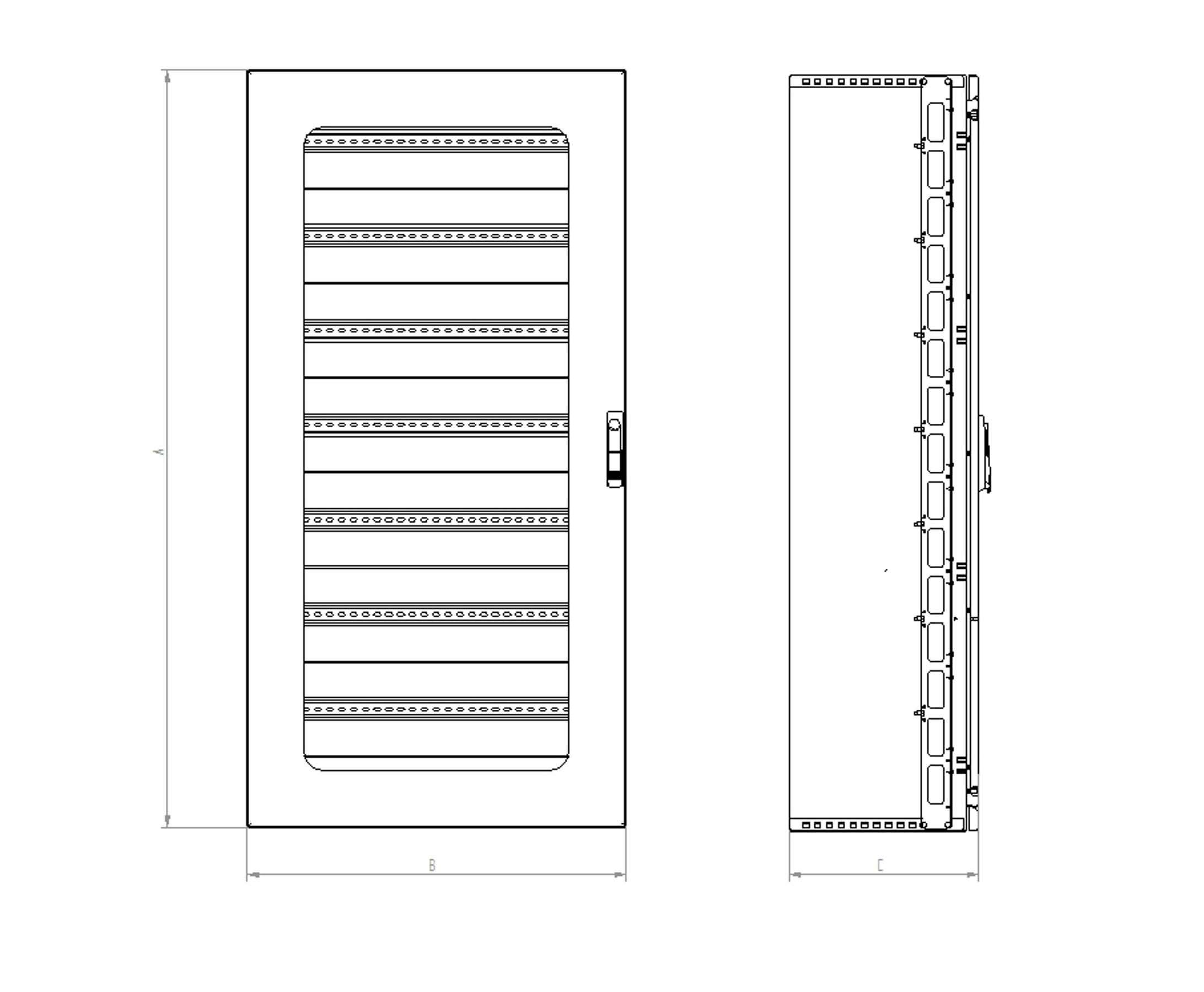

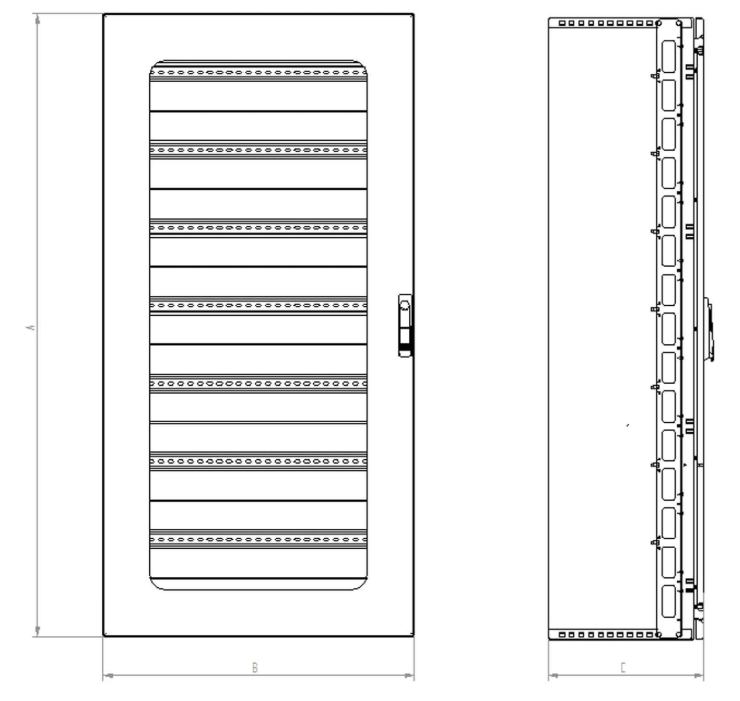

Sketches

References

Show References

Reference	Description	High	Width	Background
MVAC166040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO SERIE TRIBECA	1650	600	400	MVAC166040Q
MVAC168040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO SERIE TRIBECA	1650	800	400	MVAC168040Q
MVAC161040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO SERIE TRIBECA	1650	1000	400	MVAC161040Q
MVAC161240Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO DOBLE PUERTA SERIE TRIBECA	1650	1200	400	MVAC161240Q
MVAC186040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO SERIE TRIBECA	1800	600	400	MVAC186040Q
MVAC188040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO SERIE TRIBECA	1800	800	400	MVAC188040Q
MVAC188050Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO SERIE TRIBECA	1800	800	500	MVAC188050Q
MVAC181040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO SERIE TRIBECA	1800	1000	400	MVAC181040Q
MVAC181050Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO SERIE TRIBECA	1800	1000	500	MVAC181050Q
MVAC181240Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO DOBLE PUERTA SERIE TRIBECA	1800	1200	400	MVAC181240Q
MVAC181250Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO DOBLE PUERTA SERIE TRIBECA	1800	1200	500	MVAC181250Q
MVAC206040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO SERIE TRIBECA	2000	600	400	MVAC206040Q
MVAC208040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO SERIE TRIBECA	2000	800	400	MVAC208040Q
MVAC208050Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO SERIE TRIBECA	2000	800	500	MVAC208050Q
MVAC201040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO SERIE TRIBECA	2000	1000	400	MVAC201040Q
MVAC201050Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO SERIE TRIBECA	2000	1000	500	MVAC201050Q
MVAC201240Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO DOBLE PUERTA SERIE TRIBECA	2000	1200	400	MVAC201240Q
MVAC201250Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO DOBLE PUERTA SERIE TRIBECA	2000	1200	500	MVAC201250Q
MVAC201440Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO DOBLE PUERTA SERIE TRIBECA	2000	1400	400	MVAC201440Q
MVAC201450Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO DOBLE PUERTA SERIE TRIBECA	2000	1400	500	MVAC201450Q
MVAC201640Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO DOBLE PUERTA SERIE TRIBECA	2000	1600	400	MVAC201640Q
MVACT201650Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO DOBLE PUERTA SERIE TRIBECA	2000	1600	400	MVACT201650Q
MVACT166040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	1650	600	400	MVACT166040Q
MVACT168040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	1650	800	400	MVACT168040Q
MVACT161040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	1650	1000	400	MVACT161040Q
MVACT161240Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	1650	1200	400	MVACT161240Q
MVACT186040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	1800	600	400	MVACT186040Q
MVACT188040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	1800	800	400	MVACT188040Q
MVACT188050Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	1800	800	500	MVACT188050Q
MVACT181040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	1800	1000	400	MVACT181040Q
MVACT188050Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	1800	800	500	MVACT188050Q
MVACT181050Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	1800	1000	500	MVACT181050Q
MVACT181240Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	1800	1200	400	MVACT181240Q
MVACT181250Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	1800	1200	500	MVACT181250Q
MVACT206040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	600	400	MVACT206040Q
MVACT208040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	800	400	MVACT208040Q
MVACT208040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	800	400	MVACT208040Q
MVACT208050Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	800	500	MVACT208050Q
MVACT208050Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	800	500	MVACT208050Q
MVACT208050Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	800	500	MVACT208050Q
MVACT201040Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	1000	400	MVACT201040Q
MVACT201050Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	1000	500	MVACT201050Q
MVACT201240Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	1200	400	MVACT201240Q
MVACT201240Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	1200	400	MVACT201240Q
MVACT201250Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	1200	500	MVACT201250Q
MVACT201440Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	1400	400	MVACT201440Q
MVACT201450Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	1400	500	MVACT201450Q
MVACT201640Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	1600	400	MVACT201640Q
MVACT201650Q	ARMARIO DE DISTRIBUCIÓN INOXIDABLE COMPACTO PTA POLICARBONATO SERIE TRIBECA	2000	1600	500	MVACT201650Q
