Modular distribution compact cabinets tribeca IP66

SERIE TRIBECA IP66

Stainless steel modular distribution compact cabinets Tribeca is very robust and compact enclosures made with high quality materials which can withstand high electrical and mechanical stress. Made in A304L stainless steel (polished) with a capacity up to 962 modules for differential placement and circuit breakers.

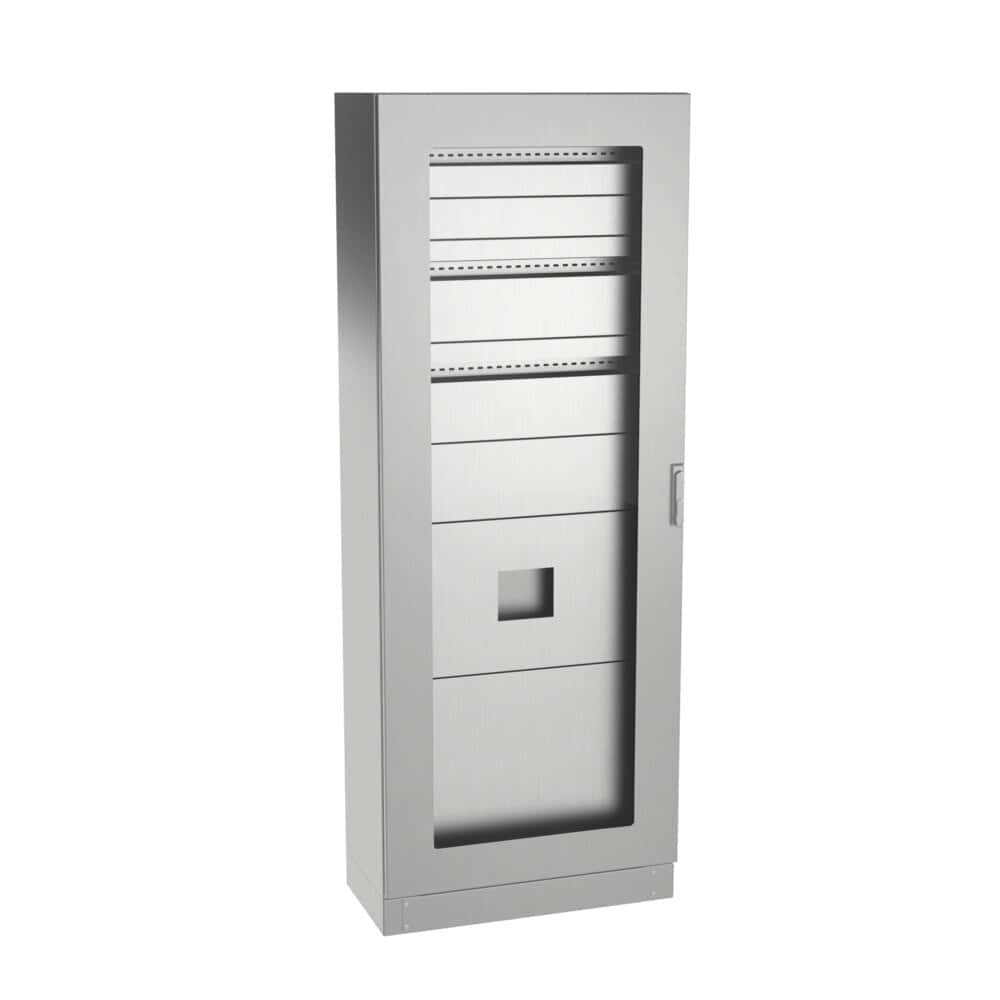

Modular distribution compact cabinets tribeca IP66: main view of the product

TECHNICAL DATA

Minimum Measurements	A=1650-2000mm B=600-1000mm P=400-500mm
Maximum Double Door Measurements	A=2000mm B=1600mm P=500mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Door with polycarbonate panel, Door with safety glass
Opening Type	Swivel with concealed hinges
Closing System	Rotary handle
Useful Depth	370-470 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035, 2B
Alternative Door	Blind door
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate, Galvanized mounting plate
Alternative Gaskets	silicone (-60°C to +180°C), EMC

Made to measure according to your need with the possibility of two doors (starting from 1200 mm wide)

Kickboards

Metal legs for cabinets

In stainless steel AISI 316L EN 14404

EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard

Wide view of internal modules

Easy DIN rail mounting

Withstand up to 1000 A and are watertight up to IP66 (on request and with blind door).

Two options: blind or transparent polycarbonate door. One or two 120° revolving doors, easily removable.

Wide range of width and depth dimensions to allow total flexibility in the linking of structures

The electrical panel comes standard with a four-point lever lock and concealed hinges made of stainless steel.

Delvalle makes to order any size to suit your needs, including holes, shaped channels, both in the door and in the enclosure.

Specially designed for all types of general, secondary, or terminal low-voltage distribution boards in tertiary or industrial environments

Environments requiring superior aesthetics, durability, and cleanliness in painted cabinets or outdoor installations

blind door

transparent polycarbonate door

EN 60439-1

CE regulation 1935/2004 and RoHS directive compliance

EN 60695-2-11

Voltage withstand capacity of cabinets

REFERENCES 1 DOOR	DIMENSIONS AND MODULES
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ROWS	MODULES PER ROW	TOTAL MODULES
MVAF1260400	1200	600	400	7	22	154
MVAF1260600	1200	600	600	7	22	154
MVAF1280400	1200	800	400	7	33	231
MVAF1280600	1200	800	600	7	33	231
MVAF1280800	1200	800	800	7	33	231
MVAF1460400	1400	600	400	8	22	176
MVAF1460600	1400	600	600	8	22	176
MVAF1460800	1400	600	800	8	22	176
MVAF1480400	1400	800	400	8	33	264
MVAF1480600	1400	800	600	8	33	264
MVAF1480800	1400	800	800	8	33	264
MVAF1660400	1600	600	400	9	22	198
MVAF1660600	1600	600	600	9	22	198
MVAF1660800	1600	600	800	9	22	198
MVAF1680400	1600	800	400	9	33	297
MVAF1680600	1600	800	600	9	33	297
MVAF1680800	1600	800	800	9	33	297
MVAF1860400	1800	600	400	11	22	242
MVAF1860500	1800	600	500	11	22	242
MVAF1860600	1800	600	600	11	22	242
MVAF1860800	1800	600	800	11	22	242
MVAF1880400	1800	800	400	11	33	363
MVAF1880500	1800	800	500	11	33	363
MVAF1880600	1800	800	600	11	33	363
MVAF1880800	1800	800	800	11	33	363
MVAF1810400	1800	1000	400	11	44	484
MVAF1810500	1800	1000	500	11	44	484
MVAF1810600	1800	1000	600	11	44	484
MVAF1812400	1800	1200	400	11	55	605
MVAF1812500	1800	1200	500	11	55	605
MVAF1812600	1800	1200	600	11	55	605
MVAF2060400	2000	600	400	12	22	264
MVAF2060500	2000	600	500	12	22	264
MVAF2060600	2000	600	600	12	22	264
MVAF2060800	2000	600	800	12	22	264
MVAF2080400	2000	800	400	12	33	396
MVAF2080500	2000	800	500	12	33	396
MVAF2080600	2000	800	600	12	33	396
MVAF2080800	2000	800	800	12	33	396
MVAF2010400	2000	1000	400	12	44	528
MVAF2010500	2000	1000	500	12	44	528
MVAF2010600	2000	1000	600	12	44	528
MVAF2010800	2000	1000	800	12	44	528
MVAF2260600	2200	600	600	13	22	286
MVAF2260800	2200	600	800	13	22	286
MVAF2280600	2200	800	600	13	33	429
MVAF2280800	2200	800	800	13	33	429
MVAF2210600	2200	1000	600	13	44	572
MVAF2210800	2200	1000	800	13	44	572
Version: UL Standard Nema 4x, 12, 3r and 1	Add "UL" to the reference.
Version: IP67	Add "67" to the reference.
Version: IP69K	Add "/69" to the reference.

* Titan modular distribution cabinet design IP66 Backplate separation 20mm

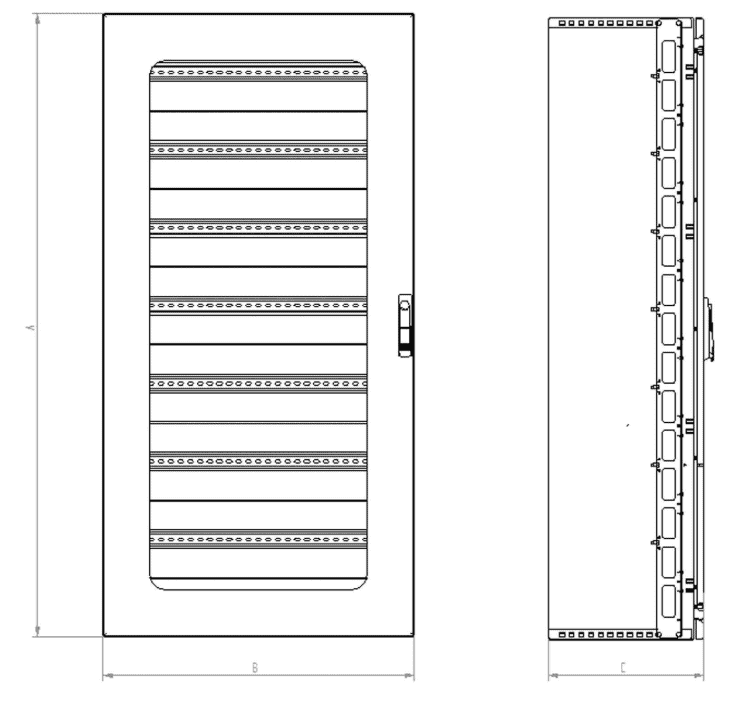

Croquis:
