Electrical Enclosure Hygienic Tribeca IP69K

HYGIENIC SERIES

Electrical Hygienic Design Tribeca Series IP69K enclosure with a large capacity, specially designed for the food industry.
No openings, hinges, where bacteria could lie. Easy opening by rotating handle and four point lock, easy placement on the floor, flexible, maximum working width.
Moreover the inclination of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.

Download Product
Electrical Enclosure Hygienic Tribeca IP69K · Delvalle BoxDelvalle Box
Electrical Enclosure Hygienic Tribeca IP69K · Delvalle BoxDelvalle Box
Electrical Enclosure Hygienic Tribeca IP69K · Delvalle BoxDelvalle Box

Description

Electrical Hygienic Design Tribeca Series IP69K enclosure with a large capacity, specially designed for the food industry.
No openings, hinges, where bacteria could lie. Easy opening by rotating handle and four point lock, easy placement on the floor, flexible, maximum working width.
Moreover the inclination of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.

Achieve all the safety and security you need

  • Logo CE · Delvalle Box
    CE
  • Logo IK10 · Delvalle Box
    IK10
  • Logo IP69K · Delvalle Box
    IP69K
  • Logo ROHS · Delvalle Box
    ROHS
  • Logo 10 year anti-corrosion · Delvalle Box
    10 year anti-corrosion
  • Logo 5 year mechanical parts · Delvalle Box
    5 year mechanical parts
  • Logo Chemical resistant · Delvalle Box
    Chemical resistant
  • Logo Corrosion resistant · Delvalle Box
    Corrosion resistant
  • Logo Scrach resistant · Delvalle Box
    Scrach resistant
  • Logo Temperature resistant · Delvalle Box
    Temperature resistant
  • Logo Waterproof · Delvalle Box
    Waterproof

Discover the advantages

Supplied wrapped in protective film which prevents scratches and abrasions during handling.
Resistant seal to temperatures from -60°C up to +200°C.
The monobloc manufacture gives total sealing and maximum resistance.
No openings where bacteria could lie.
With electro-polished finish that helps to slide the liquid and waterproof seal that prevents dirt and bacteria deposits.
100% stainless steel from handle to opening system. 120º door opening. Standard opening to the left.
Specify if you need opening to the right.
Standard electrical panel and handle lock with four locking points and concealed stainless steel hinges.
Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.
Distribuited load 600 Kg.
Captives screws.

Regulations

  • IP66 (IP55 two doors) by request.     Norm IEC 60529.
  • DIN 40050-9 - IP69K extend IEC 60529.
  • Maximum IK10 resistance Norm IEC 62262.
  • EC 1935/2004 rule compliant for materials intended to come into contact with food.
  • DIN EN ISO 14159 Machine safety –Hygienic requirements pertaining to the design of machinery.
  • Machinery Directive 2006/42/EC (previously 89/37/EC) Food machinery and cosmetic or pharmaceutic production.
  • EHEDG Guideline Hygienic Design doc.13 machinery for open processes.
  • DIN EN 1672-2-2005 for food industry machinery.
  • Manufactured following EU low voltage ruling 2006/95/CE.
  • Compliant RoHS Directive.
  • UL approval Nema 4x, 12, 3r, 1. Nº File E342220.
  • Maximum voltage 1000 V.
  • Temperature resistant: -40°C +100°C (short time +160°C).
  • Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Especially designed for the food industry and sterile rooms, wineries, dairies and take away food outlets or any other place where cleanliness is essential as well as total absence of dust, dirt and bacteria.

Custom Made Solutions
We offer multiple solutions

Electrical Enclosure Hygienic Tribeca IP69K · Delvalle Box
Do you need solutions?
Delvalle Box has the solution
2019 product catalogues
Download Zone
  • Custom made based on your needs.
  • With a choice of two doors (from 1200 mm width).
  • Plinths at base.
  • Castors.
  • Metal legs.
  • Clear polycarbonate door or transparent safety glass door (no IP69K).
  • Manufactured in stainless steel AISI 316L. EN 14404.
  • Mounting plate insulator (bakelite) or stainless steel.
  • We have hygienic glands on request.
  • Option painted galvanized steel finish in RAL 7035 or another color.
Customize this product with the following components:
Metric Polyamide Cable Glands IP68 · Delvalle BoxDelvalle Box

Metric Polyamide Cable Glands IP68

Metric polyamide PA66 cable glands IP68 are suitable for the passage, compression and wire binding...
PG Polyamide Cable Glands IP68 · Delvalle BoxDelvalle Box

PG Polyamide Cable Glands IP68

PG polyamide PA66 cable glands IP68 are suitable for the passage, compression and wire binding...
Metric Stainless Steel Cable Glands AISI316L · Delvalle BoxDelvalle Box

Metric Stainless Steel Cable Glands AISI316L

Metric stainless steel cable glands stainless steel AISI 304 and AISI 316 IP68, are suitable for...
Metric Stainless Steel Cable Glands IP68 · Delvalle BoxDelvalle Box

Metric Stainless Steel Cable Glands IP68

Metric stainless steel cable glands IP68 are made of stainless steel AISI 304 and AISI 316, are...
Metric Nickel Plated Cable Glands IP68 · Delvalle BoxDelvalle Box

Metric Nickel Plated Cable Glands IP68

Metric nickel plated cable glands IP68 are suitable for the passage, compression and wire binding...
Metric Cable Glands Hygienic IP69K · Delvalle BoxDelvalle Box

Metric Cable Glands Hygienic IP69K

Hygienic glands IP69K are fit for passing, pressing and fixing cables between two compartments such...
Metric Cable Glands IP69K · Delvalle BoxDelvalle Box

Metric Cable Glands IP69K

Metric stainless steel cable glands stainless steel AISI 304, AISI 316 or nickel plated IP69K, are...
Electrical Enclosure Hygienic Tribeca IP69K · Delvalle Box

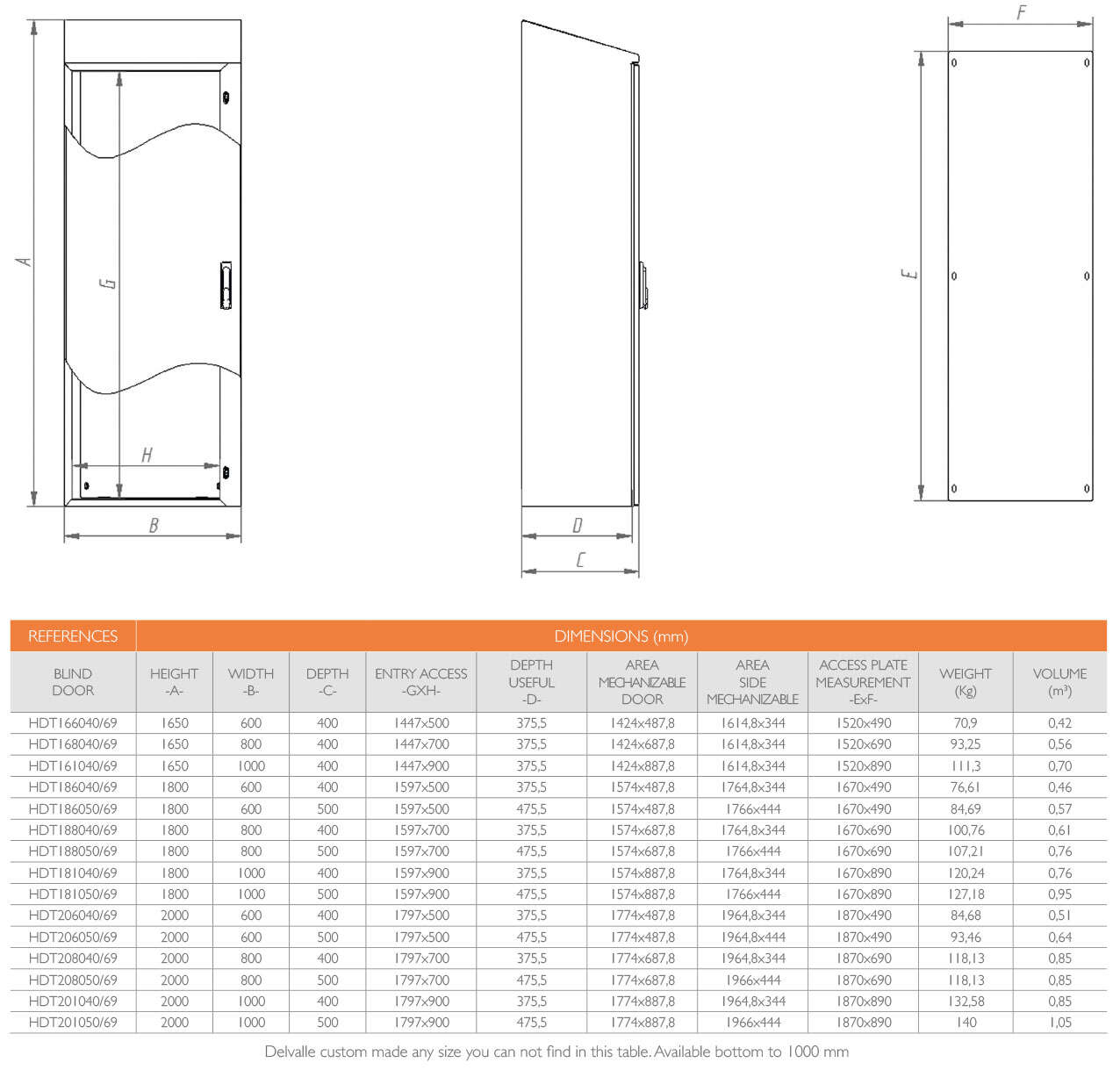

Sketches
