Hygienic design tribeca

Hygienic Design Floor Stand enclosures, Tribeca Series IP6K9K blue silicone gasked UL certified with a large capacity, specially designed for the food processing industry.

No openings, hinges, where bacteria could lie. Easy opening by rotating handle and four point lock, easy placement on the floor, flexible, maximum working width.

European standard 13 EHEDG Certified.

Moreover the inclination of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.

UL type Nema 4x Certified

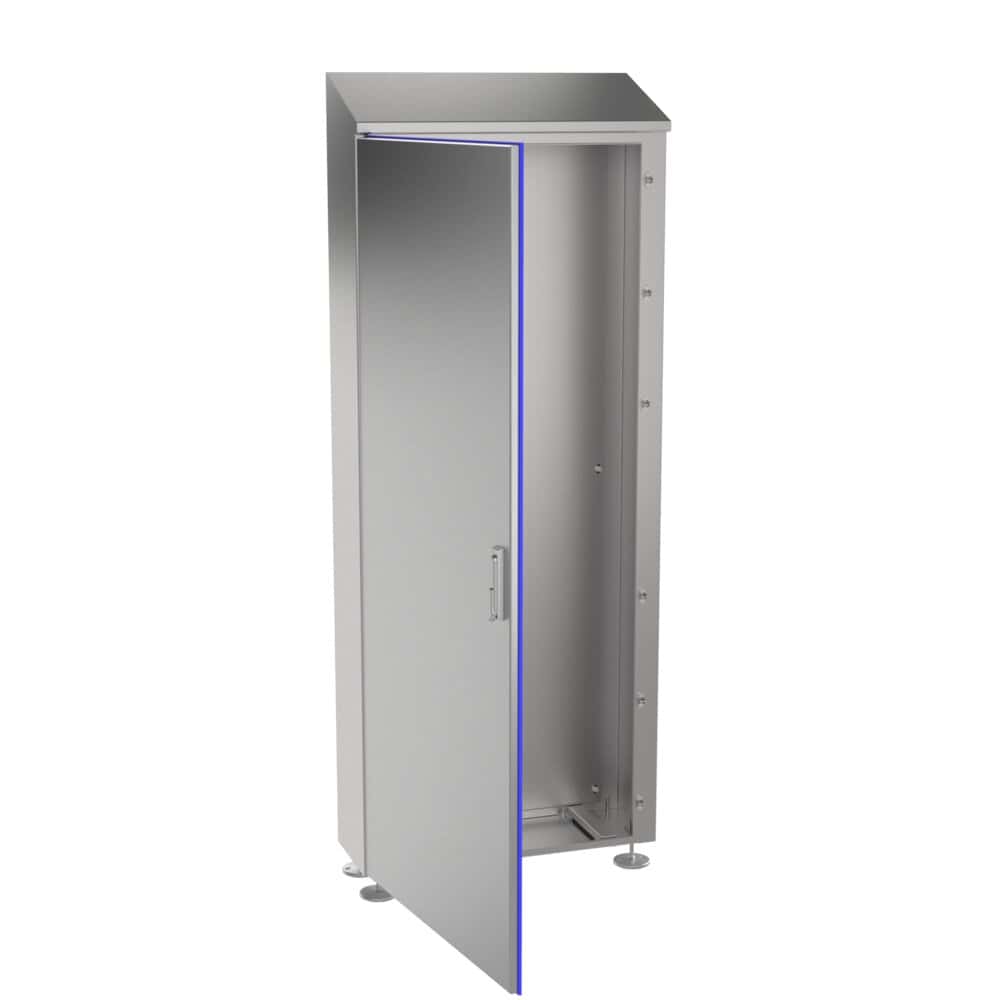

Hygienic design tribeca: main view of the product

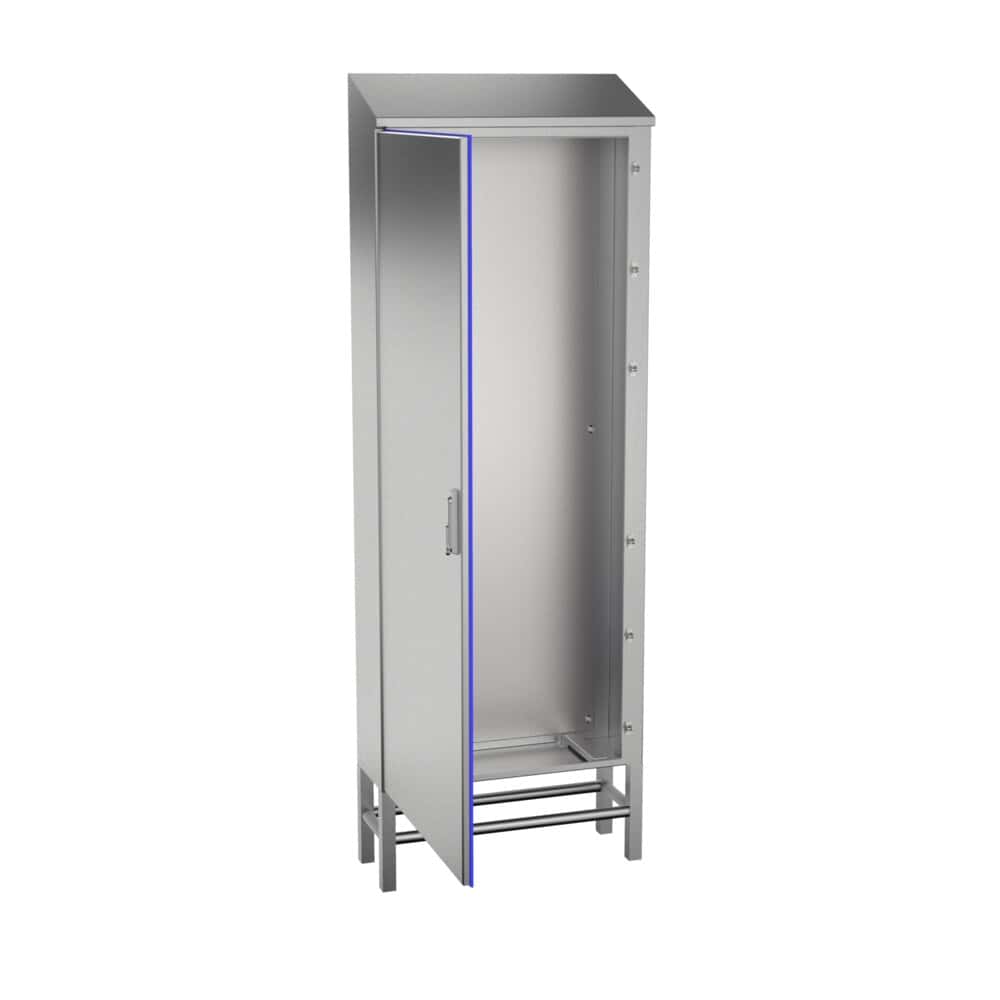

Hygienic design tribeca: detail view of the product

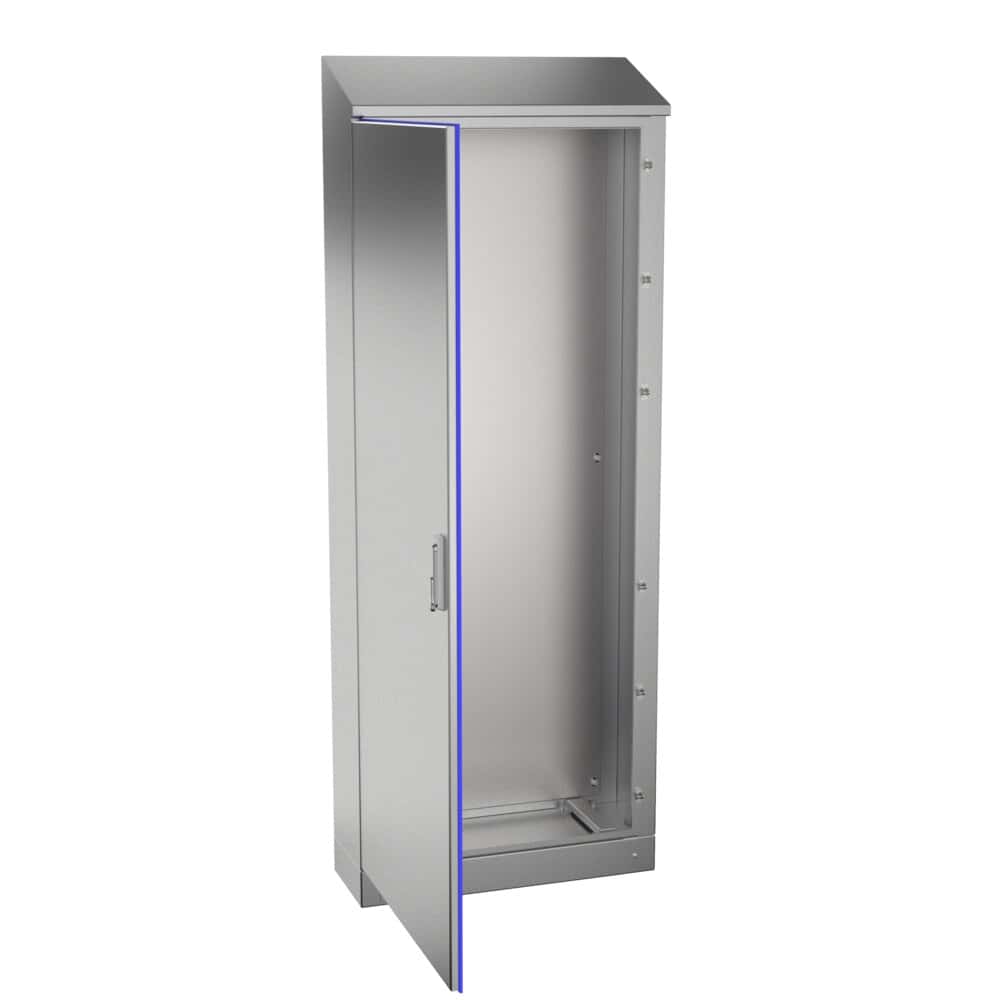

Hygienic design tribeca: additional view of the product

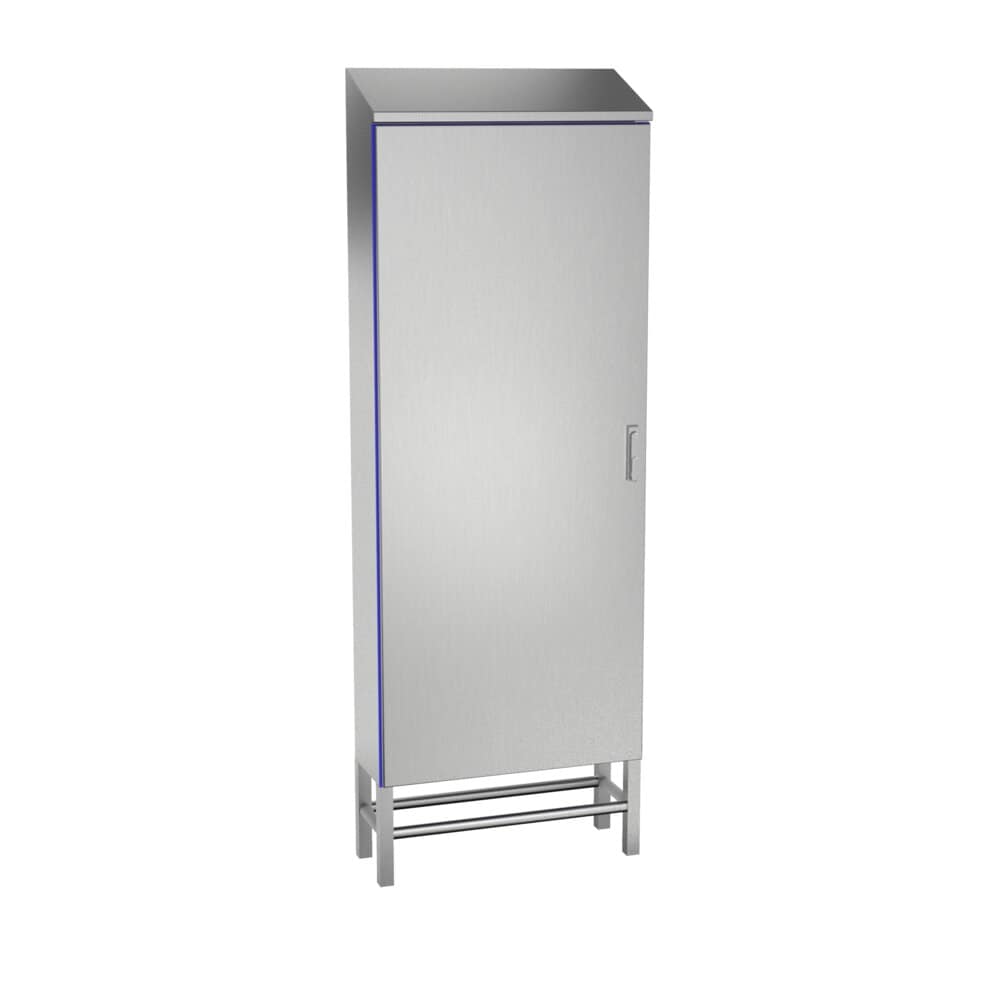

Hygienic design tribeca: side view of the product

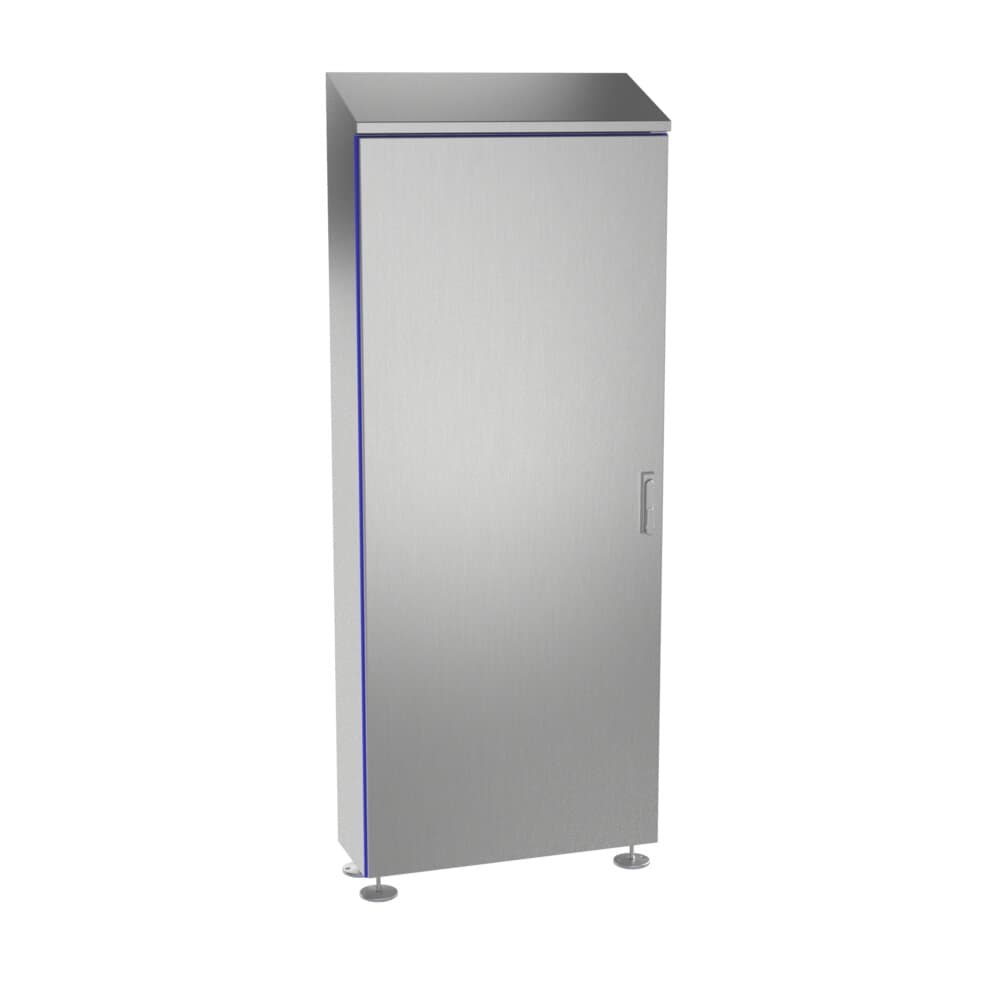

Hygienic design tribeca: rear view of the product

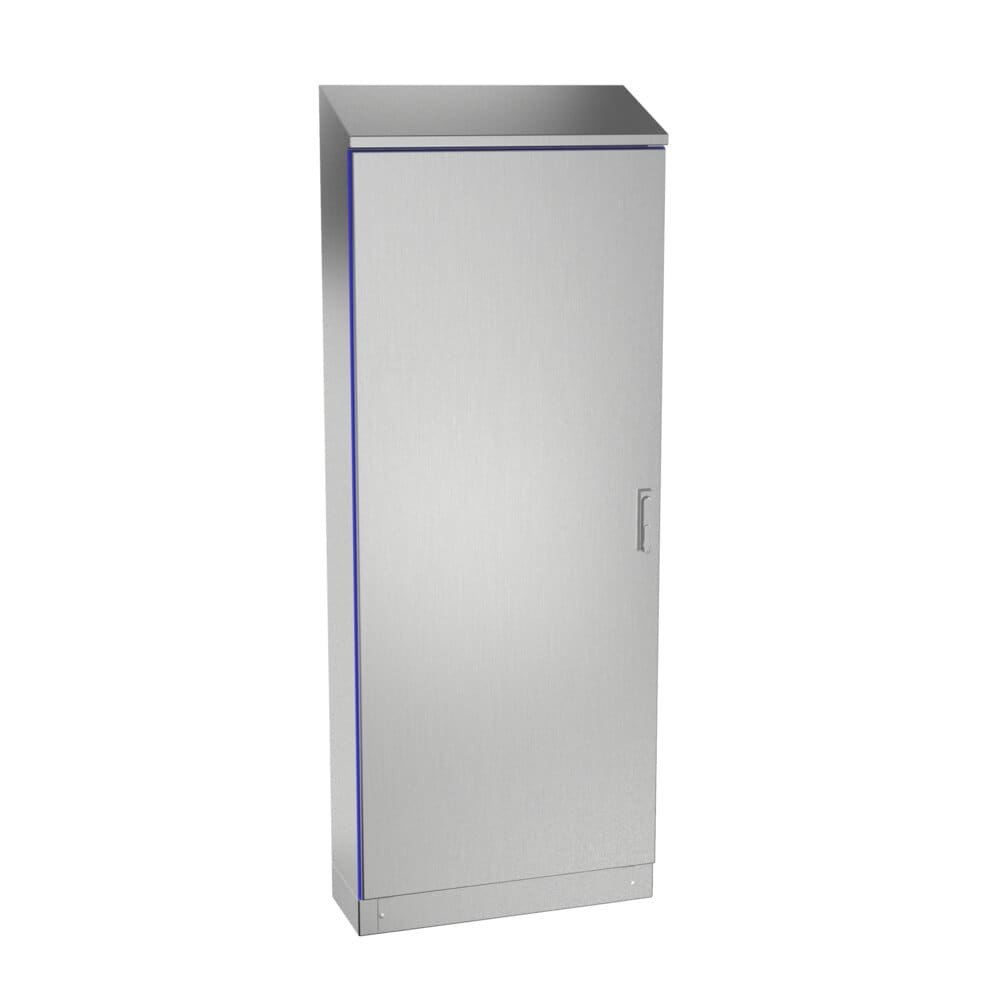

Hygienic design tribeca: alternative configuration of the product

TECHNICAL DATA

Minimum Measurements	A=1650-2000mm B=600-1000mm P=400-500mm
Maximum Double Door Measurements	A=2000mm B=2000mm P=500mm
Minimum Plate Measurements	A=1520-1870mm
Minimum Plate Measurements	B=490-890mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Cierres Hygienic
Useful Depth	375,5-475,5 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Silicone
Working Temperature	-60°C a +180°C (reducida exposición hasta +350°C)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Door	Door with polycarbonate panel, Door with safety glass
Interior Plate Material	Stainless steel mounting plate, Galvanized mounting plate
Machinable Area	Puerta: 1424x487,8-1774x887,8, Lateral: 1520x490-1870x890

IP69K extends IEC 60529

Made to Measure According to Your Needs

Baseboards, Eye Bolts, and Metal Legs

In stainless steel AISI 316L EN 14404

Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand

protective film

Silicone gasket resistant to temperatures -60ºC to +200ºC

Monobloc construction that achieves perfect sealing and impact resistance

No openings where bacteria can lodge

Electro-polished finish helps liquids to slide off and a water-repellent seal prevents dirt and bacteria deposits

100% stainless, from the handle to the opening system

Door opening at 120°. Standard opening to the left, specify if desired to the right

The electrical panel comes standard with a four-point lever lock and concealed hinges made of stainless steel.

Delvalle can make to order any size to suit your needs, including holes, channels, shapes,...

Maximum distributed load 600 kg

Pressure Hot Water Resistant IP69K

Specially designed and certified for the food, chemical, pharmaceutical industries, transformation centers, telecommunications, and outdoor use due to its durability advantages

IEC 60529 Standard

DIN EN ISO 14159

European Directive 2006/42/EC

DIN EN 1672-2:2005

IK10 protection rating according to IEC 62262 standard

Cabinets Material Compliance

European Directive 2014/35/EU on low voltage

RoHS directive compliance

UL NEMA 4X, 12, 3R, and 1 standards

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

1-DOOR REFERENCES	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	MACHINING AREA		PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	DOOR	SIDE	PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
HDT166040	1650	600	400	1447×500	375.5	1424×487.8	1614.8×344	1520×490	70.9	0.42
HDT167040	1650	700	400	1447×600	375.5	1424×587.8	1614.8×344	1520×590	82.7	0.49
HDT168040	1650	800	400	1447×700	375.5	1424×687.8	1614.8×344	1520×690	94.5	0.56
HDT161040	1650	1000	400	1447×900	375.5	1424×887.8	1614.8×344	1520×890	111.41	0.66
HDT161050	1650	1000	500	1447×900	475.5	1424×887.8	1766×444	1520×890	–	–
HDT186040	1800	600	400	1597×500	375.5	1574×487.8	1764.8×344	1670×490	77.65	0.46
HDT187040	1800	700	400	1597×600	375.5	1574×587.8	1764.8×344	1670×590	91.12	–
HDT188040	1800	800	400	1597×700	375.5	1574×687.8	1764.8×344	1670×690	102.97	0.81
HDT181040	1800	1000	400	1597×900	375.5	1574×887.8	1764.8×344	1670×890	126.6	0.75
HDT181050	1800	1000	500	1597×900	475.5	1574×887.8	1966×444	1870×890	130.68	0.93
HDT206040	2000	600	400	1797×500	375.5	1774×487.8	1964.8×344	1870×490	86.09	0.51
HDT207040	2000	700	400	1797×600	375.5	1774×587.8	1964.8×344	1870×590	94.13	0.59
HDT208040	2000	800	400	1797×700	375.5	1774×687.8	1964.8×344	1870×690	103.10	0.67
HDT201040	2000	1000	400	1797×900	375.5	1774×887.8	1964.8×344	1870×890	117.58	0.83
HDT201050	2000	1000	500	1797×900	475.5	1774×887.8	1966×444	1870×890	140	1.03

2-DOOR REFERENCES	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	MACHINING AREA		PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	DOOR	SIDE	PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
HDT161240/2	1650	1200	400	1447×500	375.5	1424×487.8	1614.8×344	1520×490	123.1	0.84
HDT161440/2	1650	1400	400	1447×600	375.5	1424×587.8	1614.8×344	1520×590	146.4	0.98
HDT161640/2	1650	1600	400	1447×700	375.5	1424×687.8	1614.8×344	1520×690	170.7	1.2
HDT162040/2	1650	2000	400	1447×900	375.5	1424×887.8	1614.8×344	1520×890	201.62	1.25
HDT162050/2	1650	2000	500	1447×900	475.5	1424×887.8	1766×444	1520×890	217.35	1.49
HDT181240/2	1800	1200	400	1597×500	375.5	1574×487.8	1764.8×344	1670×490	136.8	0.93
HDT181440/2	1800	1400	400	1597×500	375.5	1574×587.8	1764.8×344	1670×590	161.54	1.01
HDT181640/2	1800	1600	400	1597×700	375.5	1574×687.8	1764.8×344	1670×690	184.54	–
HDT182040/2	1800	2000	400	1597×900	375.5	1574×887.8	1764.8×344	1670×890	231.91	1.52
HDT182050/2	1800	2000	500	1597×900	475.5	1574×887.8	1966×444	1870×890	239.26	1.86
HDT201240/2	2000	1200	400	1797×500	375.5	1774×487.8	1964.8×344	1870×490	151.78	1.12
HDT201440/2	2000	1400	400	1797×600	375.5	1774×587.8	1964.8×344	1870×590	166.67	1.19
HDT201640/2	2000	1600	400	1797×700	375.5	1774×687.8	1964.8×344	1870×690	184.51	1.31
HDT202040/2	2000	2000	400	1797×900	375.5	1774×887.8	1964.8×344	1870×890	212.67	1.61
HDT202050/2	2000	2000	500	1797×900	475.5	1774×887.8	1966×444	1870×890	296.9	2.05
