Enclosure Hygienic Tribeca IP66

HYGIENIC SERIES

Electrical Hygienic Design enclosure Tribeca with a large capacity, specially designed for the food industry. No openings, hinges, where bacter ia could lie. Easy opening by rotating handle and four point lock, easy placement on the floor, flexible, maximum working width.

Enclosure Hygienic Tribeca IP66 · Delvalle BoxDelvalle Box
Enclosure Hygienic Tribeca IP66 · Delvalle BoxDelvalle Box
Enclosure Hygienic Tribeca IP66 · Delvalle BoxDelvalle Box

This product has the following certificates

  • Logo IK10 · Delvalle Box
  • Logo IP55 · Delvalle Box
  • Logo IP65 · Delvalle Box
  • Logo IP66 · Delvalle Box
  • Logo ROHS · Delvalle Box
  • Logo UL NEMA 4X · Delvalle Box

Description

Electrical Hygienic Tribeca Series enclosure with a large capacity, made of stainless steel AISI 304L o AISI316L specially designed for the food industry. No openings, hinges, where bacteria could lie. Easy opening by rotating handle and four point lock, easy placement on the floor, flexible, maximum working width.

Moreover the inclination of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface .

Discover the advantages

Supplied wrapped in protective film which prevents scratches and abrasions during handling.
Resistant seal to temperatures from -60°C up to +200°C.
The monobloc manufacture gives total sealing and maximum resistance.
No openings where bacteria could lie.
With electro-polished finish that helps to slide the liquid and waterproof seal that prevents dirt and bacteria deposits.
100% stainless steel from handle to opening system. 120º door opening. Standard opening to the left.
Specify if you need opening to the right.
Standard electrical panel and handle lock with four locking points and concealed stainless steel hinges.
Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.
Distribuited load 600 Kg.
Captives screws.

Regulations

  • IP66 (IP55 two doors) by request. Norm IEC 60529.
  • DIN 40050-9² - IP69K.
  • Maximum IK10 resistance Norm IEC 62262.
  • EC 1935/2004 rule compliant for materials intended to come into contact with food.
  • DIN EN ISO 14159 Machine safety –Hygienic requirements pertaining to the design of machinery.
  • Machinery Directive 2006/42/EC (previously 89/37/EC) Food machinery and cosmetic or pharmaceutic production.
  • EHEDG Guideline Hygienic Design doc.13 machinery for open processes.
  • DIN EN 1672-2:2006 for food industry machinery.
  • Manufactured following EU low voltage ruling 2014/35/UE.
  • Compliant RoHS Directive.
  • UL approval Nema 4x, 12, 3r, 1. Nº File E342220.
  • Maximum voltage 1000 V.
  • Temperature resistant: -40°C +100°C (short time +160°C).
  • Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Especially designed for the food industry y and sterile rooms, wineries, dairies and take away food outlets or any other place where cleanliness is essential as well as total absence of dust, dirt and bacteria.

Custom Made Solutions
We offer multiple solutions

Enclosure Hygienic Tribeca IP66 · Delvalle Box
Do you need solutions?
2021 product catalogues
  • IP69K protection.
  • Option painted galvanized steel finish in RAL 7035 or another color.
  • Custom made based on your needs.
  • With a choice of two doors (from 1200 mm width).
  • Plinths at base.
  • Castors.
  • Metal legs.
  • Clear polycarbonate door or tansparent safety glass door (no IP69K).
  • Manufactured in stainless steel AISI 316L. EN 14404.
  • Mounting plate insulator (bakelite) or stainless steel.
  • We have hygienic glands on request.
Customers also bought:
Lighting for Electrical Enclosures · Delvalle BoxDelvalle Box
Delvalle compact luminaires are specially designed for use in electrical cabinets. We have low...
Security lock · Delvalle BoxDelvalle Box
Security lock for placement it in electrical cabinets.
Locks · Delvalle BoxDelvalle Box
Depending on the enclosure and its use, we look for the best closure suited to the customer’s...
Assembly Frame · Delvalle BoxDelvalle Box
Chassis modular cabinets. Used to divide the front of the cabinets into several sections for quick...
Thermal Insulation for Electrical Panels TermoTisa · Delvalle Box
Delvalle I+D deparment has specially designed the insulating TermoTisa X100, in 15mm polyurethane...
Cable Entry Cover · Delvalle BoxDelvalle Box
Ideal accessory supplement, removable to make holes comfortably to suit your needs, and fitted so...
Clear Glass Door · Delvalle BoxDelvalle Box
All our cabinets are available with transparent exterior and interior doors for perfect vision of...
Roof for Electrical Enclosures · Delvalle BoxDelvalle Box
In Delvalle we offer the possibility to ask for self-ventilated roofs....
Mounting Plates · Delvalle BoxDelvalle Box
Different mounting plates for multiple uses in electrical cabinets Delvalle.
Support Rails · Delvalle BoxDelvalle Box
Support rails used to incorporate cabinets with scroll ball.
Data Pocket · Delvalle BoxDelvalle Box
Useful to keep electrical drawings, maintenance records, etc.....
Sockets · Delvalle BoxDelvalle Box
Stainless steel plinthbase 100 and 200 mm high. Allows cabinet to be raised and get extra ...
Transportation Angle · Delvalle BoxDelvalle Box
The transportation angles add strength in handling loading and unloading of the cabinets.
Switchboard Graffiti-Proof Paint · Delvalle BoxDelvalle Box
In Delvalle all cabinets may suminstrarse with a protective transparent anti-graffiti paint and...
Anti-Insect System · Delvalle BoxDelvalle Box
We know the problem for the placement of cooling systems posed by the entry of insects inside the...
Perforated Mounting Plate · Delvalle BoxDelvalle Box
Perforated plates for quick installation of electrical components.
Stainless Steel Ventilation Plugs IP68 · Delvalle BoxDelvalle Box
Stainless steel ventilation plugs IP68 reduce the adverse effects of humidity in the environment...
Shock Absorbers for Electrical Enclosures · Delvalle BoxDelvalle Box
With the shock absorbers we get a better grip on the doors, and we define the opening angle of the...
Separating Plate · Delvalle BoxDelvalle Box
Fixed directly to the cabinet structure, to get separation as well as being a shelf for objects.
Pivot Frame · Delvalle BoxDelvalle Box
The ideal solution for the placement of all instrumentation, with easy and comfortable access from...
Ventilation Brackets · Delvalle BoxDelvalle Box
Placed both in the front enclosure and on the side, allowing a perfect flow of air inside.
Eyebolt · Delvalle BoxDelvalle Box
Galvanized in sizes M12 to M20....
DIN Tray · Delvalle BoxDelvalle Box
Directly fixed to the structure. Galvanized 1.5 mm thick steel. Dimensions: 35mm by 7.5 or 5mm.
Safety Lock · Delvalle BoxDelvalle Box
Typically used in enclosures with temporary changes of user. You can also use the padlock seal,...
Set With Inner Door · Delvalle BoxDelvalle Box
Interior door designed for direct placement in the enclosure.
Open Door Security Device · Delvalle BoxDelvalle Box
This device prevents accidents, alerts the operator that the electrical system is functioning...
Designs / Doors · Delvalle BoxDelvalle Box
The possibility of placing a double door in the cabinet is given to meet the customer’s need to...
Limit Switches for Electrical Enclosure · Delvalle BoxDelvalle Box
Thanks to the limit switch for electrical enclosures we get a perfect control cabinet lighting and...
Reinforcing Frame · Delvalle BoxDelvalle Box
Using a reinforced frame in our enclosure gives us more confidence and consistency, especially in...
Sliding Cable Covers · Delvalle BoxDelvalle Box
These caps allow cable entry between them.
Cross Cable Guide · Delvalle BoxDelvalle Box
With this guide inside the door we get a perfectly ordered wiring. Ideal for the passage of...
Protection Frame Window · Delvalle BoxDelvalle Box
It is used to provide maximum viewing capacity of the indication elements and protection of the...
Outdoor Air Conditioner Electrical Enclosures Tropic · Delvalle BoxDelvalle Box
The largest range of IP54 air conditioners electrical enclosures refrigerators in the market, air...
Roof fan · Delvalle BoxDelvalle Box
Roof Fan, specially designed for extracting heat from the top of the cabinet, for achieving...
Waterproof Seal · Delvalle BoxDelvalle Box
Injected waterproof seal UL, TÜV, CE certified. ...
Enclosure Hygienic Tribeca IP66 · Delvalle Box

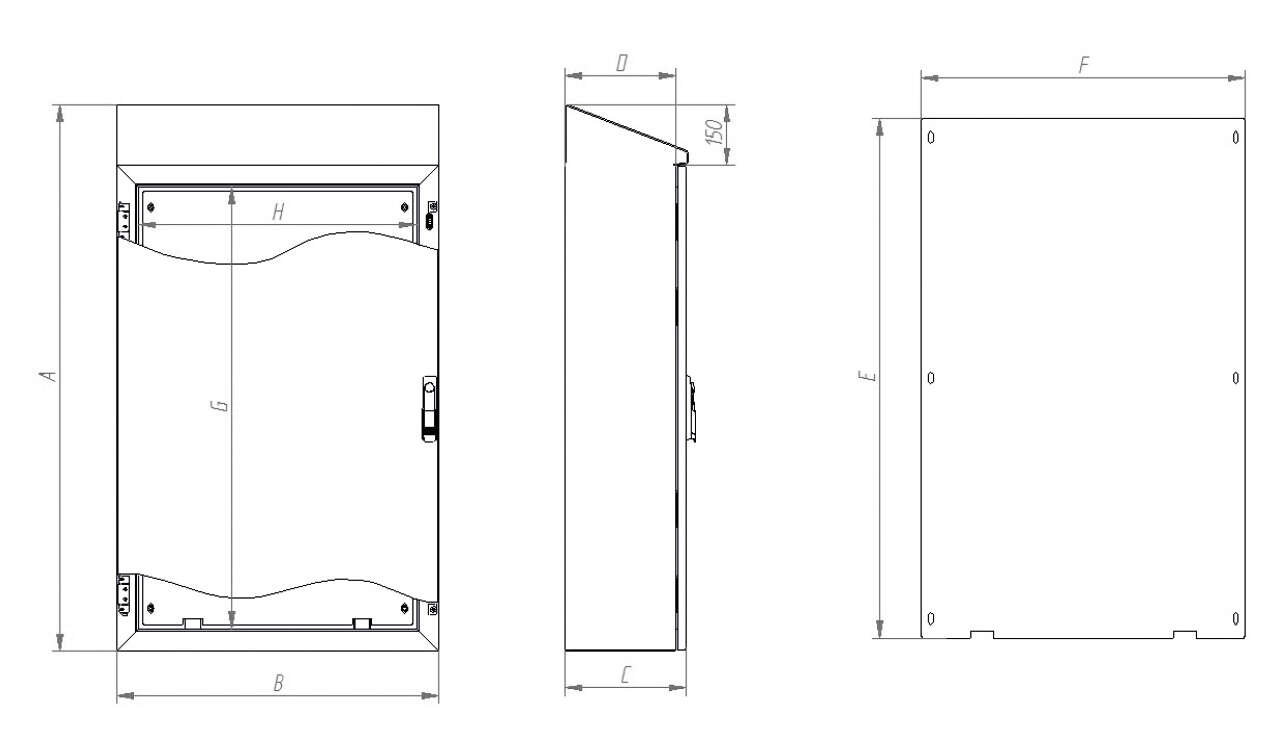

Sketches

Dimensions · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
HDT166040INOX ENCLOSURE IP65 HYGIENIC TRIBECA1650600400HDT166040
HDT168040INOX ENCLOSURE IP65 HYGIENIC TRIBECA1650800400HDT168040
HDT161040INOX ENCLOSURE IP65 HYGIENIC TRIBECA16501000400HDT161040
HDT186040INOX ENCLOSURE IP65 HYGIENIC TRIBECA1800600400HDT186040
HDT186050INOX ENCLOSURE IP65 HYGIENIC TRIBECA1800600500HDT186050
HDT188040INOX ENCLOSURE IP65 HYGIENIC TRIBECA1800800400HDT188040
HDT188050INOX ENCLOSURE IP65 HYGIENIC TRIBECA1800800500HDT188050
HDT181040INOX ENCLOSURE IP65 HYGIENIC TRIBECA18001000400HDT181040
HDT181050INOX ENCLOSURE IP65 HYGIENIC TRIBECA18001000500HDT181050
HDT206040INOX ENCLOSURE IP65 HYGIENIC TRIBECA2000600400HDT206040
HDT206050INOX ENCLOSURE IP65 HYGIENIC TRIBECA2000600500HDT206050
HDT208040INOX ENCLOSURE IP65 HYGIENIC TRIBECA2000800400HDT208040
HDT208050INOX ENCLOSURE IP65 HYGIENIC TRIBECA2000800500HDT208050
HDT201040INOX ENCLOSURE IP65 HYGIENIC TRIBECA20001000400HDT201040
HDT201050INOX ENCLOSURE IP65 HYGIENIC TRIBECA20001000500HDT201050
*Se fabrica con fondo de hasta 1000 mm*
