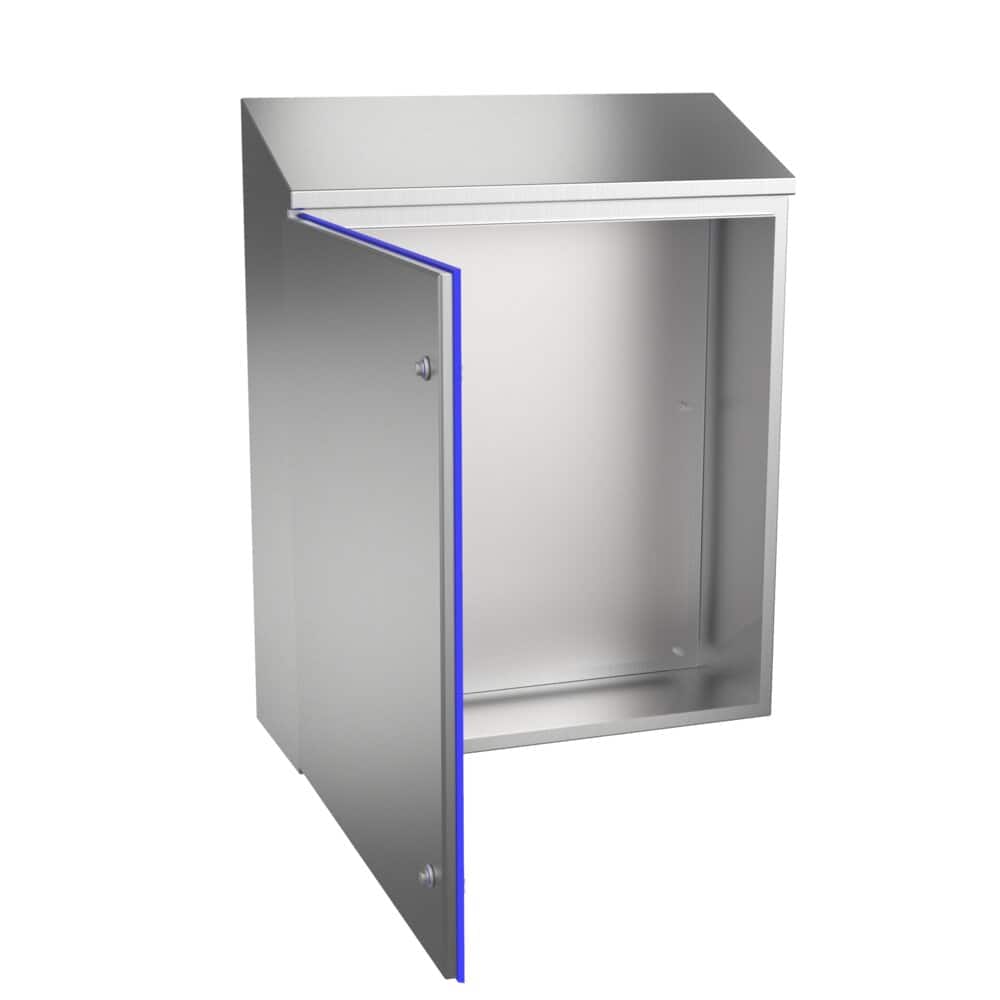

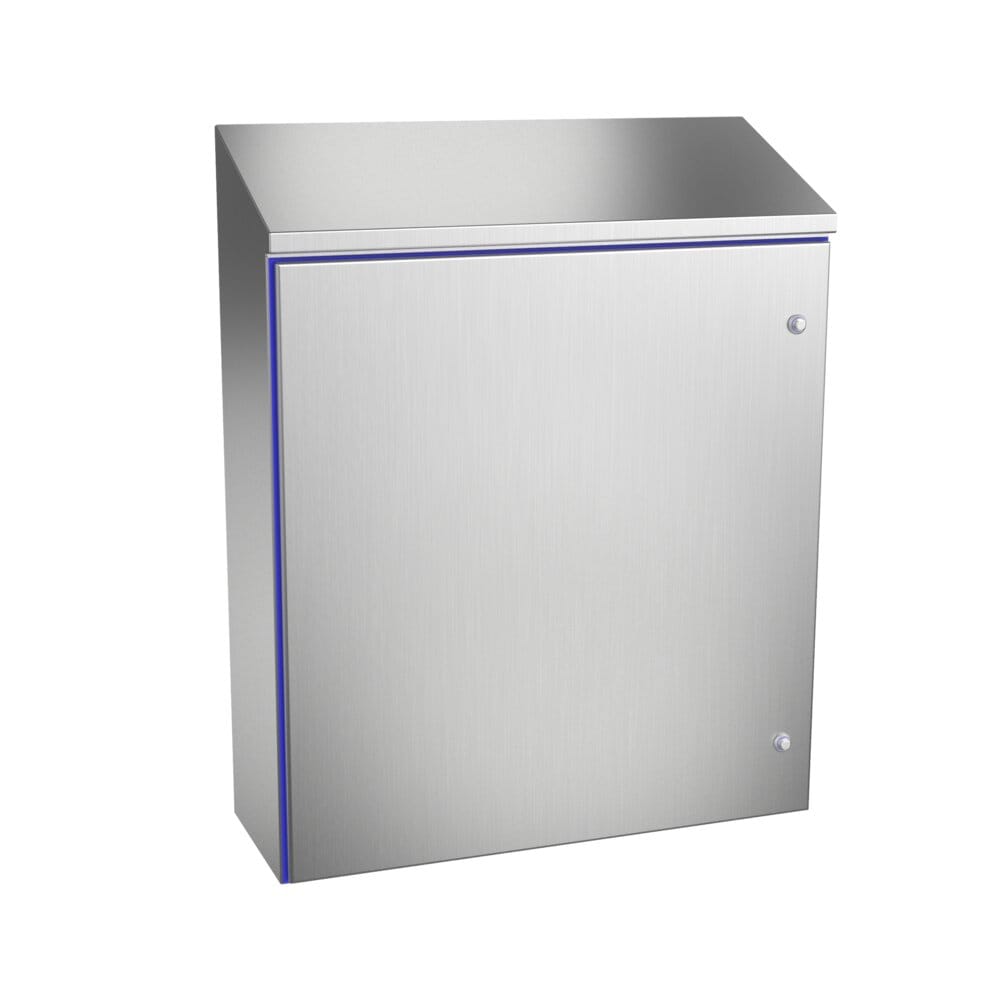

HYGIENIC LUXOR IP66

Mural Hygienic Design Enclosures from the Luxor series, boasting an impressive IP66 rating and a spacious capacity tailor-made for the demanding needs of the food industry.

Compliant with the stringent European standard 13 EHEDG, our enclosure features a vibrant blue silicone gasket that effortlessly withstands extreme temperatures, ensuring durability in any environment. Designed with meticulous attention to detail, our enclosure leaves no room for bacteria to hide

With a waterproof IP66 rating and UL Type NEMA 4x certification, you can trust in its reliability even in the harshest conditions. Easy to install and flexible in placement, it's the ultimate solution for maximizing workspace efficiency while maintaining strict hygiene standards

TECHNICAL DATA
Minimum Measurements A=370-1450mm   B=300-810mm   P=155-400mm
Maximum Double Door Measurements A=1450mm   B=1620mm   P=400mm
Minimum Plate Measurements A=265-1340mm
Minimum Plate Measurements B=240-750mm
Body Thickness 1.5 mm | 15/10 mm
0.056 " | 16 Gauge
Door Opening 90 °
Door Type Blind door
Opening Type Swivel with concealed hinges
Closing System Cierres Hygienic
Useful Depth 133,5-378,5 mm
Material AISI 304L/AISI 316L
FinishSatin finish
Plate Material Galvanized
Sealing Gasket Silicone
Working Temperature -60ºC a +200ºC.
Maximum Voltage 1000 V
ALTERNATIVE OPTIONS
Alternative Materials AISI 316L
Interior Plate Material Insulating mounting plate (Bakelite), Stainless steel mounting plate
IP69K extends IEC 60529

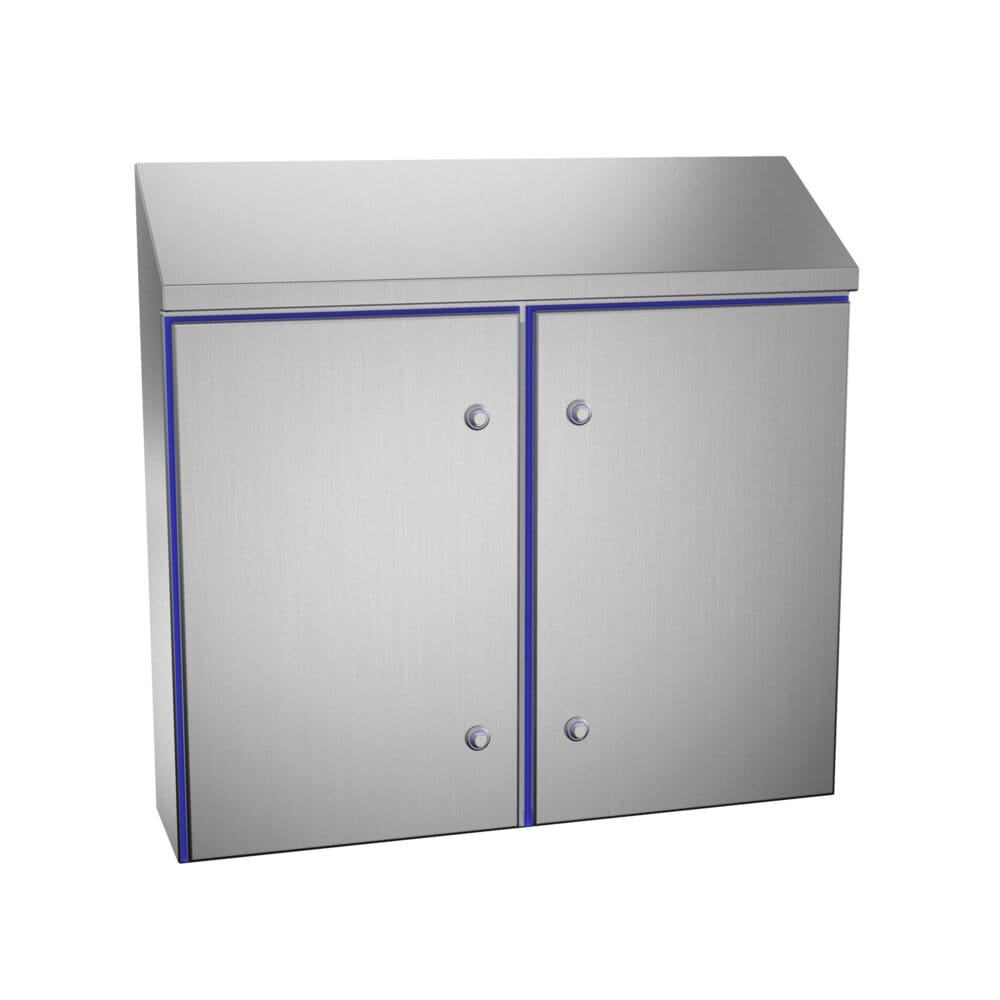

With the option of two doors (from 800x600)

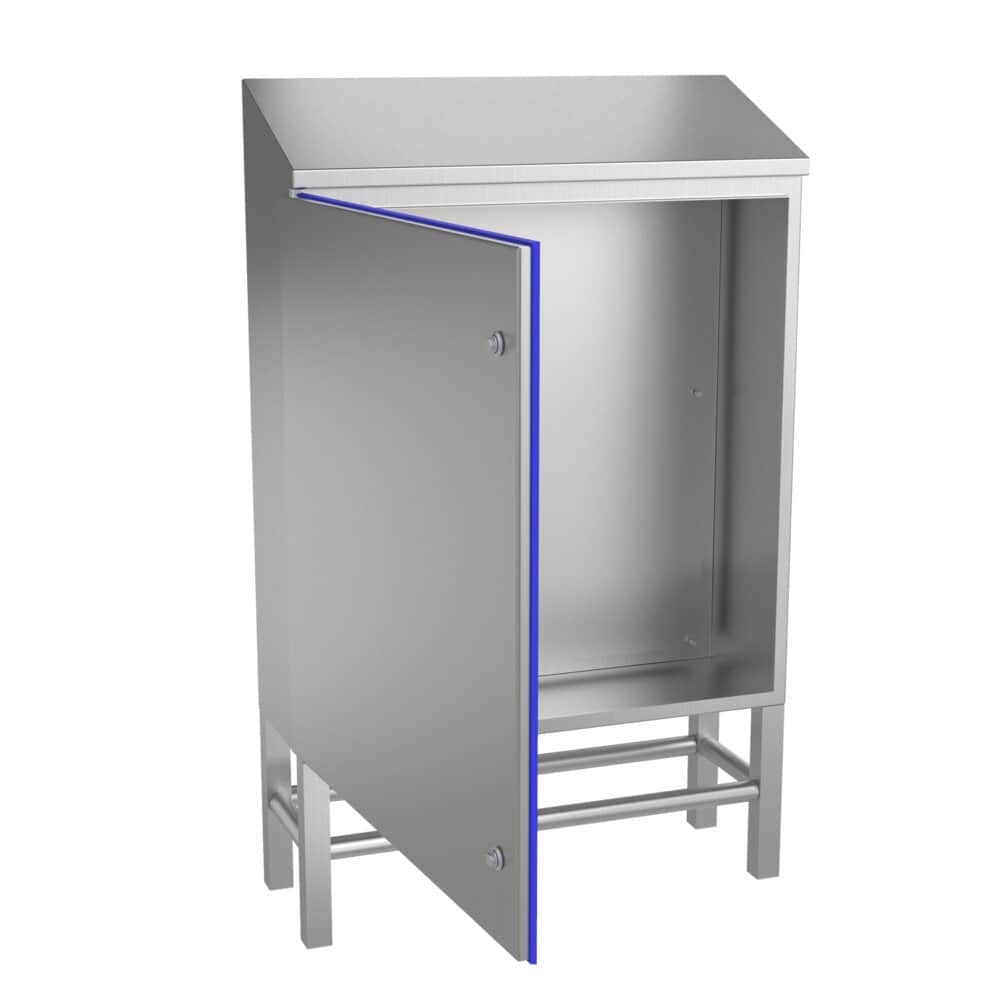

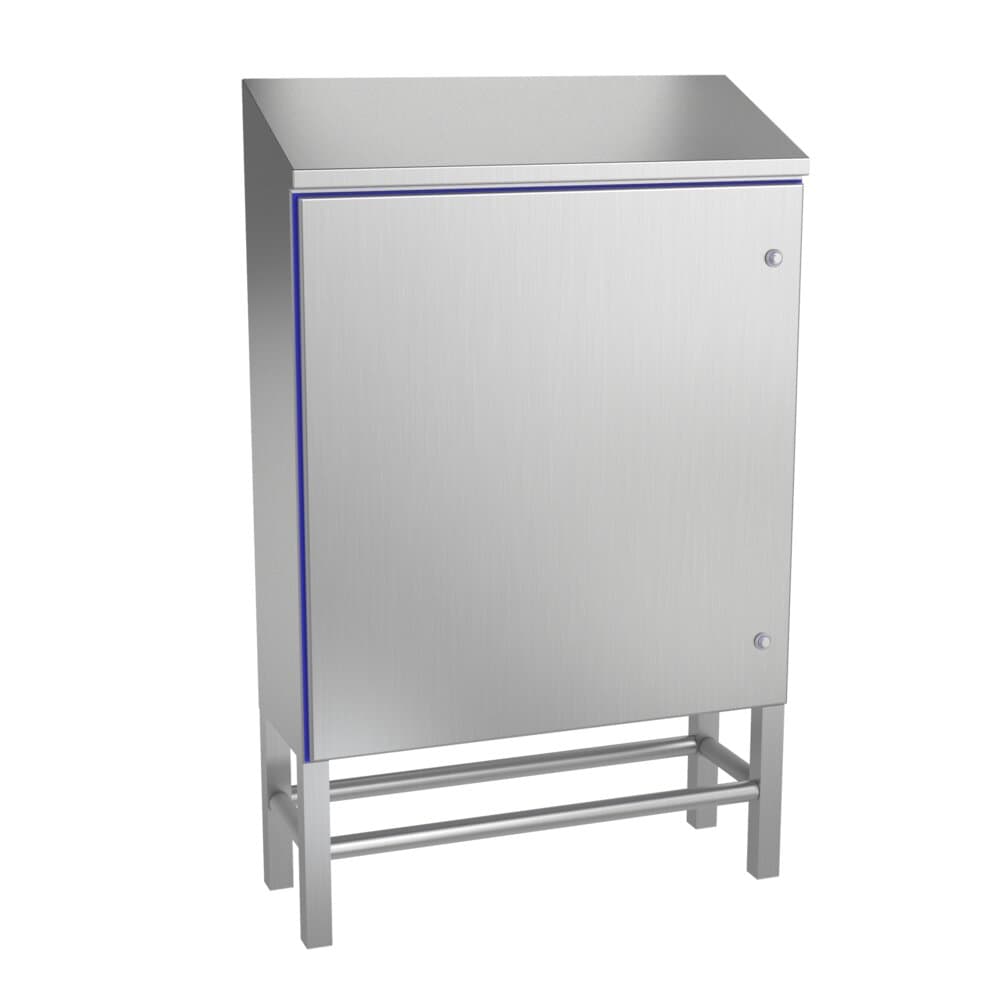

Metal Bases and Legs
In stainless steel AISI 316L EN 14404
Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand
Delivered with protective film that prevents scratches and abrasions during handling.
Silicone gasket resistant from -60ºC to +250ºC
Monobloc construction for perfect IP66 watertightness and IK10 impact resistance
No openings where bacteria can lodge
Door opening at 90°. Standard opening to the left, specify if right opening is desired
Electro-polished finish helps liquids to slide off and a water-repellent seal prevents dirt and bacteria deposits
Delvalle manufactures any size to order that suits your needs, including holes, channels, shapes..., both on the door and the enclosure
Cabinet for the food industry with blue silicone gasket
Sterile areas, chemicals, laboratories, hospitals, etc.
Complies with Food Safety Standards
Hot water pressure resistant IP6K9K
Specially designed for the food industry and clean rooms, precooked products, dairy companies, wineries, or any other place where a clean environment is essential
IP66(W) Protection Rating
DIN EN 1672-2:2005
DIN EN ISO 14159
European Directive 2006/42/EC
IK10 Protection Rating
European regulation CE 1935/2004
Directive 2014/35/EU
RoHS directive compliance
UL NEMA 4X, 12, 3R, and 1 standards
Voltage withstand capacity of cabinets
Delvalle cabinets silicone gaskets temperature resistance

REFERENCES 1 DOOR

DIMENSIONS (mm)

AISI 304L

AISI 316L

HEIGHT

-A-

WIDTH

-B-

DEPTH

-C-

PLATE

DIMENSIONS

-ExF-

MVHD302015

MVHD302015316

300

200

150

270×170

MVHD403020

MVHD403020316

400

300

200

370×270

MVHD604021

MVHD604021316

600

400

210

570×370

MVHD606021

MVHD606021316

600

600

210

570×570

MVHD705025

MVHD705025316

700

500

250

670×430

MVHD806030

MVHD806030316

800

600

300

770×570

MVHD108030

MVHD108030316

1000

800

300

970×770

MVHD128030

MVHD128030316

1200

800

300

1170×770

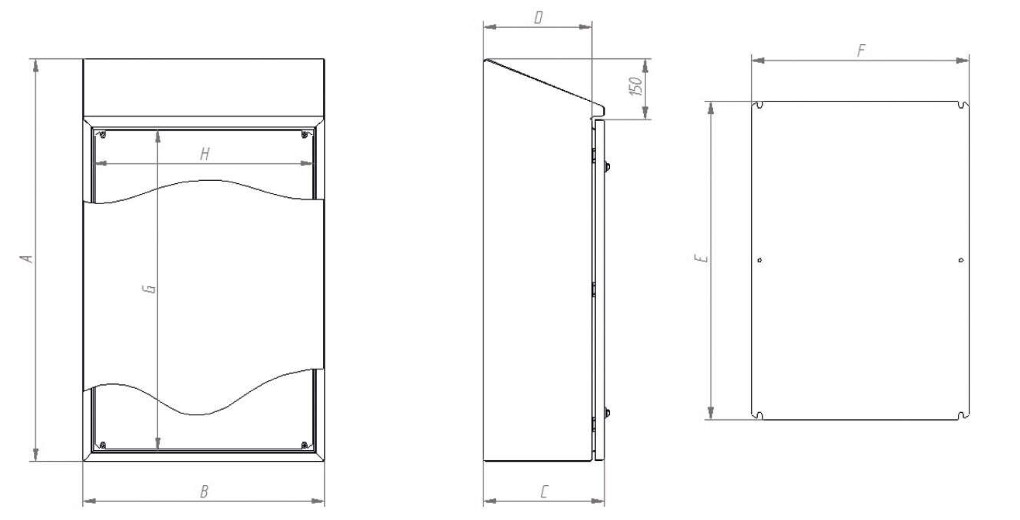

Croquis:
