Enclosure Hygienic Luxor IP66

HYGIENIC SERIES

Electrical Hygienic Design Enclosure Luxor Series, specially designed for the food industry. No openings, hinges, where bacteria could lie but robust and easy lock opening with a big space inside to allow easy working.

Moreover the inclination of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.

Enclosure Hygienic Luxor IP66 · Delvalle BoxDelvalle Box
Enclosure Hygienic Luxor IP66 · Delvalle BoxDelvalle Box

Description

Electrical Hygienic enclosure Luxor Series, specially designed for the food industry. No openings, hinges, where bacteria could lie but robust and easy lock opening with a big space inside to allow easy working. Moreover the inclination of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.

Achieve all the safety and security you need

  • Logo CE · Delvalle Box
    CE
  • Logo IK10 · Delvalle Box
    IK10
  • Logo IP66 · Delvalle Box
    IP66
  • Logo ROHS · Delvalle Box
    ROHS
  • Logo UL NEMA 1 · Delvalle Box
    UL NEMA 1
  • Logo UL NEMA 12 · Delvalle Box
    UL NEMA 12
  • Logo UL NEMA 3R · Delvalle Box
    UL NEMA 3R
  • Logo UL NEMA 4X · Delvalle Box
    UL NEMA 4X
  • Logo 10 year anti-corrosion · Delvalle Box
    10 year anti-corrosion
  • Logo 5 year mechanical parts · Delvalle Box
    5 year mechanical parts
  • Logo Chemical resistant · Delvalle Box
    Chemical resistant
  • Logo Corrosion resistant · Delvalle Box
    Corrosion resistant
  • Logo Easy to clean · Delvalle Box
    Easy to clean
  • Logo Scrach resistant · Delvalle Box
    Scrach resistant
  • Logo Temperature resistant · Delvalle Box
    Temperature resistant
  • Logo Waterproof · Delvalle Box
    Waterproof

Discover the advantages

Supplied wrapped in protective film which prevents scratches and abrasions during handling.

Resistant seal to temperatures from -60°C up to +200°C.

The monobloc manufacture gives total sealing and maximum resistance.

No openings where bacteria could lie.

90º door opening. Standard opening to the left. Specify if you need opening to the right.

With electro-polished finish that helps dispel liquids and waterproof seal that prevents dirt and bacteria deposits.

Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.

Temperature resistant: -40°C +100°C (short time +160°C).

Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Captives screws.

Up to IP69K.

Regulations

  • IP66 Norm IEC 60529.
  • DIN 40050-9² - IP69K extend IEC 60529.
  • Maximum IK10 resistance Norm IEC 62262.
  • EC 1935/2004 rule compliant for materials intended to come into contact with food.
  • DIN EN ISO 14159 Machine safety –Hygiene requirements pertaining to the design of machinery.
  • Machinery Directive 2006/42/EC (previously 89/37/EC) Food machinery and cosmetic or pharmaceutic production.
  • EHEDG Guideline Hygienic Design doc.13 machinery for open processes.
  • DIN EN 1672-2-2005 for food industry machinery.
  • Follows EU low voltage ruling 2006/95/CE.
  • RoHS Directive 2002/95/EC compliant.
  • UL approval Nema 4x, 12, 3r, 1. Nº File E342220.
  • Maximum voltage 1000 V.
  • Temperature resistant: -40°C +100°C (short time +160°C).
  • Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Especially designed for the food industry and sterile rooms, wineries, dairies and take away food outlets or any other place where cleanliness is essential as well as total absence of dust, dirt and bacteria.

Custom Made Solutions
We offer multiple solutions

Enclosure Hygienic Luxor IP66 · Delvalle Box
Do you need solutions?
2018 product catalogues
  • Custom made based on your needs.
  • IP69K according EN 60529.
  • Option painted galvanized steel finish in RAL 7035 or another color.
  • Also made with two doors (from 800x600).
  • Plinths at base and metal legs.
  • Transparent polycarbonate door (no IP69K).
  • Manufactured in stainless steel AISI 316L.
  • Mounting plate insulator (bakelite) or sst.
  • We have hygienic glands on request.
Customize this product with the following components:
Lighting for Electrical Enclosures · Delvalle BoxDelvalle Box
Delvalle compact luminaires are specially designed for use in electrical cabinets. We have low...
Security lock · Delvalle BoxDelvalle Box
Security lock for placement it in electrical cabinets.
Locks · Delvalle BoxDelvalle Box
Depending on the enclosure and its use, we look for the best closure suited to the customer’s...
Assembly Frame · Delvalle BoxDelvalle Box
Chassis modular cabinets. Used to divide the front of the cabinets into several sections for quick...
Thermal Insulation Enclosures TermoTisa · Delvalle Box
The thermal insulation Termotisa is ideal when it is necessary thermal insulate in...
Cable Entry Cover · Delvalle BoxDelvalle Box
Ideal accessory supplement, removable to make holes comfortably to suit your needs, and fitted so...
Clear Glass Door · Delvalle BoxDelvalle Box
All our cabinets are available with transparent exterior and interior doors for perfect vision of...
Roofs for Outdoor · Delvalle BoxDelvalle Box
In Delvalle we offer the possibility to ask for self-ventilated roofs....
Mounting Plates · Delvalle BoxDelvalle Box
Different mounting plates for multiple uses in electrical cabinets Delvalle.
Data Pocket · Delvalle BoxDelvalle Box
Useful to keep electrical drawings, maintenance records, etc.....
Pedestal Stands · Delvalle BoxDelvalle Box
Steel foot bracket to fix the cabinets to the floor.
Sockets · Delvalle BoxDelvalle Box
Stainless steel plinthbase 100 and 200 mm high. Allows cabinet to be raised and get extra ...
Transportation Angle · Delvalle BoxDelvalle Box
The transportation angles add strength in handling loading and unloading of the cabinets.
Switchboard Graffiti-Proof Paint · Delvalle BoxDelvalle Box
In Delvalle all cabinets may suminstrarse with a protective transparent anti-graffiti paint and...
Anti-Insect System · Delvalle BoxDelvalle Box
We know the problem for the placement of cooling systems posed by the entry of insects inside the...
Perforated Mounting Plate · Delvalle BoxDelvalle Box
Perforated plates for quick installation of electrical components.
Stainless Steel Ventilation Plugs IP68 · Delvalle BoxDelvalle Box
Stainless steel ventilation plugs IP68 reduce the adverse effects of humidity in the environment...
Shock Absorbers for Electrical Enclosures · Delvalle BoxDelvalle Box
With the shock absorbers we get a better grip on the doors, and we define the opening angle of the...
Separating Plate · Delvalle BoxDelvalle Box
Fixed directly to the cabinet structure, to get separation as well as being a shelf for objects.
Pivot Frame · Delvalle BoxDelvalle Box
The ideal solution for the placement of all instrumentation, with easy and comfortable access from...
Ventilation Brackets · Delvalle BoxDelvalle Box
Placed both in the front enclosure and on the side, allowing a perfect flow of air inside.
DIN tray · Delvalle BoxDelvalle Box
Directly fixed to the structure. Galvanized 1.5 mm thick steel. Dimensions: 35mm by 7.5 or 5mm.
Safety Lock · Delvalle BoxDelvalle Box
Typically used in enclosures with temporary changes of user. You can also use the padlock seal,...
Set With Inner Door · Delvalle BoxDelvalle Box
Interior door designed for direct placement in the enclosure.
Open Door Security Device · Delvalle BoxDelvalle Box
This device prevents accidents, alerts the operator that the electrical system is functioning...
Designs / Doors · Delvalle BoxDelvalle Box
The possibility of placing a double door in the cabinet is given to meet the customer’s need to...
Limit Switches for Electrical Enclousure · Delvalle BoxDelvalle Box
Limit switches provided with support and fixings for direct fixing....
Sliding Cable Covers · Delvalle BoxDelvalle Box
These caps allow cable entry between them.
Pole Mount · Delvalle BoxDelvalle Box
Delvalle offers the solution for post mounting, providing a perfect fixing of the enclosure.
Cross Cable Guide · Delvalle BoxDelvalle Box
With this guide inside the door we get a perfectly ordered wiring. Ideal for the passage of...
Outdoor Air Conditioner Electrical Enclosures Tropic · Delvalle BoxDelvalle Box
The largest range of IP54 air conditioners electrical enclosures refrigerators in the market, air...
Roof fan · Delvalle BoxDelvalle Box
Roof Fan, specially designed for extracting heat from the top of the cabinet, for achieving...
Waterproof Seal · Delvalle BoxDelvalle Box
Injected waterproof seal UL, TÜV, CE certified. ...
Wall Mounting Brackets · Delvalle BoxDelvalle Box
They are fixed from the outside and can be positioned either vertically or horizontally.
Enclosure Hygienic Luxor IP66 · Delvalle Box

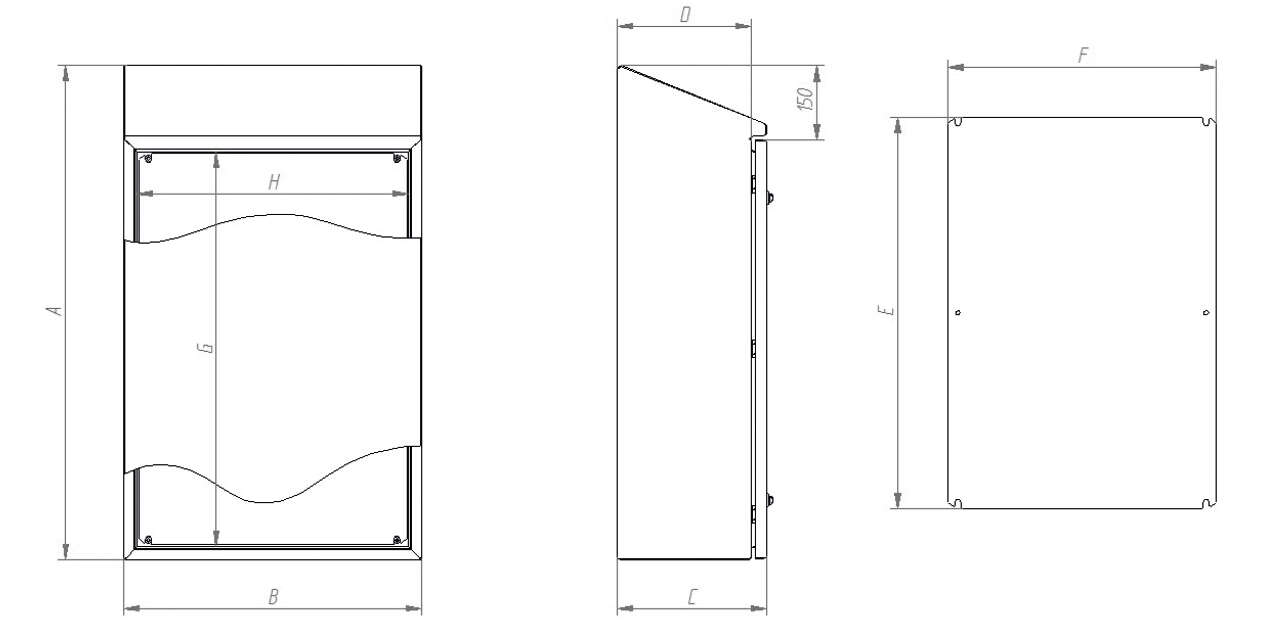

Sketches

Dimensions · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
HDL373015INOX ENCLOSURE IP66 HYGIENIC LUXOR370300155HDL373015
HDL452215INOX ENCLOSURE IP66 HYGIENIC LUXOR450220155HDL452215
HDL544021INOX ENCLOSURE IP66 HYGIENIC LUXOR540400210HDL544021
HDL546021INOX ENCLOSURE IP66 HYGIENIC LUXOR540600210HDL546021
HDL553921INOX ENCLOSURE IP66 HYGIENIC LUXOR550390210HDL553921
HDL606121INOX ENCLOSURE IP66 HYGIENIC LUXOR600610210HDL606121
HDL655121INOX ENCLOSURE IP66 HYGIENIC LUXOR650510210HDL655121
HDL665021INOX ENCLOSURE IP66 HYGIENIC LUXOR660500210HDL665021
HDL753921INOX ENCLOSURE IP66 HYGIENIC LUXOR750390210HDL753921
HDL756121INOX ENCLOSURE IP66 HYGIENIC LUXOR750610210HDL756121
HDL764521INOX ENCLOSURE IP66 HYGIENIC LUXOR760450210HDL764521
HDL766021INOX ENCLOSURE IP66 HYGIENIC LUXOR760600210HDL766021
HDL766030INOX ENCLOSURE IP66 HYGIENIC LUXOR760600300HDL766030
HDL128130INOX ENCLOSURE IP66 HYGIENIC LUXOR1250810300HDL128130
HDL128140INOX ENCLOSURE IP66 HYGIENIC LUXOR1250810400HDL128140
HDL148130INOX ENCLOSURE IP66 HYGIENIC LUXOR1450810300HDL148130
HDL148140INOX ENCLOSURE IP66 HYGIENIC LUXOR1450810400HDL148140
*Available bottom to 1000mm.*
