Galvanized Steel Terminal Boxes Geo IP66

GEO SERIES

The painted galvanized steel junction boxes Geo are tight, elegant and functional, made of galvanized steel painted RAL 7035. Available with blind or machine lid, specially designed for the placement of buttons.

Galvanized Steel Terminal Boxes Geo IP66 · Delvalle Box

This product has the following certificates

  • Logo CE · Delvalle Box
  • Logo IP66 · Delvalle Box
  • Logo UL NEMA 1 · Delvalle Box
  • Logo UL NEMA 12 · Delvalle Box
  • Logo UL NEMA 3R · Delvalle Box
  • Logo UL NEMA 4 · Delvalle Box

Description

The painted galvanized steel junction boxes GEO are tight, elegant and functional, made of galvanized steel painted RAL 7035. Available with blind or machine lid, specially designed for the placement of buttons.

The lid is secured by means of stainless steel screws easy placement, which are embedded without projecting from the front of the box.

Discover the advantages

• Unlimited options.
• The manufacture monobloc allows sealing and ensures maximum resistance.
• Perfect sealing gaskets used by the joints.
• Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.

Regulations

• IEC 60529 norm. IP66 degree.
• UL approval Nema 1, 3r, 4 y 12. Nº File E342220.
• IEC 62262 norm. Maximum IK10 resistance.
• 2014/35/UE directive. Low voltage ruling directive.
• Maximum voltage 1000 V.
• Temperature resistant: -40°C +100°C (short time +160°C).
• Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Specially designed and approved for outdoor installations, transformers, telecommunications and outdoors because of its advantages of durability and resistance to chemical agents.

Custom Made Solutions
We offer multiple solutions

Galvanized Steel Terminal Boxes Geo IP66 · Delvalle Box
Do you need solutions?
2021 product catalogues

• Custom made based on your needs.
• Metal legs. Unloosable screws.
• Switchboard graffiti-proof pain.
• Transparent polycarbonate door or with tempered glass.
• EMC version according to EEC 89/336 of electromagnetic compatibility.

Galvanized Steel Terminal Boxes Geo IP66 · Delvalle Box

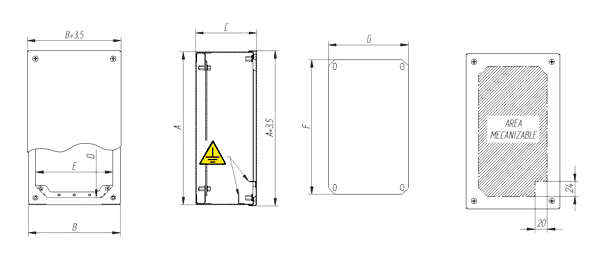

Sketches

Galvanized Steel Terminal Boxes Geo IP66 · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVCBG909080CAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA CIEGA909080MVCBG909080
MVCBG101612CAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA CIEGA100160120MVCBG101612
MVCBG149080CAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA CIEGA1409080MVCBG149080
MVCBG161612CAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA CIEGA160160120MVCBG161612
MVCBG209080CAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA CIEGA2009080MVCBG209080
MVCBG202012CAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA CIEGA200200120MVCBG202012
MVCBG202515CAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA CIEGA200250150MVCBG202515
MVCBG203015CAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA CIEGA200300150MVCBG203015
MVCBG252515CAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA CIEGA250250150MVCBG252515
MVCBG269012CAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA CIEGA26090120MVCBG269012
MVCBG303015CAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA CIEGA300300150MVCBG303015
MVCBG304015CAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA CIEGA300400150MVCBG304015
MVCBG404015CAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA CIEGA400400150MVCBG404015
MVCBG909080PCAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA PERFORADA909080MVCBG909080P
MVCBG101612PCAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA PERFORADA100160120MVCBG101612P
MVCBG149080PCAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA PERFORADA1409080MVCBG149080P
MVCBG161620PCAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA PERFORADA160160120MVCBG161620P
MVCBG209080PCAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA PERFORADA2009080MVCBG209080P
MVCBG202012PCAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA PERFORADA200200120MVCBG202012P
MVCBG202515PCAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA PERFORADA200250150MVCBG202515P
MVCBG203015PCAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA PERFORADA200300150MVCBG203015P
MVCBG252515PCAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA PERFORADA250250150MVCBG252515P
MVCBG269012PCAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA PERFORADA26090120MVCBG269012P
MVCBG303015PCAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA PERFORADA300300150MVCBG303015P
MVCBG304015PCAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA PERFORADA300400150MVCBG304015P
MVCBG404015PCAJA BORNES GALVANIZADO PINTADO IP66 GEO TAPA PERFORADA400400150MVCBG404015P
