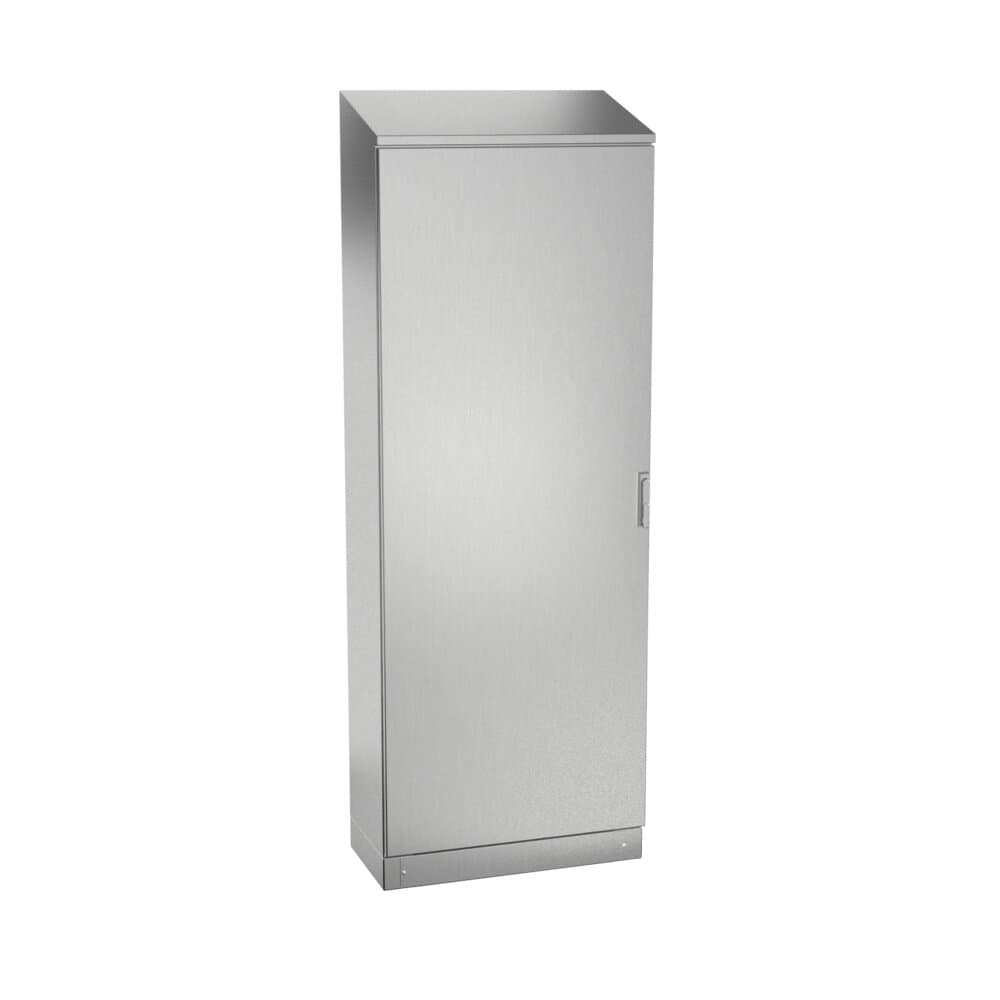

Electrical enclosure fresh tribeca IP6K9K

Electrical Fresh Tribeca Series IP6K9K enclosure with a large capacity, specially designed for the food industry.
No openings, hinges, where bacteria could lie. Easy opening by rotating handle and four point lock, easy placement on the floor, flexible, maximum working width.
Moreover the inclination of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.

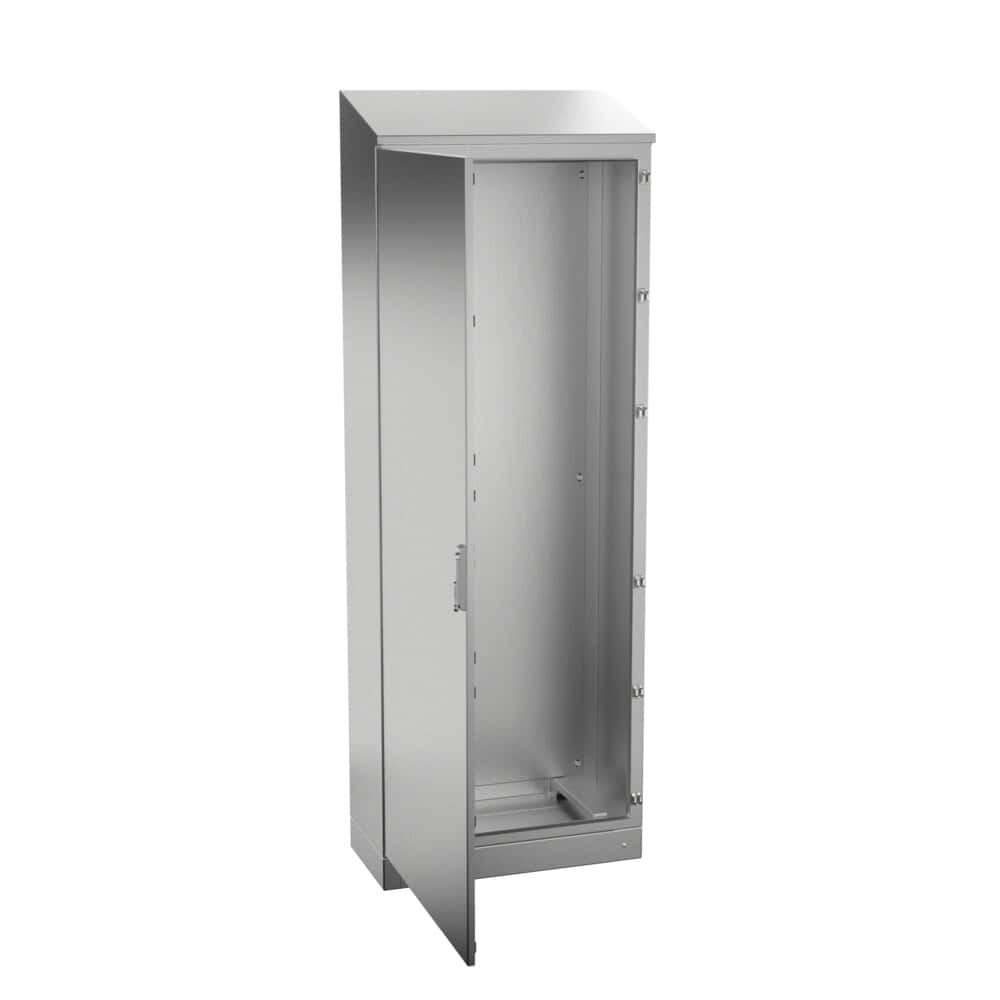

Electrical enclosure fresh tribeca IP6K9K: detail view of the product

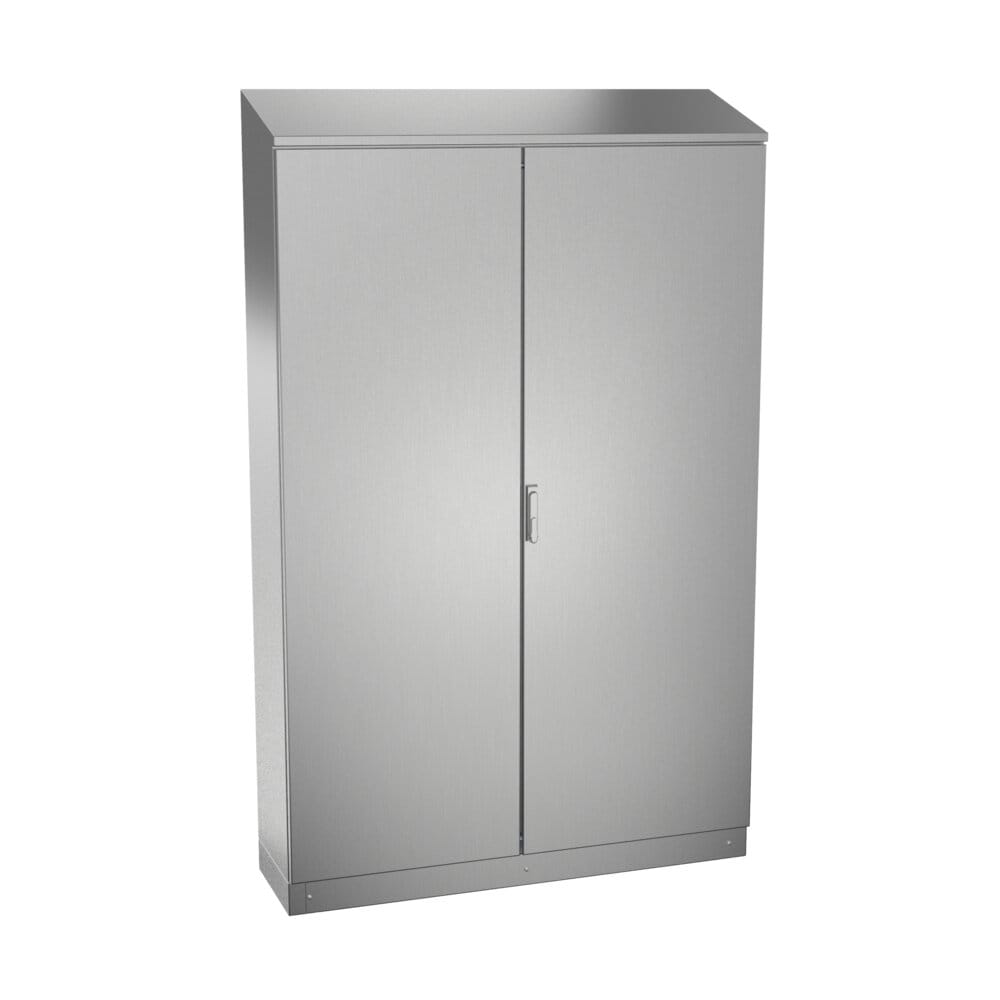

Electrical enclosure fresh tribeca IP6K9K: additional view of the product

📄 Technical specificationselectrical enclosure fresh tribeca ip6k9k

TECHNICAL DATA

Minimum Measurements	A=1650-2000mm B=600-1000mm P=400-500mm
Minimum Plate Measurements	A=1520-1870mm
Minimum Plate Measurements	B=490-890mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Cierres Hygienic
Useful Depth	375,5-475,5 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Silicone
Working Temperature	-60°C a +180°C (reducida exposición hasta +350°C)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate

Baseboards, Eye Bolts, and Metal Legs

In stainless steel AISI 316L EN 14404

Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand

Delivered with protective film that prevents scratches and abrasions during handling.

Monobloc construction for perfect watertightness and impact resistance

No openings where bacteria can lodge

Electro-polished finish helps liquids to slide off and a water-repellent seal prevents dirt and bacteria deposits

100% stainless, from the handle to the opening system

Door opening at 120°. Standard opening to the left, specify if desired to the right

The electrical panel comes standard with a four-point lever lock and concealed hinges made of stainless steel.

Delvalle manufactures any size on request that suits your needs, including holes, channels, and shapes, both on the door and the enclosure

Maximum distributed load 600 kg

Specially Designed for the Food Industry, Cleanrooms, Precooked Foods, Dairy Companies, Wineries, or Any Other Place Where a Clean Environment Is Essential

IEC 60529 Standard

ISO 20653

DIN EN ISO 14159

European Directive 2006/42/EC

DIN EN 1672-2:2005

IK10 protection rating according to IEC 62262 standard

Cabinets Material Compliance

European Directive 2014/35/EU on low voltage

RoHS directive compliance

UL NEMA 4X, 12, 3R, and 1 standards

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

REFERENCES 1 DOOR	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	INTERNAL USEFUL DIMENSIONS			PLATE DIMENSIONS -GxH-	WEIGHT (Kg)	VOLUME (m³)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	HEIGHT (D)	WIDTH (E)	DEPTH (F)	PLATE DIMENSIONS -GxH-	WEIGHT (Kg)	VOLUME (m³)
MVACL166040	1600	600	400	1390	490	375	1520×490	–	0.40
MVACL168040	1600	800	400	1390	690	375	1520×690	–	0.54
MVACL161040	1600	1000	400	1390	890	375	1520×890	–	0.67
MVACL186040	1800	600	400	1540	490	375	1670×490	–	0.44
MVACL188040	1800	800	400	1540	690	375	1670×690	–	0.57
MVACL181040	1800	1000	400	1540	890	375	1670×890	124	0.76
MVACL181050	1800	1000	500	1540	890	475	1670×890	127	0.95
MVACL206040	2000	600	400	1740	490	375	1870×490	–	0.51
MVACL208040	2000	800	400	1740	690	375	1870×690	112	0.64
MVACL201040	2000	1000	400	1740	890	375	1870×890	140	0.80
MVACL201050	2000	1000	500	1740	890	475	1870×890	145	1.05

REFERENCES 2 DOORS	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	INTERNAL USEFUL DIMENSIONS			PLATE DIMENSIONS -GxH-	WEIGHT (Kg)	VOLUME (m³)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	HEIGHT (D)	WIDTH (E)	DEPTH (F)	PLATE DIMENSIONS -GxH-	WEIGHT (Kg)	VOLUME (m³)
MVAC161240	1600	1200	400	1390	1090	375	1520×1070	123	0.84
MVAC181240	1800	1200	400	1540	1090	375	1670×1070	162	0.93
MVAC181440	1800	1400	400	1540	1290	375	1670×1270	142	1.12
MVAC201240	2000	1200	400	1740	1090	375	1870×1070	–	1.12
MVAC201250	2000	1200	500	1740	1090	475	1870×1070	157	1.26
MVAC201440	2000	1400	400	1740	1290	375	1870×1270	170	1.19
MVAC201450	2000	1400	500	1740	1290	475	1870×1270	177	1.47
MVAC201640	2000	1600	400	1740	1490	375	1870×1470	183	1.33
MVAC201650	2000	1600	500	1740	1490	475	1870×1470	197	1.65

Croquis:

Accessories:

Metric polyamide cable glands IP68

PG polyamide cable glands IP68

Metric stainless steel cable glands AISI316L

Metric stainless steel cable glands IP68

Metric nickel plated cable glands IP68

Metric cable glands hygienic IP69K

Metric cable glands IP69K
