Outdoor enclosure

SERIE SUNBOX LUXOR IP66

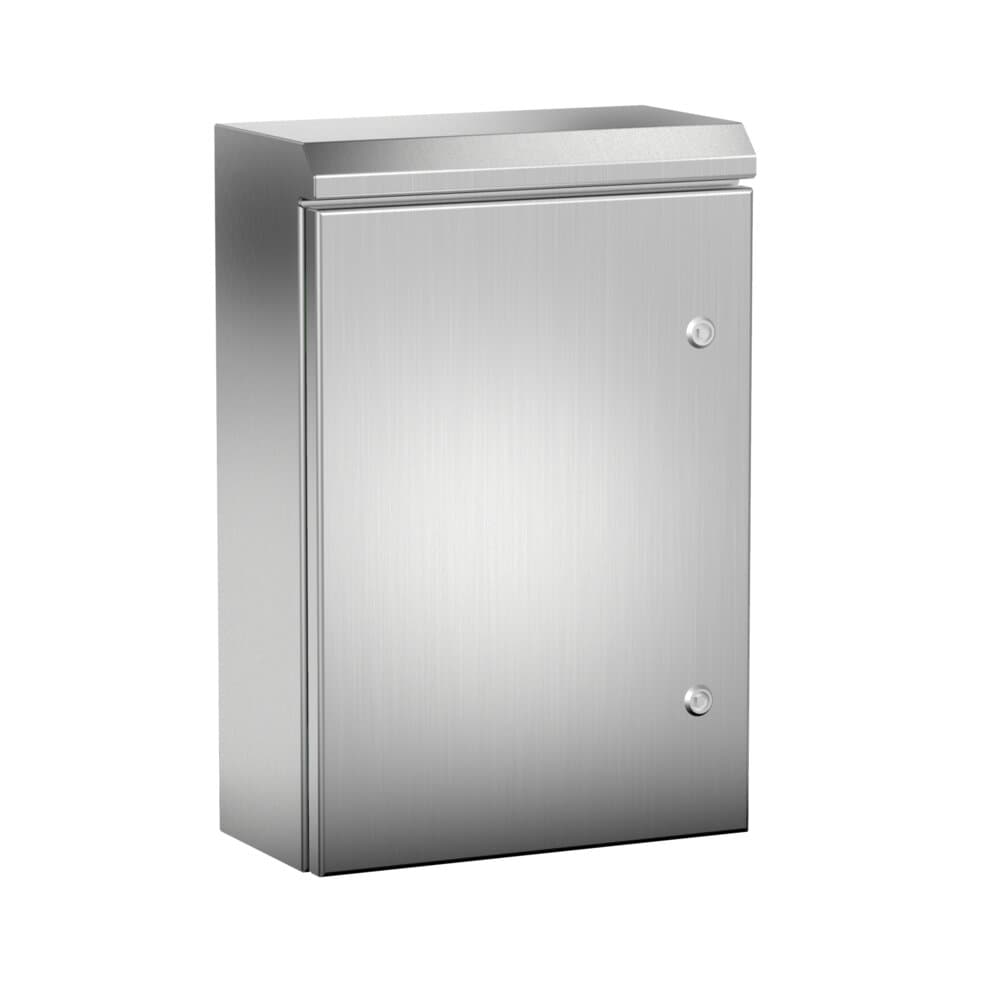

Monobloc system outdoor Enclosures manufactured stainless steel AISI 304L & 316L. made Robust, Ip66 waterproof and dust protection, developed and designed for outdoor use and more specifically for installations with extreme climatic conditions, such as solar or wind parks ensuring maximum resistance thanks to the stainless steel which it is manufactured with and greatly appreciated in Delvalle’s experience with the major brands.

Protecting vital controls, instruments and distribution equipment in solar applications requires flexible and durable enclosure solutions.
In order to ensure continued operation of critical electronic and networking equipment in these applications, designers of Delvalle must select the ideal electrical enclosures that assist with solar & Wind industries  thermal and tracking systems.

TECHNICAL DATA
Minimum Measurements A=380-1000mm   B=300-1000mm   P=155-300mm
Body Thickness 1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door Opening 120 °
Door Type Blind door, Door with polycarbonate panel
Opening Type Swivel with concealed hinges
Closing System Double-bit quarter-turn locks
Material AISI 304L/AISI 316L
FinishSatin finish
Plate Material Galvanized
Sealing Gasket Polyurethane
Working Temperature -40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage 1000 V
ALTERNATIVE OPTIONS
Alternative Materials AISI 304L, AISI 316L
Alternative Door Opening 170º
Interior Plate Material Stainless steel mounting plate, Insulating mounting plate (Bakelite)
Alternative Gaskets silicone (-60°C to +180°C), EMC
Machinable Area Personalizada
Custom-made according to your needs. With the possibility of two doors (from 800x600)
170° Hinge Allowing Maximum Opening for Easy Access to the Cabinet Without the Need to Remove the Door
Up to IP69K - DIN 40050-9
Quick Mounting Supports
In stainless steel AISI 316L EN 14404
EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard
Delivered with protective film that prevents scratches and abrasions during handling.
monobloc realization
With injected waterproof gasket, so that moisture cannot accumulate
Automatic condensation drainage thanks to the exclusive cabinet design

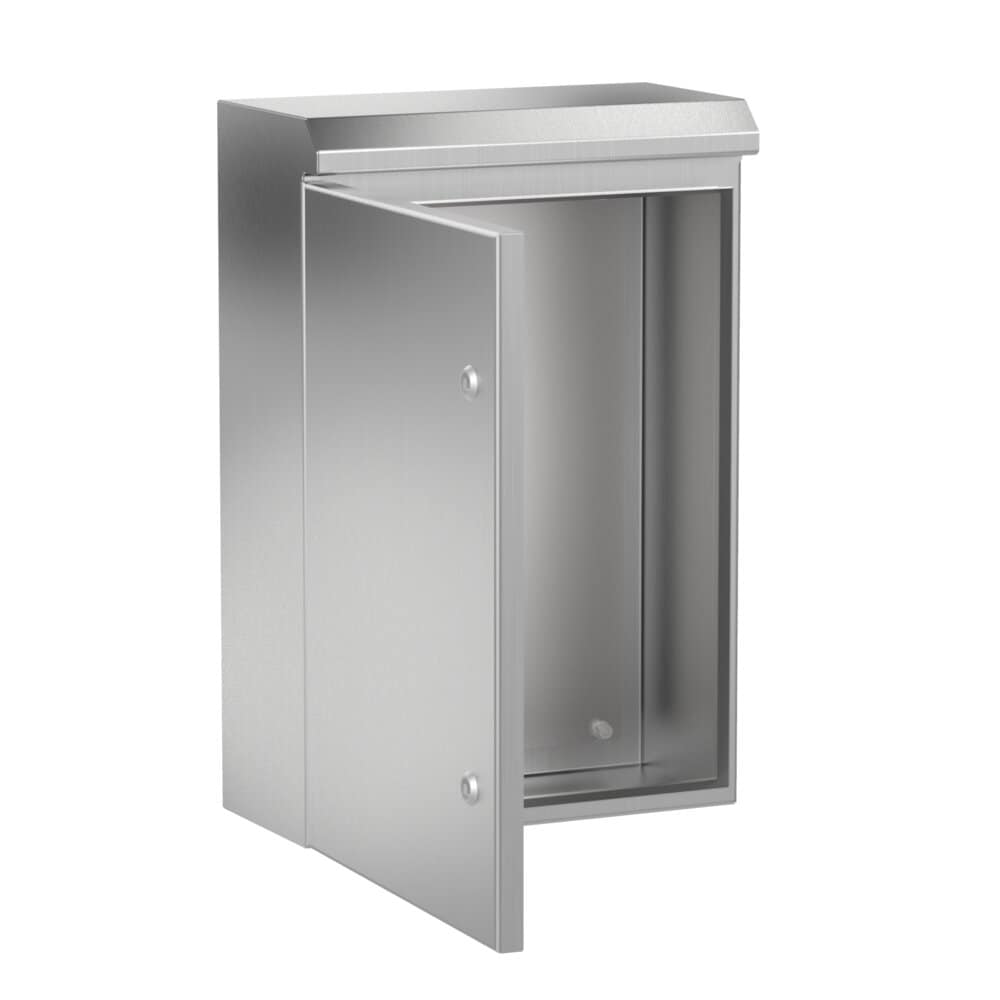

Door opening at 120°. Standard opening to the left, specify if desired to the right
The electrical panel comes standard with double-bit quarter-turn locks made of stainless steel
Maintenance-free throughout its entire lifespan. Service life over 30 years
Delvalle makes to order any size to suit your needs, including holes, shaped channels, both in the door and in the enclosure.
Our Sunbox series cabinets, given their design, finish, and tightness, are specially designed for photovoltaic solar energy, thermal, wind energy installations...
IP66(W) Protection Rating
IK10 protection rating according to IEC 62262 standard
Compliance with IEC 60068-2-30 and IEC 60068-2-11 Standards
UL NEMA 4X, 12, 3R, and 1 standards
Voltage withstand capacity of cabinets
Delvalle cabinets silicone gaskets temperature resistance
Food Contact Material Compliance
RoHS directive compliance

REFERENCES

DIMENSIONS (mm)

SOLID DOOR

(x)

POLYCARBONATE

DOOR

(x)

HEIGHT

-A-

WIDTH

-B-

DEPTH

-C-

MVAK383015

MVAK383015T

380

300

155

MVAK404021

MVAK404021T

400

400

210

MVAK505021

MVAK505021T

500

500

210

MVAK604021

MVAK604021T

600

400

210

MVAK705021

MVAK705021T

700

500

210

MVAK606021

MVAK606021T

600

600

210

MVAK806030

MVAK806030T

800

600

300

MVAK808030

MVAK808030T

800

800

300

MVAK108030

MVAK108030T

1000

800

300

MVAK128030

MVAK128030T

1200

800

300

MVAK101030

MVAK101030T

1000

1000

300

* Sunbox Luxor Design IP66 Possibility of two doors from 800×600
