IP68 junction boxes geo

SERIE GEO IP68

IP68 Stainless steel junction boxes Geo-Amphibox Series made of stainless steel AISI 304L or AISI 316L, combine a number of features ideal for electrical and electronic applications where security and perfect sealing against dust and water are essential it can be place in indoor or outdoor areas.

Submersible 1 meter during 7 days.

IP68 Enclosures are widely used for housing vital electronic control and test equipment for an enclosure which will withstand harsh environmental conditions, this hardwearing, IP68 junction boxes range, may be highly suitable.

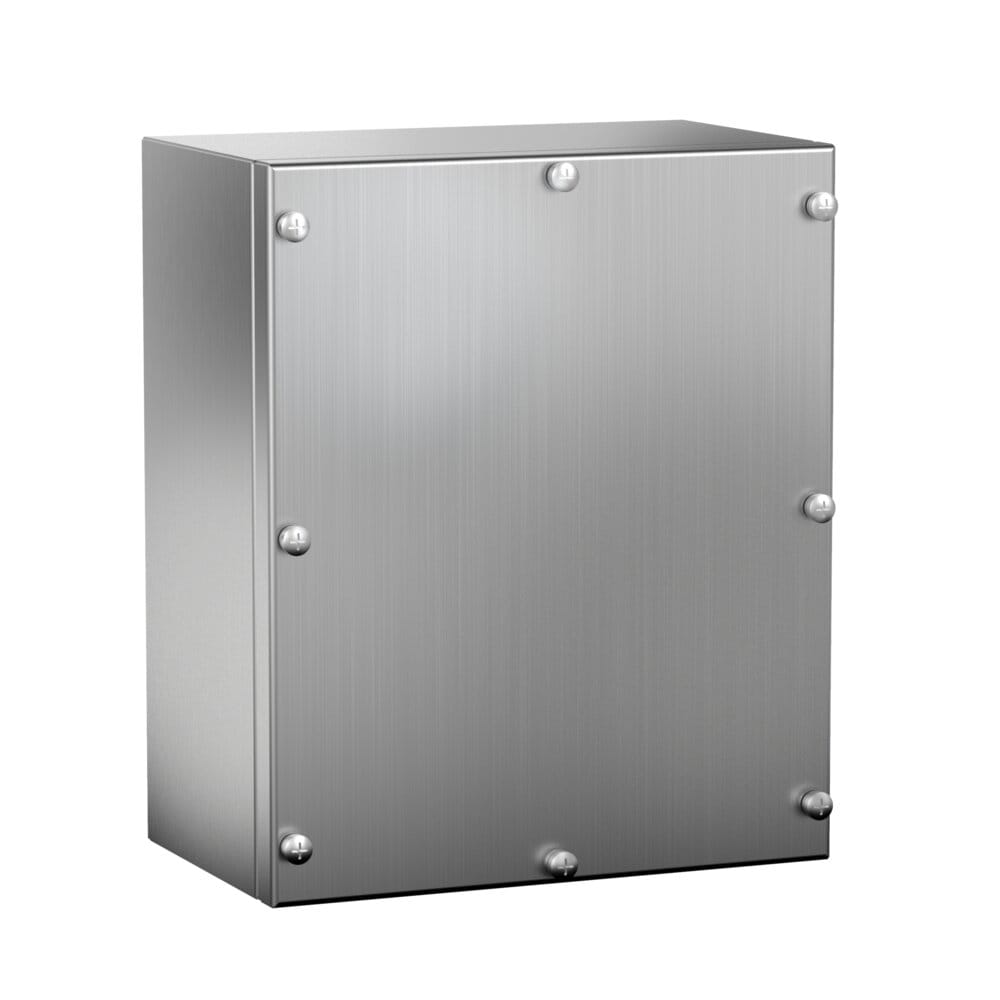

IP68 junction boxes geo: main view of the product

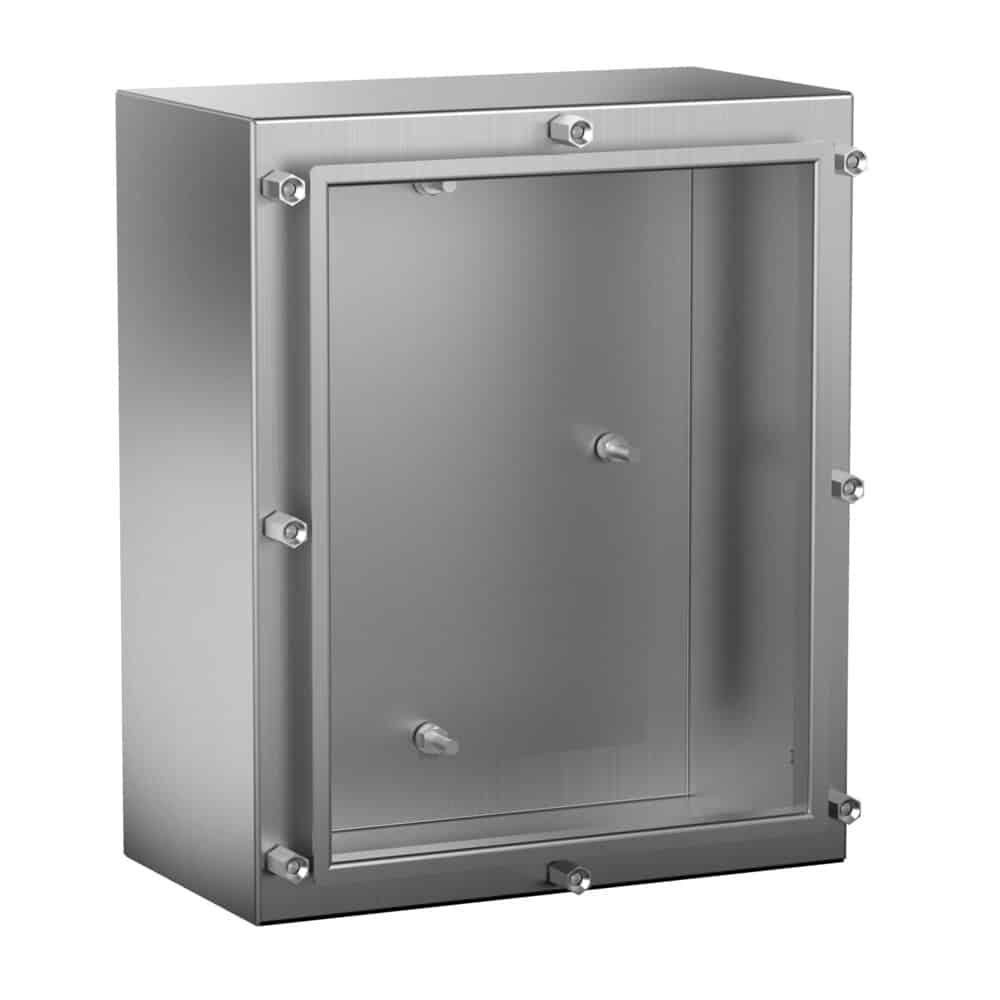

IP68 junction boxes geo: detail view of the product

TECHNICAL DATA

Minimum Measurements	A=90-400mm B=90-400mm P=8-150mm
Minimum Plate Measurements	A=24-334mm
Minimum Plate Measurements	B=24-334mm
Body Thickness	1.2 mm \| 12/10 mm 0.0472 " \| 18 Gauge
Door Type	Blind door
Opening Type	Screwed
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L
Alternative Finishes	Painted RAL 7035, 2B
Alternative Door	Door with safety glass, Door with polycarbonate panel
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	silicone (-60°C to +180°C), EMC
Machinable Area	Tapa: 16x16-326x326, Lateral: 80x53.8-390x123.8, Sup/Inf: 53.8x80-123.8x390

Made to Measure According to Your Needs

We recommend the use of our stainless steel IP68 cable glands for cable entry

Cabinet hinges

In stainless steel AISI 316L EN 14404

Textured paint finish with other RAL colors on request

The sealing allows total protection against dust and is resistant to continuous immersion for 7 days at a depth of 1 meter.

This type of enclosures combine the highest corrosion and impact resistance in the market IK10.

Monobloc manufacturing that achieves perfect sealing and impact resistance

Delivered with protective film that prevents scratches and abrasions during handling.

Stainless Steel AISI 304L or AISI 316L

Captive Screws

Large interior space simplifies connection operations, terminals, components, etc.

Corrosion resistant, rugged and watertight design

This combination of features makes them ideal for the indoor housing of electronic devices, electrical equipment, terminals,... in harsh outdoor, marine, oil & gas environments

IP68 protection rating for cabinets

Low Voltage Directive 2014/35/EU

Cabinets made from AISI 316 stainless steel with corrosion resistance

Voltage withstand capacity of cabinets

Delvalle cabinets with IP66(W) certification

RoHS Directive 2011/65/EU

Captive Screws in Cabinets

Delvalle cabinets silicone gaskets temperature resistance

REFERENCES	DIMENSIONS (mm)
SOLID COVER (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	USABLE HEIGHT INTERNAL -D-	USABLE WIDTH INTERNAL -E-	USABLE DEPTH INTERNAL -F-	MACHINING AREA		PLATE DIMENSIONS -GxH-
SOLID COVER (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	USABLE HEIGHT INTERNAL -D-	USABLE WIDTH INTERNAL -E-	USABLE DEPTH INTERNAL -F-	DOOR	SIDE	PLATE DIMENSIONS -GxH-
MVCB909080/68	90	90	80	39.6	39.6	61.4	25×25	60×28.8	–
MVCB209080/68	200	90	80	149.6	39.6	61.4	135×25	170×28.8	134×24
MVCB101615/68	100	160	150	49.6	109.6	131.4	35×95	70×98.8	34×94
MVCB202015/68	200	200	150	149.6	149.6	131.4	135×135	170×98.8	134×134
MVCB202520/68	200	250	200	149.6	199.6	181.4	135×185	170×148.8	134×184
MVCB303020/68	300	300	200	249.6	249.6	181.4	235×235	270×148.8	234×234
MVCB304030/68	300	400	300	249.6	349.6	281.4	235×335	270×248.8	234×334
MVCB404030/68	400	400	300	349.6	349.6	281.4	335×335	370×248.8	334×334
MVCB606040/68	600	600	400	549.6	549.6	381.4	535×535	570×348.8	534×534
MVCB808040/68	800	800	400	749.6	749.6	381.4	735×735	770×348.8	734×734
MVCB101050/68	1000	1000	500	949.6	949.6	481.4	935×935	970×448.8	934×934

* Geo Amphibox IP68 Stainless Steel Design – Watertight Screwed Cover

Croquis:

📄 Certification ip68 junction boxes geo

Accessories:

Metric polyamide cable glands IP68

PG polyamide cable glands IP68

Metric stainless steel cable glands IP68

Metric stainless steel cable glands AISI316L

Metric EMC nickel plated cable glands IP68

Metric nickel plated plug IP68
