Enclosure hygienic design tribeca

SERIE HYGIENIC TRIBECA IP66

Floor Stand Hygienic Design Enclosure from the Tribeca series, boasting an impressive IP66 rating and a spacious capacity tailor-made for the demanding needs of the food processing industry.

Compliant with the stringent European standard 13 EHEDG, our enclosure features a blue silicone gasket. Designed with meticulous attention to detail, our enclosure leaves no room for bacteria to hide, Opening is a breeze with the rotating handle and four-point lock mechanism, offering both security and convenience.

With a waterproof IP66 rating and UL Type NEMA 4x certification, you can trust in its reliability even in the harshest conditions. Easy to install and flexible in placement, it's the ultimate solution for maximizing workspace efficiency while maintaining strict hygiene standards.

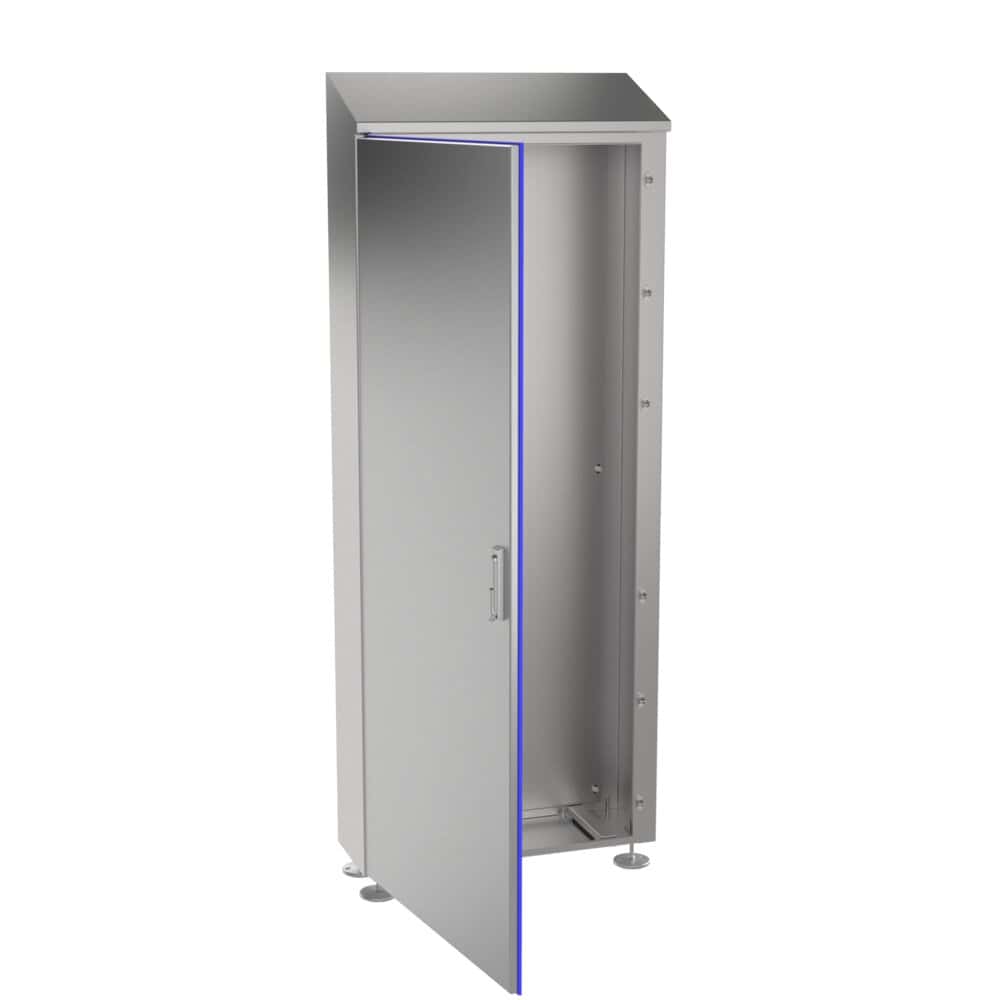

Enclosure hygienic design tribeca · main view

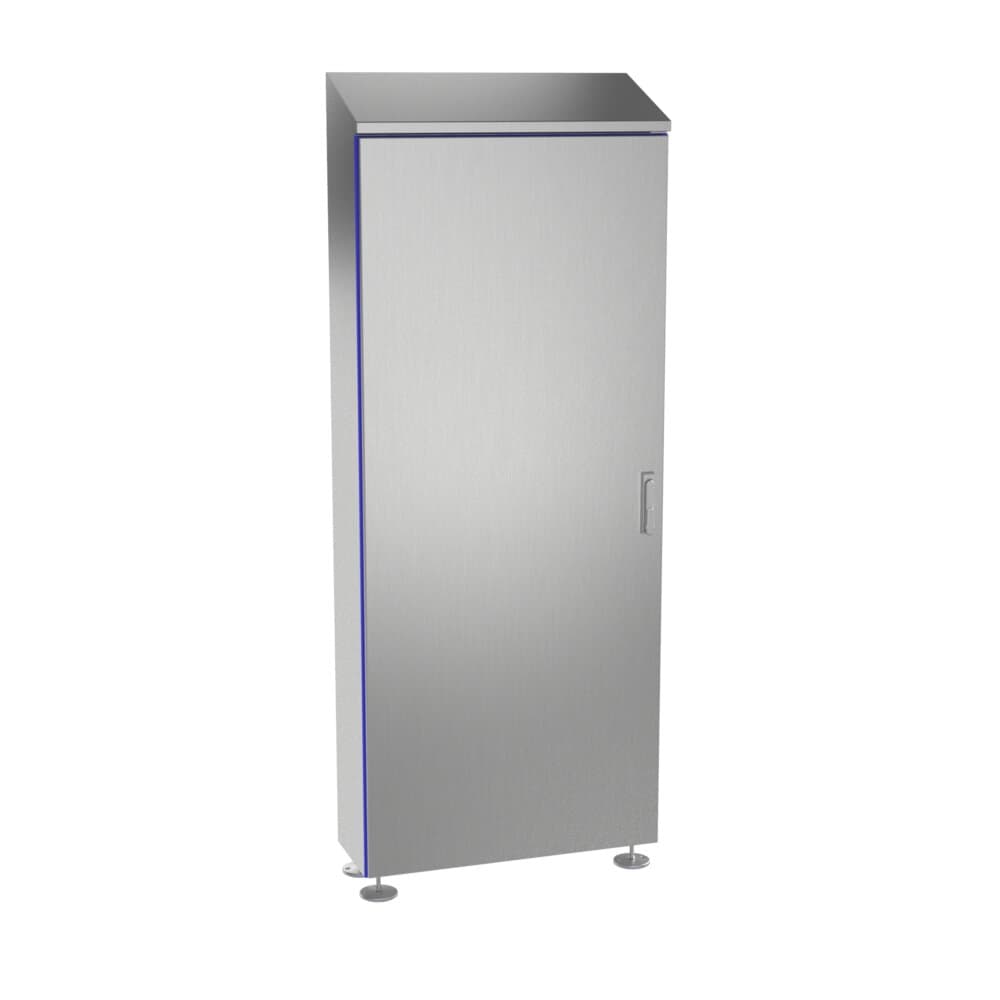

Enclosure hygienic design tribeca: detail view of the product

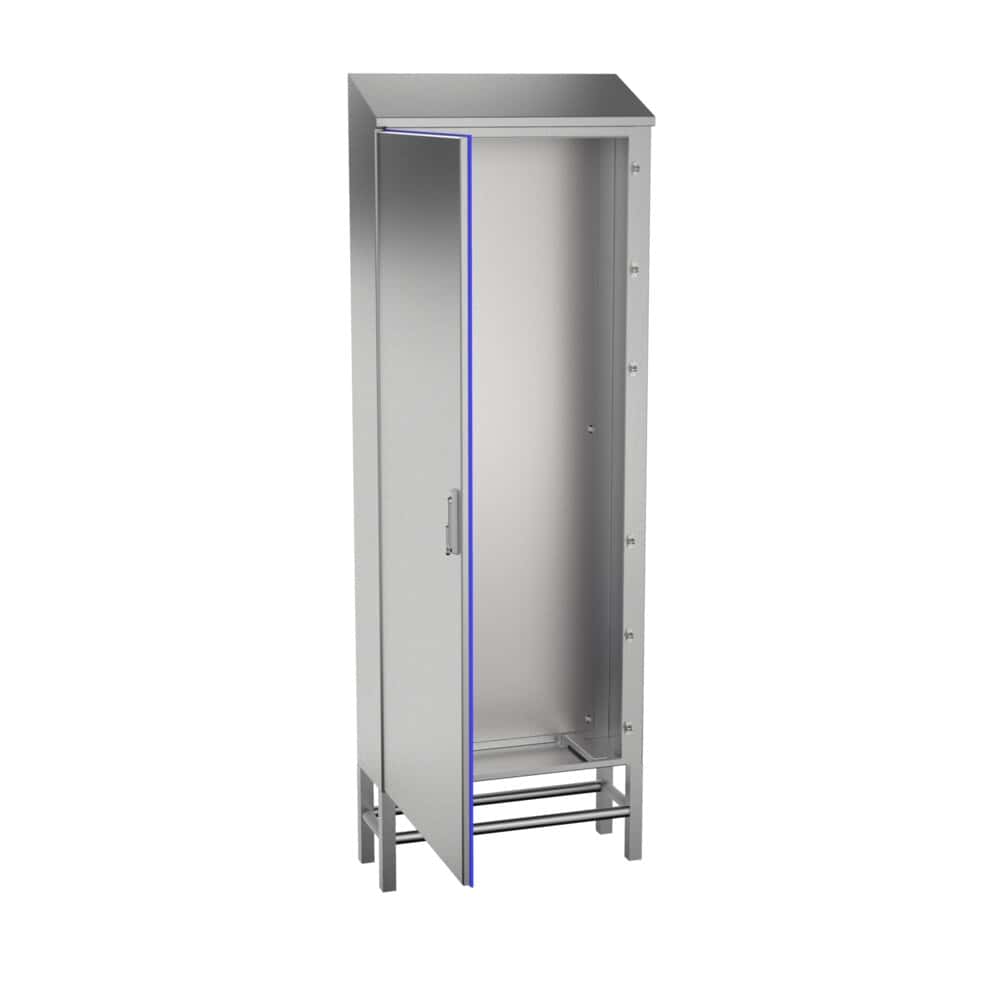

Enclosure hygienic design tribeca: additional view of the product

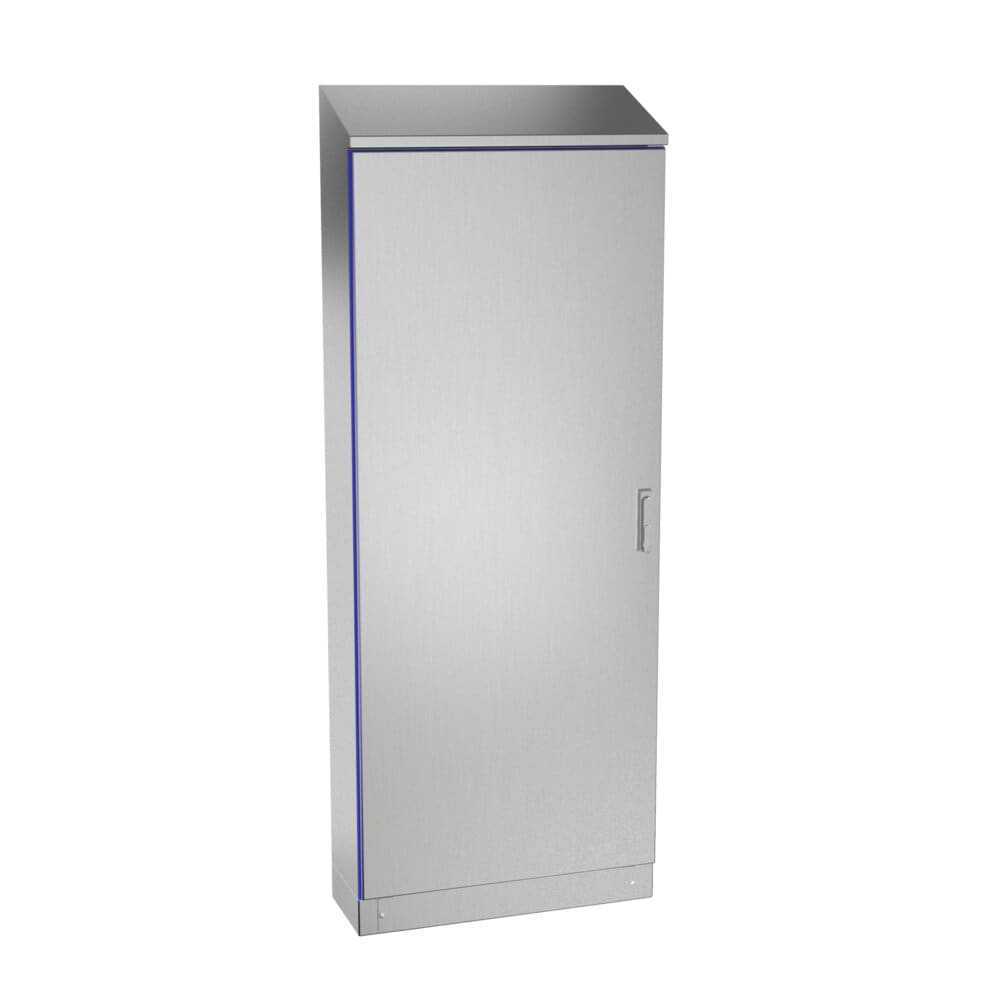

Enclosure hygienic design tribeca: side view of the product

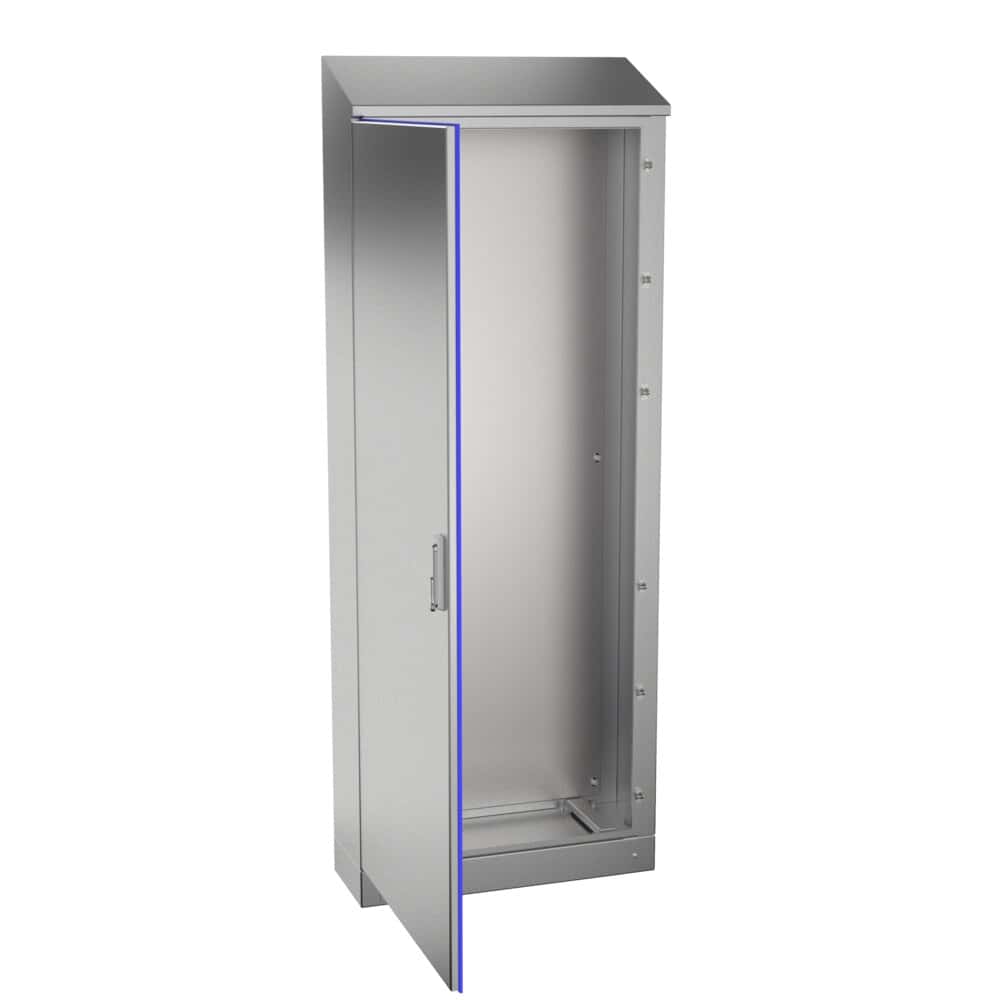

Enclosure hygienic design tribeca: rear view of the product

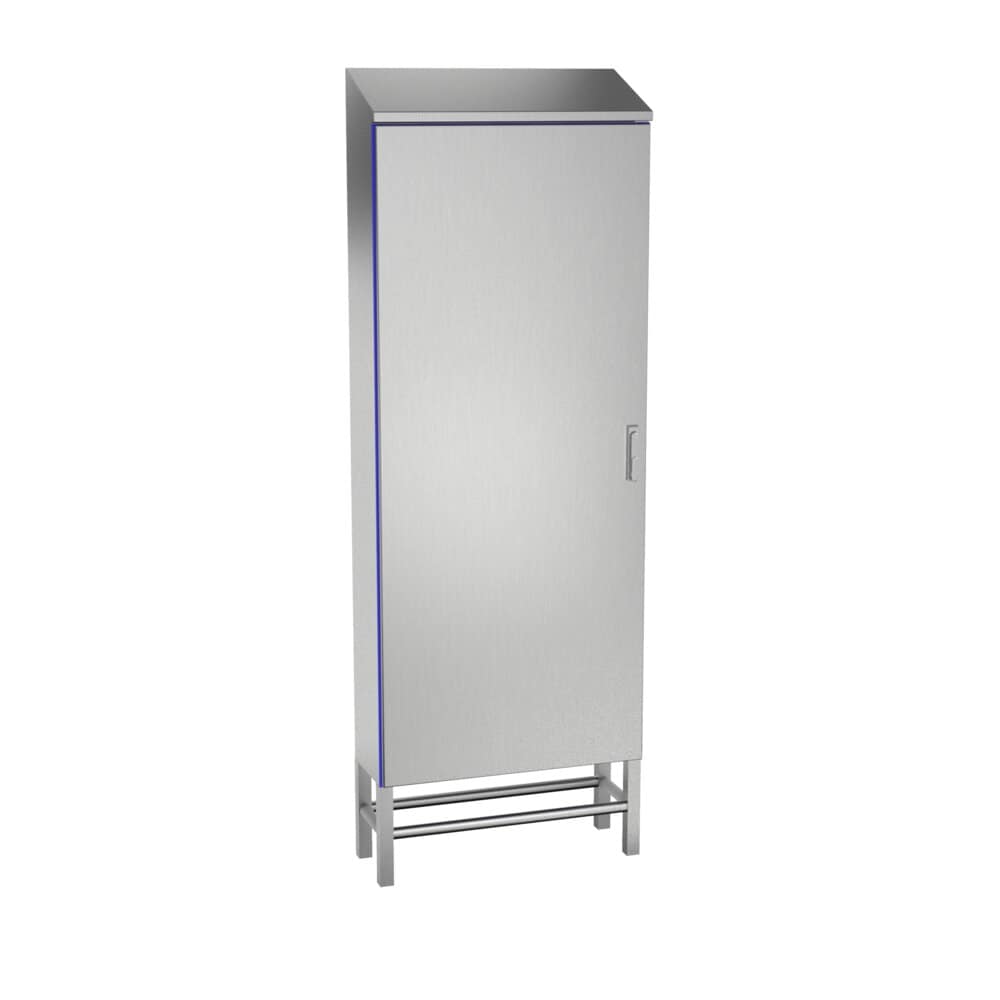

Enclosure hygienic design tribeca: alternative configuration of the product

TECHNICAL DATA

Minimum Measurements	A=1650-2000mm B=600-1000mm P=400-500mm
Minimum Plate Measurements	A=1520-1870mm
Minimum Plate Measurements	B=490-890mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Cierres Hygienic
Useful Depth	375,5-475,5 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Silicone
Working Temperature	-60°C a +180°C (reducida exposición hasta +350°C)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate

IP69K extends IEC 60529

Made to Measure According to Your Needs

Baseboards, Eye Bolts, and Metal Legs

In stainless steel AISI 316L EN 14404

Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand

Delivered with protective film that prevents scratches and abrasions during handling.

High-Temperature Resistant Silicone Gasket -60ºC to +200ºC

Monobloc construction that achieves perfect sealing and impact resistance

No openings where bacteria can lodge

Electro-polished finish helps liquids to slide off and a water-repellent seal prevents dirt and bacteria deposits

100% stainless, from the handle to the opening system

Door opening at 120°. Standard opening to the left, specify if desired to the right

The electrical panel comes standard with a four-point lever lock and concealed hinges made of stainless steel.

Delvalle can make to order any size to suit your needs, including holes, channels, shapes,...

Maximum distributed load 600 kg

Pressure Hot Water Resistant IP69K

Specially designed for the food industry and clean rooms, precooked products, dairy companies, wineries, or any other place where a clean environment is essential

IEC 60529 Standard

DIN EN ISO 14159

European Directive 2006/42/EC

DIN EN 1672-2:2005

IK10 protection rating according to IEC 62262 standard

CE regulation 1935/2004 and RoHS directive compliance

European Directive 2014/35/EU on low voltage

RoHS directive compliance

UL NEMA 4X, 12, 3R, and 1 standards

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

REFERENCES 1 DOOR	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USEFUL DEPTH -D-	MACHINABLE AREA		PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USEFUL DEPTH -D-	DOOR	SIDE	PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
HDT166040	1650	600	400	1447×500	375,5	1424×487,8	1614,8×344	1520×490	70,9	0,42
HDT167040	1650	700	400	1447×600	375,5	1424×587,8	1614,8×344	1520×590	82,7	0,49
HDT168040	1650	800	400	1447×700	375,5	1424×687,8	1614,8×344	1520×690	94,5	0,56
HDT161040	1650	1000	400	1447×900	375,5	1424×887,8	1614,8×344	1520×890	111,41	0,66
HDT186040	1800	600	400	1597×500	375,5	1574×487,8	1764,8×344	1670×490	77,65	0,46
HDT188040	1800	800	400	1597×700	375,5	1574×687,8	1764,8×344	1670×690	102,97	0,81
HDT181040	1800	1000	400	1597×900	375,5	1574×887,8	1764,8×344	1670×890	126,6	0,75
HDT206040	2000	600	400	1797×500	375,5	1774×487,8	1964,8×344	1870×490	86,09	0,51
HDT208040	2000	800	400	1797×700	375,5	1774×687,8	1964,8×344	1870×690	103,10	0,67
HDT201040	2000	1000	400	1797×900	375,5	1774×887,8	1964,8×344	1870×890	117,58	0,83

REFERENCES 2 DOORS	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USEFUL DEPTH -D-	MACHINABLE AREA		PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USEFUL DEPTH -D-	DOOR	SIDE	PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
HDT161240/2	1650	1200	400	1447×500	375,5	1424×487,8 (x2)	1614,8×344	1520×490 (x2)	123,1	0,84
HDT181240/2	1800	1200	400	1597×500	375,5	1574×487,8 (x2)	1764,8×344	1670×490 (x2)	136,8	0,93
HDT201240/2	2000	1200	400	1797×500	375,5	1774×487,8 (x2)	1964,8×344	1870×490 (x2)	151,78	1,12
HDT201640/2	2000	1600	400	1797×700	375,5	1774×687,8 (x2)	1964,8×344	1870×690 (x2)	184,51	1,31
HDT202040/2	2000	2000	400	1797×900	375,5	1774×887,8 (x2)	1964,8×344	1870×890 (x2)	212,67	1,61

Croquis:
