Modular enclosure titan IP6K9K

Modular stainless steel enclosure Titan Series IP6K9K, stylish and corrosion resistant, completely adaptable, flexible, for food, petrochemical, pharmaceutical industries, electrical use, which require smartness hygiene, sealing and long life.
Our system is a closed profile in stainless steel steel, welded, give greater strength and top quality. The doors sides and rear are hinged and easily removable with 120° opening, thanks to assembly with screws.
All this is achieved with a perfect assembly system where after the construction requested modules are coupled with screws. But the best advantage of this cabinet is the versatility it provides, in Addition to the large number of customized accessories.

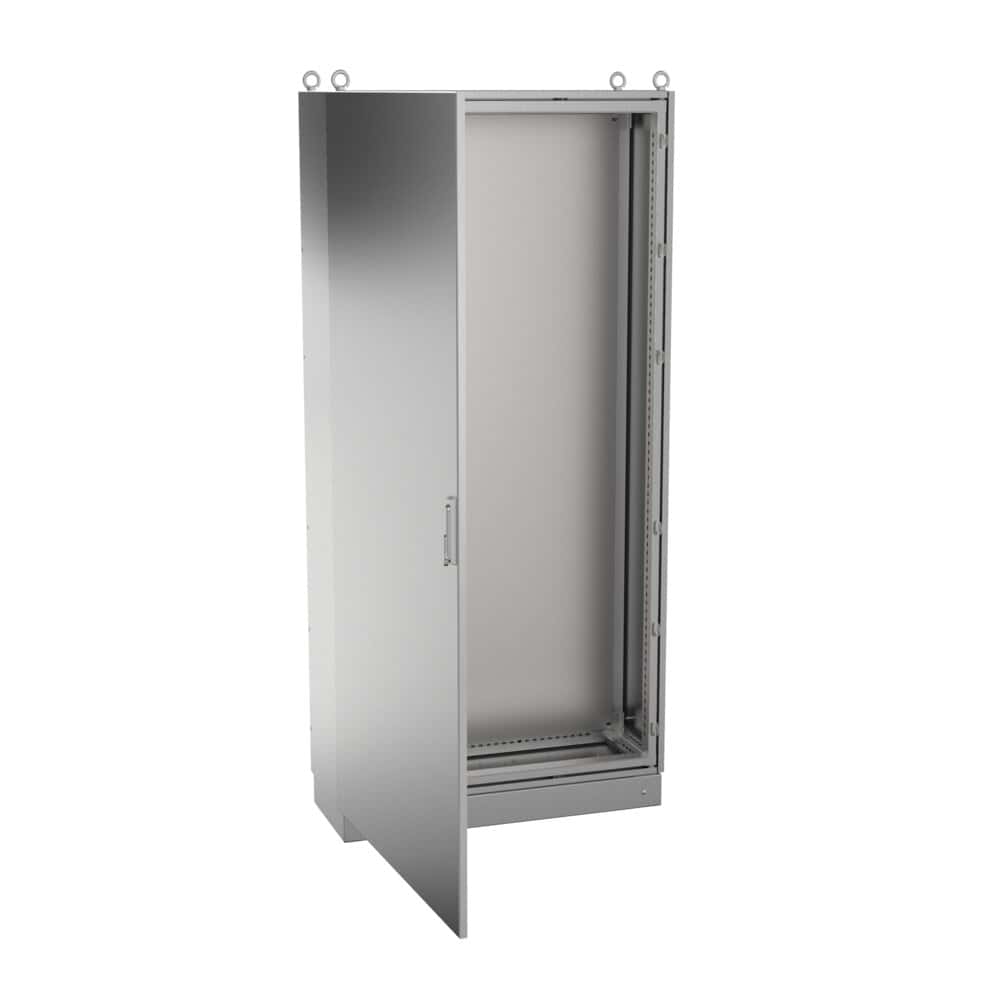

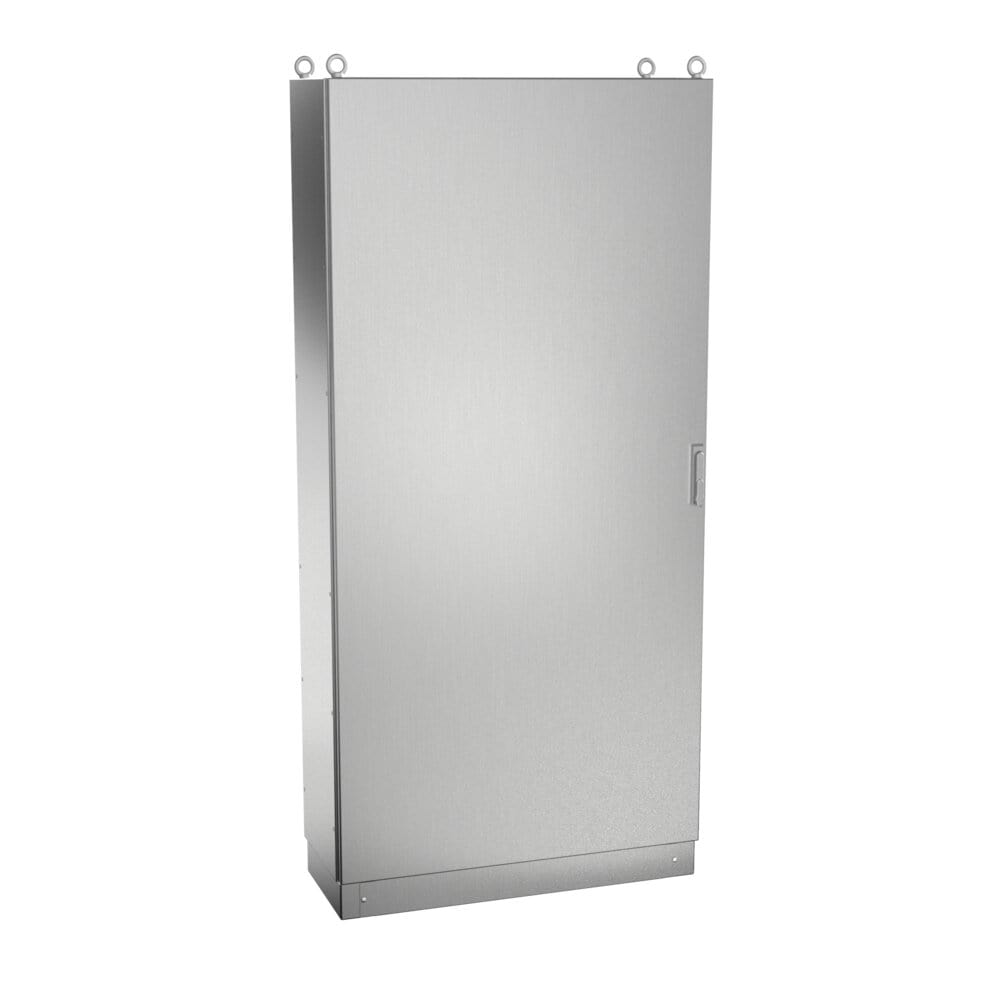

Modular enclosure titan IP6K9K: detail view of the product

TECHNICAL DATA

Minimum Measurements	A=1200-2200mm B=600-1000mm P=400-800mm
Maximum Double Door Measurements	A=2200mm B=1000mm P=800mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Rotary handle
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Door	Door with polycarbonate panel, Door with safety glass
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	silicone (-60°C to +180°C), EMC

Eyebolts (not included in standard)

All Types of Ventilation and Air Conditioning

Fixed Metal Legs or Wheels

Textured paint finish with other RAL colors on request

EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard

Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand

Ample mounting space and high accessibility

Infinite options, both in number of modules and measurements

Welded delivery, which provides it with great robustness

Side, Rear, Top, and Bottom Panels Easily Removable

100% stainless, from the handle to the opening system

Door Opening at 120º

Standard with lever lock with three or four anchor points

Delvalle makes to order any size to suit your needs, including holes, shaped channels, both in the door and in the enclosure.

Maximum distributed load 1000 kg

Specifically designed to provide maximum flexibility in its use. Thanks to its versatility, it can be installed in machine controls, control systems, electrical distribution

IP66 IEC EN 62208 and EN 60529 Standard

ISO 20653

IK10 Protection Rating

Low Voltage Directive 2014/35/EU

RoHS Directive 2011/65/EU

UL NEMA 4X, 12, 3R, and 1 standards

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

1-DOOR REFERENCES		DIMENSIONS (mm)
STAINLESS STEEL AISI 304L	STAINLESS STEEL AISI 316L	HEIGHT -A-	WIDTH -B-	DEPTH -C-
MVAF126040	MVAF126040316	1200	600	400
MVAF126060	MVAF126060316	1200	600	600
MVAF126080	MVAF126080316	1200	600	800
MVAF128040	MVAF128040316	1200	800	400
MVAF128060	MVAF128060316	1200	800	600
MVAF128080	MVAF128080316	1200	800	800
MVAF146040	MVAF146040316	1400	600	400
MVAF146060	MVAF146060316	1400	600	600
MVAF146080	MVAF146080316	1400	600	800
MVAF148040	MVAF148040316	1400	800	400
MVAF148060	MVAF148060316	1400	800	600
MVAF148080	MVAF148080316	1400	800	800
MVAF166040	MVAF166040316	1600	600	400
MVAF166060	MVAF166060316	1600	600	600
MVAF166080	MVAF166080316	1600	600	800
MVAF168040	MVAF168040316	1600	800	400
MVAF168060	MVAF168060316	1600	800	600
MVAF168080	MVAF168080316	1600	800	800
MVAF161040	MVAF161040316	1600	1000	400
MVAF161060	MVAF161060316	1600	1000	600
MVAF161080	MVAF161080316	1600	1000	800
MVAF161240	MVAF161240316	1600	1200	400
MVAF161260	MVAF161260316	1600	1200	600
MVAF161280	MVAF161280316	1600	1200	800
MVAF186040	MVAF186040316	1800	600	400
MVAF186050	MVAF186050316	1800	600	500
MVAF186060	MVAF186060316	1800	600	600
MVAF186080	MVAF186080316	1800	600	800
MVAF188040	MVAF188040316	1800	800	400
MVAF188050	MVAF188050316	1800	800	500
MVAF188060	MVAF188060316	1800	800	600
MVAF188080	MVAF188080316	1800	800	800
MVAF181040	MVAF181040316	1800	1000	400
MVAF181050	MVAF181050316	1800	1000	500
MVAF181060	MVAF181060316	1800	1000	600
MVAF181080	MVAF181080316	1800	1000	800
MVAF181240	MVAF181240316	1800	1200	400
MVAF181250	MVAF181250316	1800	1200	500
MVAF181260	MVAF181260316	1800	1200	600
MVAF181280	MVAF181280316	1800	1200	800
MVAF206040	MVAF206040316	2000	600	400
MVAF206050	MVAF206050316	2000	600	500
MVAF206060	MVAF206060316	2000	600	600
MVAF206080	MVAF206080316	2000	600	800
MVAF208040	MVAF208040316	2000	800	400
MVAF208050	MVAF208050316	2000	800	500
MVAF208060	MVAF208060316	2000	800	600
MVAF208080	MVAF208080316	2000	800	800
MVAF208010	MVAF208010316	2000	800	1000
MVAF201040	MVAF201040316	2000	1000	400
MVAF201050	MVAF201050316	2000	1000	500
MVAF201060	MVAF201060316	2000	1000	600
MVAF201080	MVAF201080316	2000	1000	800
MVAF226060	MVAF226060316	2200	600	600
MVAF226080	MVAF226080316	2200	600	800
MVAF228060	MVAF228060316	2200	800	600
MVAF228080	MVAF228080316	2200	800	800
MVAF221060	MVAF221060316	2200	1000	600
MVAF221080	MVAF221080316	2200	1000	800

2-DOOR REFERENCES		DIMENSIONS (mm)
STAINLESS STEEL AISI 304L	STAINLESS STEEL AISI 316L	HEIGHT -A-	WIDTH -B-	DEPTH -C-
MVAF181050/2	MVAF181050/2316	1800	1000	500
MVAF181060/2	MVAF181060/2316	1800	1000	600
MVAF201040/2	MVAF201040/2316	2000	1000	400
MVAF201050/2	MVAF201050/2316	2000	1000	500
MVAF201240/2	MVAF201240/2316	2000	1200	400
MVAF201250/2	MVAF201250/2316	2000	1200	500
MVAF201260/2	MVAF201260/2316	2000	1200	600
MVAF201280/2	MVAF201280/2316	2000	1200	800
MVAF221260/2	MVAF221260/2316	2200	1200	600
MVAF221280/2	MVAF221280/2316	2200	1200	800
MVAF221080/2	MVAF221080/2316	2200	1000	800

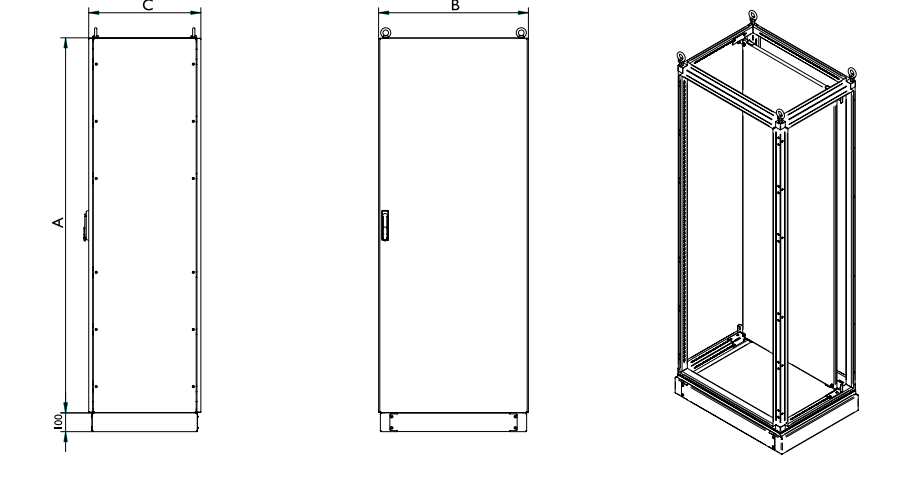

Croquis:

Accessories:

Metric polyamide cable glands IP68

PG polyamide cable glands IP68

Metric stainless steel cable glands AISI316L

Metric stainless steel cable glands IP68

Metric nickel plated cable glands IP68

Metric cable glands hygienic IP69K

Metric cable glands IP69K
