Free-standing enclosure tribeca IP6K9K

SERIE TRIBECA IP69K

Tribeca Series IP6K9K compact enclosures with improved design, robust, easy opening by rotating handle and four point lock, easy placement on the floor, flexible, maximum working width and a unique design in stainless steel AISI 304L.
Available in one or two doors, 120° swivel, easily removable.

We recommend cable entry hollow base.

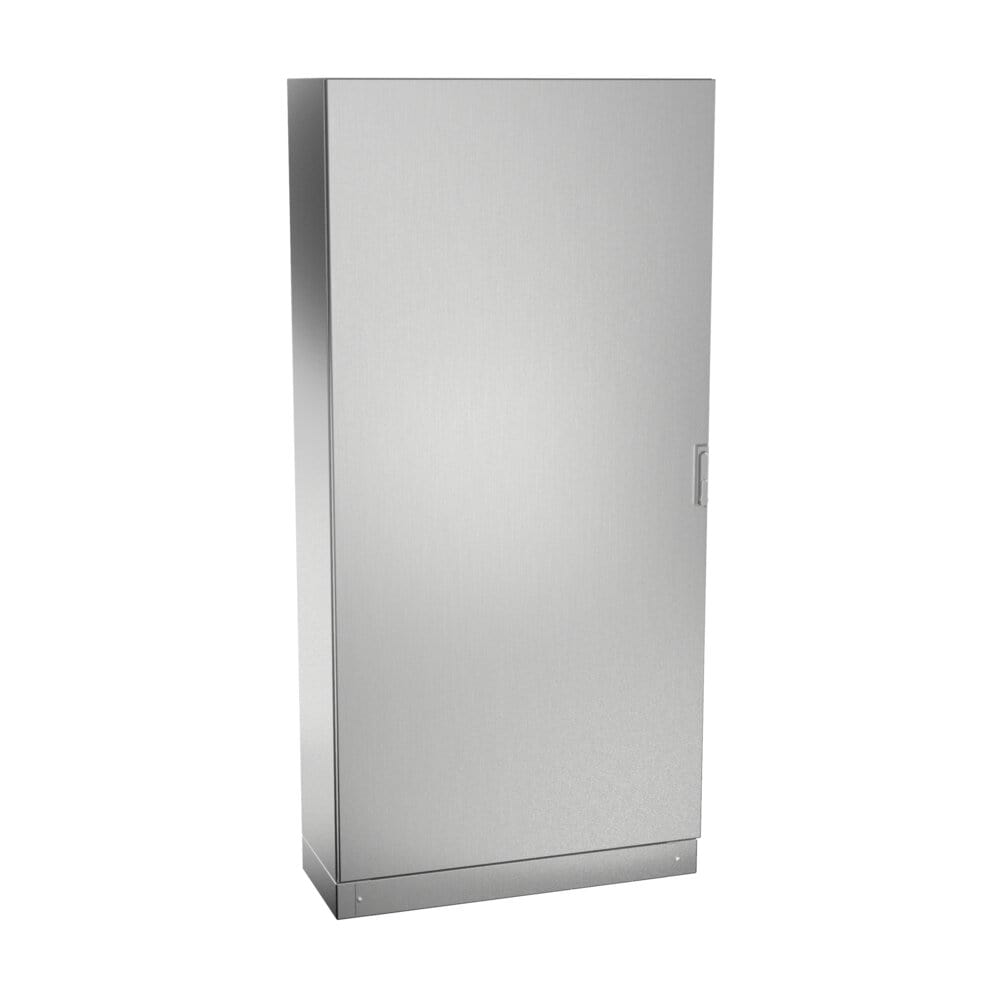

Tribeca IP6K9K · AISI 304L stainless steel

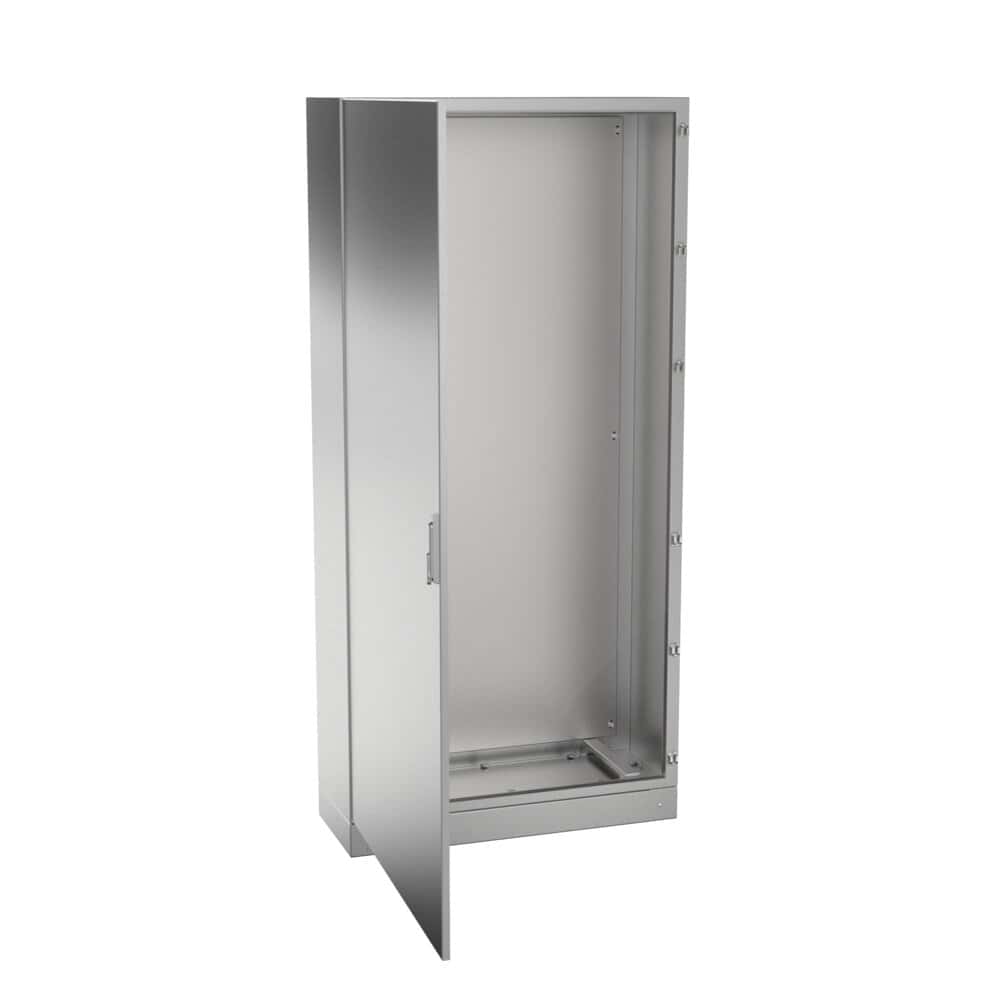

Close-up of the Tribeca electrical enclosure with 120-degree hinged door

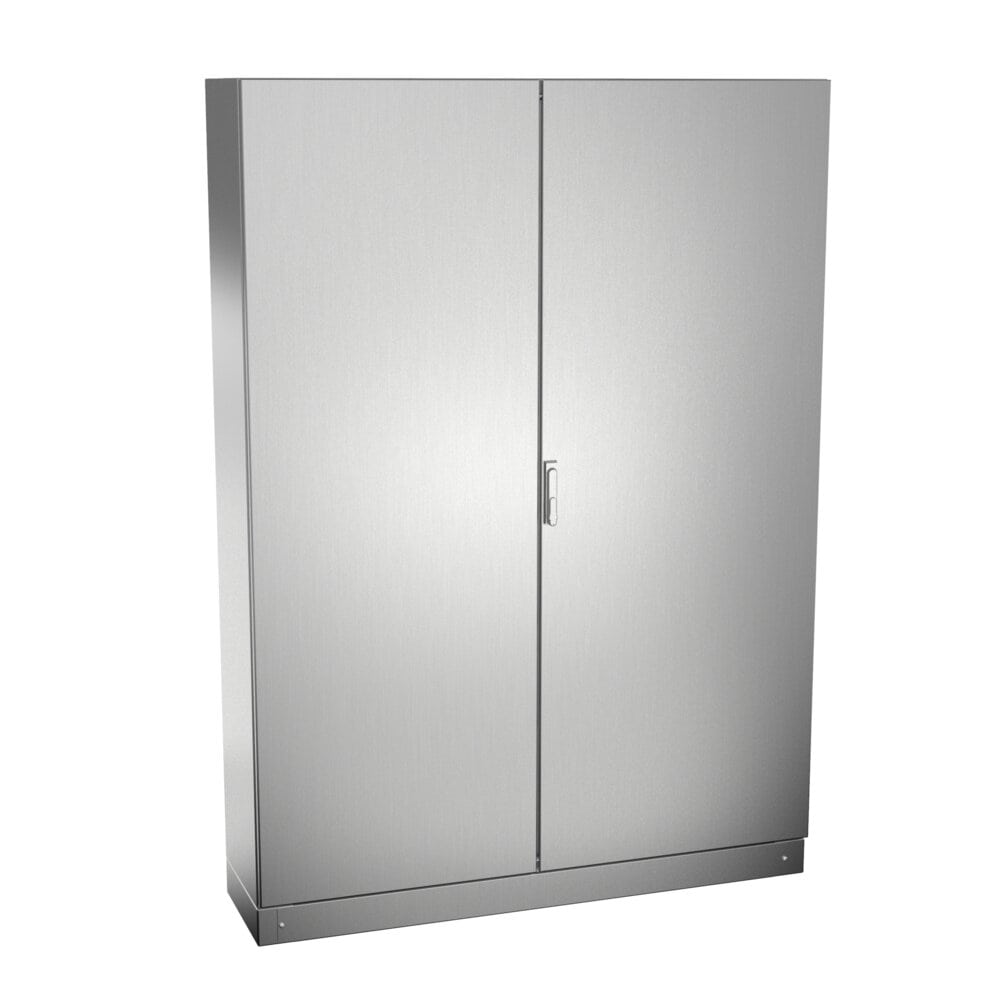

Compact Tribeca IP6K9K electrical enclosure with two stainless steel hinged doors

TECHNICAL DATA

Minimum Measurements	A=1650-2000mm B=600-1000mm P=400-500mm
Maximum Double Door Measurements	A=2000mm B=1600mm P=500mm
Minimum Plate Measurements	A=1520-1870mm
Minimum Plate Measurements	B=470-1470mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Rotary handle with 4 locking points
Useful Depth	375 - 475 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Door	Door with polycarbonate panel, Door with safety glass
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	EMC, silicone (-60°C to +180°C)
Machinable Area	Puerta: 1520x470 - 1810x605, Lateral: 1640x365 - 1990x465

Baseboards, Eye Bolts, and Metal Legs

In stainless steel AISI 316L EN 14404

EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard

Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand

Delivered with protective film that prevents scratches and abrasions during handling.

Monobloc construction that achieves perfect sealing and impact resistance

With drip edge channel that prevents liquids from contacting the polyurethane seal and hidden hinges

100% stainless, from the handle to the opening system

Door opening at 120°. Standard opening to the left, specify if desired to the right

The electrical panel comes standard with a four-point lever lock and concealed hinges made of stainless steel.

Delvalle manufactures any size to order that suits your needs, including holes and shaped channels, both on the door and the enclosure

Maximum distributed load 600 kg

Specially designed for the installation of automation systems, machine controls, counters, and wherever superior presence, quality, and durability are required.

Certified electrical panel for the food, chemical, pharmaceutical industries, transformation centers, telecommunications, and outdoor use due to its durability and resistance advantages

ISO 20653

IK10 protection rating according to IEC 62262 standard

CE regulation 1935/2004 and RoHS directive compliance

UL NEMA 4X, 12, 3R, and 1 standards

Voltage withstand capacity of cabinets

Silicone gasket for Delvalle cabinets

REFERENCES 1 DOOR		DIMENSIONS (mm)
SOLID DOOR (x)	POLYCARBONATE DOOR (not IP69K)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USEFUL DEPTH -D-	MACHINABLE AREA		PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
SOLID DOOR (x)	POLYCARBONATE DOOR (not IP69K)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USEFUL DEPTH -D-	DOOR	SIDE	PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
MVAC146040	MVACT146040	1400	600	400	1290×490	375	1324×474	1340×355	1270×470	64,00	0,42
MVAC148040	MVACT148040	1400	800	400	1290×690	375	1324×674	1340×355	1270×670	72,00	0,56
MVAC166040	MVACT166040	1600	600	400	1490×490	375	1524×474	1540×355	1470×470	75,00	0,48
MVAC168040	MVACT168040	1600	800	400	1490×690	375	1524×674	1540×355	1470×670	85,00	0,64
MVAC186040	MVACT186040	1800	600	400	1690×490	375	1724×474	1740×355	1670×470	86,00	0,54
MVAC188040	MVACT188040	1800	800	400	1690×690	375	1724×674	1740×355	1670×670	97,00	0,72
MVAC181040	MVACT181040	1800	1000	400	1690×890	375	1724×874	1740×355	1670×870	110,00	0,90
MVAC206040	MVACT206040	2000	600	400	1890×490	375	1924×474	1940×355	1870×470	95,00	0,60
MVAC208040	MVACT208040	2000	800	400	1890×690	375	1924×674	1940×355	1870×670	108,00	0,80
MVAC201040	MVACT201040	2000	1000	400	1890×890	375	1924×874	1940×355	1870×870	122,00	1,00
MVAC208050	MVACT208050	2000	800	500	1890×690	475	1924×674	1940×455	1870×670	115,00	1,00
MVAC201050	MVACT201050	2000	1000	500	1890×890	475	1924×874	1940×455	1870×870	130,00	1,25
Version: UL Standard Nema 4x, 12, 3r and 1	Add "UL" to the reference. Ex: "MVAC146040UL"
Version: IP67	Add "/67" to the reference. Ex: "MVAC146040/67"
Version: IP69K	Add "/69" to the reference. Ex: "MVAC146040/69"

* Compact Tribeca Design Backplate separation 20mm

REFERENCES 1 DOOR		DIMENSIONS (mm)
SOLID DOOR (x)	POLYCARBONATE DOOR (not IP69K)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USEFUL DEPTH -D-	MACHINABLE AREA		PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
SOLID DOOR (x)	POLYCARBONATE DOOR (not IP69K)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USEFUL DEPTH -D-	DOOR	SIDE	PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
MVAC146040	MVACT146040	1400	600	400	1290×490	375	1324×474	1340×355	1270×470	64,00	0,42
MVAC148040	MVACT148040	1400	800	400	1290×690	375	1324×674	1340×355	1270×670	72,00	0,56
MVAC166040	MVACT166040	1600	600	400	1490×490	375	1524×474	1540×355	1470×470	75,00	0,48
MVAC168040	MVACT168040	1600	800	400	1490×690	375	1524×674	1540×355	1470×670	85,00	0,64
MVAC186040	MVACT186040	1800	600	400	1690×490	375	1724×474	1740×355	1670×470	86,00	0,54
MVAC188040	MVACT188040	1800	800	400	1690×690	375	1724×674	1740×355	1670×670	97,00	0,72
MVAC181040	MVACT181040	1800	1000	400	1690×890	375	1724×874	1740×355	1670×870	110,00	0,90
MVAC206040	MVACT206040	2000	600	400	1890×490	375	1924×474	1940×355	1870×470	95,00	0,60
MVAC208040	MVACT208040	2000	800	400	1890×690	375	1924×674	1940×355	1870×670	108,00	0,80
MVAC201040	MVACT201040	2000	1000	400	1890×890	375	1924×874	1940×355	1870×870	122,00	1,00
MVAC208050	MVACT208050	2000	800	500	1890×690	475	1924×674	1940×455	1870×670	115,00	1,00
MVAC201050	MVACT201050	2000	1000	500	1890×890	475	1924×874	1940×455	1870×870	130,00	1,25
Version: UL Standard Nema 4x, 12, 3r and 1	Add "UL" to the reference. Ex: "MVAC146040UL"
Version: IP67	Add "/67" to the reference. Ex: "MVAC146040/67"
Version: IP69K	Add "/69" to the reference. Ex: "MVAC146040/69"

* Compact Tribeca Design Backplate separation 20mm

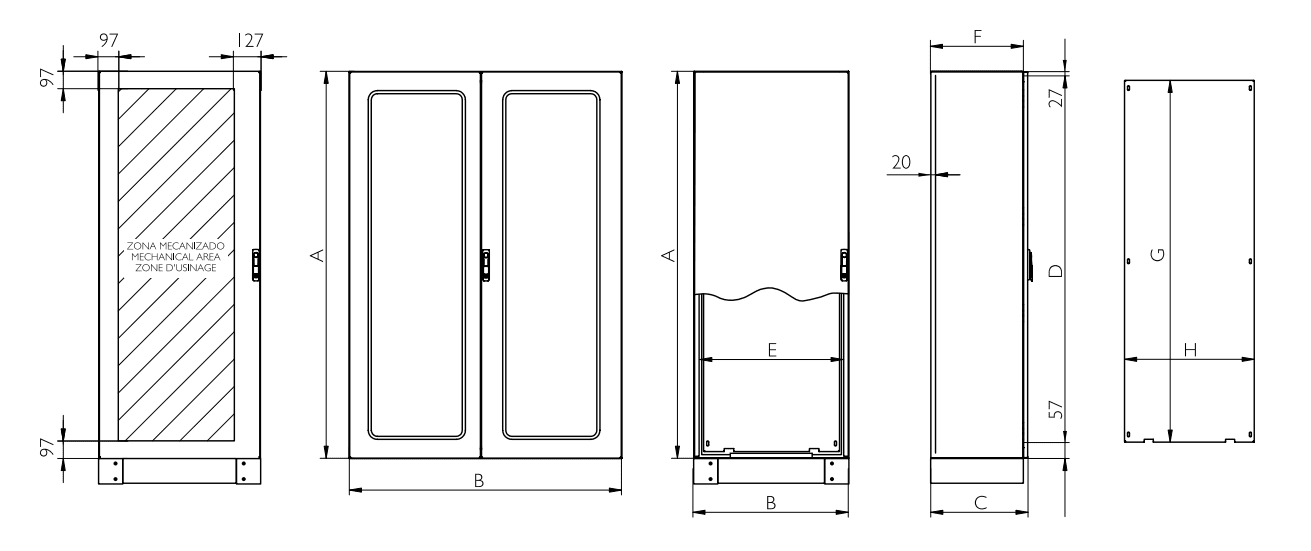

Croquis:

📄 Certification free-standing enclosure tribeca ip6k9k

Accessories:

Metric polyamide cable glands IP68

PG polyamide cable glands IP68

Metric stainless steel cable glands AISI316L

Metric stainless steel cable glands IP68

Metric nickel plated cable glands IP68

Metric cable glands hygienic
