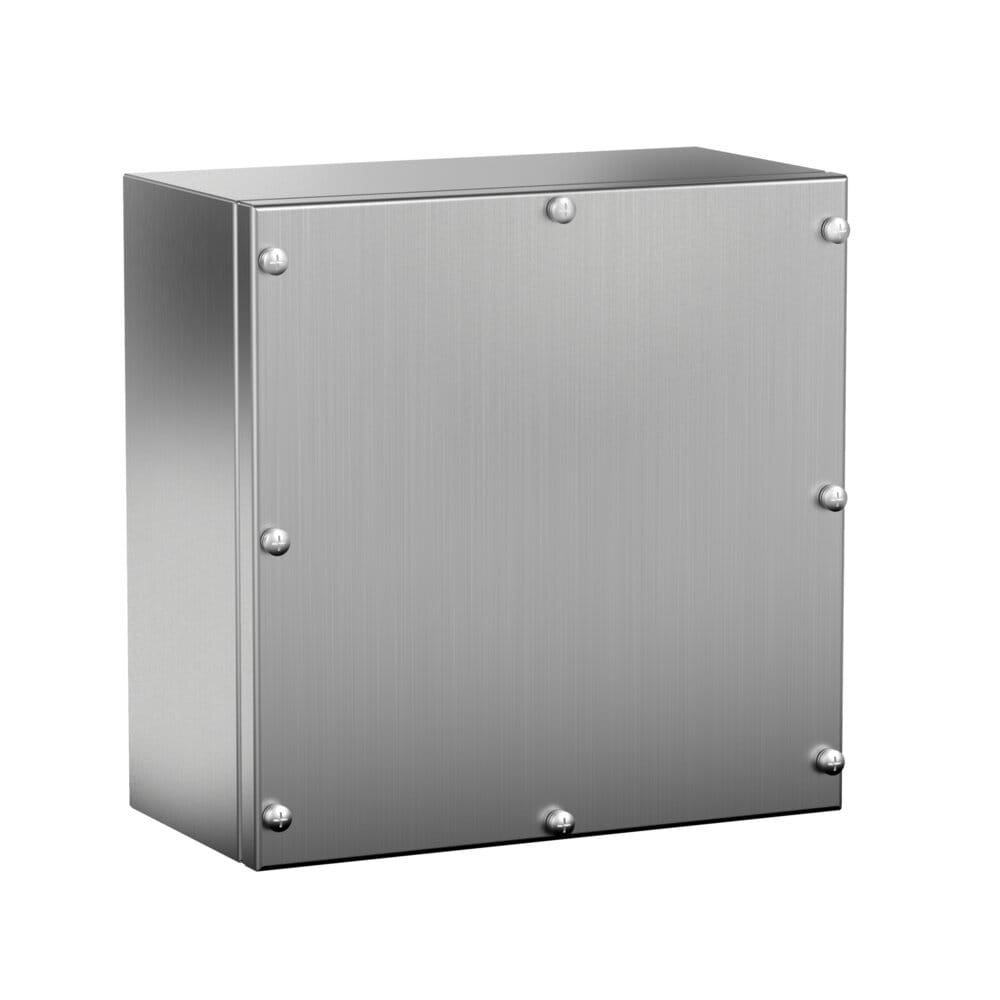

Stainless steel IP67 junction box Geo-Amphibox Series made of stainless steel AISI 304L or AISI 316L combine a number of features ideal for electrical and electronic applications where security and perfect sealing against dust and water are essential.
Submersible 1 meter during 30 minutes.
IP67 Junction box are widely used for housing vital electronic control and test equipment for an enclosure which will withstand harsh environmental conditions.
| Minimum Measurements | A=90-400mm B=90-400mm P=80-150mm |
|---|---|
| Minimum Plate Measurements | A=24-334mm |
| Minimum Plate Measurements | B=24-334mm |
| Body Thickness | 1.2 mm | 12/10 mm 0.0472 " | 18 Gauge |
| Door Type | Blind door |
| Opening Type | Screwed |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L |
|---|---|
| Alternative Finishes | Painted RAL 7035 |

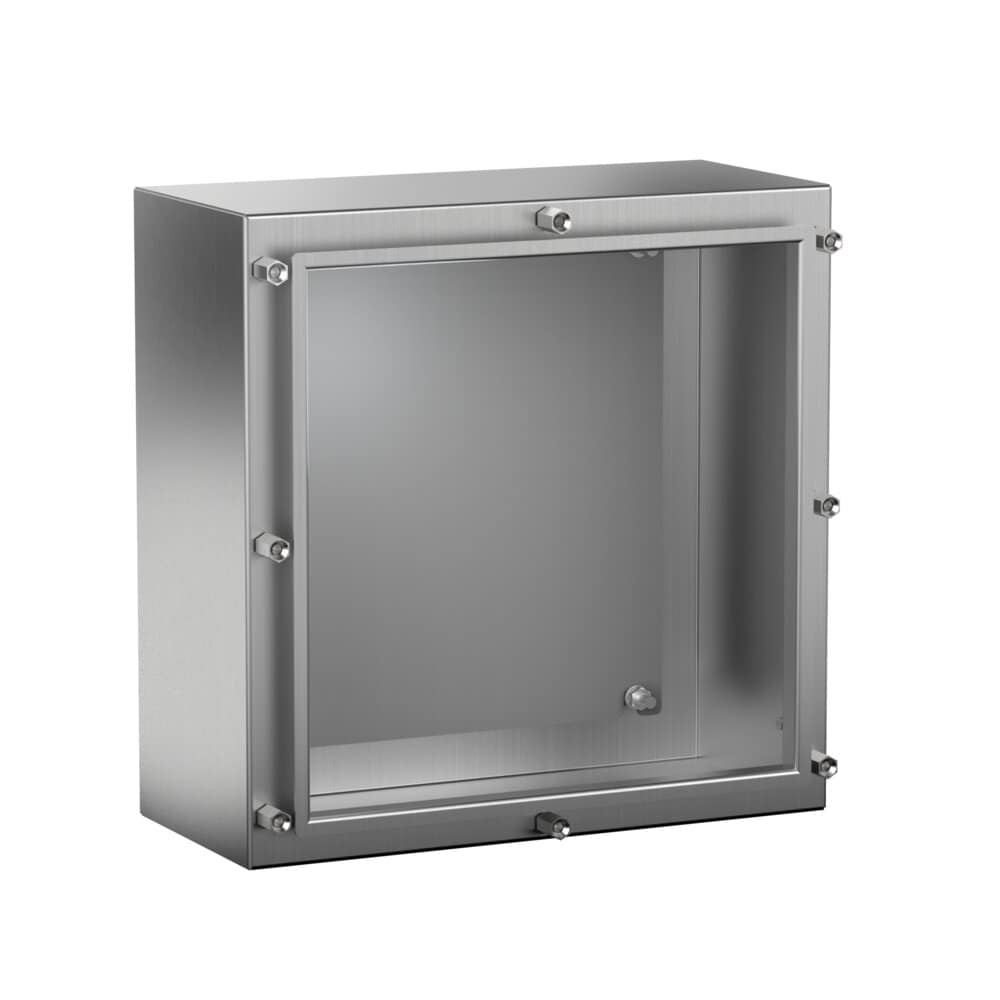

| Alternative Door | Door with polycarbonate panel, Door with safety glass |
| Interior Plate Material | Stainless steel mounting plate, Insulating mounting plate (Bakelite) |
| Alternative Gaskets | silicone (-60°C to +180°C), EMC |
| Machinable Area | Tapa: 16x16-326x326, Lateral: 80x53.8-390x123.8, Sup/Inf: 53.8x80-123.8x390 |
|
REFERENCES |
DIMENSIONS (mm) |
||||||||
|
SOLID COVER (x) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
ACCESS OPENING |
MACHINABLE AREA |
PLATE DIMENSIONS |
WEIGHT (Kg) |
||
|
COVER |
SIDE |
TOP AND BOT |
|||||||
|
MVCB909080/67 |
90 |
90 |
80 |
39,6×39,6 |
16×16 |
80×53,8 |
53,8×80 |
– |
0,566 |
|
MVCB149080/67 |
140 |
90 |
80 |
89,6×39,6 |
66×16 |
130×53,8 |
53,8×80 |
74×24 |
0,797 |
|
MVCB209080/67 |
200 |
90 |
80 |
149,6×39,6 |
126×16 |
190×53,8 |
53,8×80 |
134×24 |
1,073 |
|
MVCB269012/67 |
260 |
90 |
120 |
209,6×39,6 |
186×16 |
250×93,8 |
93,8×80 |
194×24 |
1,629 |
|
MVCB101612/67 |
100 |
160 |
120 |
49,6×109,6 |
26×86 |
90×93,8 |
93,8×150 |
34×94 |
1,170 |
|
MVCB161612/67 |
150 |
160 |
120 |
109,6×109,6 |
86×86 |
150×93,8 |
93,8×150 |
94×94 |
1,639 |
|
MVCB202012/67 |
200 |
200 |
120 |
149,6×149,6 |
126×126 |
190×93,8 |
93,8×190 |
134×134 |
2,321 |
|
MVCB202515/67 |
200 |
250 |
150 |
149,6×199,6 |
126×176 |
190×123,8 |
123,8×240 |
134×184 |
3,053 |
|
MVCB252515/67 |
250 |
250 |
150 |
199,6×199,6 |
176×176 |
240×123,8 |
123,8×240 |
184×184 |
3,630 |
|
MVCB203015/67 |
200 |
300 |
150 |
149,6×249,6 |
162×226 |
190×123,8 |
123,8×290 |
134×234 |
3,568 |
|
MVCB303015/67 |
300 |
300 |
150 |
249,6×249,6 |
276×226 |
290×123,8 |
123,8×290 |
234×234 |
4,911 |
|
MVCB304015/67 |
300 |
400 |
150 |
249,6×349,6 |
226×326 |
290×123,8 |
123,8×390 |
234×334 |
6,240 |
|
MVCB404015/67 |
400 |
400 |
150 |
349,6×349,6 |
326×326 |
390×123,8 |
123,8×390 |
334×334 |
7,918 |
* Geo Amphibox Design IP67 Stainless Steel – 1 Cover Format
