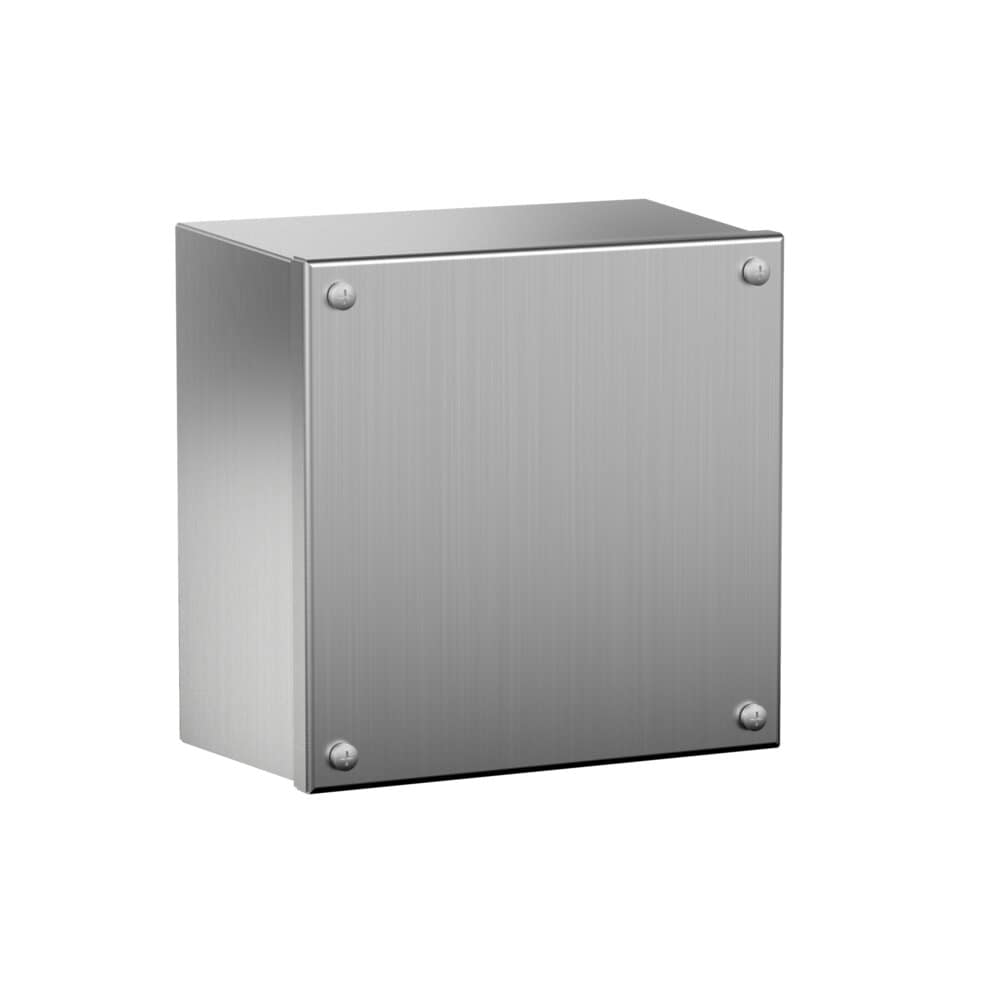

Fresh Geo Series IP6K9K push-button and junction boxes, elegant watertight boxes made wholly in finelypolished AISI 304L EN-14306 stainless steel available in plain or bored covers (22.5).
Specially designed for placing push-buttons.
Fresh Geo Series IP6K9K push-button and junction boxes, elegant watertight boxes made wholly in finelypolished AISI 304L EN-14306 stainless steel available in plain or bored covers (22.5).
Specially designed for placing push-buttons.
| Minimum Measurements | A=90-400mm B=90-400mm P=80-150mm |
|---|---|
| Minimum Plate Measurements | A=60-370mm |
| Minimum Plate Measurements | B=70-380mm |
| Body Thickness | 1.2 mm | 12/10 mm 0.0472 " | 18 Gauge |
| Door Type | Blind door |
| Opening Type | Screwed |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Silicone |
| Working Temperature | -60°C a +180°C (reducida exposición hasta +350°C) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Alternative Door | Door with polycarbonate panel, Door with safety glass |
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate |
| Alternative Gaskets | EMC |
| Machinable Area | 48x48-358x358 |
|
REFERENCES |
DIMENSIONS AND DATA |
||||||||
|
SOLID COVER (x) |
PUNCHED COVER |
NO. PUNCHINGS |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
MACHINING AREA |
PLATE DIMENSIONS |
WEIGHT (Kg) |
VOLUME (m³) |
|
MVCB0909080 |
MVCB0909080P |
1 |
90 |
90 |
80 |
66×66 |
48×48 |
0.68 |
0.001 |
|
MVCB101612 |
MVCB101612P |
3 |
100 |
160 |
120 |
76×136 |
58×118 |
1.25 |
0.003 |
|
MVCB149080 |
MVCB149080P |
2 |
140 |
90 |
80 |
116×66 |
98×48 |
0.92 |
0.001 |
|
MVCB161612 |
MVCB161612P |
4 |
160 |
160 |
120 |
136×136 |
118×118 |
1.75 |
0.004 |
|
MVCB209080 |
MVCB209080P |
3 |
200 |
90 |
80 |
176×66 |
158×48 |
1.12 |
0.002 |
|
MVCB202012 |
MVCB202012P |
6 |
200 |
200 |
120 |
176×176 |
158×158 |
2.53 |
0.006 |
|
MVCB202515 |
MVCB202515P |
12 |
200 |
250 |
150 |
176×226 |
158×208 |
3.25 |
0.009 |
|
MVCB203015 |
MVCB203015P |
15 |
200 |
300 |
150 |
176×276 |
158×258 |
1.75 |
0.011 |
|
MVCB252515 |
MVCB252515P |
16 |
250 |
250 |
150 |
226×226 |
208×208 |
3.87 |
0.012 |
|
MVCB269012 |
MVCB269012P |
4 |
260 |
90 |
120 |
236×66 |
218×48 |
1.25 |
0.004 |
|
MVCB289080 |
MVCB289080P |
5 |
280 |
90 |
80 |
256×66 |
238×48 |
1.60 |
0.002 |
|
MVCB303015 |
MVCB303015P |
25 |
300 |
300 |
150 |
276×276 |
258×258 |
5.16 |
0.016 |
|
MVCB304015 |
MVCB304015P |
35 |
300 |
400 |
150 |
276×376 |
258×358 |
6.64 |
0.022 |
|
MVCB404015 |
MVCB404015P |
49 |
400 |
400 |
150 |
376×376 |
358×358 |
8.41 |
0.028 |
