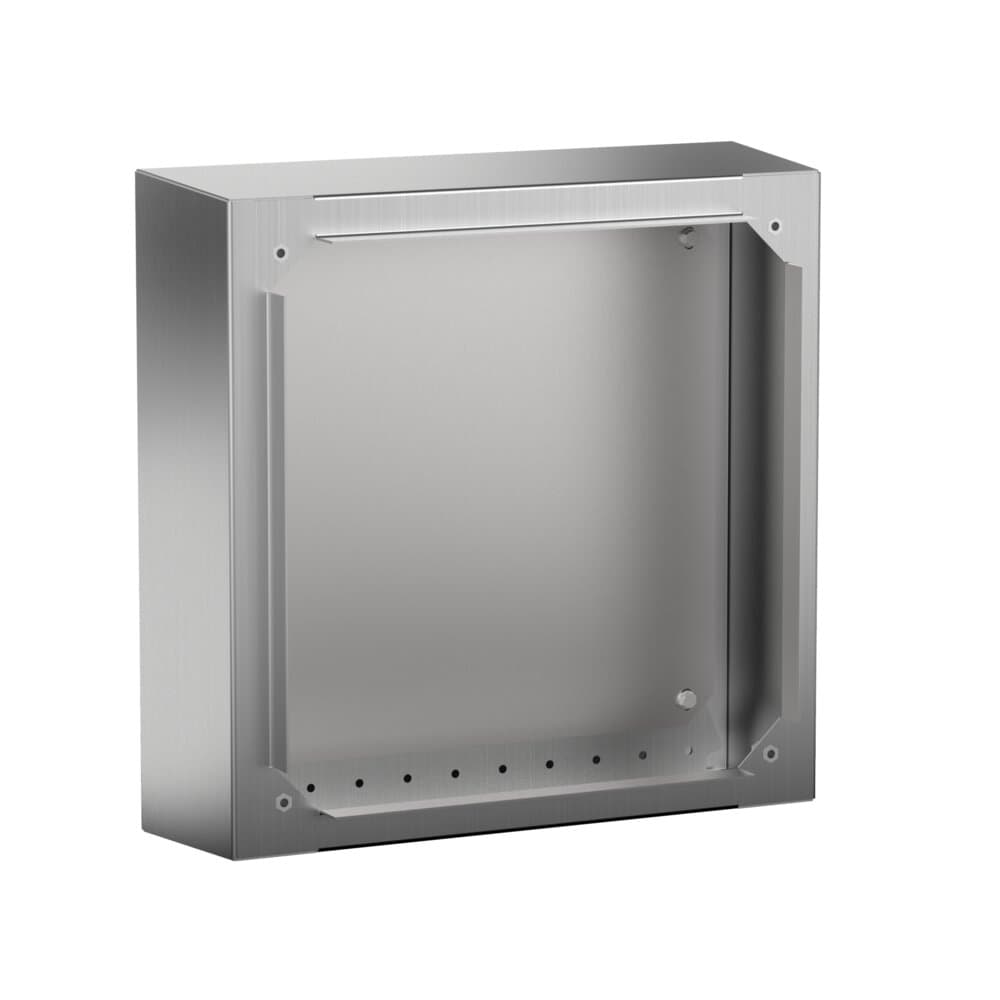

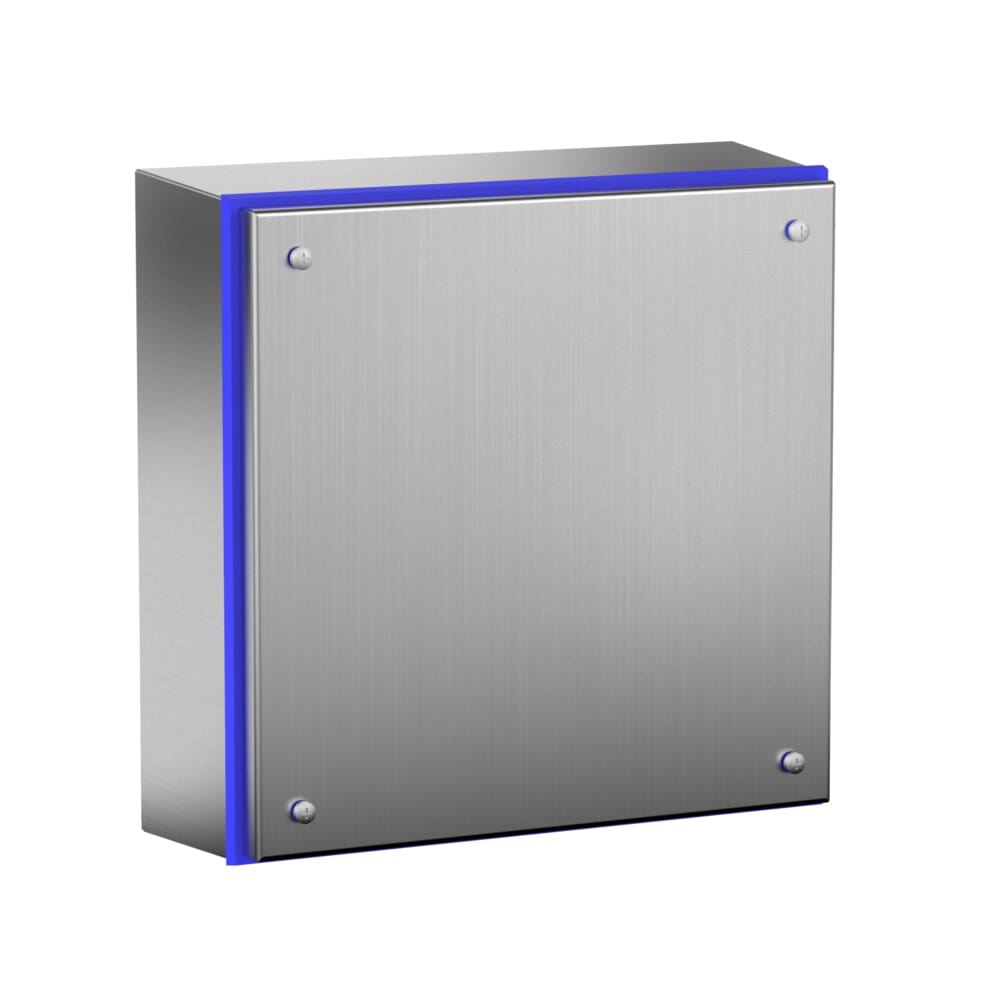

Hygienic Design Juntion Boxes, Geo Series, IP6K9K, blue silicone gasket, European standard 13 EHEDG certified, and UL NEMA type 4x
Elegant watertight jtion boxes made finely polished AISI 304L EN-14306 & AISI 316L stainless steel available in plain or bored covers (22.5).
Specially designed for placing push-buttons and Terminals.
| Minimum Measurements | A=150-410mm B=150-310mm P=80-120mm |
|---|---|
| Minimum Plate Measurements | A=100-350mm |
| Minimum Plate Measurements | B=120-270mm |
| Body Thickness | 1.2 mm | 12/10 mm 0.0472 " | 18 Gauge |
| Door Type | Blind door |
| Opening Type | Screwed |
| Useful Depth | 59,8-99-8 mm |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Working Temperature | -60ºC a +180ºC (reducida exposición hasta +350ºC) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Alternative Door | Door with polycarbonate panel, Door with safety glass |
| Interior Plate Material | Stainless steel mounting plate, Insulating mounting plate (Bakelite) |
| Machinable Area | Tapa: 80x80-330x230, Lateral: 124,6x26,1-378,8x66,2 |
|
REFERENCES |
DIMENSIONS AND DATA |
|||||||
|
SOLID COVER (x) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
ACCESS OPENING -GxH- |
MACHINING AREA COVER |
PLATE DIMENSIONS |
WEIGHT (Kg) |
VOLUME (m³) |
|
HDG151580/69 |
150 |
150 |
80 |
110×110 |
126×126 |
108×108 |
– |
– |
|
HDG202012/69 |
200 |
200 |
120 |
160×160 |
176×176 |
158×158 |
– |
– |
|
HDG302012/69 |
300 |
200 |
120 |
260×160 |
276×176 |
258×158 |
– |
– |
|
HDG402012/69 |
400 |
200 |
120 |
360×160 |
376×176 |
358×158 |
– |
– |
|
HDG403012/69 |
400 |
300 |
120 |
360×260 |
376×276 |
358×258 |
1.72 |
0.003 |
