Luxor IP66 wall-mount electrical cabinet.

SERIE LUXOR IP66

Luxor Series wall-mount electrical cabinets featuring an improved design and materials; robust, with easy-to-open locks, smooth rotation and opening, flexibility, and maximum door opening (up to 120°).

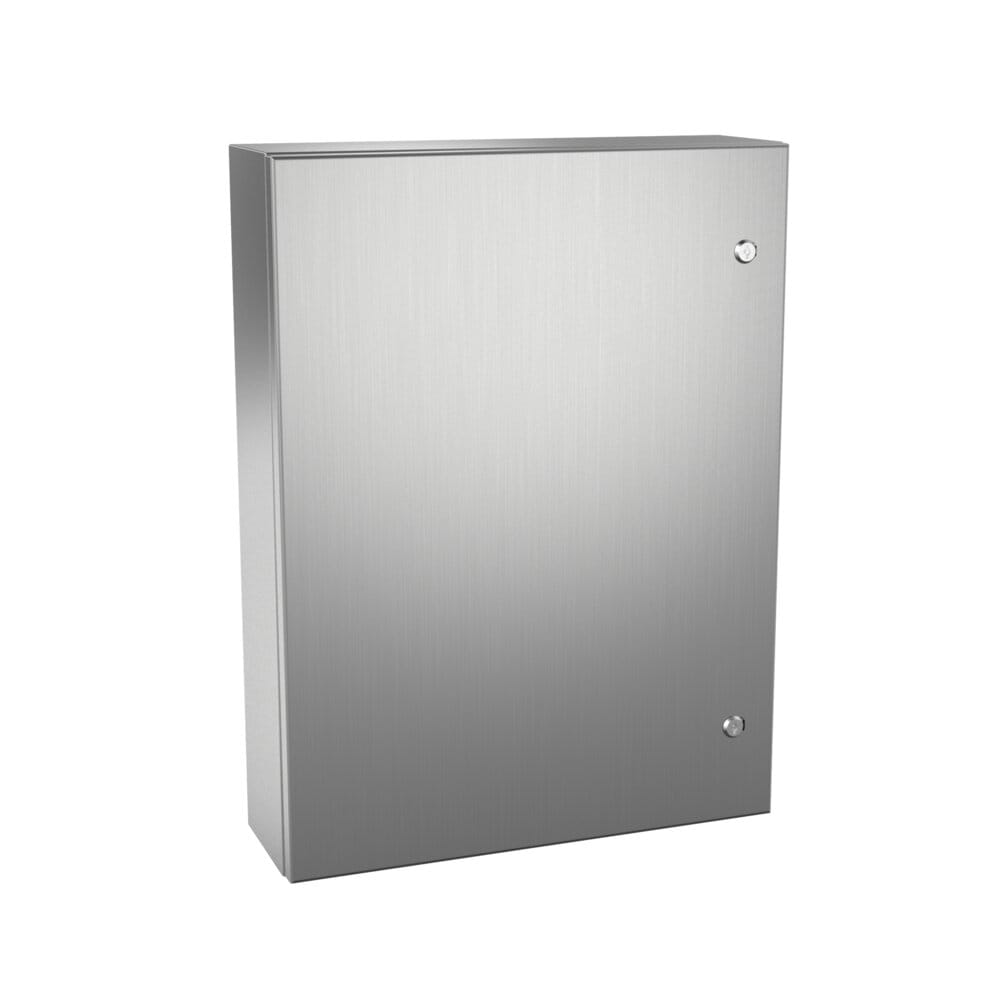

Luxor IP66 wall-mount electrical cabinet. · main view

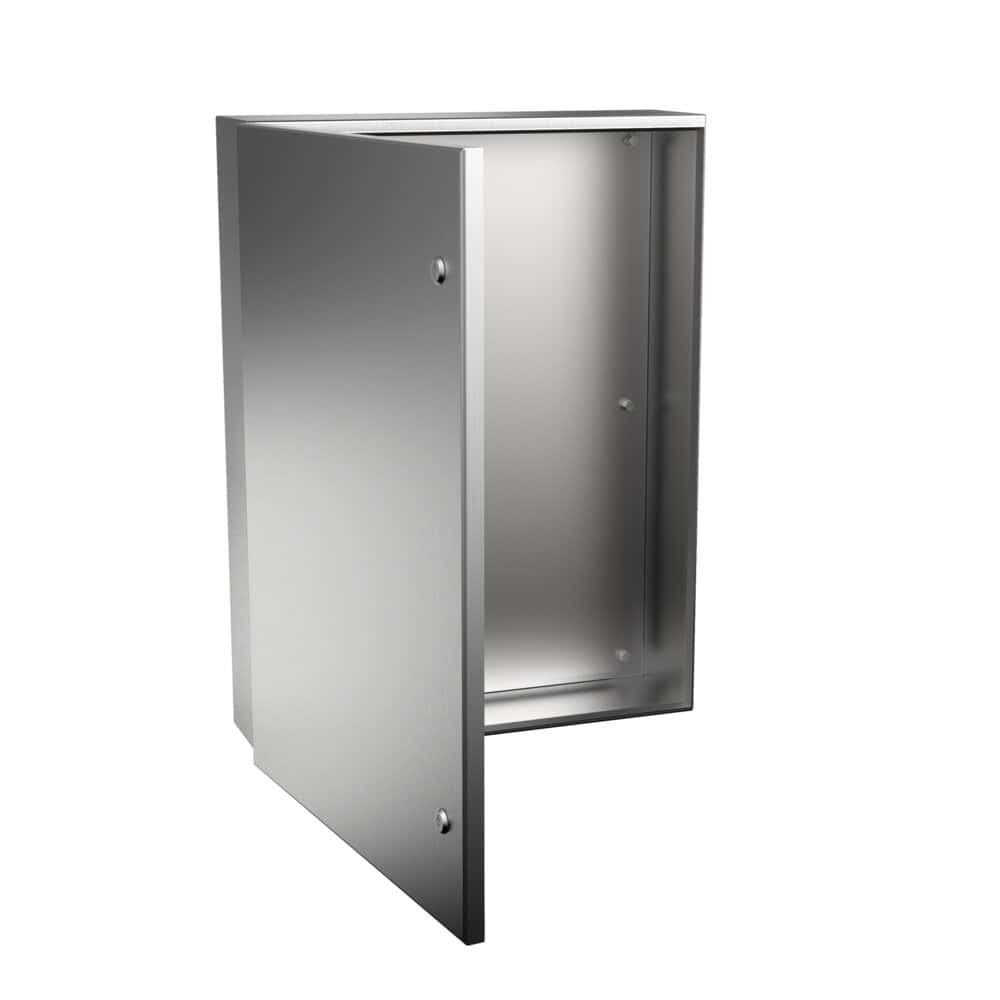

Luxor IP66 wall-mount electrical cabinet.: detail view of the product

TECHNICAL DATA

Minimum Measurements	A=300-1200mm B=200-1200mm P=155-300mm
Maximum Double Door Measurements	A=1200mm B=1200mm P=300mm
Minimum Plate Measurements	A=264-1140mm
Minimum Plate Measurements	B=147-1140mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Rotary handle with 3 locking points, Double-bit quarter-turn locks
Useful Depth	125-275 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Door Opening	170º
Alternative Door	Door with polycarbonate panel, Door with safety glass
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	silicone (-60°C to +180°C), EMC
Machinable Area	Puerta: 220x76-1000x990, Lateral: 270x125-1170x265

Made to Measure According to Your Needs

With the option of two doors (from 800x600)

170° Hinge Allowing Maximum Opening for Easy Access to the Cabinet Without the Need to Remove the Door

Kickboards

Textured paint finish with other RAL colors on request

protective roof

Electromagnetic protection EMC gasket between frame and contact surfaces. Ensuring a perfect electrical connection. CEE Standard 89/336

Spacious Design for Electrical Components

monobloc realization

With drip edge channel that prevents liquids from contacting the polyurethane seal and hidden hinges

Double-bit quarter-turn locks

Delvalle manufactures any size on request that suits your needs, including holes, channels, and shapes, both on the door and the enclosure

All our models are in stock for immediate delivery

Specially designed for the installation of automation, machine controls, meters, heating, air conditioning, control systems, electrical distribution, industrial networks.

IEC EN 62208 and EN 60529 standards

Delvalle cabinets with IP66(W) certification

Luxor

Voltage withstand capacity of cabinets

IK10 protection rating for cabinets

UL NEMA 4X, 12, 3R, and 1 standards

certificación de gabinetes

food industry regulations

Cabinets Material Standards

1-DOOR REFERENCES	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	MACHINING AREA		PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
						DOOR	SIDE
MVHB302015	300	200	155	260×153	125	220×76	270×125	265×145	4.65	0.01
MVHB383015	380	300	155	340×253	125	300×176	350×125	345×245	7.68	0.02
MVHB383021	380	300	210	340×253	180	300×176	350×180	345×245	8.57	0.03
MVHB404021	400	400	210	360×353	180	320×276	370×180	365×345	11.12	0.04
MVHB504021	500	400	210	460×353	180	420×276	470×180	465×345	13.51	0.05
MVHB505021	500	500	210	460×453	180	420×376	470×180	465×445	16.2	0.06
MVHB705021	700	500	210	660×453	180	620×376	670×180	665×445	21.55	0.08
MVHB604021	600	400	210	560×353	180	520×276	570×180	565×345	15.74	0.06
MVHB605021	600	500	210	560×453	180	520×376	570×180	565×445	18.88	0.07
MVHB606021	600	600	210	560×553	180	520×476	570×180	565×545	22	0.08
MVHB806030	800	600	300	760×553	270	720×476	770×270	765×545	31.35	0.16
MVHB808030	800	800	300	760×753	270	720×676	770×270	765×745	41.5	0.21
MVHB108030	1000	800	300	960×753	270	920×676	970×270	965×745	50.69	0.26
MVHB128030	1200	800	300	1160×753	270	1120×676	1170×270	1165×745	59.47	0.31
MVHB101030	1000	1000	300	960×953	270	920×876	970×270	965×945	61.17	0.32
MVHC121030	1200	1000	300	1090×890	275	1000×800	1190×265	1070×870	78.82	0.46
*MVHC101230	1000	1200	300	890×1090	275	800×1000	990×265	870×1070	78.76	0.68
*MVHC121230	1200	1200	300	1090×1090	275	1000×1000	1190×265	1070×1070	92.09	0.39
Version: UL Nema 4x, 12, 3r and 1 Standard	Add "UL" to the reference.
Version: IP67	Add "67" to the reference.
Version: IP69K	Add "/69" to the reference.

* Luxor IP66 Wall Mount Electrical Enclosure Design – 20mm Plate to Back Separation

2-DOOR REFERENCES	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	MACHINING AREA		PLATE DIMENSIONS -ExF-
						DOOR	SIDE
MVHB806030D	800	600	300	746×546	270	720×217.5 and 720×273.5	770×240	740×540
MVHB808030D	800	800	300	746×746	270	720×317.5 and 720×273.5	770×240	740×740
MVHB108030D	1000	800	300	946×746	270	920×317.5 and 920×273.5	970×240	940×740
MVHB128030D	1200	800	300	1146×746	270	1120×317.5 and 1120×273.5	1170×240	1140×740
MVHB101030D	1000	1000	300	946×946	270	920×417.5 and 920×373.5	970×240	940×940
MVHB121030D	1200	1000	300	1146×946	270	1120×417.5 and 1120×373.5	1170×240	1140×940
MVHB121230D	1200	1200	300	1146×1146	270	1120×517.5 and 1120×473.5	1170×240	1140×1140
Version: UL Nema 4x, 12, 3r and 1 Standard	Add "UL" to the reference.
Version: IP67	Add "67" to the reference.
Version: IP69K	Add "/69" to the reference.

* Luxor IP66 Wall Mount Electrical Enclosure Design – 20mm Plate to Back Separation
