Home > Products > Waterproof electrical enclosures > IP55 - IP54 industrial enclosures > Modular distribution cabinets titan IP66

Modular distribution cabinets titan IP66

SERIE TITAN IP66

Enclosure made with modular profile. Able to withstand high electrical and mechanical voltages. A unique design made in A304L stainless steel (polished), with a capacity of up to 624 modules in a single enclosure.

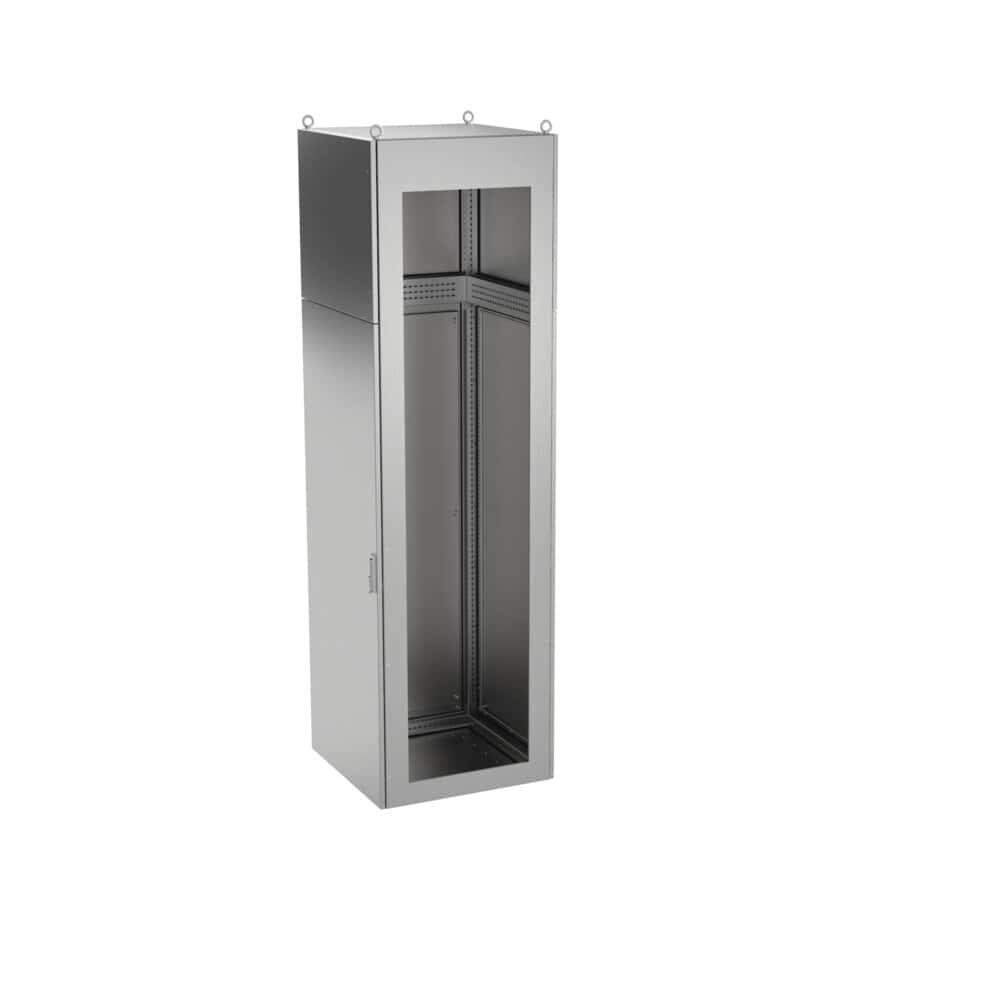

Modular distribution cabinets titan IP66: main view of the product

TECHNICAL DATA

Minimum Measurements	A=1200-2200mm B=600-1000mm P=800-800mm
Maximum Double Door Measurements	A=2200mm B=1200mm P=800mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Door with polycarbonate panel, Door with safety glass
Opening Type	Swivel with concealed hinges
Closing System	Rotary handle with 4 locking points
Material	AISI 304L/AISI 316L
Finish	Satin finish
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Door	Blind door
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate, Galvanized mounting plate
Alternative Gaskets	silicone (-60°C to +180°C), EMC

Made to Measure According to Your Needs

Kickboards

All Types of Ventilation and Air Conditioning

Fixed Metal Legs or Wheels

In stainless steel AISI 316L EN 14404

EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard

Wide view of internal modules

Modular design. Combinable cabinets

Withstand up to 1000 A and are watertight up to IP66 (on request and with blind door).

Two options: blind door or transparent polycarbonate door

Wide range of width and depth dimensions to allow total flexibility in the linking of structures

Welded delivery, which provides it with great robustness

100% stainless, from the handle to the opening system

Standard with lever lock with three or four anchor points

Perfect watertightness due to the gaskets used in the joints

Delvalle can make any size upon request

Compact cabinet Corrosion resistance C5M, according to ISO 12944 standard

Specially designed for all types of general, secondary, or terminal low-voltage distribution boards in tertiary or industrial environments

Environments requiring superior aesthetics, durability, and cleanliness in painted cabinets or outdoor installations

blind door

transparent polycarbonate door

EN 60439-1

CE regulation 1935/2004 and RoHS directive compliance

EN 60695-2-11

Voltage withstand capacity of cabinets

REFERENCES		DIMENSIONS (mm)
STAINLESS STEEL AISI 304L	STAINLESS STEEL AISI 316L	MODULES	HEIGHT -A-	WIDTH -B-	DEPTH -C-
MVDT302015	MVDT302015-316	10	300	200	150
MVDT383015	MVDT383015-316	24	380	300	150
MVDT383021	MVDT383021-316	24	380	300	210
MVDT504021	MVDT504021-316	45	500	400	210
MVDT604021	MVDT604021-316	60	600	400	210
MVDT705025	MVDT705025-316	90	700	500	250
MVDT806030	MVDT806030-316	120	800	600	300
MVDT108030	MVDT108030-316	200	1000	800	300
MVDT128030	MVDT128030-316	240	1200	800	300
Version: UL Standard Nema 4x, 12, 3r and 1	Add "UL" to the reference.
Version: IP67	Add "67" to the reference.
Version: IP69K	Add "/69" to the reference.

* Compact distribution cabinet Tribeca design IP66 Backplate separation 20mm

📄 Certification modular distribution cabinets titan ip66

Accessories:

Lighting for electrical enclosures

Security lock

Locks

Assembly frame

Insulated enclosures

Cable entry cover

Clear glass door

Roof for electrical enclosures

Mounting plates

Levelling feet and wheels

Support rails

Data pocket

Sockets

Transportation Angle

Switchboard graffiti-proof paint

Anti-insect system

Perforated mounting plate

Shock absorbers for electrical enclosures

Separating plate

Pivot frame

Eyebolt

DIN tray

Safety lock

Set with inner door

Open door security device

Designs / Doors
