Modaular distribution wall cabinets luxor IP66

SERIE LUXOR IP66

Robust and compact enclosure. Designed for wall mounted installations up to 472 modules for differential placement and circuit breakers. Compact enclosure for perfect sealing and resistance with a drainage channel, a polyurethane joint, concealed hinges and double-bit locks in A316 stainless steel. They come wrapped in a protective film that prevents scratches and abrasions during handling.

The rows are standard at 150mm interval. The transparent polycarbonate door combines high impact resistance (250 times stronger than glass) with excellent fire resistance (UL94). UV protection making it suitable for outdoor applications.

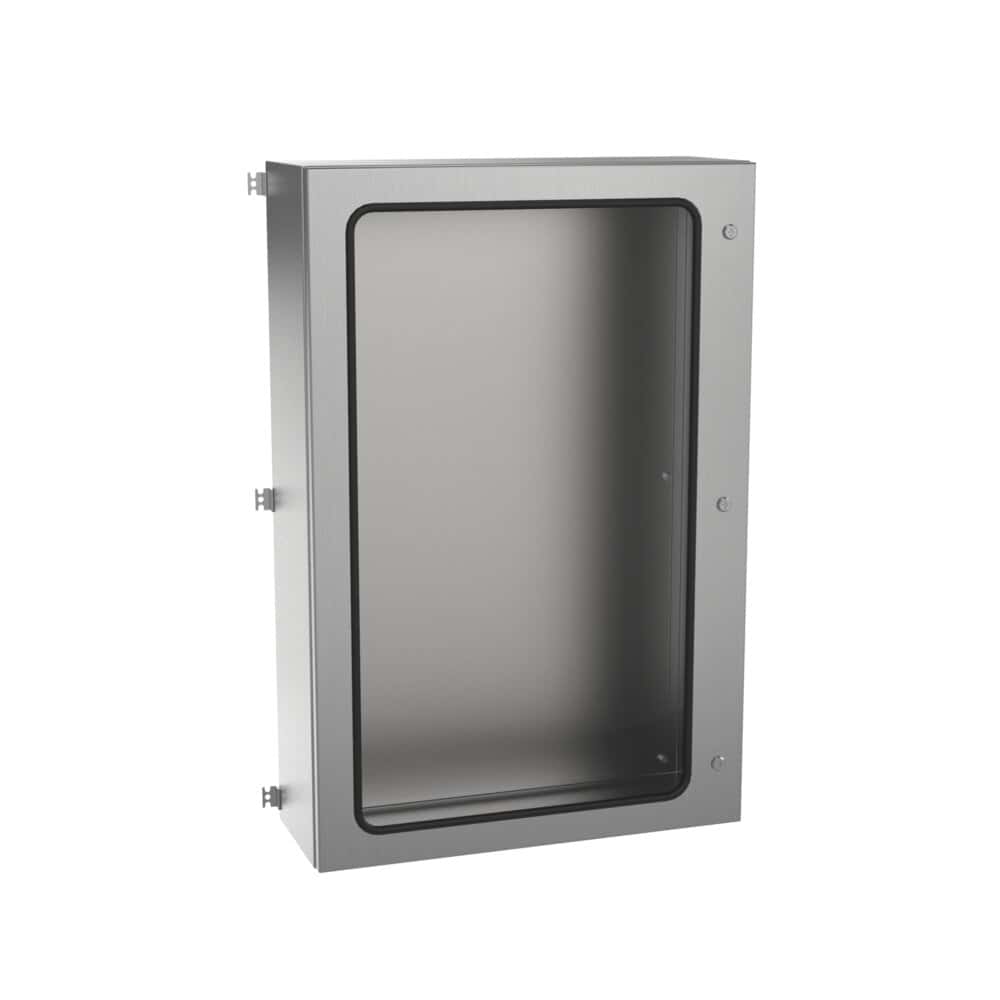

Modaular distribution wall cabinets luxor IP66: main view of the product

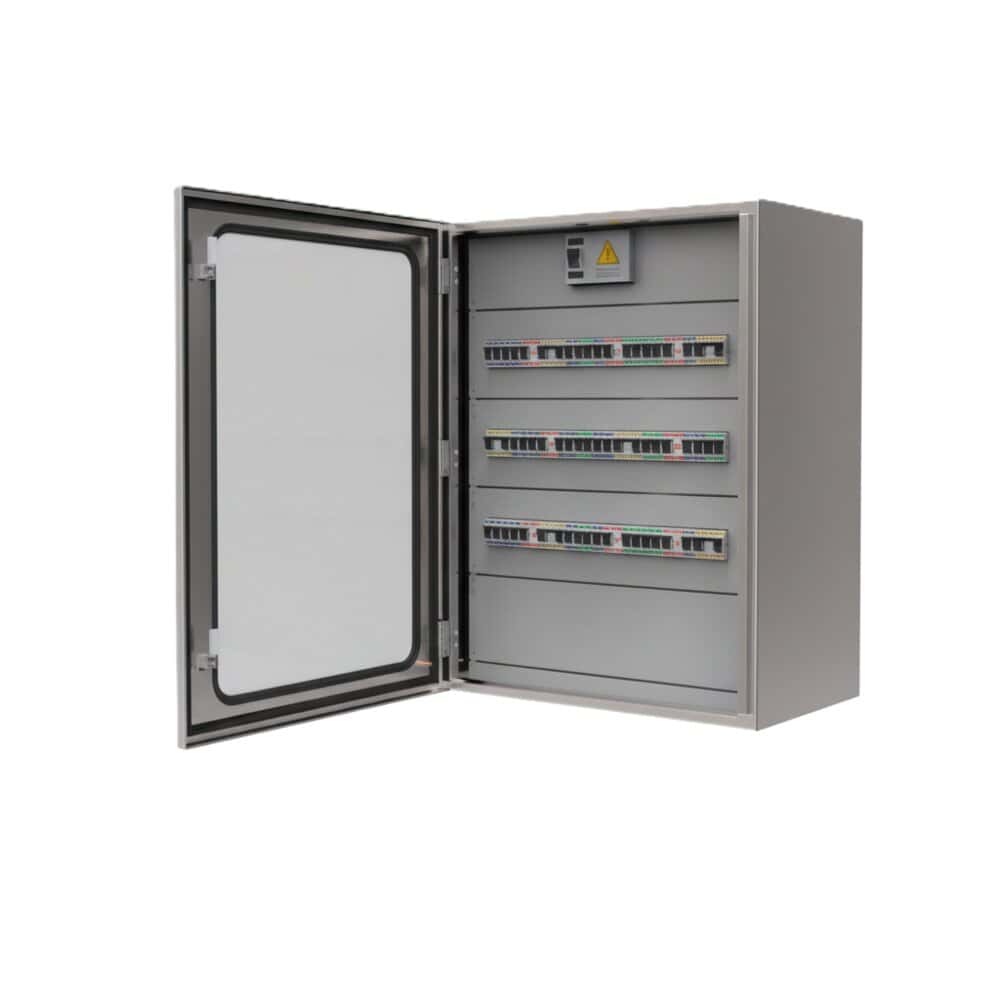

Modaular distribution wall cabinets luxor IP66: detail view of the product

TECHNICAL DATA

Minimum Measurements	A=300-1000mm B=200-1200mm P=155-300mm
Maximum Double Door Measurements	A=1200mm B=1200mm P=300mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Door with polycarbonate panel, Door with safety glass
Opening Type	Swivel with concealed hinges
Closing System	Double-bit quarter-turn locks
Useful Depth	135 - 275 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Closing Systems	Rotary handle
Alternative Door Opening	170º
Alternative Door	Blind door
Interior Plate Material	Stainless steel mounting plate, Insulating mounting plate (Bakelite)
Alternative Gaskets	EMC, silicone (-60°C to +180°C)
Machinable Area	Puerta: 207x70 - 806x976, Lateral: 270x105 - 970x240

Made to Measure According to Your Needs

With the option of two doors (from 800x600)

170° Hinge Allowing Maximum Opening for Easy Access to the Cabinet Without the Need to Remove the Door

Kickboards

Metal legs for cabinets

Wall Brackets

In stainless steel AISI 316L EN 14404

EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard

The largest module capacity on the market

Wide view of internal modules

Easy DIN rail mounting

They have been designed with different width and depth dimensions to allow total flexibility in their installation

Withstand up to 1000 A and are watertight up to IP66 (on request and with blind door).

Two options: blind door or transparent polycarbonate door

Delvalle makes to order any size to suit your needs, including holes, shaped channels, both in the door and in the enclosure.

Specially designed for all types of general, secondary, or terminal low-voltage distribution boards in tertiary or industrial environments

Environments requiring superior aesthetics, durability, and cleanliness in painted cabinets or outdoor installations

blind door

transparent polycarbonate door

EN 60439-1

CE regulation 1935/2004 and RoHS directive compliance

EN 60695-2-11

Voltage withstand capacity of cabinets

REFERENCES		DIMENSIONS (mm)
SOLID DOOR	POLYCARBONATE DOOR	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ROWS	MODULES PER ROW	TOTAL MODULES	INTERNAL USEFUL HEIGHT	INTERNAL USEFUL WIDTH	INTERNAL USEFUL DEPTH	MACHINABLE AREA
											DOOR	SIDE
MVAB806030DQ	MVAB806030DTQ	800	600	300	5	18	90	746	546	270	260×125	260×130
MVAB808030DQ	MVAB808030DTQ	800	800		5	18	150	746	746		260×225	260×230
MVAB108030DQ	MVAB108030DTQ	1000			6	30	180	946			360×225	360×230
MVAB128030DQ	MVAB128030DTQ	1200			8	30	240	1146			460×225	460×230
MVAB101030DQ	MVAB101030DTQ	1000	1000		6	41	246	946	946		360×325	360×330
MVAB121030DQ	MVAB121030DTQ	1200	1000		8	41	328	1146	946		460×325	460×330
MVAB121230DQ	MVAB121230DTQ	1200	1200		8	52	416	1146	1146		460×425	460×430
Version: UL Standard, Nema 4x, 12, 3r and 1	Add "UL" to the reference. Ex: "MVAB302015QUL"

Backplate separation 20mm

REFERENCES		DIMENSIONS (mm)
SOLID DOOR	DOOR POLYCARBONATE	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ROWS	MODULES PER ROW	TOTAL MODULES	INTERNAL USEFUL HEIGHT	INTERNAL USEFUL WIDTH	INTERNAL USEFUL DEPTH	MACHINABLE AREA
											DOOR	SIDE
MVAB806030DQ	MVAB806030DTQ	800	600	300	5	18	90	746	546	270	260×125	260×130
MVAB808030DQ	MVAB808030DTQ	800	800		5	18	150	746	746		260×225	260×230
MVAB108030DQ	MVAB108030DTQ	1000			6	30	180	946			360×225	360×230
MVAB128030DQ	MVAB128030DTQ	1200			8	30	240	1146			460×225	460×230
MVAB101030DQ	MVAB101030DTQ	1000	1000		6	41	246	946	946		360×325	360×330
MVAB121030DQ	MVAB121030DTQ	1200	1000		8	41	328	1146	946		460×325	460×330
MVAB121230DQ	MVAB121230DTQ	1200	1200		8	52	416	1146	1146		460×425	460×430
Version: UL Standard, Nema 4x, 12, 3r and 1	Add "UL" to the reference. Ex: "MVAB302015QUL"

Backplate separation 20mm

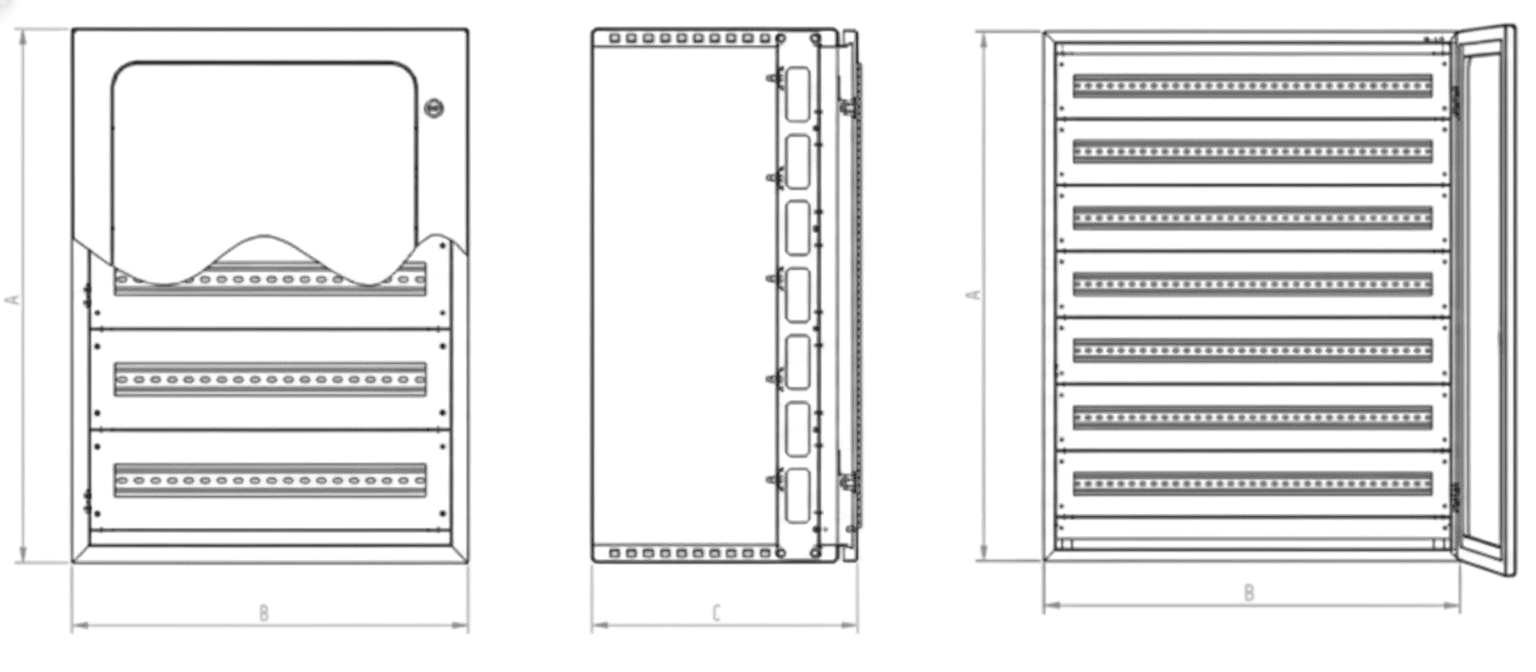

Croquis:

📄 Certification modaular distribution wall cabinets luxor ip66
