Modular stainless steel enclosure titan IP66

SERIE TITAN IP66

Modular stainless steel enclosure Titan Series, stylish and corrosion resistant, completely adaptable, flexible, for food, petrochemical, pharmaceutical industries, electrical use, which require smartness hygiene, sealing and long life.

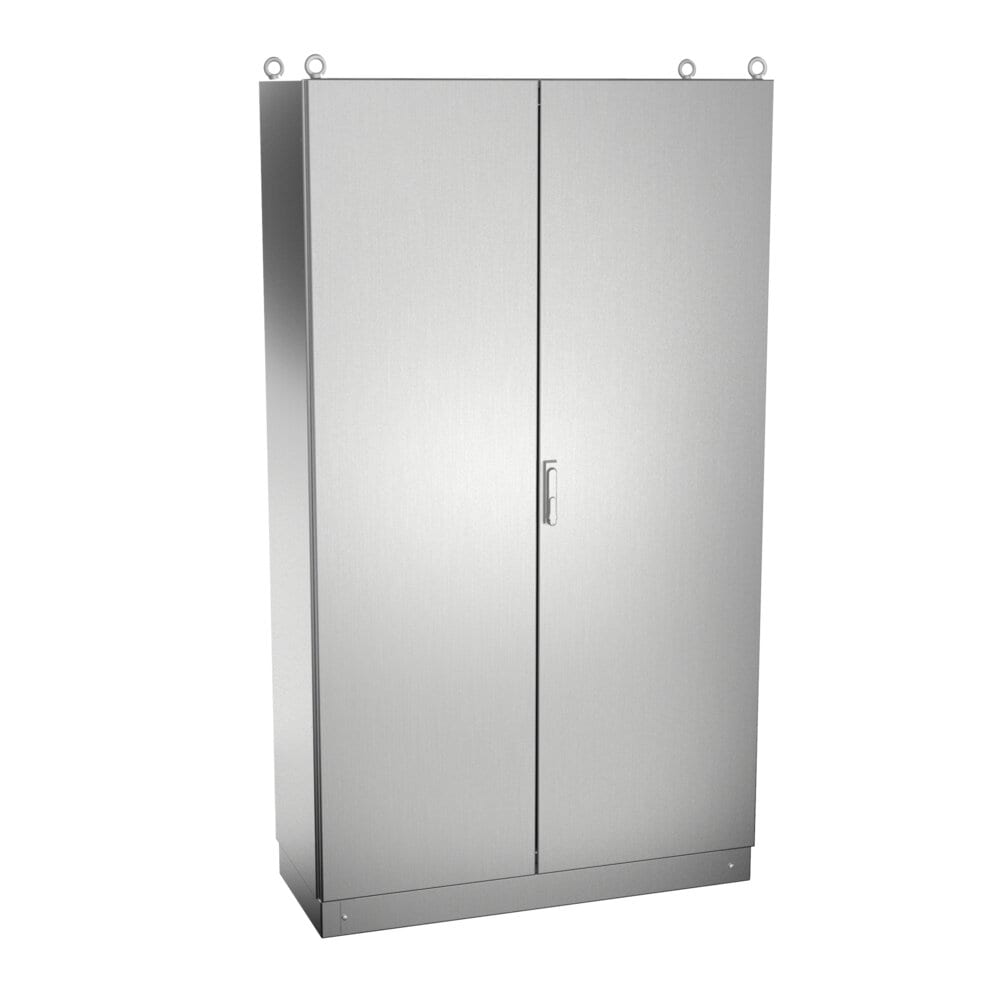

Modular stainless steel enclosure titan IP66 · main view

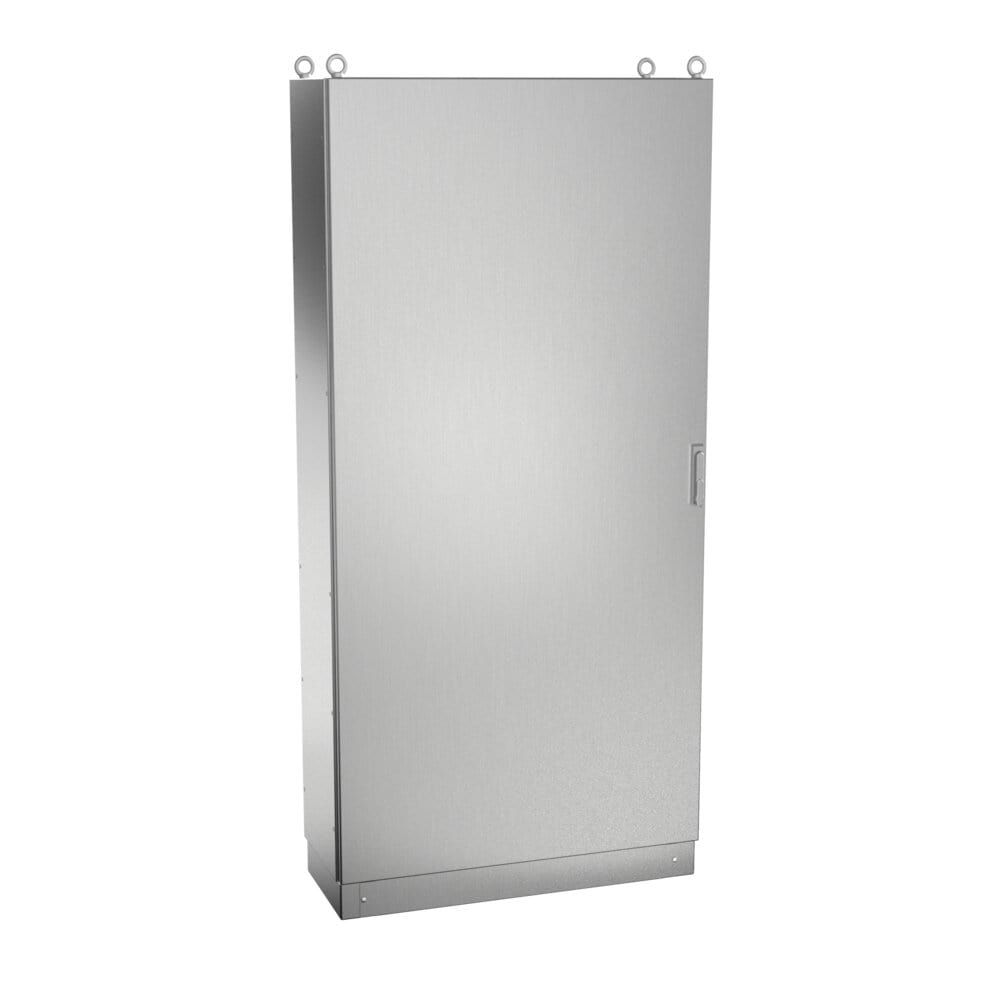

Modular stainless steel enclosure titan IP66: detail view of the product

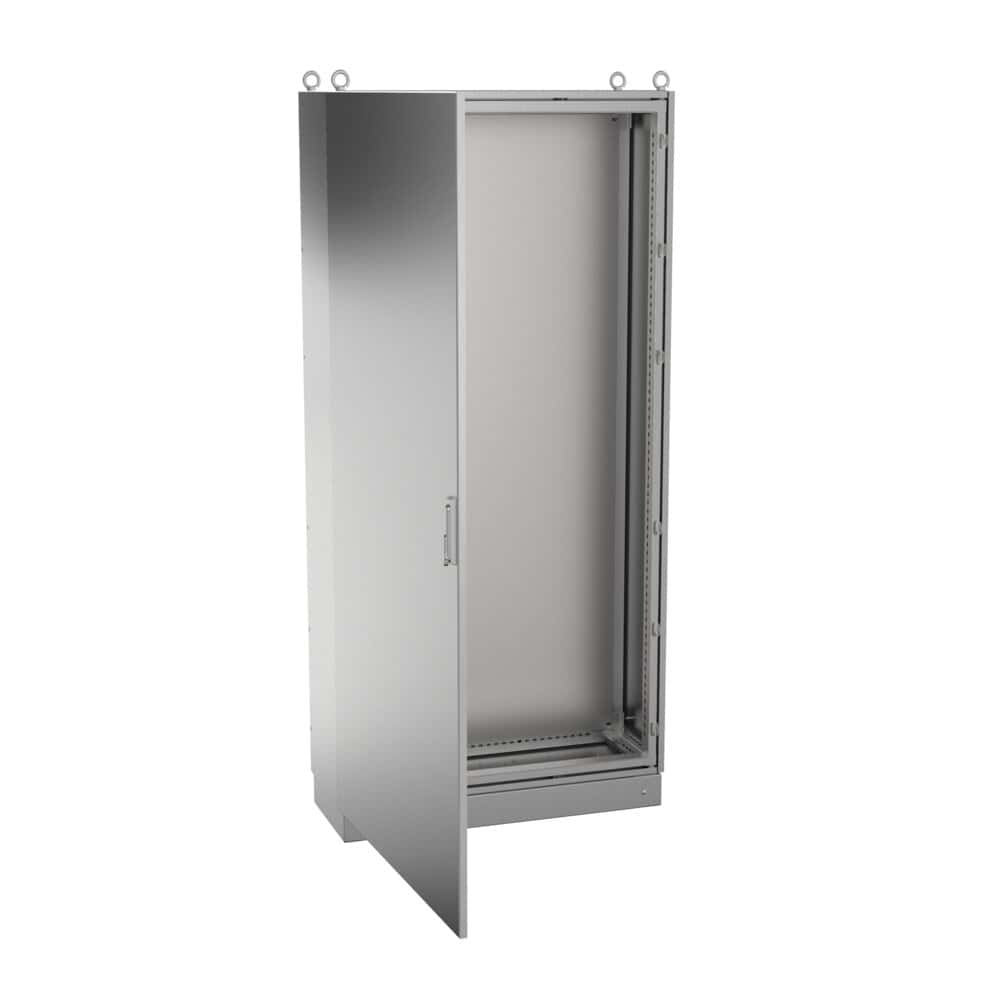

Modular stainless steel enclosure titan IP66: additional view of the product

TECHNICAL DATA

Minimum Measurements	A=1200-2200mm B=600-1000mm P=400-800mm
Maximum Double Door Measurements	A=2200mm B=1000mm P=800mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Rotary handle with 4 locking points, Rotary handle with 3 locking points
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC).
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Door	Door with polycarbonate panel, Door with safety glass
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	silicone (-60°C to +180°C), EMC

Up to IP69K - DIN 40050-9

All Types of Ventilation and Air Conditioning

Fixed Metal Legs or Wheels

Textured paint finish with other RAL colors on request

EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard

Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand

Ample mounting space and high accessibility

Infinite options, both in number of modules and measurements

Welded Delivery, Giving It Great Robustness

Side, Rear, Top, and Bottom Panels Easily Removable

100% stainless, from the handle to the opening system

Door Opening at 120º

Standard with lever lock with three or four anchor points

Perfect watertightness due to the gaskets used in the joints

Delvalle manufactures any size to order that suits your needs, including holes, channels, shapes..., both on the door and the enclosure

Specially designed to have maximum flexibility regarding its use

Thanks to its versatility, we can place it in the food, pharmaceutical industry, where hygiene is indispensable, as well as in petrochemical and electrical industries

Certificación IP66 para gabinetes eléctricos

IK10 Protection Rating

Low Voltage Directive 2014/35/EU

RoHS Directive 2011/65/EU

UL NEMA 4X, 12, 3R, and 1 standards

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

REFERENCES	DIMENSIONS (mm)
SOLID DOOR	HEIGHT -A-	WIDTH -B-	DEPTH -C-	WEIGHT (Kg)	VOLUME (m³)
MVAF126040	1200	600	400	79.75	0.31
MVAF126060			600	91.51	0.46
MVAF126080			800	107.1	0.61
MVAF128040		800	400	98.23	0.41
MVAF128060			600	110.97	0.61
MVAF128080			800	127.51	0.81
MVAF146040	1400	600	400	87.81	0.36
MVAF146060			600	101	0.53
MVAF146080			800	118.01	0.71
MVAF148040		800	400	112.63	0.48
MVAF148060			600	123.12	0.71
MVAF148080			800	141.09	0.94
MVAF166040	1600	600	400	98.14	0.41
MVAF166060			600	111.41	0.61
MVAF166080			800	129.82	0.81
MVAF168040		800	400	121.01	0.55
MVAF168060			600	135.25	0.81
MVAF168080			800	154.61	1.07
MVAF161040		1000	400	139.78	0.68
MVAF161060			600	154.98	1.01
MVAF161080			800	175.31	1.34
MVAF161240		1200	400	158.53	0.81
MVAF161260			600	174.69	1.21
MVAF161280			800	195.98	1.60
MVAF186040	1800	600	400	106.65	0.46
MVAF186050			500	113.98	0.57
MVAF186060			600	121.32	0.69
MVAF186080			800	141.16	0.91
MVAF188040		800	400	131.75	0.61
MVAF188050			500	139.56	0.76
MVAF188060			600	147.38	0.91
MVAF188080			800	168.19	1.21
MVAF181040		1000	400	139.78	0.68
MVAF181050			500	160.56	0.95
MVAF181060			600	168.86	1.13
MVAF181080			800	190.63	1.50
MVAF181240		1200	400	172.76	0.91
MVAF181250			500	181.53	1.14
MVAF181260			600	190.31	1.36
MVAF181280			800	213.05	1.80
MVAF203050	2000	300	500	90.82	0.33
MVAF203060			600	97.9	0.39
MVAF203080			800	117.73	0.52
MVAF204050		400	500	101.95	0.43
MVAF204060		400	600	109.27	0.51
MVAF206040		600	400	116.39	0.51
MVAF206050			500	124.2	0.64
MVAF206060			600	132.02	0.76
MVAF206080			800	153.28	1.01
MVAF208040		800	400	143.7	0.68
MVAF208050			500	152	0.85
MVAF208060			600	160.28	1.01
MVAF208080			800	182.51	1.34
MVAF208010			1000	199.58	1.67
MVAF201040		1000	400	165.96	0.85
MVAF201050			500	174.73	1.05
MVAF201060			600	183.52	1.26
MVAF201080			800	206.7	1.67
MVAF226060	2200	600	600	141.93	0.84
MVAF226080		600	800	164.63	1.11
MVAF228060		800	800	172.38	1.11
MVAF228080		800	800	196.04	1.47
MVAF221060		1000	600	197.36	1.38
MVAF221080		1000	800	221.97	1.83
UL Version	Add "UL" to the reference. Ex: "MVAF126040UL"
Version: IP66	Add "66" to the reference. Ex: "MVAF30201566"
Version: IP69K	Add "/69" to the reference. Ex: "MVAF302015/69"

Back plate separation 20mm

REFERENCES 2 DOORS		DIMENSIONS (mm)			DATA
SOLID DOOR (x)	POLYCARBONATE DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	WEIGHT (Kg)	VOLUME (m³)
MVAF181050/2	MVAFT181050/2	1800	1000	500	166,76	0,95
MVAF201050/2	MVAFT201050/2	2000	1000	500	174,73	1,05
MVAF201240/2	MVAFT201240/2	2000	1200	400	195,03	1,02
MVAF201250/2	MVAFT201250/2	2000	1200	500	204,48	1,26
MVAF221260/2	MVAFT221260/2	2200	1200	600	229,97	1,65
Version: UL Standard Nema 4x, 12, 3r and 1	Add "UL" to the reference. Ex: "MVAF181050/2UL"

* Titan Modular Design IP66 Backplate separation 20mm

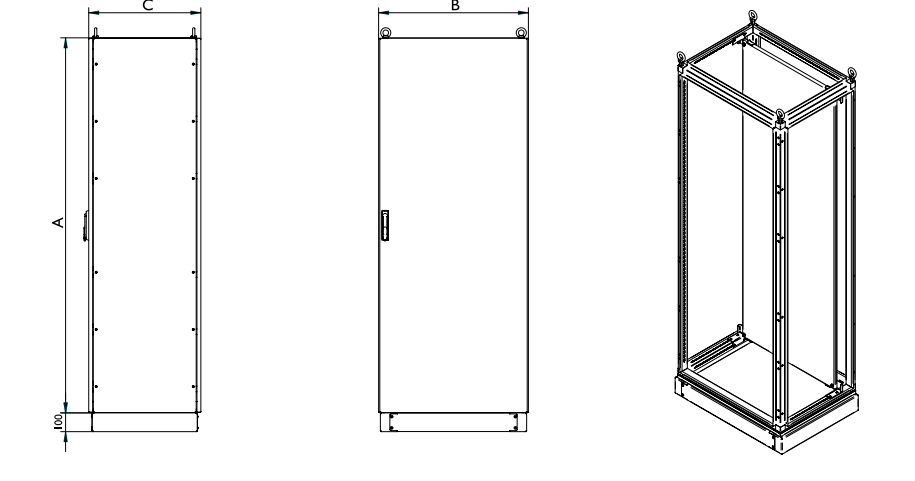

Croquis:
