Outdoor double wall rack tornado

Outdoor rack enclosure and cabinets with or without 19” or 21” rack system, especially designed for outdoor use: thermo-insulated and self-cooling double wall for better protection of the electronics, servers, CCTV, telecommunications, voice, data, fibre optics,… Ideal for protecting electronic equipment against temperature change.

The outdoor enclosure aluminum in combination with the double walls, is the ideal solution for optimum heat management, ensuring performance of electronic equipments.

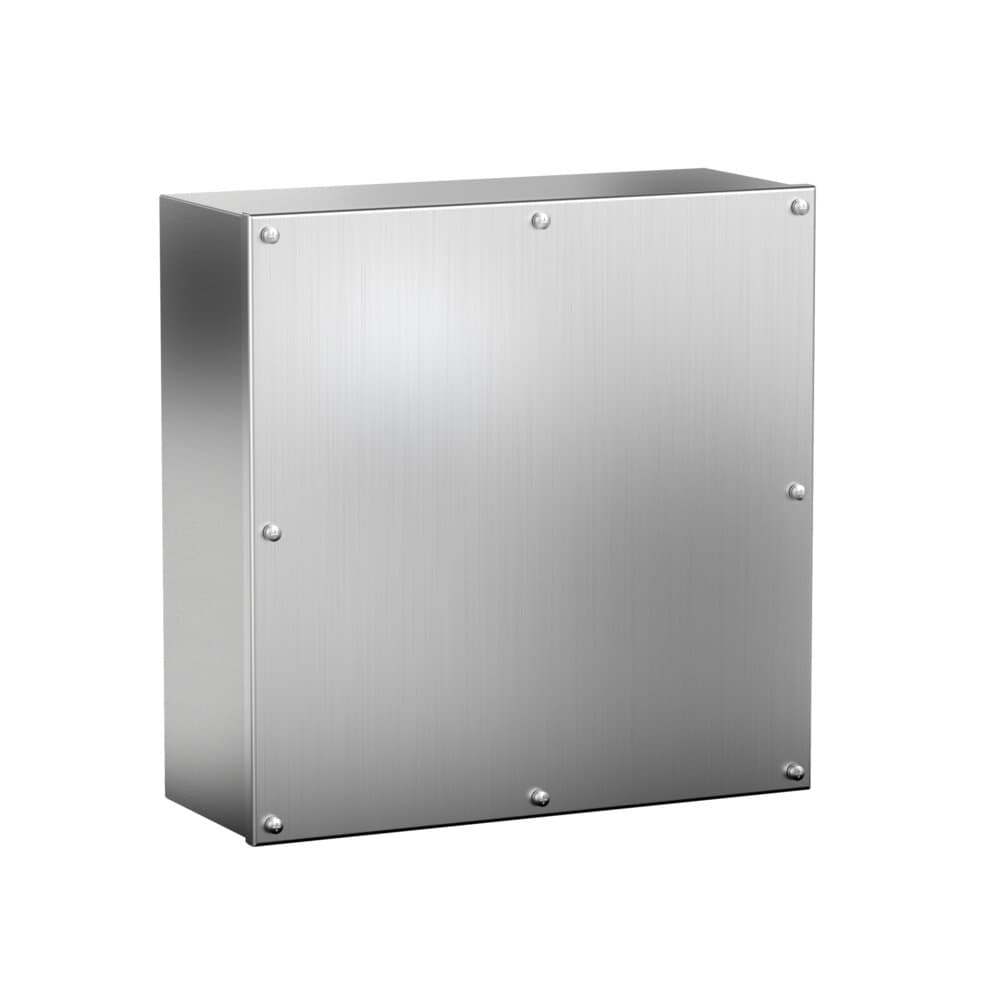

Outdoor double wall rack tornado · main view

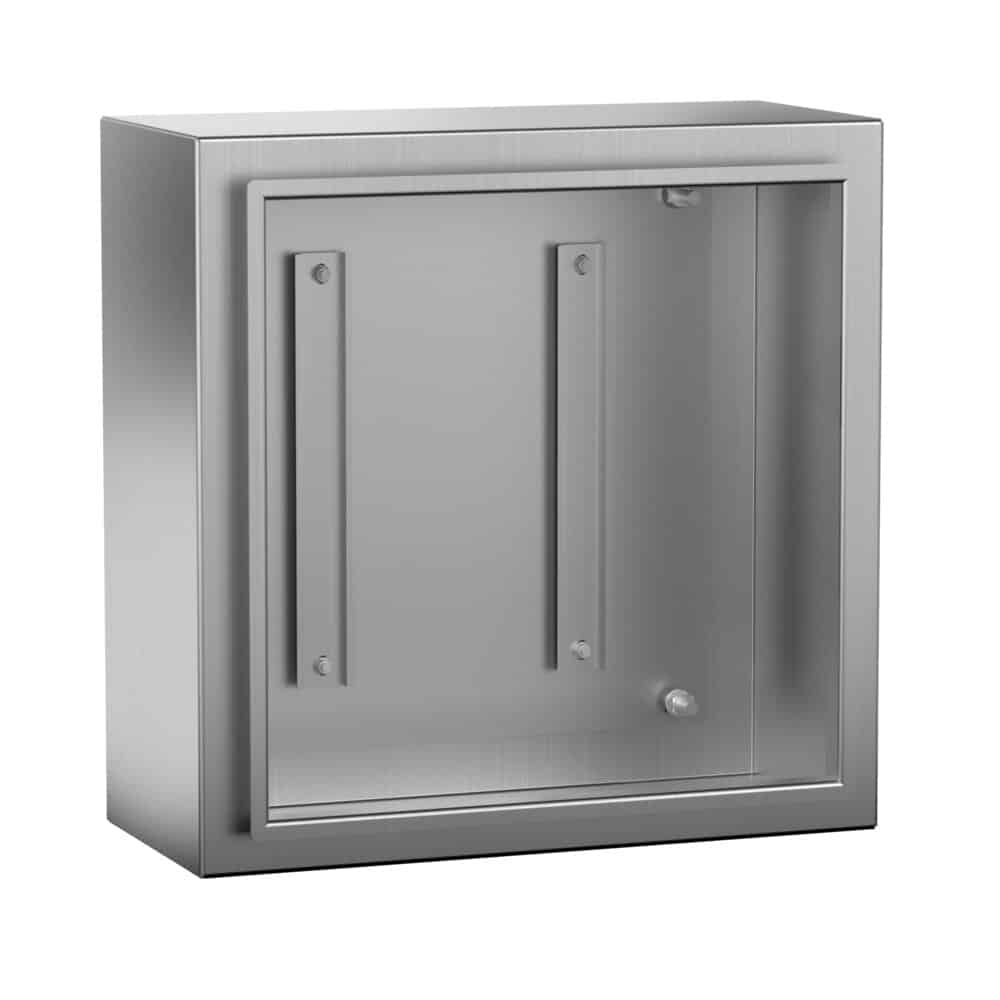

Outdoor double wall rack tornado: detail view of the product

TECHNICAL DATA

Minimum Measurements	A=90-1000mm B=90-100mm P=80-1000mm
Minimum Plate Measurements	A=60-370mm
Minimum Plate Measurements	B=70-380mm
Body Thickness	1.2 mm \| 12/10 mm 0.0472 " \| 18 Gauge
Door Type	Blind door
Opening Type	Screwed
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Door	Door with polycarbonate panel, Door with safety glass
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	silicone (-60°C to +180°C), EMC
Machinable Area	48x48-358x358

Made to Measure According to Your Needs

Protection rating IP67, IP68, and up to IP69K - DIN 40050-9

In stainless steel AISI 316L EN 14404

Fixed Metal Legs or Wheels

Safety screws

Textured paint finish with other RAL colors on request

Electromagnetic Protection Gasket EMC between Frame and Surfaces

Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand

High watertightness

Stock for Next-Day Deliveries to Your Company

Mounted Supply of Cable Glands and Numbered Terminals at a Great Price

Machinery in the Food and Beverage Sector

Electrical Cabinets for Packaging Industry

Industrial Automation

Chemistry

Pharmaceutical

Maritime

Food and beverages

IP66 protection rating according to IEC EN 62208 and EN 60529 standards

Normativa NEMA 4X

IK10 Protection Rating for Cabinets

CE certification

REFERENCES			DIMENSIONS (mm)
SOLID COVER (x)	PERFORATED COVER (x)	NO. OF PERFORATIONS	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING	MACHINABLE AREA	PLATE DIMENSIONS	WEIGHT (Kg)	VOLUME (m³)
MVCB909080	MVCB909080P	–	90	90	80	48×48	–	60×70	0,68	0,001
MVCB149080	MVCB149080P	2	140	90	80	98×48	116×66	110×70	0,92	0,001
MVCB209080	MVCB209080P	3	200	90	80	158×48	176×66	170×70	1,20	0,002
MVCB269012	MVCB269012P	4	260	90	120	218×48	236×66	230×70	1,75	0,004
MCVB289080	MCVB289080P	5	280	90	80	238×48	256×66	250×70	1,60	0,002
MVCB101612	MVCB101612P	3	100	160	120	58×118	76×136	70×140	1,29	0,003
MVCB161612	MVCB161612P	4	160	160	120	118×118	136×136	130×140	1,81	0,004
MVCB202012	MVCB202012P	6	200	200	120	158×158	176×176	170×180	2,53	0,006
MVCB202515	MVCB202515P	12	200	250	150	158×208	176×226	170×230	3,25	0,009
MVCB252515	MVCB252515P	16	250	250	150	208×208	226×226	220×230	3,87	0,012
MVCB203015	MVCB203015P	15	200	300	150	158×258	176×276	170×280	3,75	0,011
MVCB303015	MVCB303015P	25	300	300	150	258×258	276×276	270×280	5,16	0,016
MVCB304015	MVCB304015P	35	300	400	150	258×358	276×376	270×380	6,64	0,022
MVCB404015	MVCB404015P	49	400	400	150	358×358	376×376	370×380	8,41	0,028
Version: UL Standard Nema 4x, 12, 3r and 1	Add "UL" to the reference. Ex: "MVCB909080UL"
Version: IP67	Add "/67" to the reference. Ex: "MVCB909080/67"
Version: IP69K	Add "/69" to the reference. Ex: "MVCB909080/69"

* Geo Design IP66 Screwed cover – Options for standard perforation (Ø22.5)
