Outdoor enclosures tropico IP66

SERIE TROPICO IP66

The Tropico Series enclosure for outdoor and street lighting made of stainless AISI 304L or galvanized and painted steel.

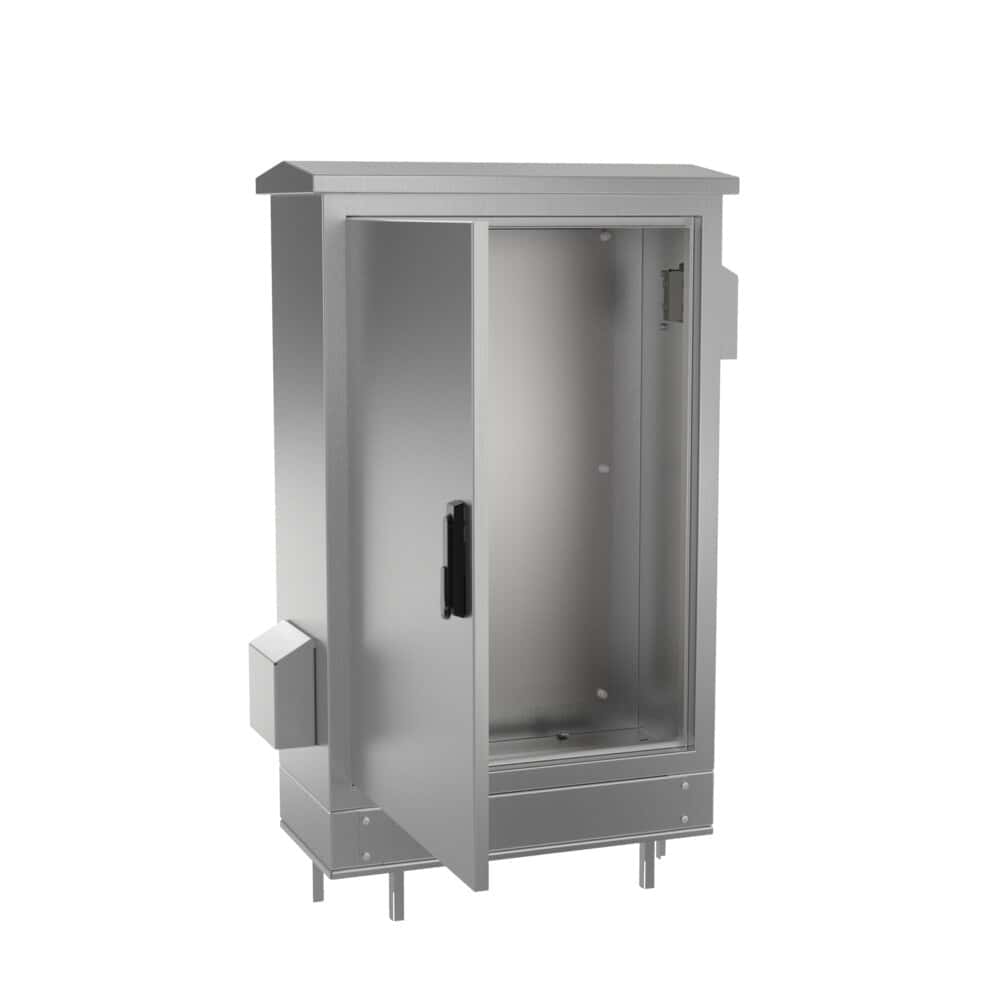

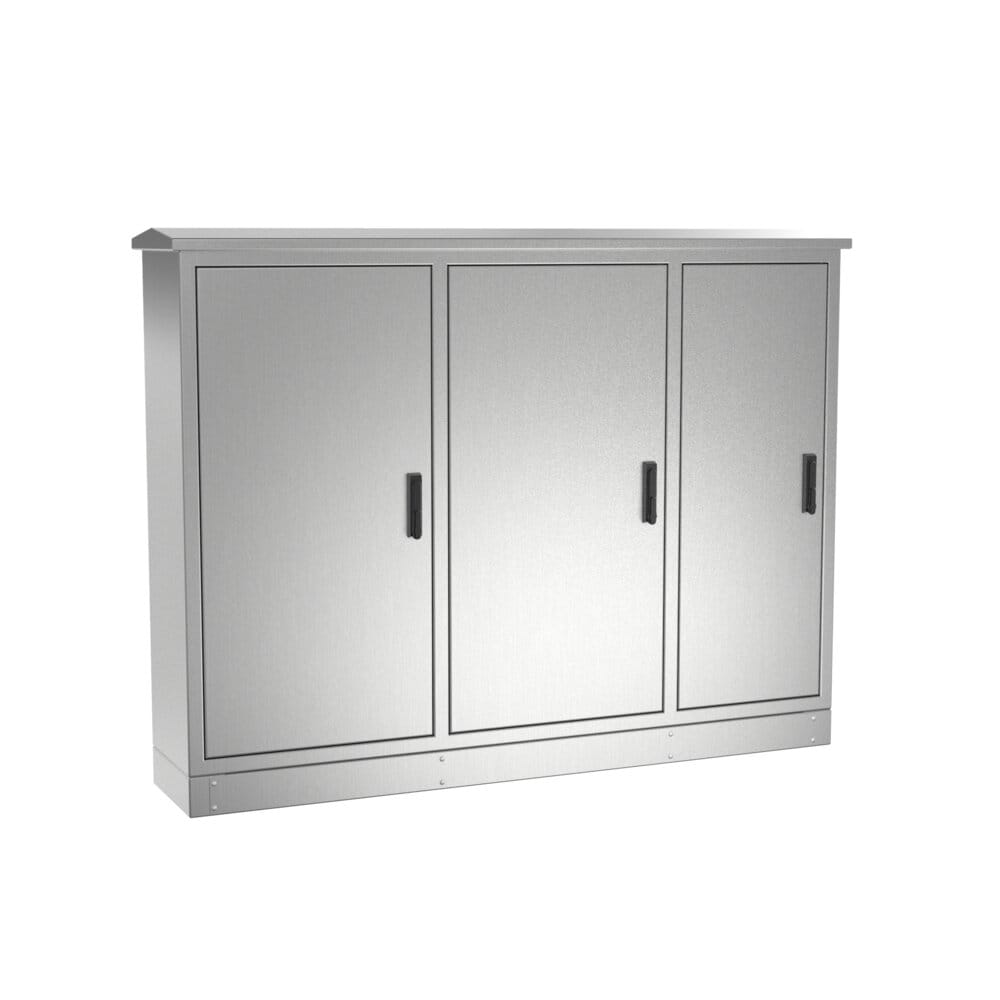

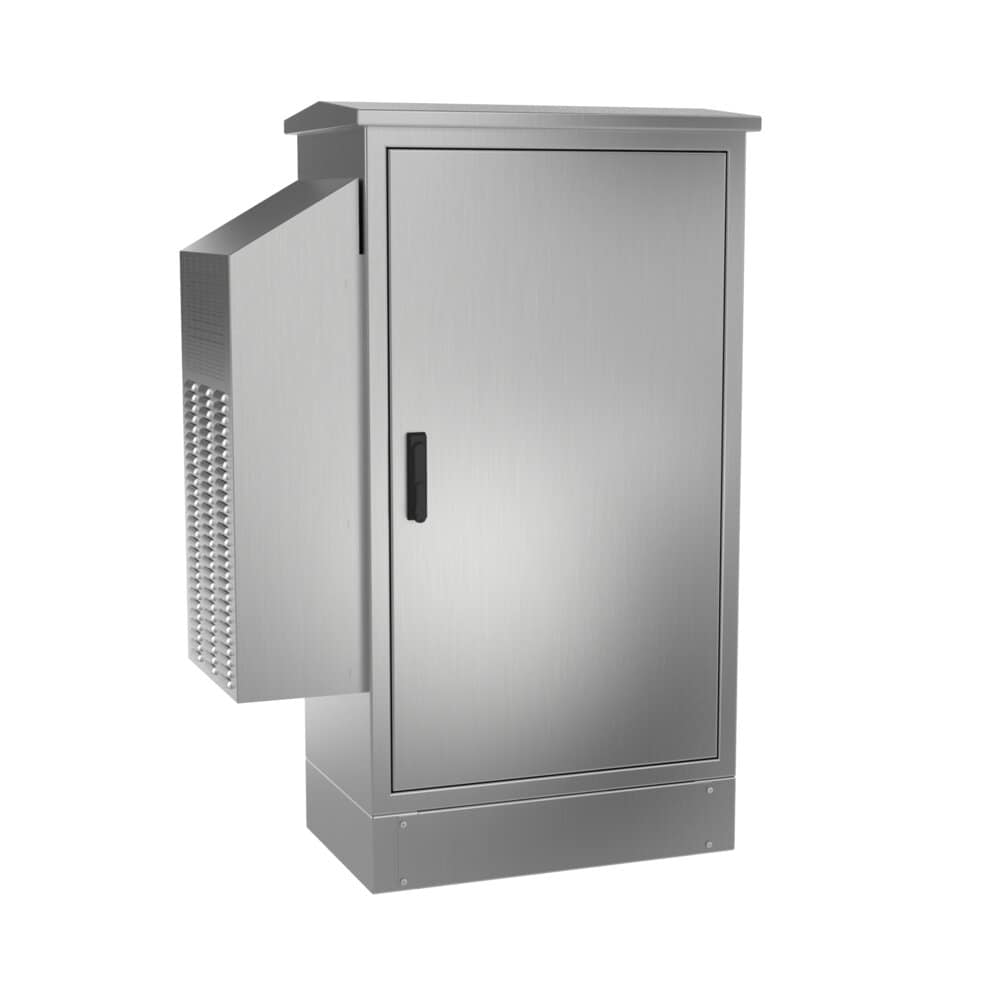

Outdoor enclosures tropico IP66 · main view

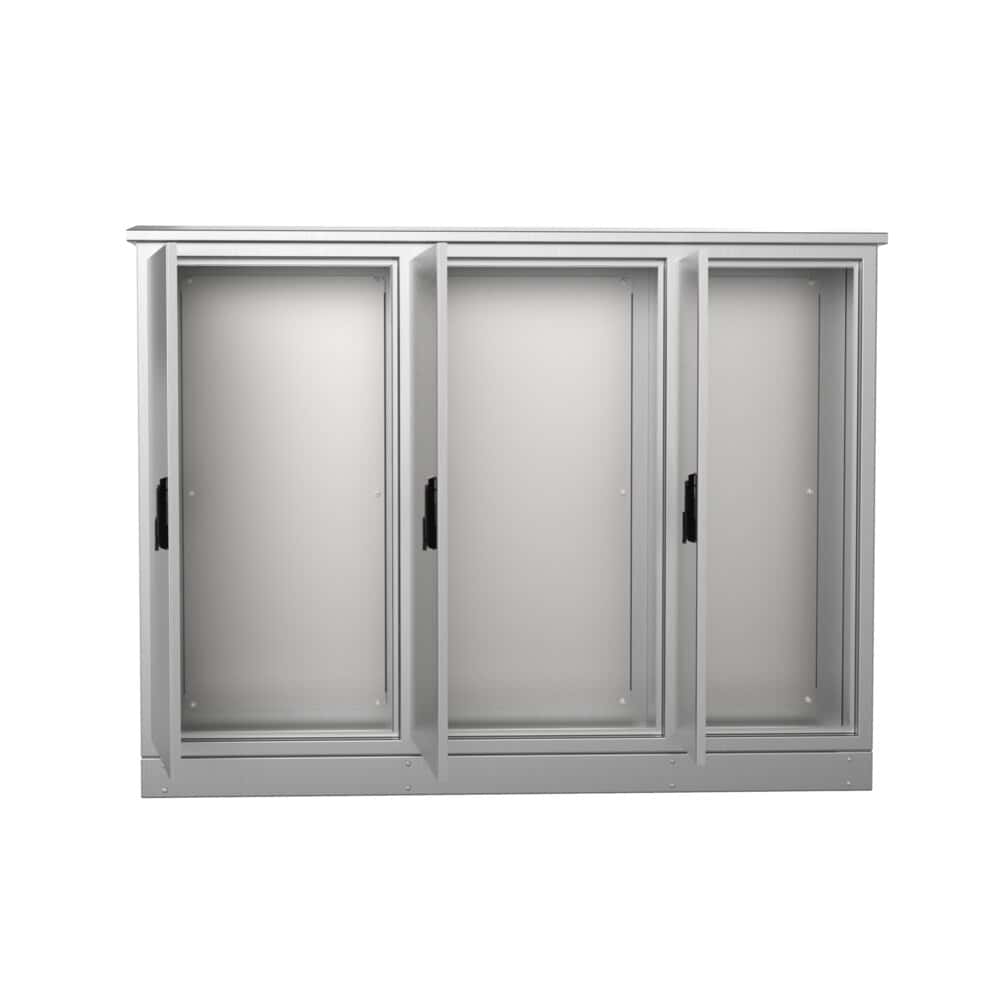

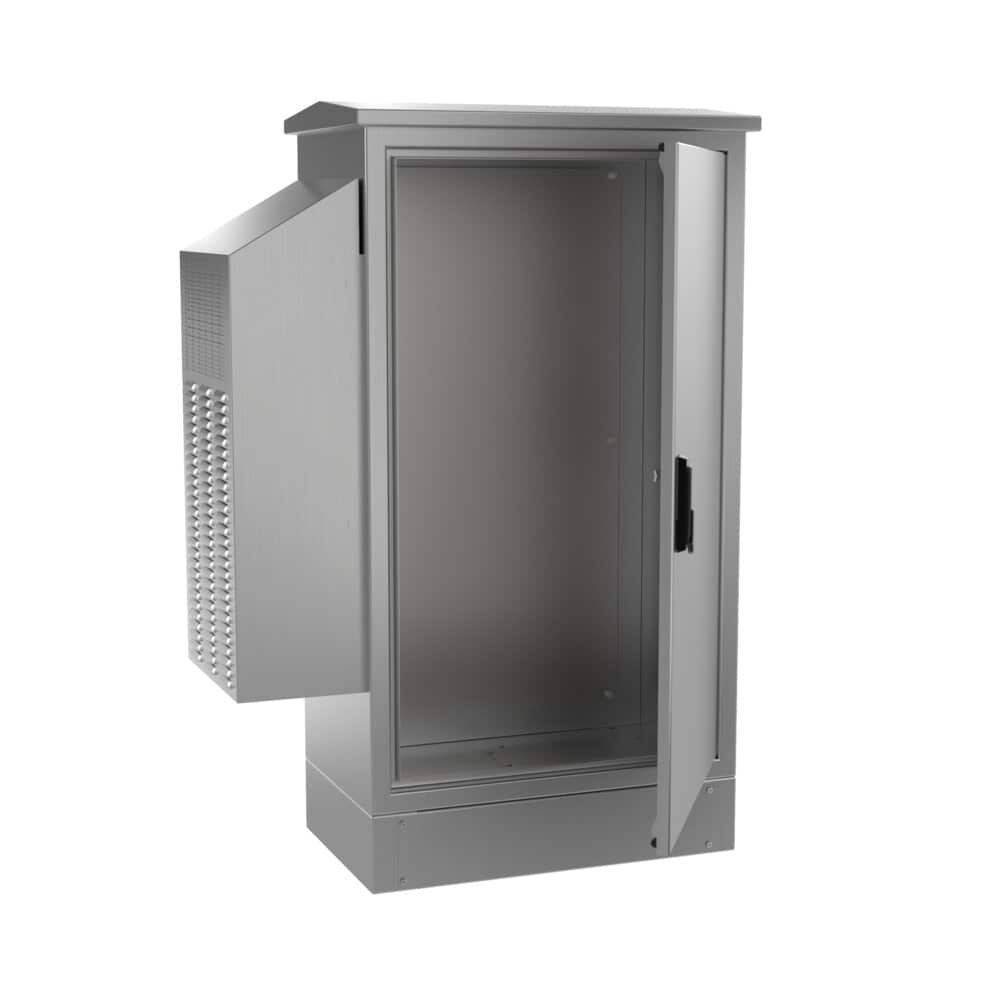

Outdoor enclosures tropico IP66: detail view of the product

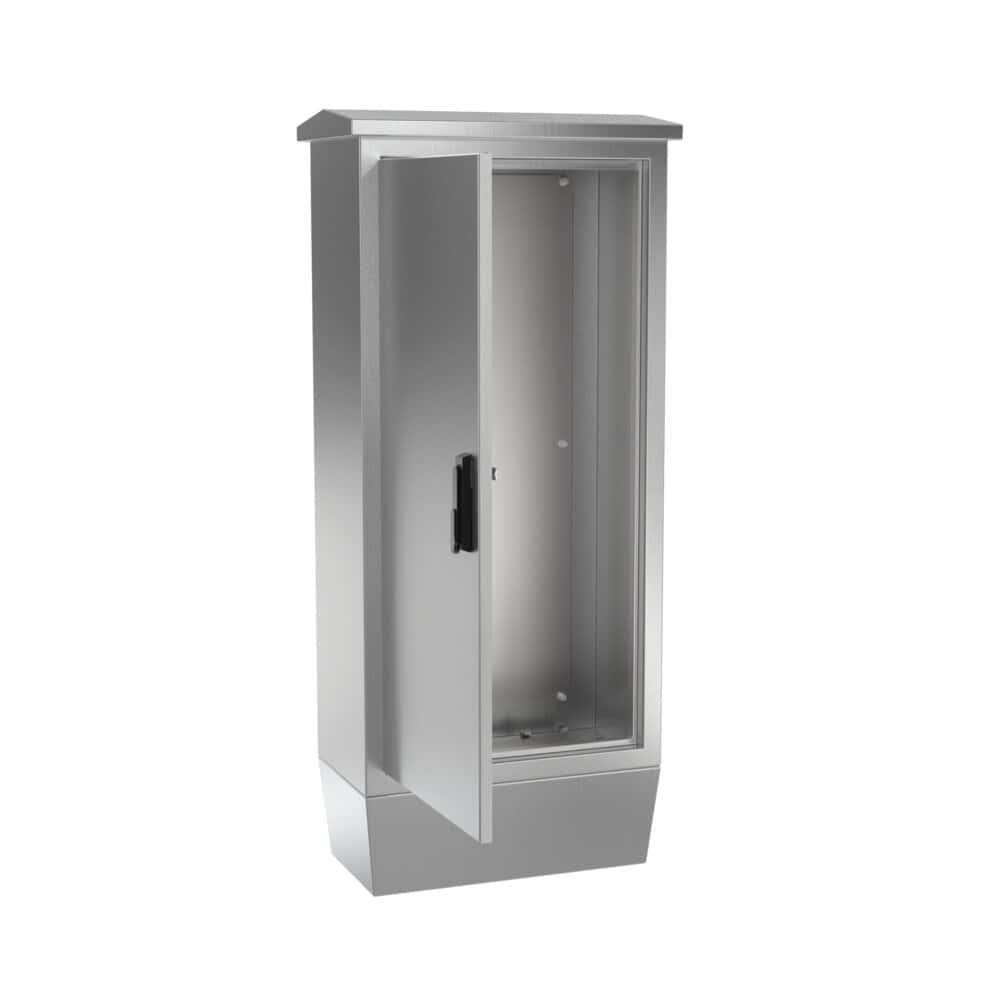

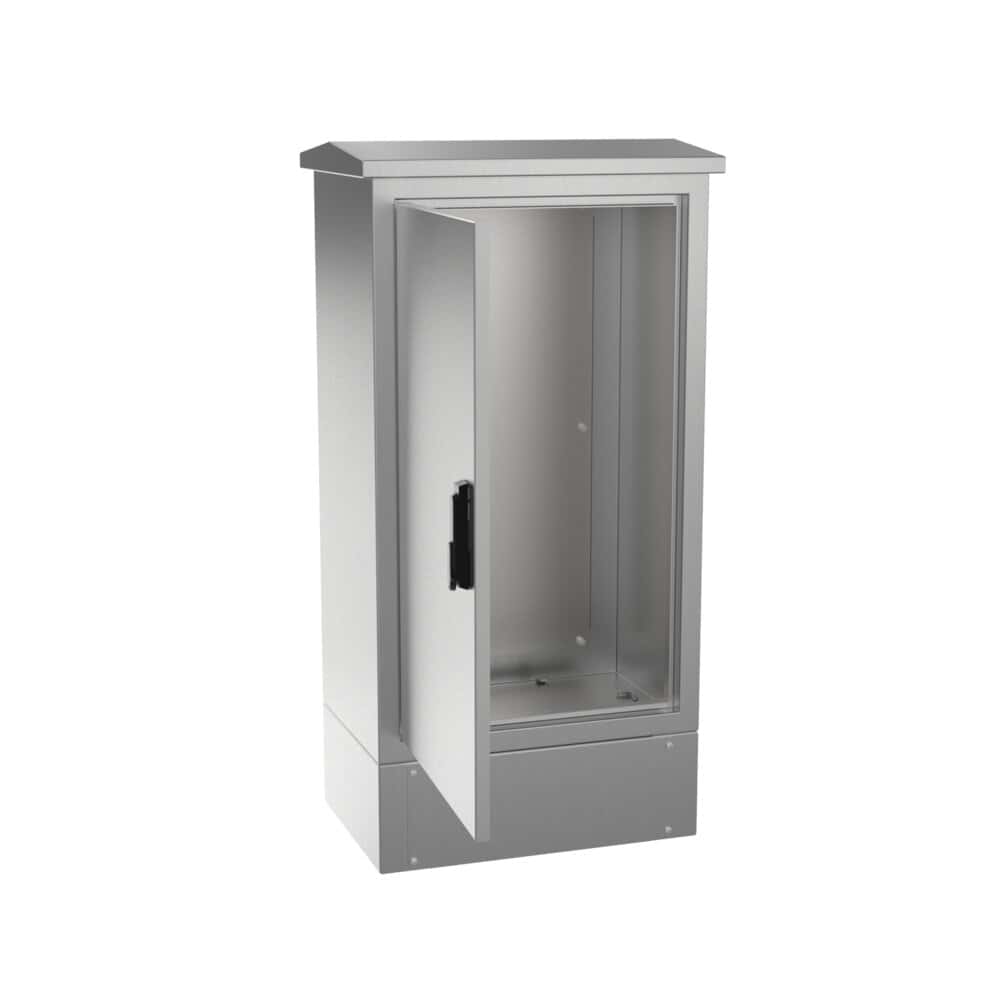

Outdoor enclosures tropico IP66: additional view of the product

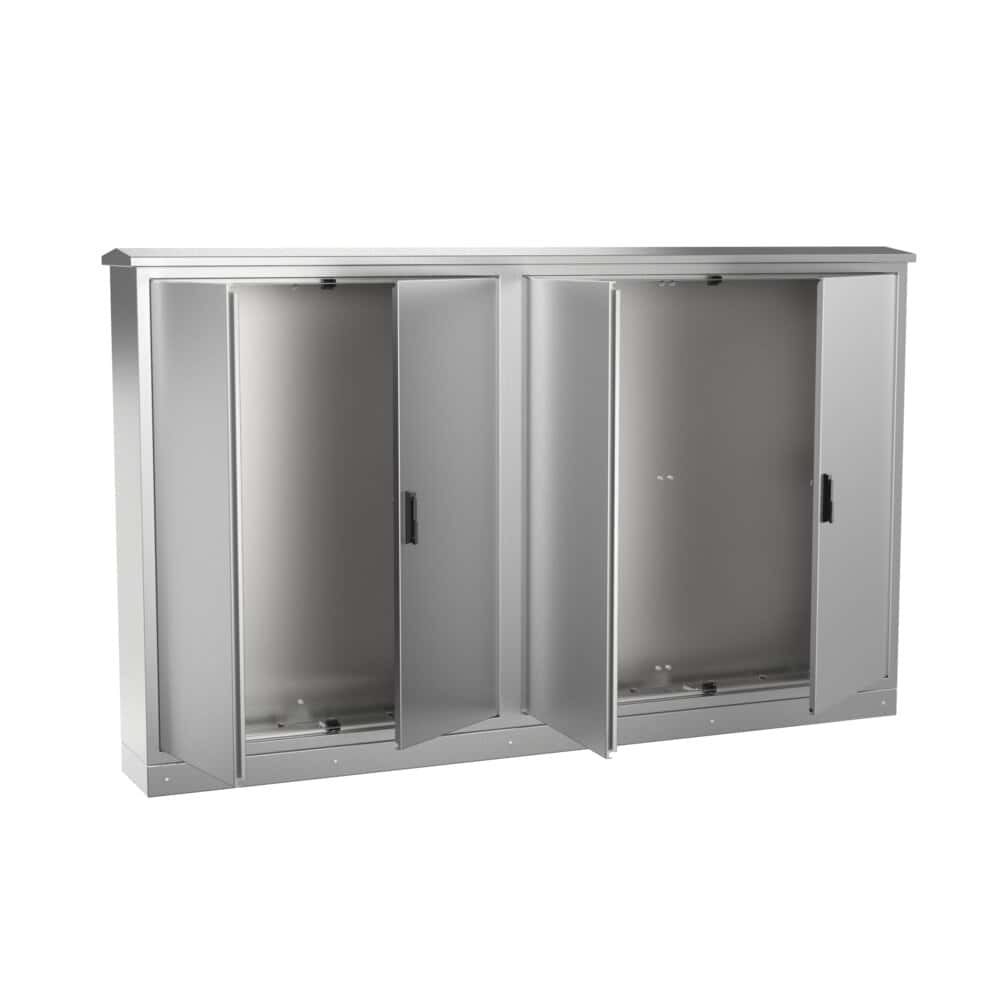

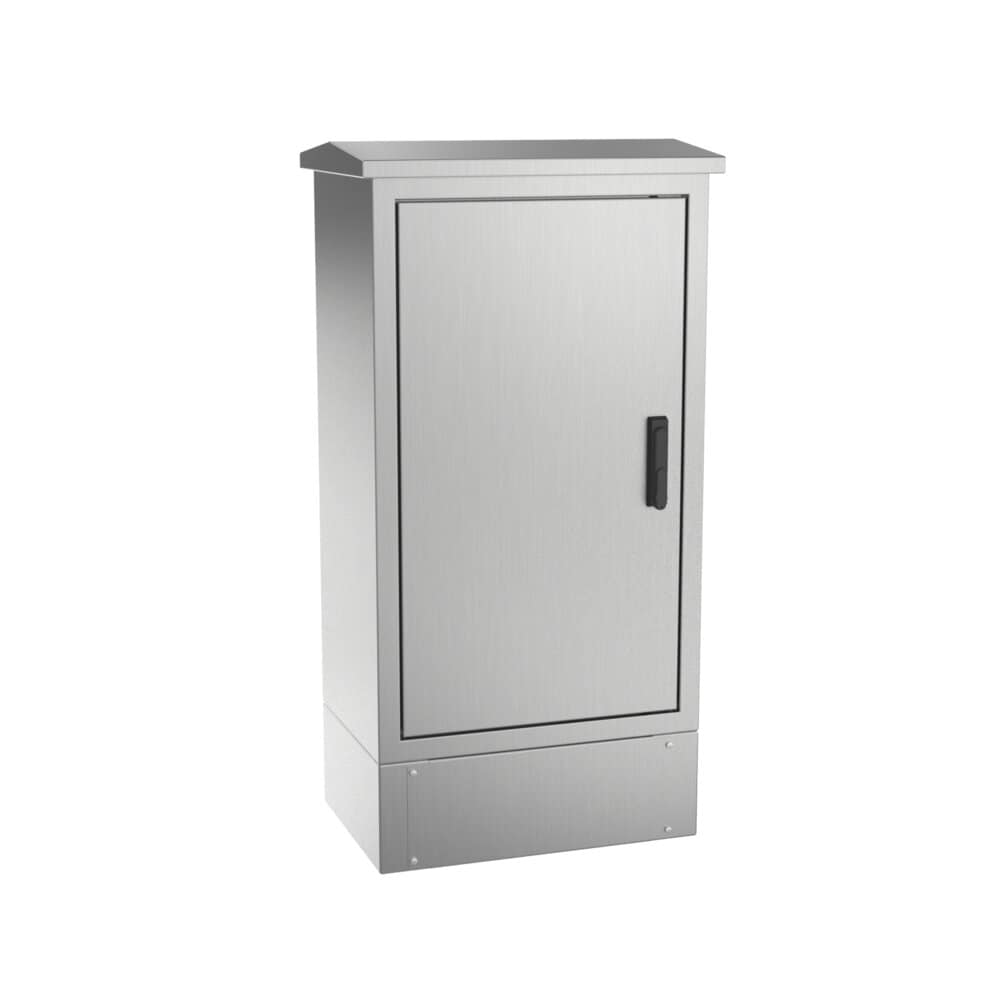

Outdoor enclosures tropico IP66: side view of the product

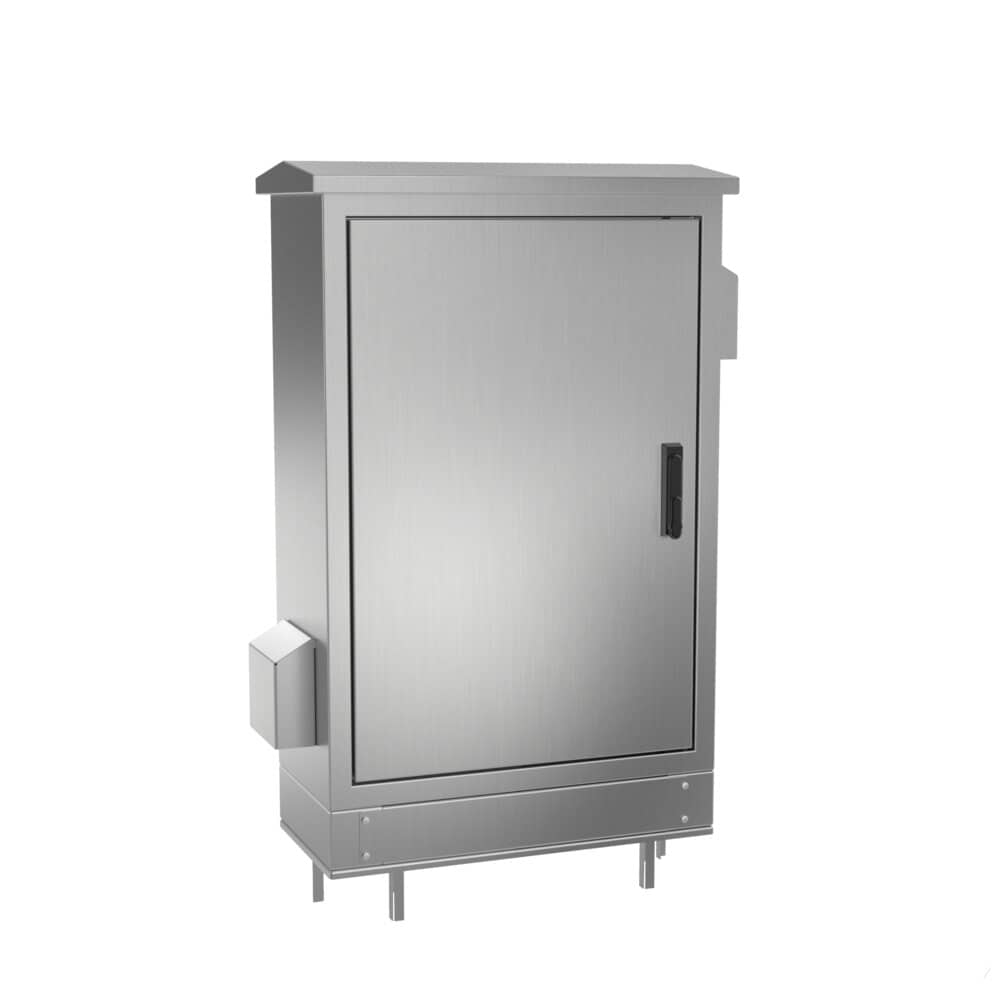

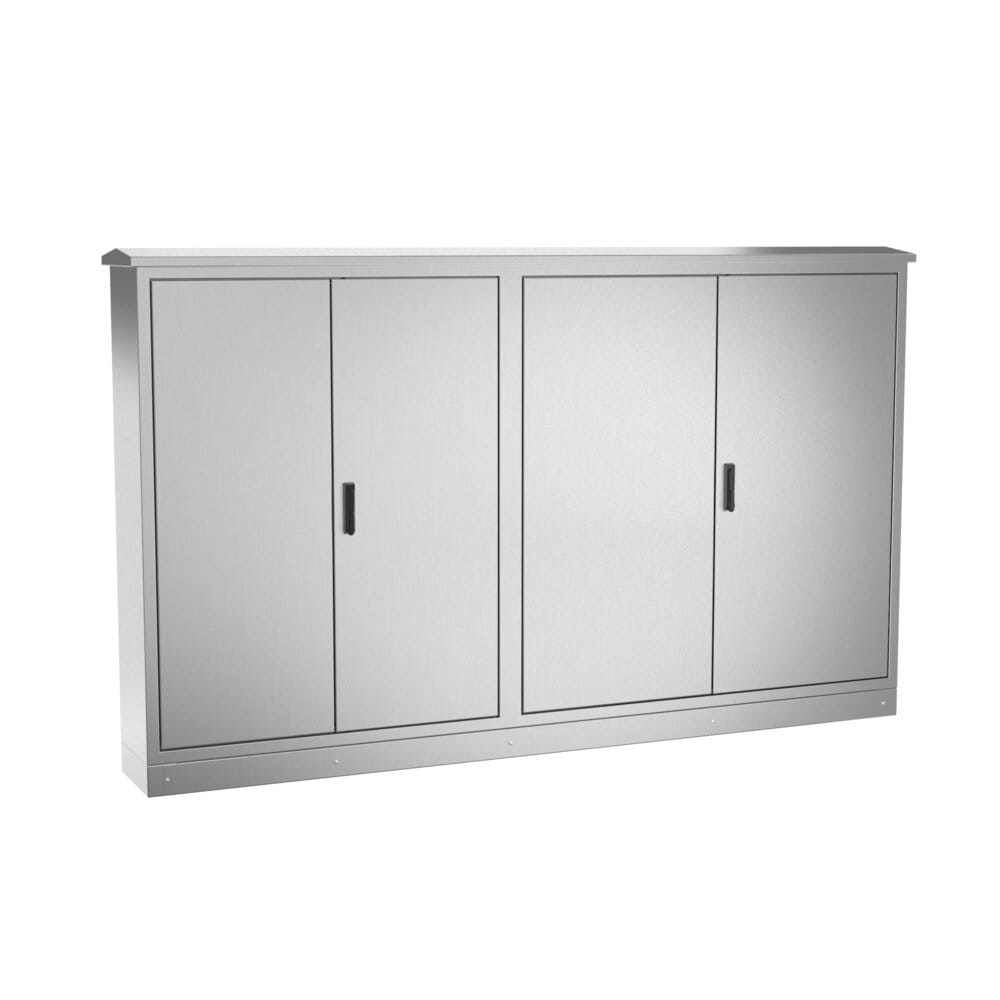

Outdoor enclosures tropico IP66: rear view of the product

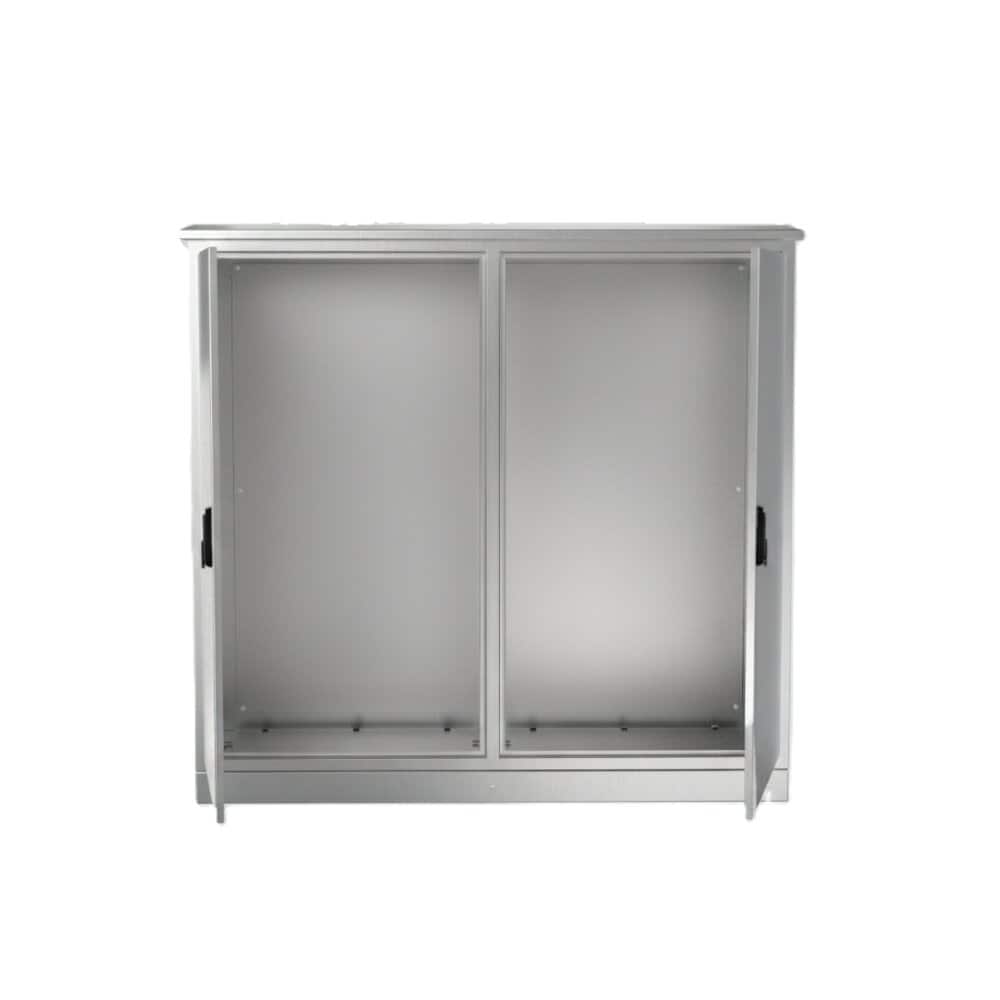

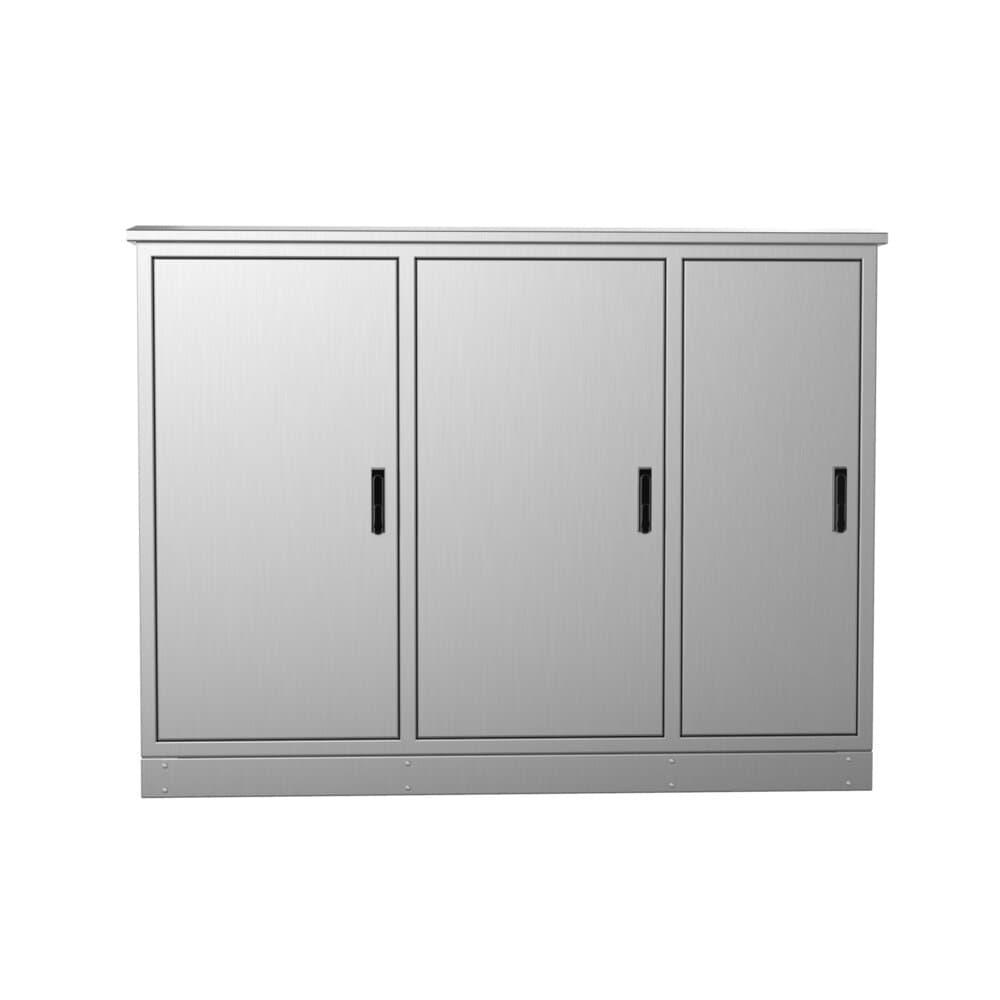

Outdoor enclosures tropico IP66: alternative configuration of the product

📄 Measurement plan outdoor enclosures tropico ip66

TECHNICAL DATA

Minimum Measurements	A=1000-1200mm B=600-800mm P=320-500mm
Maximum Double Door Measurements	A=2200mm B=2400mm P=500mm
Minimum Plate Measurements	A=870-2070mm
Minimum Plate Measurements	B=475-2270mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Rotary handle
Useful Depth	297.5-477.5 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Interior Plate Material	Stainless steel mounting plate, Insulating mounting plate (Bakelite)
Alternative Gaskets	silicone (-60°C to +180°C), EMC
Machinable Area	Puerta: 858.5x412.8-2000x555.3, Lateral: 990x310-2190x490

Special designs and custom paint finishes on demand

Base para cualquier tamaño

In stainless steel AISI 316L EN 14404

Anti-Graffiti Treatment

EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard

Ventilation kit (fan, resistor, and thermostat)

High mechanical properties and high torsional strength

With injected waterproof gasket, so that moisture cannot accumulate

Automatic condensation drainage thanks to the exclusive cabinet design

anti-vandal handle

Maintenance-free throughout its entire lifespan. Service life over 30 years

Delvalle makes to order any size to suit your needs, including holes, shaped channels, both in the door and in the enclosure.

Our Tropico Series outdoor enclosures, given their design, finish and watertightness, are specially designed for telecommunications, public lighting, ancillary services, etc.

Delvalle cabinets protection standards and ratings

IK10 protection rating according to IEC 62262 standard

Compliance with IEC 60068-2-30 and IEC 60068-2-11 Standards

UL certification of cabinets

EN 60439-5

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

1-DOOR REFERENCES	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	INTERNAL HEIGHT	INTERNAL WIDTH	INTERNAL DEPTH	ACCESS OPENING	USABLE DEPTH	PLATE DIMENSIONS
MVAB645627TOL	645	563	273	600	500	210	560×453	180	565×445
MVAB646627TOL	645	663	273	600	600	210	560×553	180	565×545
MVAB846636TOL	845	663	363	800	600	300	760×553	270	765×545
MVAB848636TOL	845	863	363	800	800	300	760×753	270	765×745
MVAB108636TOL	1045	863	363	1000	800	300	960×753	270	965×745
MVAB128636TOL	1245	863	363	1200	800	300	1160×753	270	1165×745
MVAB101036TOL	1045	1063	363	1000	1000	300	960×953	270	965×945
MVAB121036TOL	1245	1063	363	1200	1000	300	1160×953	270	1165×945
MVAB101236TOL	1045	1263	363	1000	1200	300	960×1153	270	965×1145
MVAB121236TOL	1245	1263	363	1200	1200	300	1160×1153	270	1165×1145
MVAC176646TOL	1700	663	463	1650	600	400	1540×490	375	1520×470
MVAC178646TOL	1700	863	463	1650	800	400	1540×690	375	1520×670
MVAC171046TOL	1700	1063	463	1650	1000	400	1540×890	375	1520×870
MVAC171246TOL	1700	1263	463	1650	1200	400	1540×1090	375	1520×1070
MVAC186646TOL	1850	663	463	1800	600	400	1690×490	375	1670×470
MVAC188646TOL	1850	863	463	1800	800	400	1690×690	375	1670×670
MVAC188656TOL	1850	863	563	1800	800	500	1690×690	475	1670×670
MVAC181046TOL	1850	1063	463	1800	1000	400	1690×890	375	1670×870
MVAC181056TOL	1850	1063	563	1800	1000	500	1690×890	475	1670×870
MVAC206656TOL	2050	663	563	2000	600	500	1890×490	475	1870×470
MVAC208646TOL	2050	863	463	2000	800	400	1890×690	375	1870×670
MVAC208656TOL	2050	863	563	2000	800	500	1890×690	475	1870×670
MVAC201046TOL	2050	1063	463	2000	1000	400	1890×890	375	1870×870
MVAC201056TOL	2050	1063	563	2000	1000	500	1890×890	475	1870×870

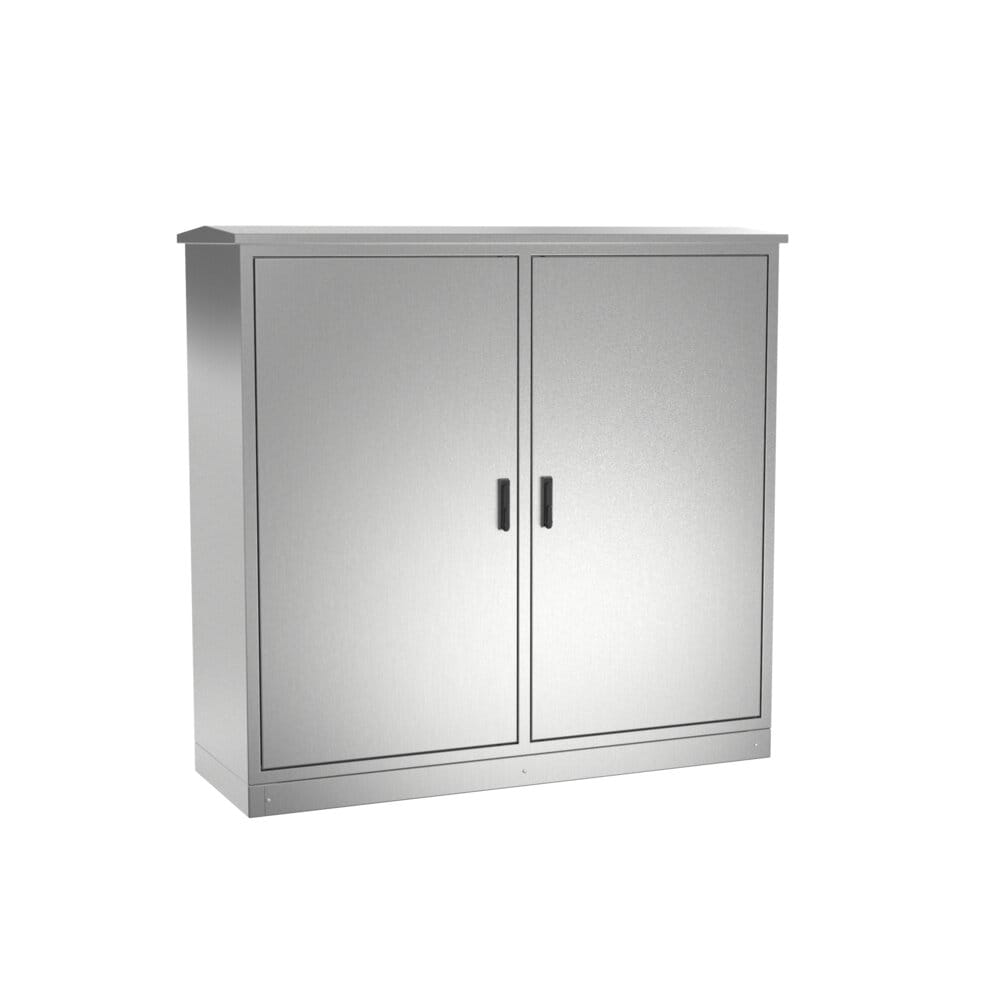

2-DOOR REFERENCES	DIMENSIONS (mm)
SOLID DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	INTERNAL HEIGHT	INTERNAL WIDTH	INTERNAL DEPTH	ACCESS OPENING	USABLE DEPTH	PLATE DIMENSIONS
MVAB846636DTOL	845	663	363	800	600	300	746×246	270	740×240
MVAB848636DTOL	845	863	363	800	800	300	746×346	270	740×340
MVAB108636DTOL	1045	863	363	1000	800	300	946×346	270	940×340
MVAB128636DTOL	1245	863	363	1200	800	300	1146×346	270	1140×340
MVAB101036DTOL	1045	1063	363	1000	1000	300	946×446	270	940×440
MVAB121036DTOL	1245	1063	363	1200	1000	300	1146×446	270	1140×440
MVAB121236DTOL	1245	1263	363	1200	1200	300	1146×546	270	1140×540
MVAC181246TOL	1850	1263	463	1800	1200	400	1690×490	375	1670×470
MVAC181256TOL	1850	1263	563	1800	1200	500	1690×490	475	1670×470
MVAC201246TOL	2050	1263	463	2000	1200	400	1890×490	375	1870×470
MVAC201256TOL	2050	1263	563	2000	1200	500	1890×490	475	1870×470
MVAC201446TOL	2050	1463	463	2000	1400	400	1890×590	375	1870×570
MVAC201456TOL	2050	1463	563	2000	1400	500	1890×590	475	1870×570
MVAC201646TOL	2050	1663	463	2000	1600	400	1890×690	375	1870×670
MVAC201656TOL	2050	1663	563	2000	1600	500	1890×690	475	1870×670

Croquis:
