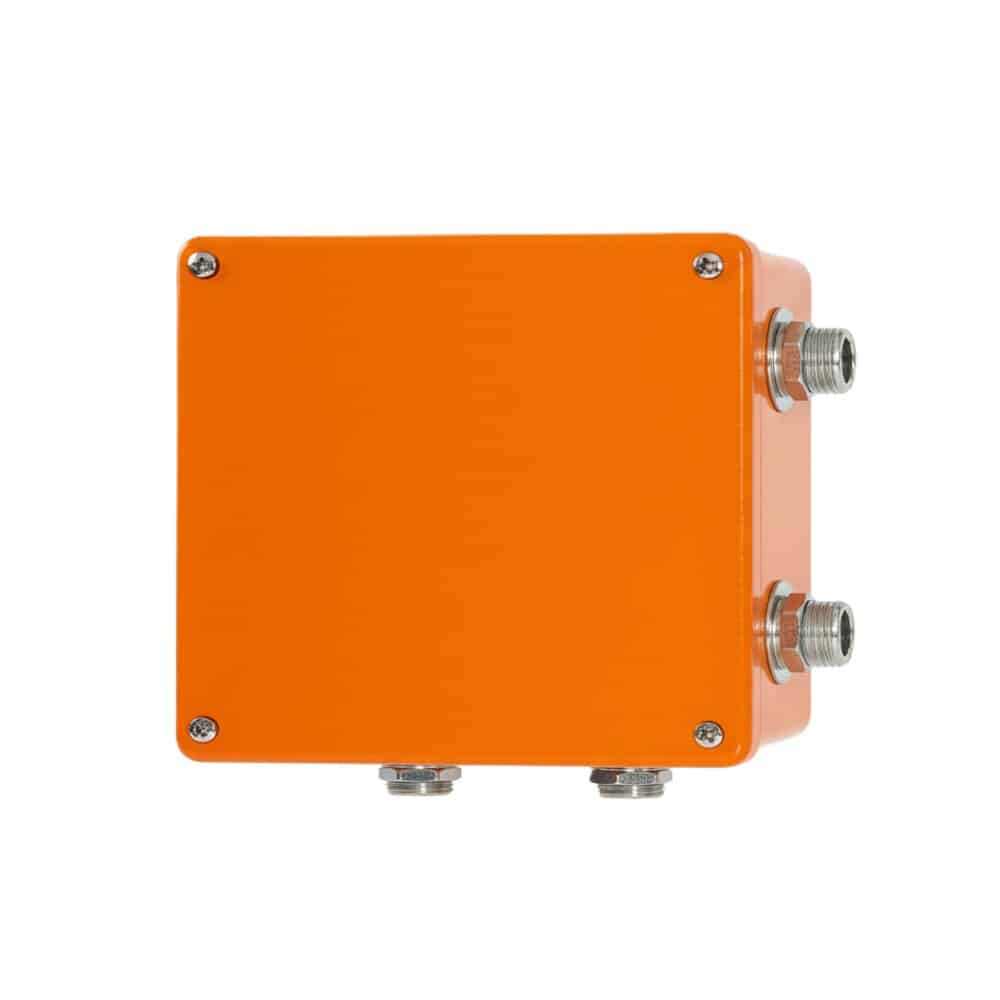

PH120 fire rated enclosure

Delvalle fire rated enclosures have been successfully tested to in fire standards.PH120, according UNE EN 50200, Insulation integrity (120 minutes exposure) in accordance with 842ºC with exposure to fire with water spray & mechanical shock in accordance with EN 50200.
We have different sizes and customized designs for a fire rated junction boxes with screw openings or with hinges

TECHNICAL DATA
Minimum Measurements A=120-600mm   B=120-600mm   P=80-300mm
Body Thickness 1.2 mm | 12/10 mm
0.0472 " | 18 Gauge
Door Type Blind door
Opening Type Screwed
Material AISI 304L/AISI 316L
FinishPainted
Plate Material Galvanized
Working Temperature aseguran la continuidad eléctrica durante 120 minutos a 842ºC de temperatura constante
ALTERNATIVE OPTIONS
Alternative Materials AISI 316L
Alternative Door Opening Apertura de puerta con bisagras
Customization of Sizes and Designs to Measure
Hinged Door Opening
wall mounting system
Anti-corrosion Boxes, Made of AISI316L Stainless Steel
Painted in RAL 2004 Orange
Geo-Fire PH120
Our casing has excellent resistance to humidity, dust, oxidation, corrosion, cosmic and ionizing radiation, chemical agents and weathering in general.
Constant operation in adverse temperature conditions
Different types of ceramic terminals
Corrosion-resistant enclosures in AISI304L stainless steel
Tunnels, Subways, and Highways
Railway sector
Maritime Environments
UNE EN 50200
PH120 cabinets fire resistance
IP66(W) degree of protection
IK10 protection rating for cabinets
European Directive 2014/35/EU
UL NEMA 4X, 12, 3R, and 1 standards
Cabinets made from AISI 316 stainless steel with corrosion resistance
RoHS Directive Compliance
WRAS scheme compliance

REFERENCES

DIMENSIONS (mm) AND MAX. NO. OF TERMINALS

SOLID BOX

(x)

HEIGHT

-A-

WIDTH

-B-

DEPTH

-C-

TERMINAL CROSS-SECTION (mm²)

2.5

4

6

10

16

35

GEO121280FR

120

120

80

8

8

4

GEO121680FR

160

120

80

12

12

8

8

6

GEO132690FR

130

260

90

24

24

20

12

12

GEO151580FR

150

150

80

10

10

6

6

4

GEO161690FR

160

160

90

12

12

8

6

GEO162690FR

260

160

90

24

24

20

12

12

10

GEO252512FR

250

250

120

24

24

20

12

12

10

GEO253512FR

250

350

120

32

32

24

20

16

14

GEO254015FR

250

400

150

36

36

28

24

20

16

GEO404015FR

400

400

150

72

72

65

48

40

16

GEO256015FR

600

250

150

52

52

44

40

32

24

GEO406015FR

600

400

150

104

104

88

80

64

24

GEO605025FR

500

600

250

104

104

88

80

64

40

GEO606015FR

600

600

150

156

156

132

96

50

* Geo Fire IP66 Series PH120 Fire Resistant Box Design – Electrical Continuity 120 min at 842ºC
