IP68 stainless steel hinged enclosure

SERIE LUXOR IP68

IP68 industrial Enclosure wall mounted Luxor-Amphibox Series made of stainless steel AISI 304L or AISI 316L, combine a number of features ideal for electrical and electronic applications where security and perfect sealing against dust and inmersion water are essential.

The protection of IP68 allows this equipment to be inmersion in to 1 meters of water without ingress during 7 days.

The most popular characteristic is hinged stainless steel enclosure is the ease of dismantling by screws, with a revolving left door which allows the performance inside the frame without removal or loss of the door.

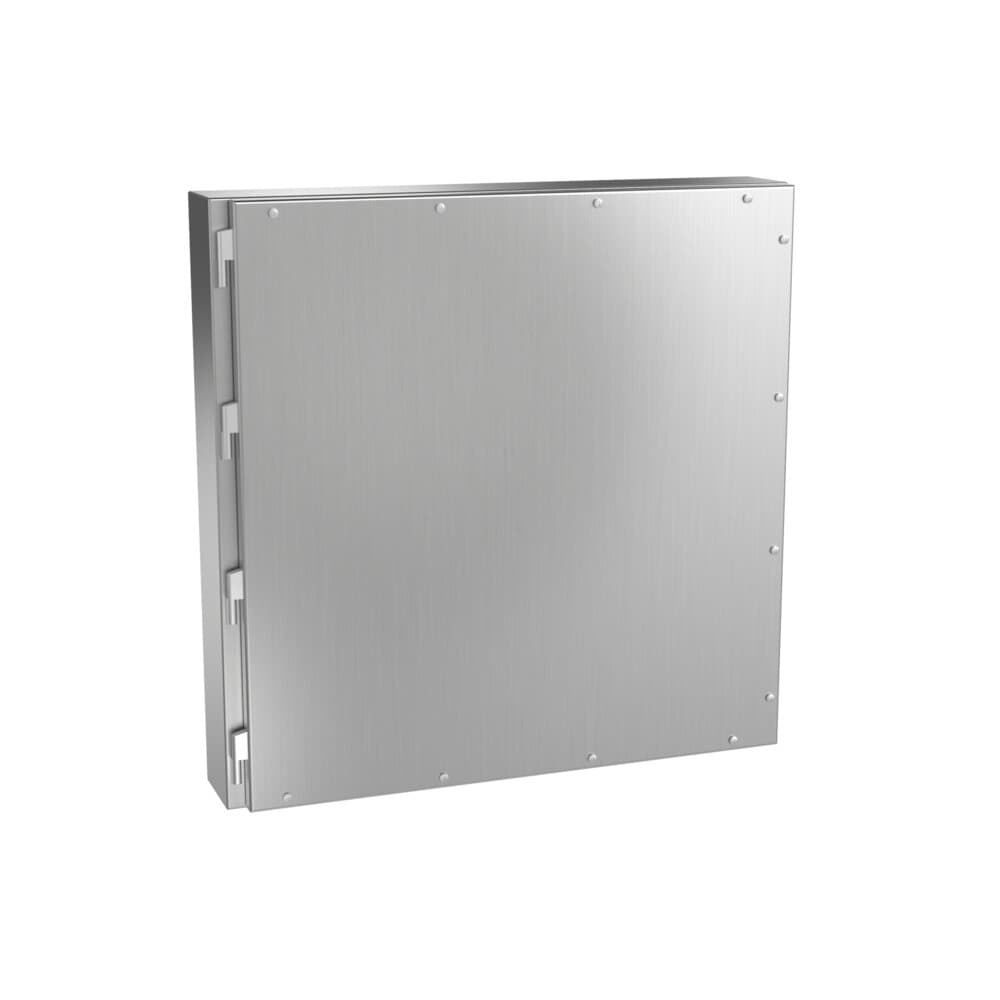

IP68 stainless steel hinged enclosure: main view of the product

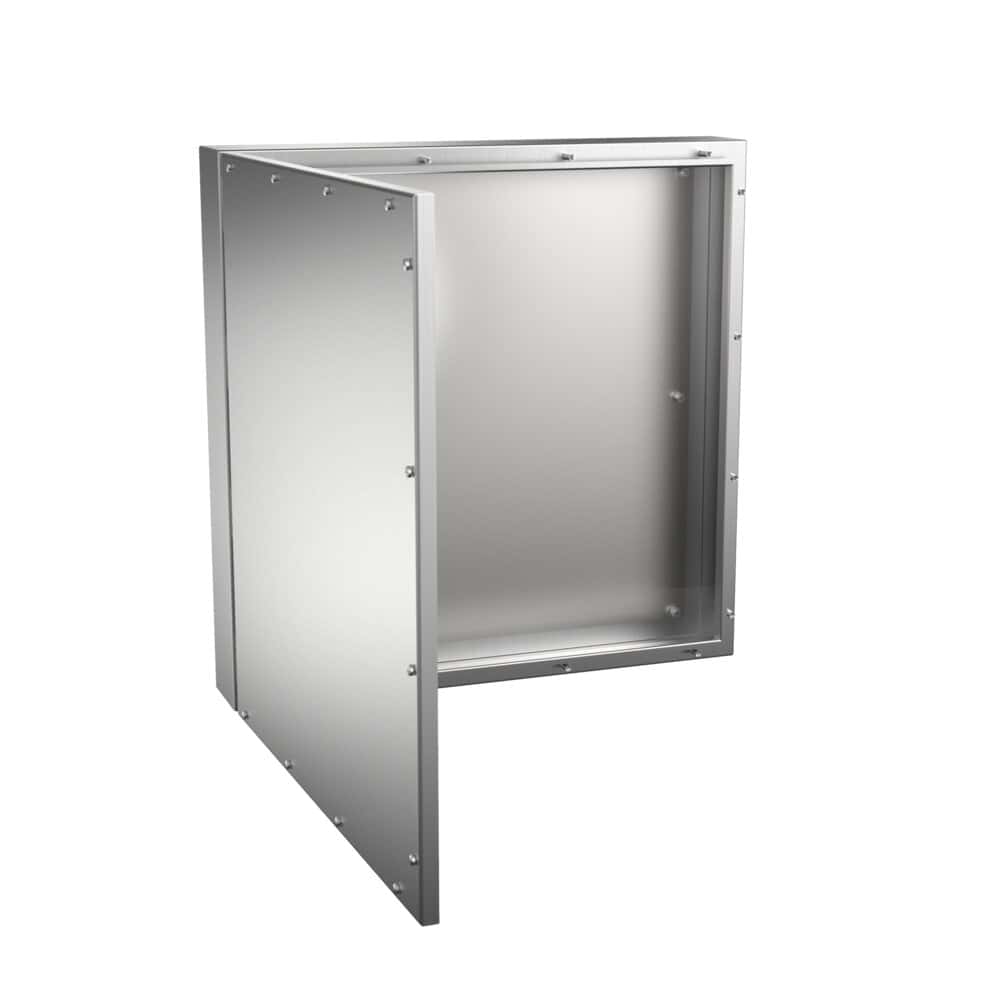

IP68 stainless steel hinged enclosure: detail view of the product

TECHNICAL DATA

Minimum Measurements	A=300-1200mm B=200-1200mm P=155-300mm
Minimum Plate Measurements	A=220-1120mm
Minimum Plate Measurements	B=120-1120mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	180 °
Door Type	Blind door
Opening Type	Screwed, Giratoria
Useful Depth	129-274 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	2B, Painted RAL 7035
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	EMC, silicone (-60°C to +180°C)
Machinable Area	Puerta: 215,5x110,5-1020x1020, Lateral: 270x99-1170x244, Inferior: 99x170-244x1170

Made to Measure According to Your Needs

We recommend the use of our stainless steel IP68 cable glands for cable entry

In stainless steel AISI 316L EN 14404

Textured paint finish with other RAL colors on request

The sealing allows total protection against dust and is resistant to continuous immersion for 7 days at a depth of 1 meter.

This type of enclosures combine the highest corrosion and impact resistance in the market IK10.

Monobloc construction that achieves perfect sealing and impact resistance

With gutter channel to prevent liquids from coming into contact with the polyurethane seal

Total protection against dust and temporary water immersion

Ideal for weathering and/or adverse conditions

Stainless Steel AISI 304L or AISI 316L

IP68 Certification

Maximum voltage 1000 V

Temperature resistance: from -40°C to +100°C (reduced exposure +160ºC)

This combination of tightness and resistance makes it ideal for the indoor housing of delicate electronic and electrical devices in adverse environments

Note: The use of this box is intended for cases of accidental and limited-time immersion

Low Voltage Directive 2006/95/EC

Cabinets made from AISI 316 stainless steel with corrosion resistance

RoHS directive compliance

REFERENCES		DIMENSIONS (mm)
SOLID DOOR (x)	POLYCARBONATE DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	MACHINING AREA		PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
SOLID DOOR (x)	POLYCARBONATE DOOR (x)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USABLE DEPTH -D-	DOOR	SIDE	PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
MVAB302015/68	MVAB302015T/68	300	200	155	226×121	129	215.5×110.5	270×99	220×120	4.60	0.01
MVAB383015/68	MVAB383015T/68	380	300	155	306×221	129	295.5×210.5	350×99	300×220	7.62	0.02
MVAB383021/68	MVAB383021T/68	380	300	210	306×221	184	295.5×210.5	350×154	300×220	8.51	0.03
MVAB404021/68	MVAB404021T/68	400	400	210	326×321	184	315.5×310.5	370×154	320×320	11.14	0.04
MVAB504021/68	MVAB504021T/68	500	400	210	426×321	184	415.5×310.5	470×154	420×320	13.49	0.05
MVAB505021/68	MVAB505021T/68	500	500	210	426×421	184	415.5×410.5	470×154	420×420	16.20	0.06
MVAB705021/68	MVAB705021T/68	700	500	210	626×421	184	615.5×410.5	670×154	620×420	21.50	0.08
MVAB603815/68	MVAB603815T/68	600	380	155	526×301	129	515.5×290.5	570×99	520×300	13.79	0.06
MVAB603821/68	MVAB603821T/68	600	380	210	526×301	184	515.5×290.5	570×154	520×300	15.08	0.06
MVAB605021/68	MVAB605021T/68	600	500	210	526×421	184	515.5×410.5	570×154	520×420	18.85	0.07
MVAB606021/68	MVAB606021T/68	600	600	210	526×521	184	515.5×510.5	570×154	520×520	21.96	0.08
MVAB806030/68	MVAB806030T/68	800	600	300	726×521	274	715.5×510.5	770×244	720×520	31.34	0.16
MVAB808030/68	MVAB808030T/68	800	800	300	726×721	274	620×620	770×244	720×720	39.78	0.21
MVAB108030/68	MVAB108030T/68	1000	800	300	960×721	274	820×620	970×244	920×720	50.41	0.26
MVAB128030/68	MVAB128030T/68	1200	800	300	1126×721	274	1020×620	1170×244	1120×720	59.24	0.31
MVAB101030/68	MVAB101030T/68	1000	1000	300	926×921	274	820×820	970×244	920×920	60.85	0.32
MVAC121230/68	MVAC121230T/68	1200	1200	300	1126×1121	274	1020×1020	1170×244	1120×1120	83.58	0.39
Version: UL Standard	Add "UL" to the reference. Ex: "MVAB128030/68UL"

* Luxor Amphibox IP68 Design – 20mm Plate to Back Separation

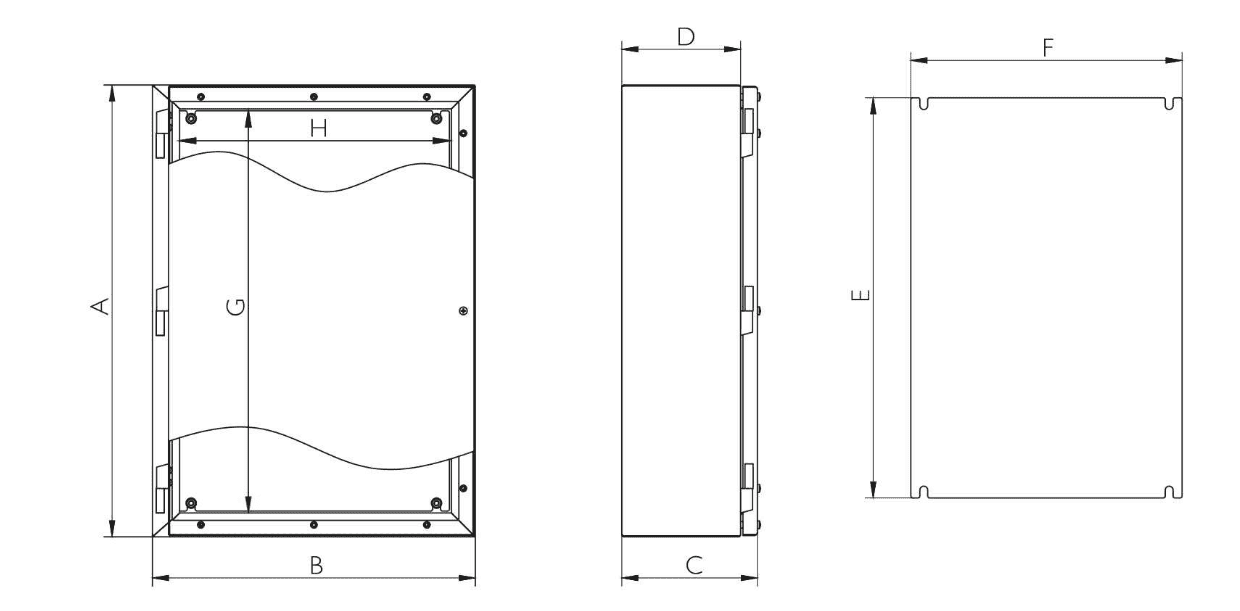

Croquis:

📄 Certification ip68 stainless steel hinged enclosure

Accessories:

Metric polyamide cable glands IP68

PG polyamide cable glands IP68

Metric polyamide plug IP68

Stainless steel ventilation plugs IP68

Nickel plated ventilation plugs IP68

Metric stainless steel AISI 304 plug IP68

Metric stainless steel cable glands AISI316L

Metric stainless steel cable glands IP68

Metric EMC nickel plated cable glands IP68
