Stainless steel console riviera IP66

SERIE RIVIERA IP66

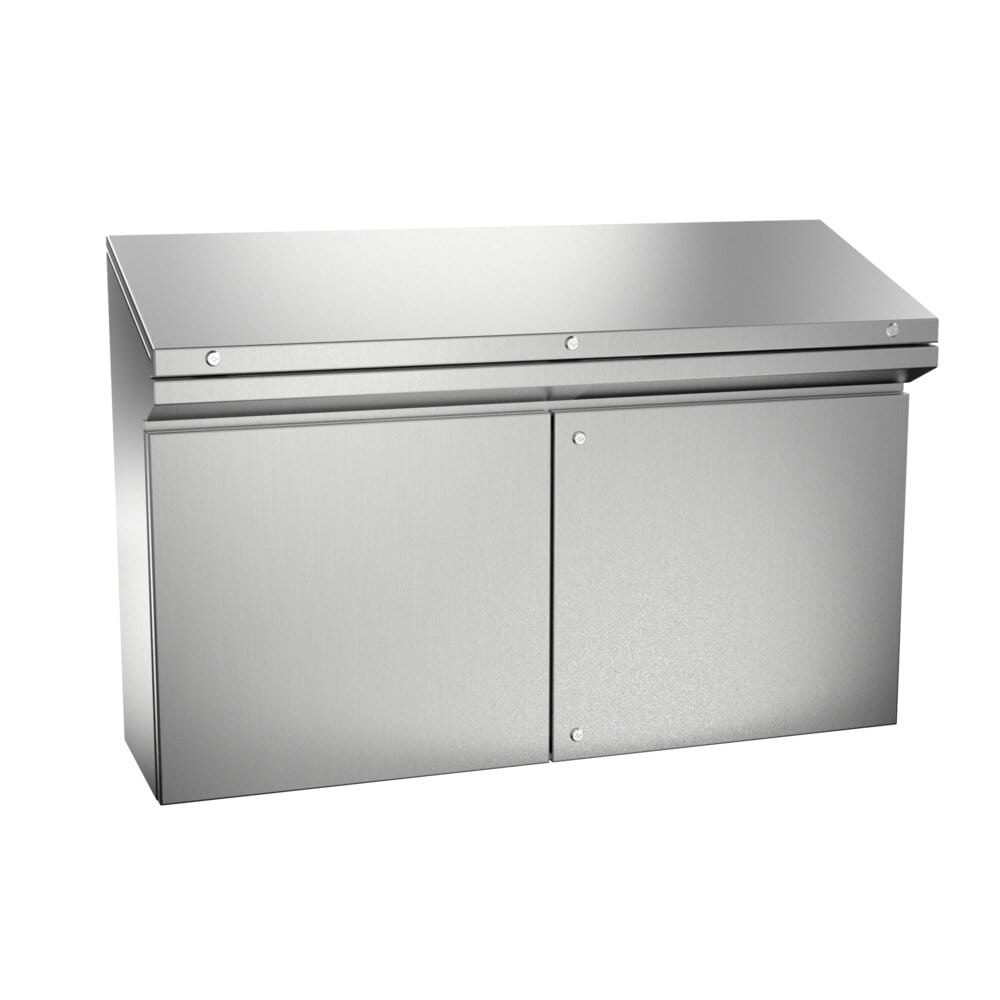

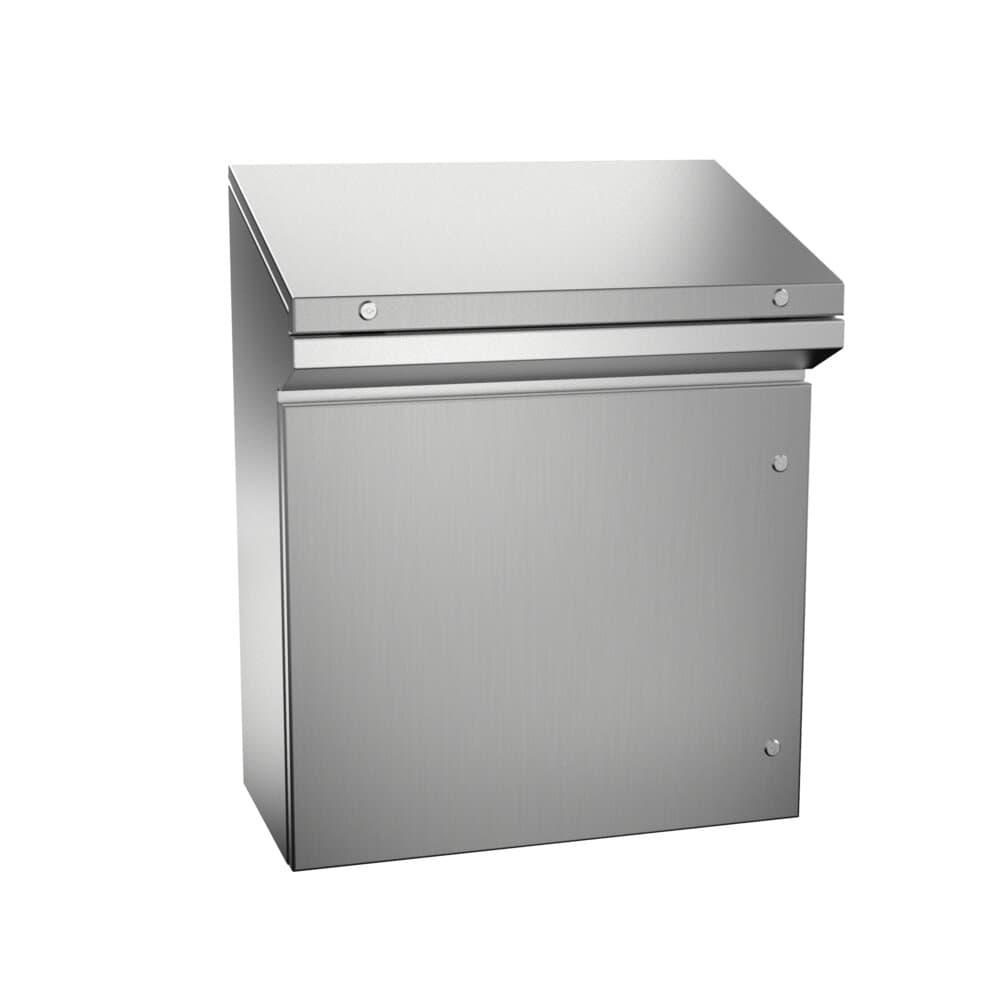

Riviera Console Series, elegant, functional consoles manufactured in nely polished AISI 304L, EN14306 stainless steel, easily accessed, with a design which allows for IP55 protection in two doors and IP66 for one door maximum resistance of IK10.

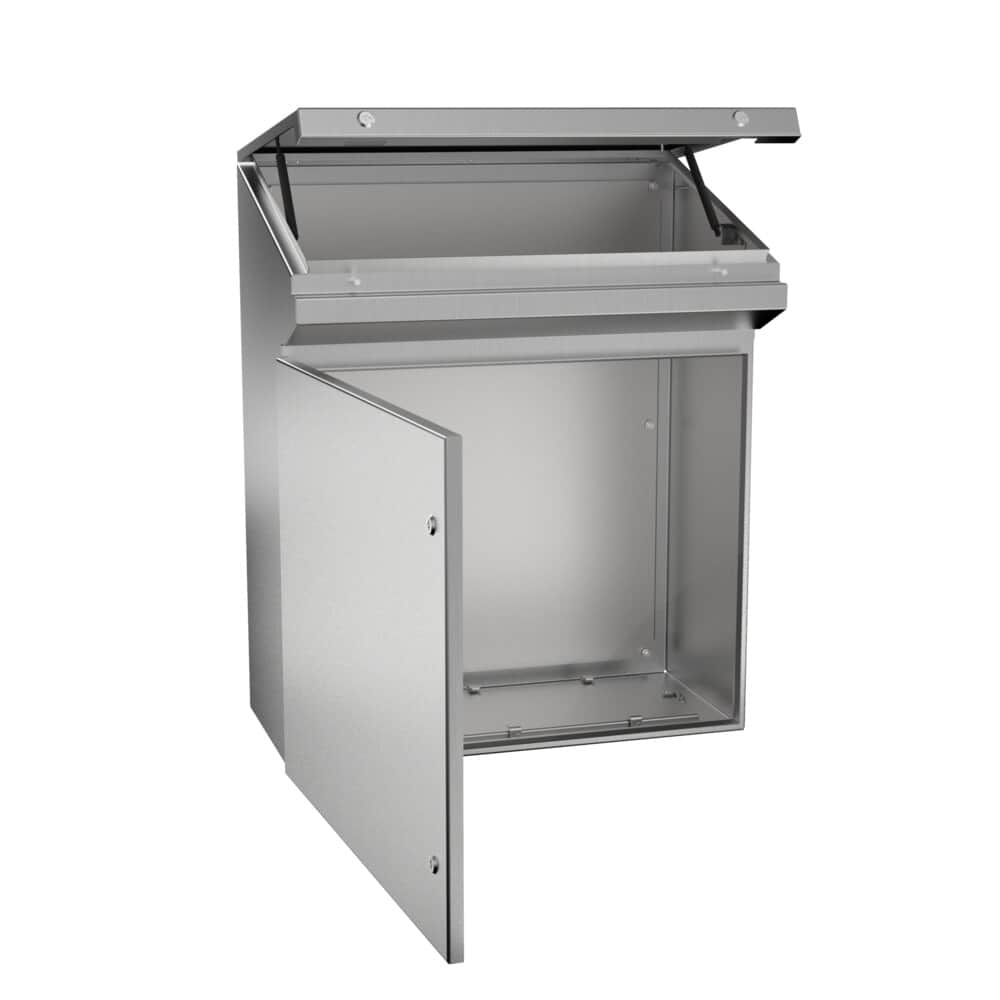

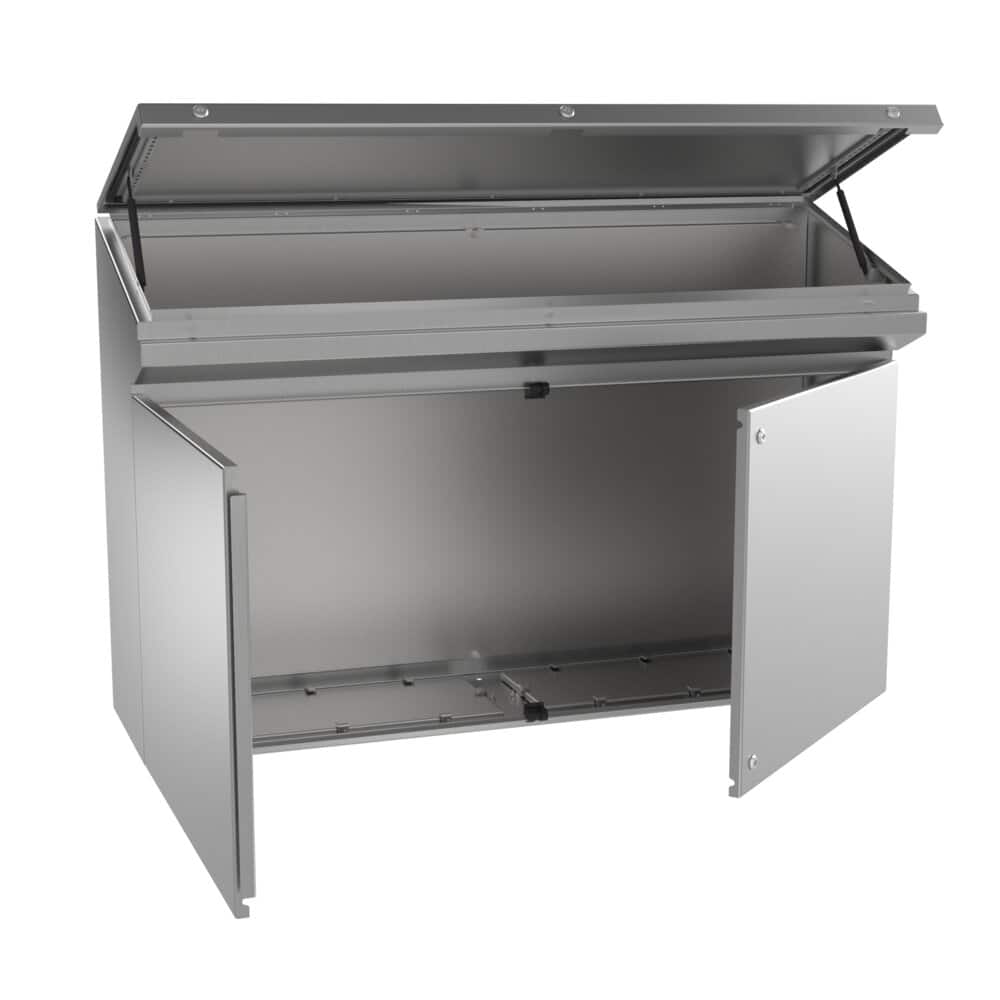

Top door with shock absorbers which make opening easier, with dismountable bottom and hidden hinges throughout It comes with a galvanized mounting plate.
Its drainage channels ensure liquids don’t come into contact with the polyverthone joint sealings. Front door opening to 130º making easy access.

TECHNICAL DATA
Minimum Measurements A=1000-100mm   B=600-800mm   P=500-500mm
Maximum Double Door Measurements A=1000mm   B=1600mm   P=500mm
Body Thickness 1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door Opening 130 °
Door Type Blind door
Opening Type Swivel with concealed hinges
Closing System Double-bit quarter-turn locks
Material AISI 304L/AISI 316L
FinishSatin finish
Plate Material Galvanized
Sealing Gasket Polyurethane
Working Temperature -40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage 1000 V
ALTERNATIVE OPTIONS
Alternative Materials AISI 316L, Galvanized, Aluminum
Alternative Finishes Painted RAL 7035
Alternative Door Door with polycarbonate panel, Door with safety glass
Interior Plate Material Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets EMC, silicone (-60°C to +180°C)
Made to Measure According to Your Needs
Up to IP69K - DIN 40050-9
Kickboards
All Types of Ventilation and Air Conditioning
Fixed Metal Legs or Wheels
In stainless steel AISI 316L EN 14404
EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard
Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand
Ample mounting space and high accessibility
Great robustness of the assembly
Wide Door Opening
Standard with double bit lock
Perfect watertightness due to the gaskets used in the joints
Great versatility, so it can be applied in almost any field
Delvalle makes to order any size to suit your needs, including holes, shaped channels, both in the door and in the enclosure.
In AISI 304L or AISI 316L stainless steel
Strength and durability
Overhead door with dampers
This IP69K model is available
Specially designed for the food industry.
Chemistry
Pharmaceutical
Electrical Cabinets
Electrical enclosures for telecommunications and outdoor applications
IP66(W) protection rating for cabinets
IP69K protection rating according to DIN 40050-9 standard
IK10 protection rating according to IEC 62262 standard
RoHS directive compliance
Voltage withstand capacity of cabinets
Delvalle cabinets silicone gaskets temperature resistance

2-DOOR REFERENCES

DIMENSIONS (mm)

REFERENCE

(x)

HEIGHT

-A-

WIDTH

-B-

DEPTH

-C-

DEPTH

-D-

MVPA106038

1000

600

380

500

MVPA108038

1000

800

380

500

* Riviera Console Design IP55/IP66 AISI 304L Stainless Steel

2-DOOR REFERENCES

DIMENSIONS (mm)

REFERENCE

(x)

HEIGHT

-A-

WIDTH

-B-

DEPTH

-C-

DEPTH

-D-

MVPA106038

1000

600

380

500

MVPA108038

1000

800

380

500

* Riviera Console Design IP55/IP66 AISI 304L Stainless Steel
