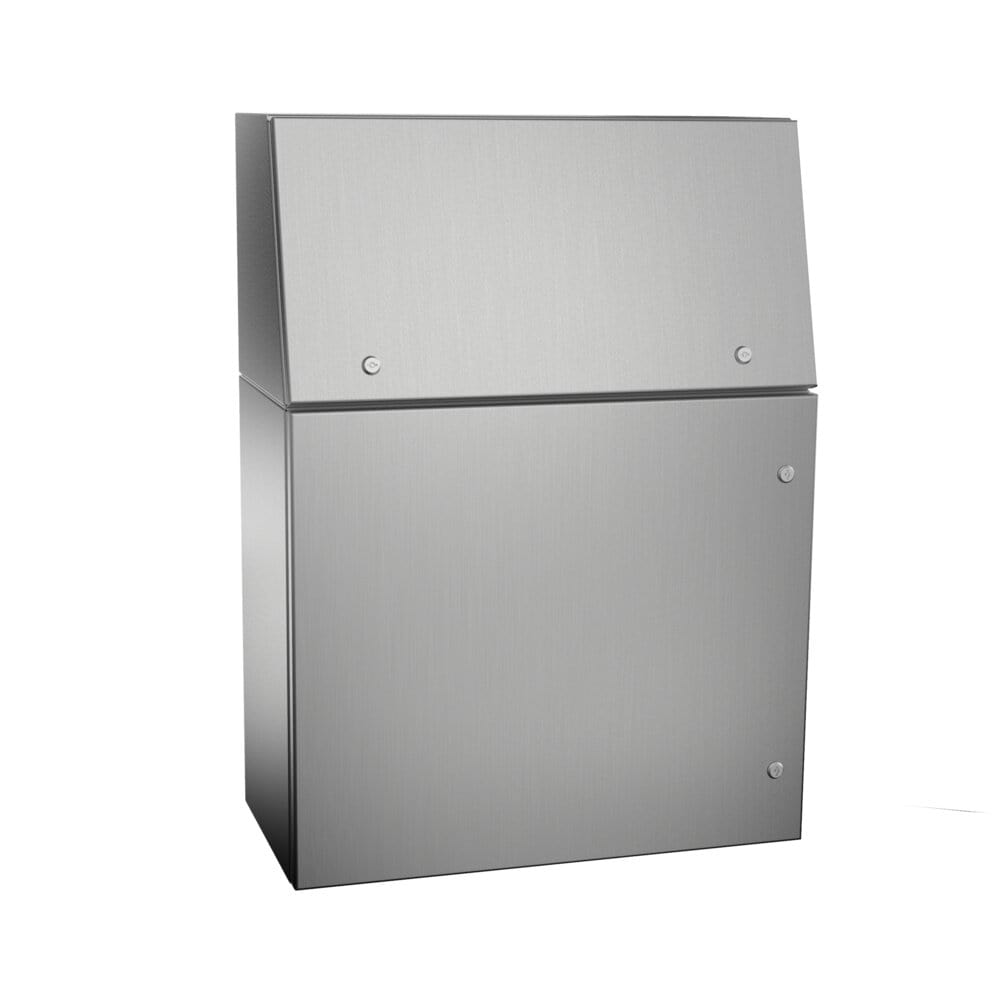

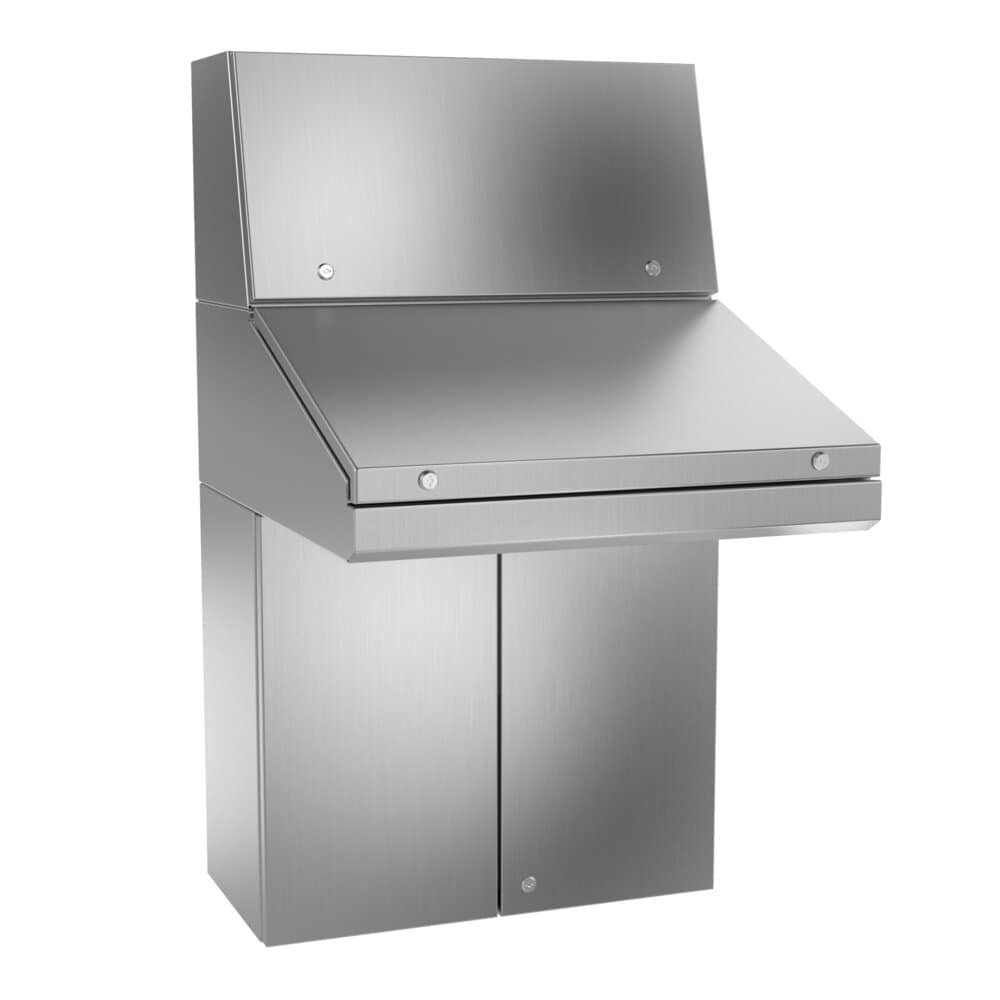

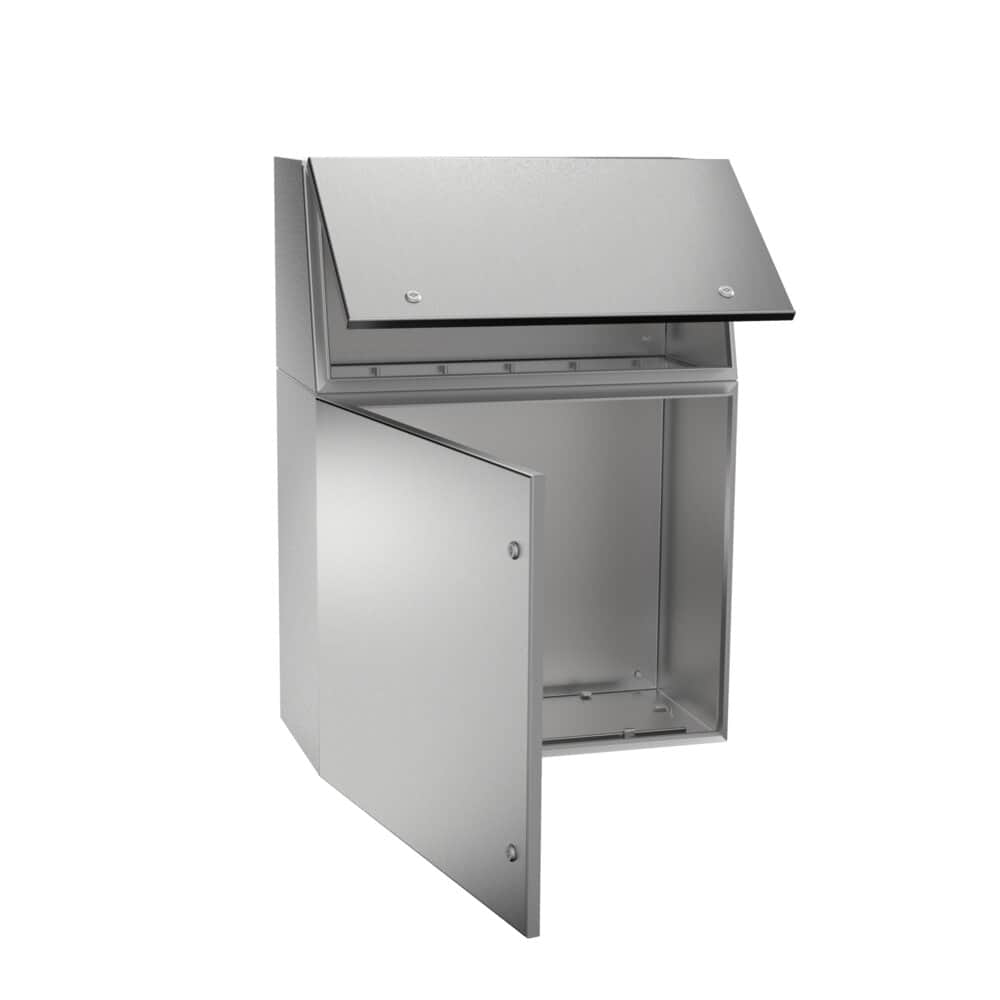

The stainless steel fire extinguisher enclosure IP66(W) is a security equipment to provide a fire extinguisher aimed to users, when they need it in an emergency. Directed to companies such as in food processing, food industry, tunnels,…
It’s a perfect equipment when the fire extinguisher needs to be sealed from the outside to avoid dust and contamination.
| Minimum Measurements | A=1100-1414mm B=600-1600mm P=380-918mm |
|---|---|
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Opening | 130 ° |
| Door Type | Blind door |
| Opening Type | Swivel with concealed hinges |
| Closing System | Double-bit quarter-turn locks |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Alternative Door | Door with polycarbonate panel, Door with safety glass |
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate |
| Alternative Gaskets | EMC, silicone (-60°C to +180°C) |
|
REFERENCES |
DIMENSIONS (mm) |
||
|
TOP CONSOLE |
HEIGHT – A – |
WIDTH – B – |
DEPTH – C – |
|
MPHCS406038 |
400 |
600 |
380 |
|
MPHCS408038 |
800 |
||
|
MPHCS401038 |
1000 |
||
|
MPHCS401238 |
1200 |
||
|
MPHCS401438 |
1400 |
||
|
MPHCS401638 |
1600 |
||
|
REFERENCES |
DIMENSIONS (mm) |
||
|
CENTER CONSOLE |
HEIGHT – A – |
WIDTH – B – |
DEPTH – C – |
|
MPHCC316091 |
314 |
600 |
918 |
|
MPHCC318091 |
800 |
||
|
MPHCC311091 |
1000 |
||
|
MPHCC311291 |
1200 |
||
|
MPHCC311491 |
1400 |
||
|
MPHCC311691 |
1600 |
||
|
REFERENCES |
DIMENSIONS (mm) |
||
|
BASE CONSOLE |
HEIGHT – A – |
WIDTH – B – |
DEPTH – C – |
|
MPHCB706038 |
700 |
600 |
380 |
|
MPHCB708038 |
800 |
||
|
MPHCB701038 |
1000 |
||
|
MPHCB701238 |
1200 |
||
|
MPHCB701438 |
1400 |
||
|
MPHCB701638 |
1600 |
||

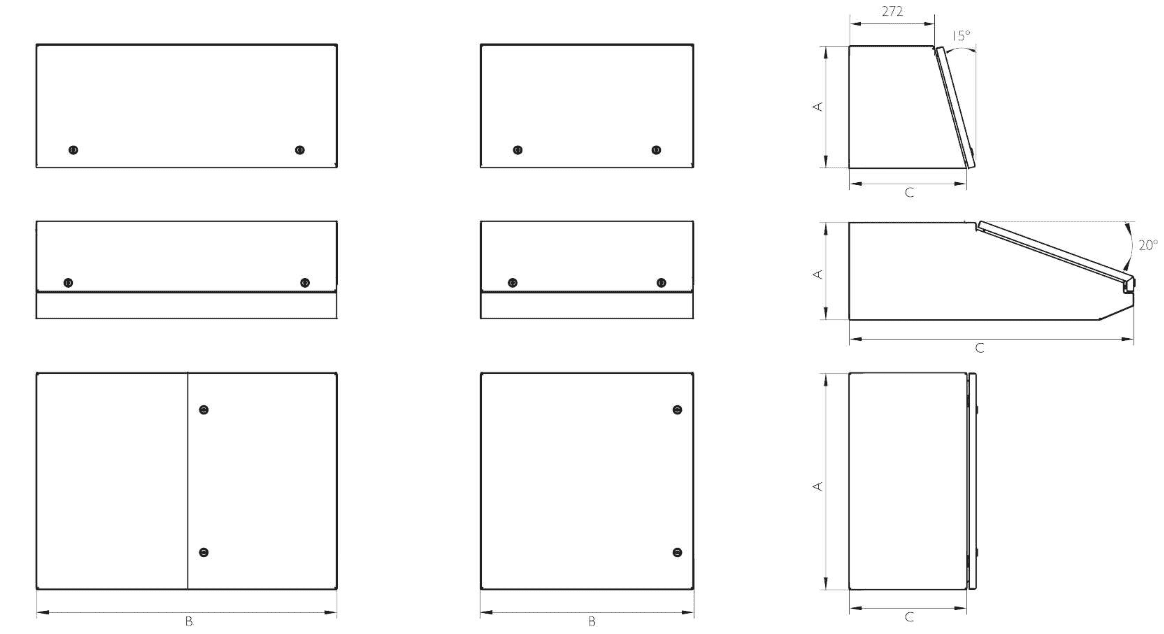

Croquis:
