Stainless steel wall enclosure luxor IP66

SERIE LUXOR IP66

Electrical enclosures Luxor Series with improved design and materials used robust, easy to open, smoothly turning and opening, flexibility, maximum opening of the doors (up to 120°), maximum working width for your assemblies, easily removable, unique performance with cutting-edge polished surface finish.

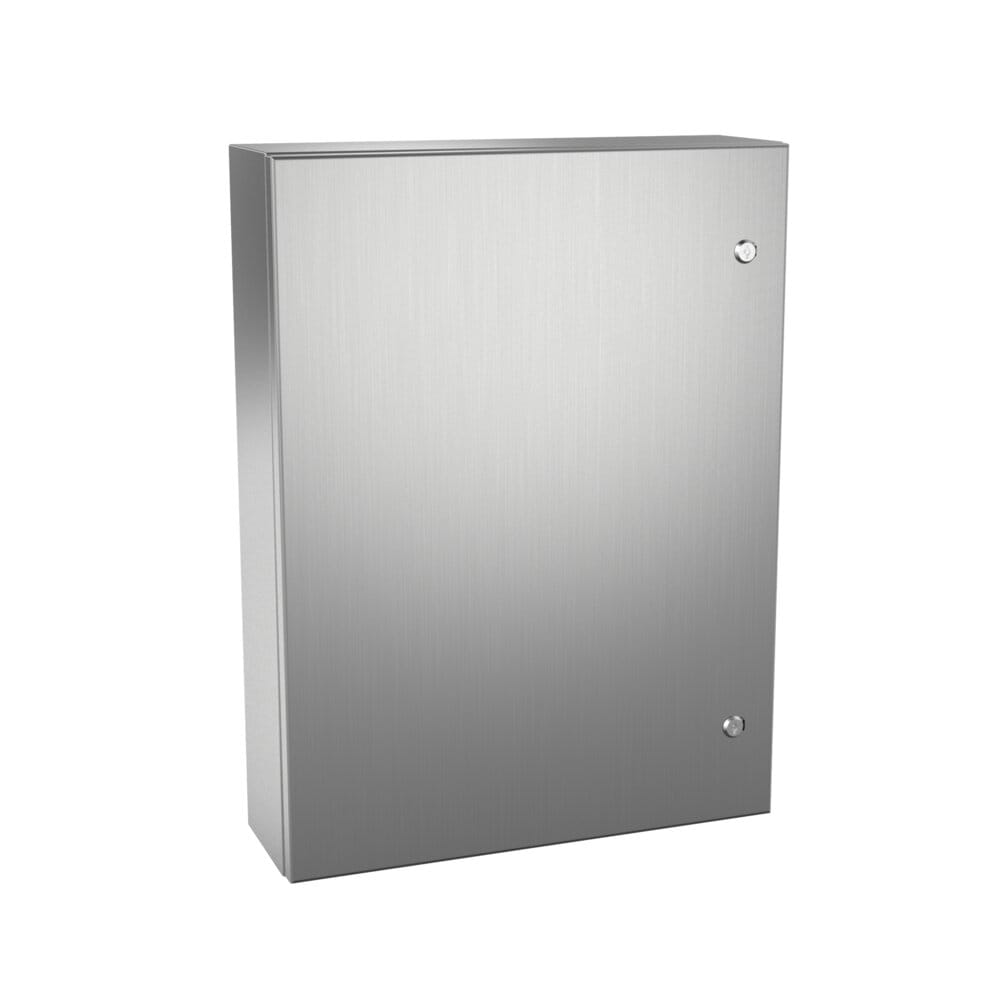

Stainless steel wall enclosure luxor IP66: main view of the product

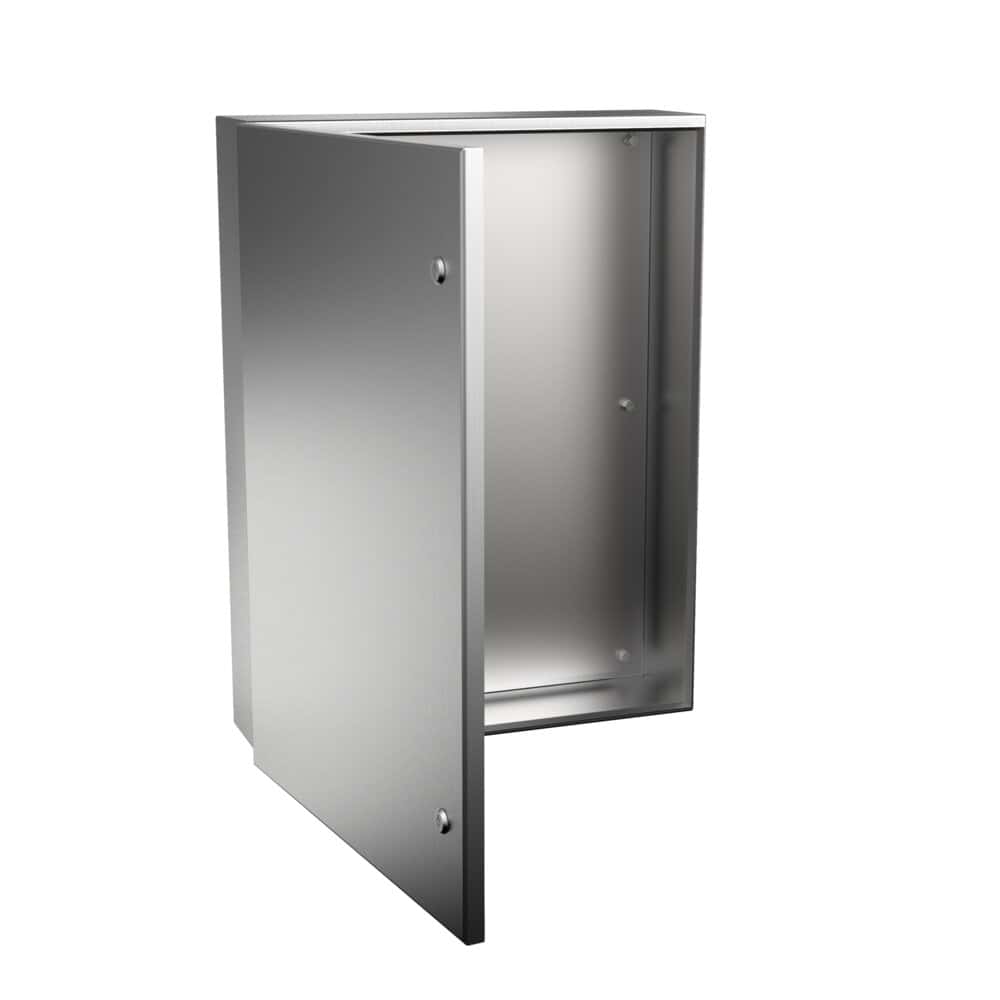

Stainless steel wall enclosure luxor IP66: detail view of the product

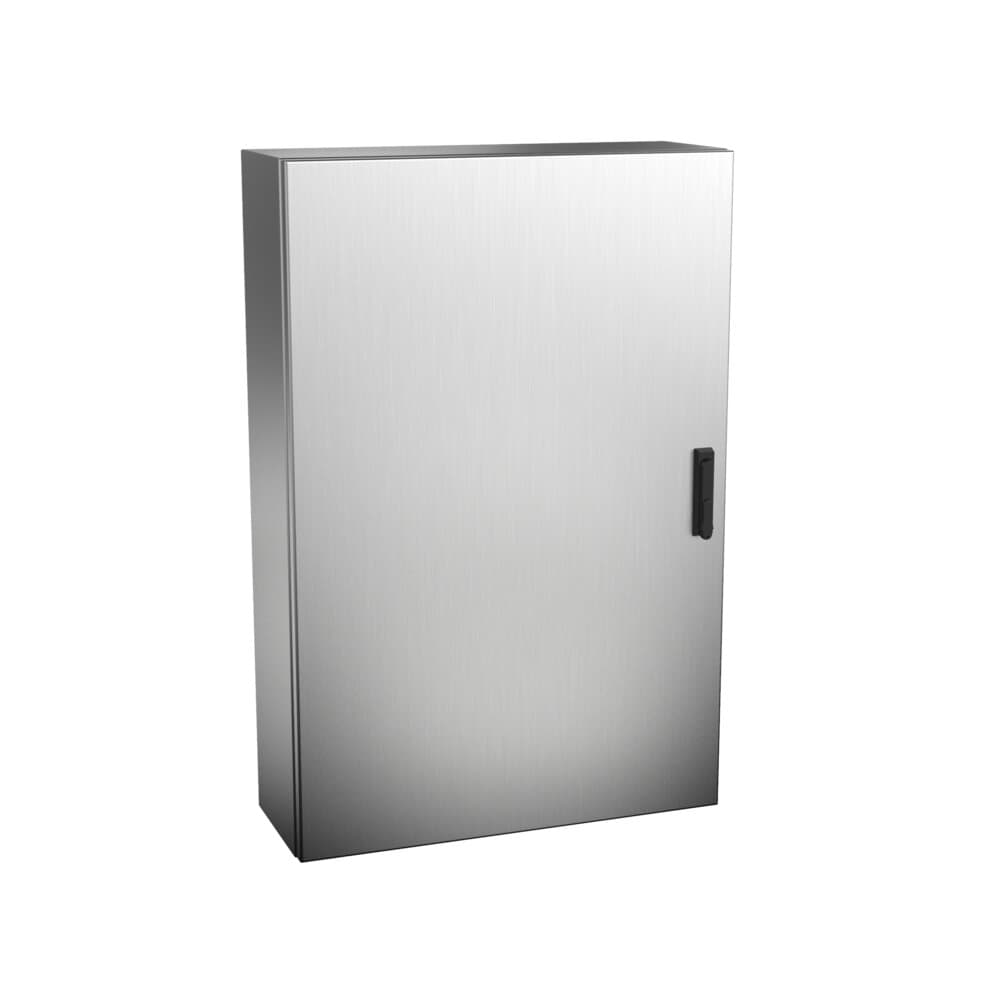

Stainless steel wall enclosure luxor IP66: additional view of the product

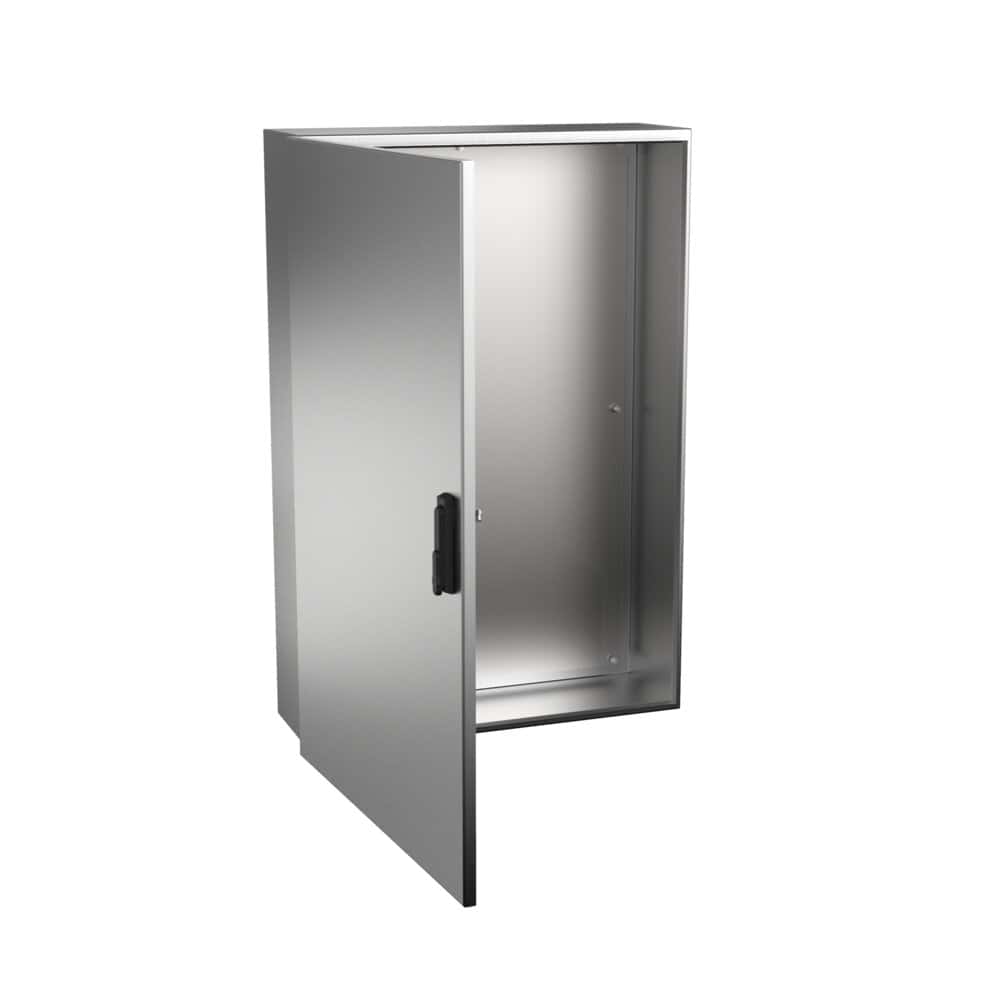

Stainless steel wall enclosure luxor IP66: side view of the product

TECHNICAL DATA

Minimum Measurements	A=300-1200mm B=200-1200mm P=155-300mm
Maximum Double Door Measurements	A=1200mm B=1200mm P=300mm
Minimum Plate Measurements	A=264-1140mm
Minimum Plate Measurements	B=147-1140mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Double-bit quarter-turn locks, Rotary handle with 3 locking points
Useful Depth	125-275 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Door Opening	170º
Alternative Door	Door with polycarbonate panel, Door with safety glass
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	EMC
Machinable Area	Puerta: 220x76-1000x990, Lateral: 270x125-1170x265

Made to Measure According to Your Needs

Up to IP69K - DIN 40050-9

IP67 according to IEC EN 62208 and EN 60529 Standard

With option for two doors

170° Hinge Allowing Maximum Opening for Easy Access to the Cabinet Without the Need to Remove the Door

Kickboards

Metal legs for cabinets

Optional wall mounts

Manufacture in AISI 316L Stainless Steel. EN 14404, or Galvanized Steel

EMC Version According to EEC Standard 89/336 on Electromagnetic Compatibility

Opening option with handle with 3 locking points

Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand

100% stainless, from the handle to the opening system

Custom-made to your needs

Delivered with protective film that prevents scratches and scuffs during handling

monobloc realization

With gutter gutter to prevent liquid contact with the polyurethane gasket and concealed stainless steel hinges

The electrical panel comes standard with double-bit quarter-turn locks made of stainless steel

Delvalle manufactures any size to order that suits your needs, including holes and shaped channels, both on the door and the enclosure

Protección IP Multi-Nivel

Specially designed for the installation of automation systems, machine controls, counters, and wherever superior presence, quality, and durability are required.

Certified electrical panel for the food, chemical, pharmaceutical industries, transformation centers, telecommunications, and outdoor use due to its durability and resistance advantages

Protection and Compliance of Cabinets

Luxor

Voltage withstand capacity of cabinets

IK10 protection rating for cabinets

UL NEMA 4X, 12, 3R, and 1 standards

certificación de gabinetes

CE regulation 1935/2004 and RoHS directive compliance

REFERENCES			DIMENSIONS (mm)
SOLID DOOR (x)	POLYCARBONATE DOOR (no IP69K)	POLYCARBONATE DOOR + INNER DOOR (no IP69K)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USEFUL DEPTH -D-	MACHINABLE AREA		PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
SOLID DOOR (x)	POLYCARBONATE DOOR (no IP69K)	POLYCARBONATE DOOR + INNER DOOR (no IP69K)	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -GxH-	USEFUL DEPTH -D-	DOOR	SIDE	PLATE DIMENSIONS -ExF-	WEIGHT (Kg)	VOLUME (m³)
MVAB302015	MVAB302015T	MVAB302015TC	300	200	155	260×153	125	220×76	270×125	264×147	4.65	0.01
MVAB383015	MVAB383015T	MVAB383015TC	380	300	155	340×253	125	300×176	350×125	344×247	7.68	0.02
MVAB383021	MVAB383021T	MVAB383021TC	380	300	210	340×253	180	300×176	350×180	344×247	8.57	0.03
MVAB404021	MVAB404021T	MVAB404021TC	400	400	210	360×353	180	320×276	370×180	364×347	11.12	0.04
MVAB504021	MVAB504021T	MVAB504021TC	500	400	210	460×353	180	420×276	470×180	464×347	13.51	0.05
MVAB505021	MVAB505021T	MVAB505021TC	500	500	210	460×453	180	420×376	470×180	464×447	16.2	0.06
MVAB705021	MVAB705021T	MVAB705021TC	700	500	210	660×453	180	620×376	670×180	664×447	21.55	0.08
MVAB604021	MVAB604021T	MVAB604021TC	600	400	210	560×353	180	520×276	570×180	564×347	15.74	0.06
MVAB605021	MVAB605021T	MVAB605021TC	600	500	210	560×453	180	520×376	570×180	564×447	18.88	0.07
MVAB606021	MVAB606021T	MVAB606021TC	600	600	210	560×553	180	520×476	570×180	564×547	22	0.08
MVAB806030	MVAB806030T	MVAB806030TC	800	600	300	760×553	270	720×476	770×270	764×547	31.35	0.16
MVAB808030	MVAB808030T	MVAB808030TC	800	800	300	760×753	270	720×676	770×270	764×747	41.5	0.21
MVAB108030	MVAB108030T	MVAB108030TC	1000	800	300	960×753	270	920×676	970×270	964×747	50.69	0.26
MVAB128030	MVAB128030T	MVAB128030TC	1200	800	300	1160×753	270	1120×676	1170×270	1164×747	59.47	0.31
MVAB101030	MVAB101030T	MVAB101030TC	1000	1000	300	960×953	270	920×876	970×270	964×947	61.17	0.32
*MVAC121030	MVAC121030T	MVAC121030TC	1200	1000	300	1090×890	275	1000×790	1170×265	1070×870	78.82	0.46
*MVAC101230	MVAC101230T	MVAC101230TC	1000	1200	300	890×1090	275	800×990	970×265	870×1070	78.76	0.39
*MVAC121230	MVAC121230T	MVAC121230TC	1200	1200	300	1000×1000	275	1000×990	1170×265	1070×1070	92.09	0.39
Version: UL Standard. Nema 4x, 12, 3r and 1			Add "UL" to the reference. Ex. "MVAB302015UL"
Version: IP67			Add "67" to the reference. Ex. "MVAB30201567"
Version: IP69K			Add "/69" to the reference. Ex. "MVAB302015/69"

* Tribeca Design

Backplate separation 20mm

REFERENCES	DIMENSIONS (mm)
2 SOLID DOORS (x)	HEIGHT – A –	WIDTH – B –	DEPTH – C –	ACCESS OPENING – GXH –	USEFUL DEPTH – D –	MACHINABLE AREA		PLATE DIMENSIONS -ExF-
2 SOLID DOORS (x)	HEIGHT – A –	WIDTH – B –	DEPTH – C –	ACCESS OPENING – GXH –	USEFUL DEPTH – D –	DOOR	SIDE	PLATE DIMENSIONS -ExF-
MVAB806030D	800	600	300	746×546	270	720×217.5 and 720×173.5	720×240	740×540
MVAB808030D	800	800	300	746×746		720×317.5 and 720×273.5	720×240	740×740
MVAB108030D	1000	800	300	946×746		920×317.5 and 920×273.5	970×240	940×745
MVAB128030D	1200	800	300	1146×746		1120×317.5 and 1120×273.5	1170×240	1140×745
MVAB101030D	1000	1000	300	946×946		920×417.5 and 920×373.5	970×240	940×940
MVAB121030D	1200	1000	300	1146×946		1120×617.5 and 1120×573.5	1170×240	1140×945
MVAB121230D	1200	1200	300	1146×1146		1120×717.5 and 1120×673.5	1170×240	1140×1140
Option: Polycarbonate Door	Add "T" to the reference. Ex. "MVAB806030DT"
Option: Polycarbonate Door + Inner Door	Add "TC" to the reference. Ex. "MVAB806030DTC"
Version: UL Standard Nema 12, 3r and 1	Add "UL" to the reference. Ex. "MVAB806030DUL"
Version: IP67	Add "67" to the reference. Ex. "MVAB30201567"
Version: IP69K	Add "/69" to the reference. Ex. "MVAB302015/69"

Backplate separation 20mm

Croquis:
