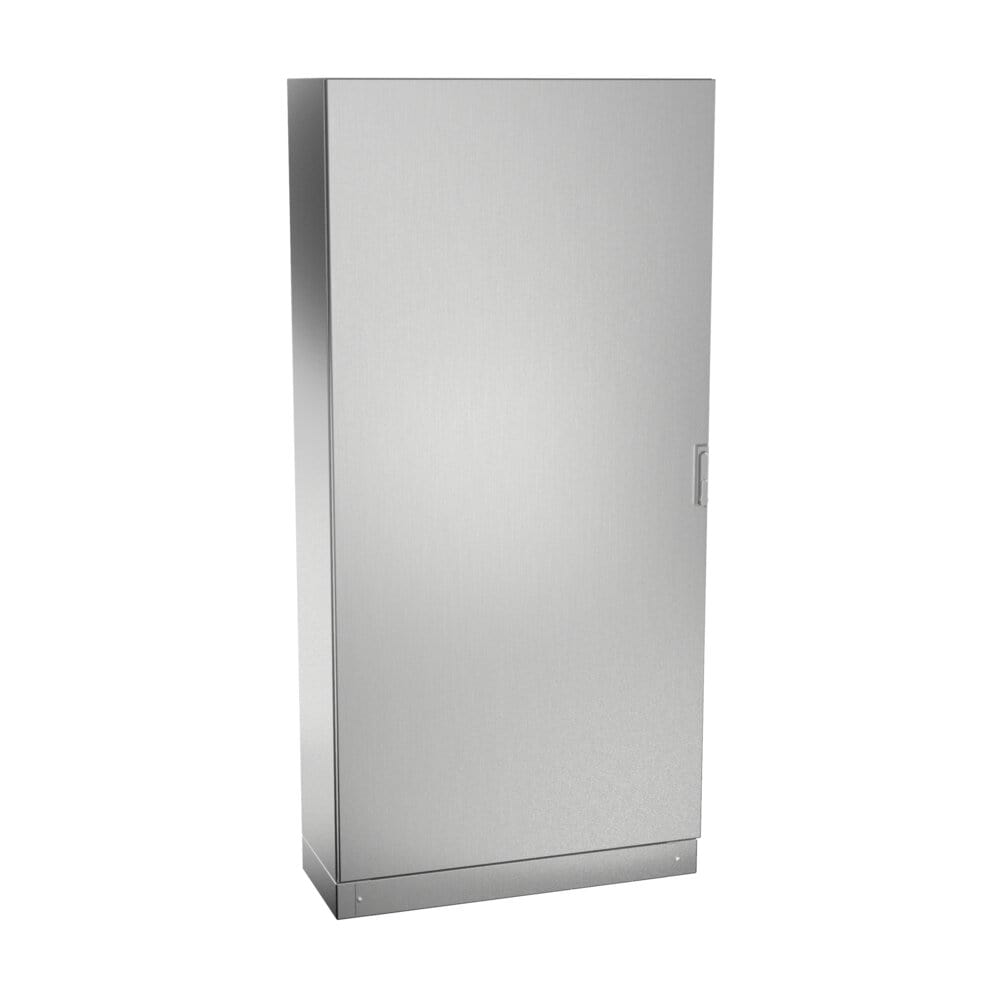

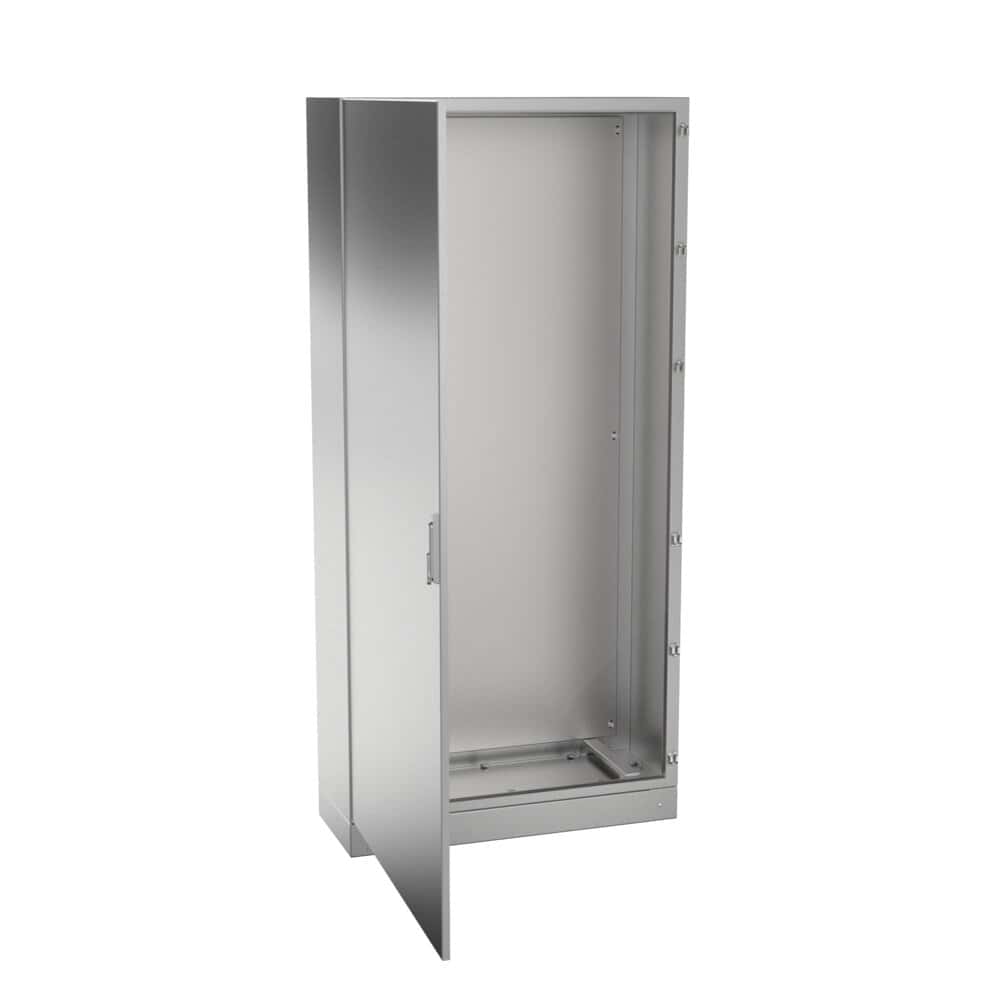

The Tribeca Series IP66 compact electrical cabinet features an improved, robust design with an easy-opening swing handle and three-point locking system; it also offers smooth opening, ease of floor placement, and maximum working space for your electrical assemblies.
| Minimum Measurements | A=1650-2000mm B=600-1000mm P=400-500mm |
|---|---|
| Maximum Double Door Measurements | A=2000mm B=1600mm P=500mm |
| Minimum Plate Measurements | A=1540-1890mm |
| Minimum Plate Measurements | B=490-1490mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Opening | 120 ° |
| Door Type | Blind door |
| Opening Type | Swivel with concealed hinges |
| Closing System | Rotary handle with 4 locking points |
| Useful Depth | 375-475 mm |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC). |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Alternative Closing Systems | Double-bit quarter-turn locks |
| Alternative Door | Door with polycarbonate panel, Door with safety glass |
| Interior Plate Material | Insulating mounting plate (Bakelite), Stainless steel mounting plate |
| Alternative Gaskets | EMC, silicone (-60°C to +180°C) |
| Machinable Area | Puerta: 1524,8x474x8 - 1800x800, Lateral: 1640x365 - 1990x465 |
|
REFERENCES |
DIMENSIONS (mm) |
||||||||||
|
SOLID DOOR |
POLYCARBONATE DOOR |
HEIGHT – A – |
WIDTH – B – |
DEPTH – C – |
ACCESS OPENING – GxH – |
INNER USEFUL DEPTH – D – |
DOOR MACHINABLE AREA |
SIDE MACHINABLE AREA |
PLATE DIMENSIONS -ExF- |
WEIGHT (Kg) |
VOLUME (m³) |
|
MVHC166040 |
MVHCT166040 |
1650 |
600 |
400 |
1560×490 |
375 |
1524.8×474.8 |
1640×365 |
1540×490 |
70.9 |
0.42 |
|
MVHC168040 |
MVHCT168040 |
800 |
1560×690 |
1524.8×674.8 |
1640×365 |
1540×690 |
93.25 |
0.56 |
|||
|
MVHC161040 |
MVHCT161040 |
1000 |
1560×890 |
1524.8×874.8 |
1640×365 |
1540×890 |
111.3 |
0.70 |
|||
|
MVHC186040 |
MVHCT186040 |
1800 |
600 |
1710×490 |
1674.8×474.8 |
1790×365 |
1690×490 |
76.61 |
0.46 |
||
|
MVHC188040 |
MVHCT188040 |
800 |
1710×690 |
1600×600 |
1790×365 |
1690×690 |
100.76 |
0.61 |
|||
|
MVHC188050 |
MVHCT188050 |
500 |
475 |
1790×465 |
107.21 |
0.76 |
|||||
|
MVHC181040 |
MVHCT181040 |
1000 |
400 |
1710×890 |
375 |
1600×800 |
1790×365 |
1690×890 |
120.24 |
0.76 |
|
|
MVHC181050 |
MVHCT181050 |
500 |
475 |
1790×465 |
127.18 |
0.95 |
|||||
|
MVHC206040 |
MVHCT206040 |
2000 |
600 |
1910×490 |
1874.8×474.8 |
1990×465 |
1890×490 |
84.68 |
0.51 |
||
|
MVHC208040 |
MVHCT208040 |
800 |
400 |
1910×690 |
375 |
1800×600 |
1990×365 |
1890×690 |
111.19 |
0.68 |
|
|
MVHC208050 |
MVHCT208050 |
500 |
475 |
1990×465 |
118.13 |
0.85 |
|||||
|
MVHC201040 |
MVHCT201040 |
1000 |
400 |
1910×890 |
375 |
1800×800 |
1990×365 |
1890×890 |
132.58 |
0.85 |
|
|
MVHC201050 |
MVHCT201050 |
500 |
475 |
1990×465 |
140 |
1.05 |
|||||
Backplate separation 20mm
|
REFERENCES |
DIMENSIONS (mm) |
||||||||||
|
SOLID DOOR |
POLYCARBONATE DOOR |
HEIGHT – A – |
WIDTH – B – |
DEPTH – C – |
ACCESS OPENING – GxH – |
INNER USEFUL DEPTH – D – |
DOOR MACHINABLE AREA |
SIDE MACHINABLE AREA |
PLATE DIMENSIONS -ExF- |
WEIGHT (Kg) |
VOLUME (m³) |
|
MVHC161240 |
MVHCT161240 |
1650 |
1200 |
1560×1090 |
375 |
1524.8×464.2 and 1524.8×497.2 |
1640×365 |
1540×1090 |
129.33 |
0.84 |
|
|
MVHC181240 |
MVHCT181240 |
1800 |
1200 |
400 |
1710×1090 |
1674.8×464.2 and 1674.8×497.2 |
1790×365 |
1690×1090 |
139.7 |
0.91 |
|
|
MVHC181250 |
MVHCT181250 |
500 |
1710×1090 |
475 |
1674.8×464.2 and 1674.8×497.2 |
1790×465 |
1690×1090 |
147.12 |
1.14 |
||
|
MVHC201240 |
MVHCT201240 |
2000 |
1200 |
400 |
1910×1090 |
375 |
1874.8×464.2 and 1874.8×497.2 |
1990×365 |
1890×1090 |
149.61 |
1.02 |
|
MVHC201250 |
MVHCT201250 |
500 |
1910×1090 |
475 |
1874.8×464.2 and 1874.8×497.2 |
1990×465 |
1890×1090 |
157.51 |
1.26 |
||
|
MVHC201440 |
MVHCT201440 |
1400 |
400 |
1910×1290 |
375 |
1874.8×664.2 and 1874.8×697.2 |
1990×365 |
1890×1290 |
169.38 |
1.18 |
|
|
MVHC201450 |
MVHCT201450 |
500 |
1910×1290 |
475 |
1874.8×664.2 and 1874.8×697.2 |
1990×465 |
1890×1290 |
177.76 |
1.47 |
||
|
MVHC201640 |
MVHCT201640 |
1600 |
400 |
1910×1490 |
375 |
1810×605 and 1810×605 |
1990×365 |
1890×1490 |
189.12 |
1.35 |
|
|
MVHC201650 |
MVHCT201650 |
500 |
1910×1490 |
475 |
1810×605 and 1810×605 |
1990×465 |
1890×1490 |
197.99 |
1.68 |
||
Backplate separation 20mm

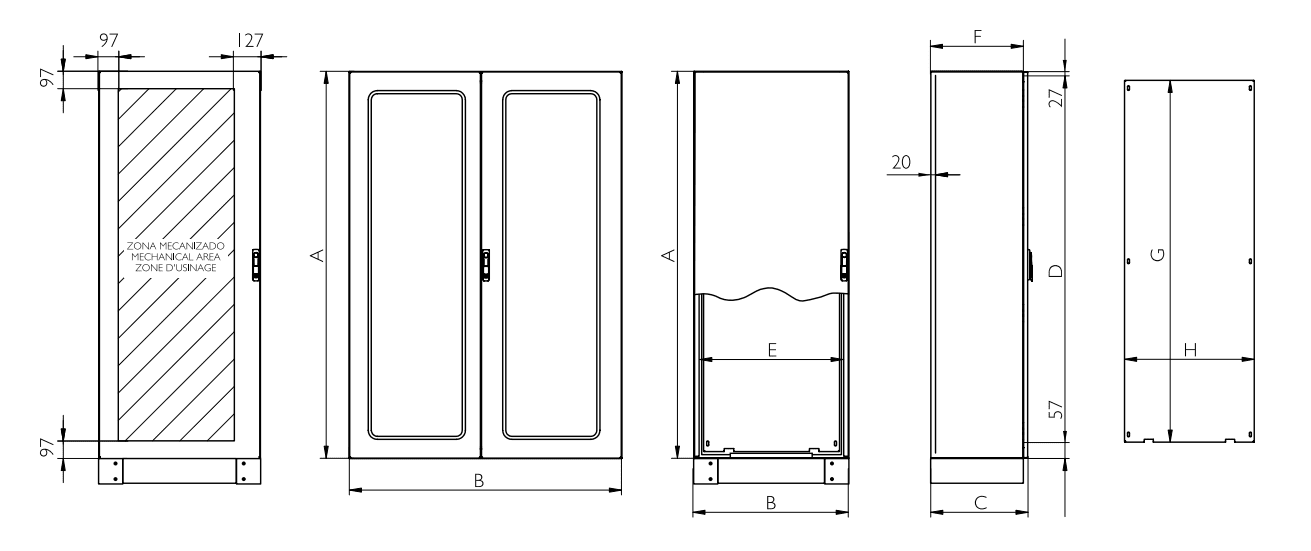

Croquis:
