Free-Standing Enclosure Tribeca IP69K

TRIBECA SERIES

Tribeca Series IP69K compact enclosures with improved design, robust, easy opening by rotating handle and four point lock, easy placement on the floor, flexible, maximum working width and a unique design in stainless steel AISI 304L.
Available in one or two doors, 120° swivel, easily removable. We recommend cable entry hollow base.

Free-Standing Enclosure Tribeca IP69K · Delvalle BoxDelvalle Box
Free-Standing Enclosure Tribeca IP69K · Delvalle BoxDelvalle Box

Description

Tribeca Series IP69K compact enclosures with improved design, robust, easy opening by rotating handle and four point lock, easy placement on the floor, flexible, maximum working width and a unique design in stainless steel AISI 304L.
Available in one or two doors, 120° swivel, easily removable. We recommend cable entry hollow base.

Achieve all the safety and security you need

  • Logo CE · Delvalle Box
    CE
  • Logo EMC · Delvalle Box
    EMC
  • Logo IP69K · Delvalle Box
    IP69K
  • Logo ROHS · Delvalle Box
    ROHS
  • Logo UL NEMA 1 · Delvalle Box
    UL NEMA 1
  • Logo UL NEMA 3R · Delvalle Box
    UL NEMA 3R
  • Logo UL NEMA 4X · Delvalle Box
    UL NEMA 4X
  • Logo 10 year anti-corrosion · Delvalle Box
    10 year anti-corrosion
  • Logo 5 year mechanical parts · Delvalle Box
    5 year mechanical parts
  • Logo Chemical resistant · Delvalle Box
    Chemical resistant
  • Logo Corrosion resistant · Delvalle Box
    Corrosion resistant
  • Logo Scrach resistant · Delvalle Box
    Scrach resistant
  • Logo Temperature resistant · Delvalle Box
    Temperature resistant
  • Logo Waterproof · Delvalle Box
    Waterproof

Discover the advantages

Supplied with protective film to prevent scratches and abrasions during handling.
The manufacture of the stainless steel monobloc allows sealing and maximum resistance.
A drainage channel prevents liquid contact with the polyurethane gasket and with concealed hinges.
Standard electrical panel with handle lock (four locking points) and concealed stainless steel hinges.
Delvalle made to order in any size to suit your needs and all drilling holes, both for the door and the enclosure included.
Distribuited load 600 kg.

Regulations

  • To IP65 (IP55 two doors) Norm IEC 60529.
  • DIN 40050-9 - IP69K.
  • DIN EN ISO 14159 Machine safety – hygiene requirements pertaining to the design of machinery.
  • Machinery Directive 2006/42/EC. Food machinery and cosmetic or pharmaceutic production.
  • EHEDG Guideline Hygienic Design doc.13 machinery for open processes.
  • DIN EN 1672-2:2006 for food industry machinery.
  • Maximum IK10 resistance Norm IEC 62262.
  • Manufactured following EU low voltage ruling 2014/35/UE.
  • Materials intended to come into contact with food EC 1935/2004.
  • RoHs compliant.
  • UL approval Nema 4x, 12, 3r, 1.  Nº File E342220.
  • Maximum voltage 1000 V.
  • Temperature resistant: -40ºC +100ºC (short time +160ºC).
  • Option silicone gasket: from –60°C to +180°C (short time up to +350°C).

Applications

  • Especially designed for automatic positioning, machine control meters and where smartness, quality and durability are necessary.
  • Electrical control panel approved for food, chemical, pharmaceutical processing centres, telecommunications and outdoor use because of its advantages of durability and chemical resistance.

Custom Made Solutions
We offer multiple solutions

Free-Standing Enclosure Tribeca IP69K · Delvalle Box
Do you need solutions?
2019 product catalogues
  • Custom made based on your needs.
  • With a choice of two doors (from 1200mm width).
  • Plinths at base.
  • Castors.
  • Metal legs.
  • Clear polycarbonate door or transparent safety glass door (no IP69K).
  • Manufactured in stainless steel AISI 316L EN 14404.
  • Mounting plate insulator (bakelite) or stainless steel.
  • EMC version according to 2014/30/UE of electromagnetic compatibility.
  • Option painted galvanized steel finish in RAL 7035 or another color.
Customize this product with the following components:
Metric Polyamide Cable Glands IP68 · Delvalle BoxDelvalle Box
Metric polyamide PA66 cable glands IP68 are suitable for the passage, compression and wire binding...
PG Polyamide Cable Glands IP68 · Delvalle BoxDelvalle Box
PG polyamide PA66 cable glands IP68 are suitable for the passage, compression and wire binding...
Metric Stainless Steel Cable Glands AISI316L · Delvalle BoxDelvalle Box
Metric stainless steel cable glands stainless steel AISI 304 and AISI 316 IP68, are suitable for...
Metric Stainless Steel Cable Glands IP68 · Delvalle BoxDelvalle Box
Metric stainless steel cable glands IP68 are made of stainless steel AISI 304 and AISI 316, are...
Metric Nickel Plated Cable Glands IP68 · Delvalle BoxDelvalle Box
Metric nickel plated cable glands IP68 are suitable for the passage, compression and wire binding...
Metric Cable Glands Hygienic IP69K · Delvalle BoxDelvalle Box
Hygienic glands IP69K are fit for passing, pressing and fixing cables between two compartments such...
Metric Cable Glands IP69K · Delvalle BoxDelvalle Box
Metric stainless steel cable glands stainless steel AISI 304, AISI 316 or nickel plated IP69K, are...
Free-Standing Enclosure Tribeca IP69K · Delvalle Box

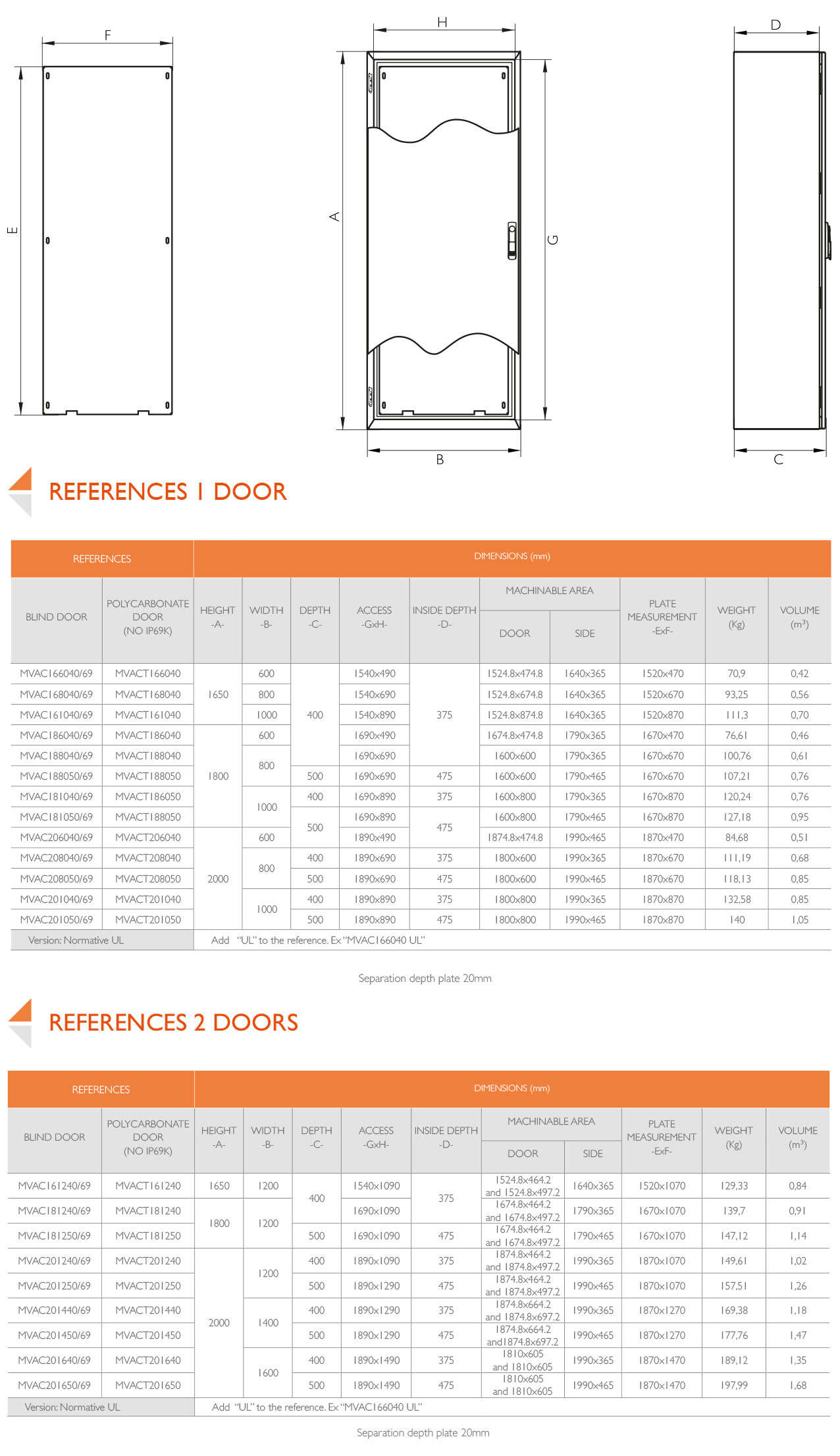

Sketches
