Junction Stainless Steel Boxes Geo IP67

GEO SERIES

Heavy duty IP67 electrical enclosures; junction & terminal boxes made of stainless steel AISI 304L, combine a number of features ideal for electrical and electronic applications where security and perfect sealing against dust and water are essential.
Juntion boxes IP67 Geo Series of enclosures are widely used for housing vital electronic control and test equipment.
For an enclosure which will withstand harsh environmental conditions, this hardwearing, IP68 enclosure range, may be highly suitable.

Description

Electrical boxes IP67 made of stainless steel AISI 304L, combine ideal characteristics for electrical and electronic applications where safety and perfect seal against dust and water are essential.

Achieve all the safety and security you need

EMC
IK10
IP67
ROHS
UL NEMA 1
UL NEMA 12
UL NEMA 3R
UL NEMA 4X

Download all documents and certificates

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Discover the advantages

The seal allows total protection against dust and one meter deep water in the short term.
Corrosion and impact resistant. The highest in the market IK10.
The manufacture of the stainless steel monobloc gives 100% sealing and maximum resistance.
Supplied with protective film which prevents scratches and abrasions during handling.

Regulations

• IP67 According To IEC EN 60529. 1 meter submersible during 30 minutes.
• Maximum IK10 resistance Norm IEC 62262.
• Manufactured following EU low voltage ruling 2006/95/CE.
• Rust resistant C5M, following ISO 12944, (AISI 316).
• UL approval Nema 4x, 12, 3r, 1. NºFile E342220.
• RoHs compliant.
• Maximum voltage 1000 V.
• Temperature resistant: -40°C +100°C (short time +160°C).
• Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

This combination of tightness and resistance features makes it ideal for inner housing of electronic and electrical equipment in adverse weather environments, marine, oil & gas installations where a high level of protection is required for the sensitive components or applications such as foodstuff machines, cleaning areas, both indoors or outdoors.

Custom Made Solutions
We offer multiple solutions

Junction Stainless Steel Boxes Geo IP67 · Delvalle Box

Do you need solutions?

Delvalle Box has the solution

2019 product catalogues

Download Zone

• Custom made based on your needs.
• We recommend our stainless steel cable glands IP68 for the passage of cables.
• Manufactured in stainless steel AISI 316L EN 14404.
• Unloosable screws.
• Textured paint finish with other Ral colors, on request.
• Mounting plate insulation (bakelite) or stainless steel.
• EMC version according to EEC 89/336 of electromagnetic compatibility.

Customize this product with the following components:

Pedestal Stands

Steel foot bracket to fix the cabinets to the floor.

Metric Polyamide Cable Glands IP68

Metric polyamide PA66 cable glands IP68 are suitable for the passage, compression and wire binding...

PG Polyamide Cable Glands IP68

PG polyamide PA66 cable glands IP68 are suitable for the passage, compression and wire binding...

Limit Switches for Electrical Enclousure

Limit switches provided with support and fixings for direct fixing....

Waterproof Seal

Injected waterproof seal UL, TÜV, CE certified. ...

Metric Stainless Steel Cable Glands AISI316L

Metric stainless steel cable glands stainless steel AISI 304 and AISI 316 IP68, are suitable for...

Metric Stainless Steel Cable Glands IP68

Metric stainless steel cable glands IP68 are made of stainless steel AISI 304 and AISI 316, are...

Metric Nickel Plated Cable Glands IP68

Metric nickel plated cable glands IP68 are suitable for the passage, compression and wire binding...

Metric EMC Nickel Plated Cable Glands IP68

Metric EMC nickel plated cable glands IP68 are made of stainless steel AISI 304 and allow...

Metric EMC Stainless Steel Cable Glands IP68

Metric EMC stainless steel cable glands IP68 are made of stainless steel AISI 304 and allow...

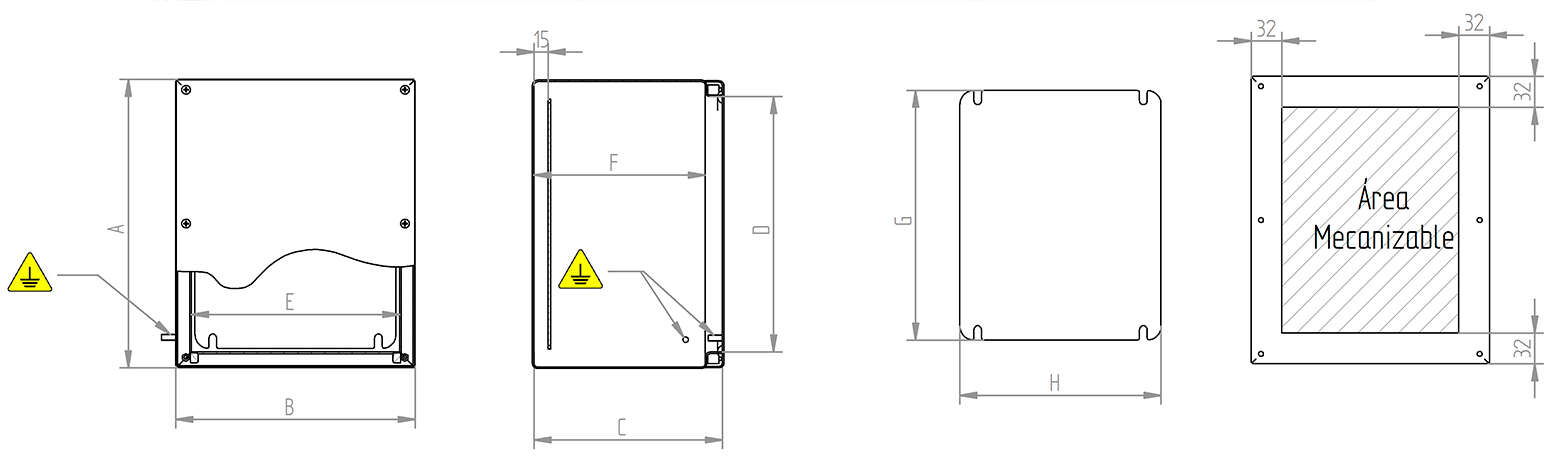

Sketches

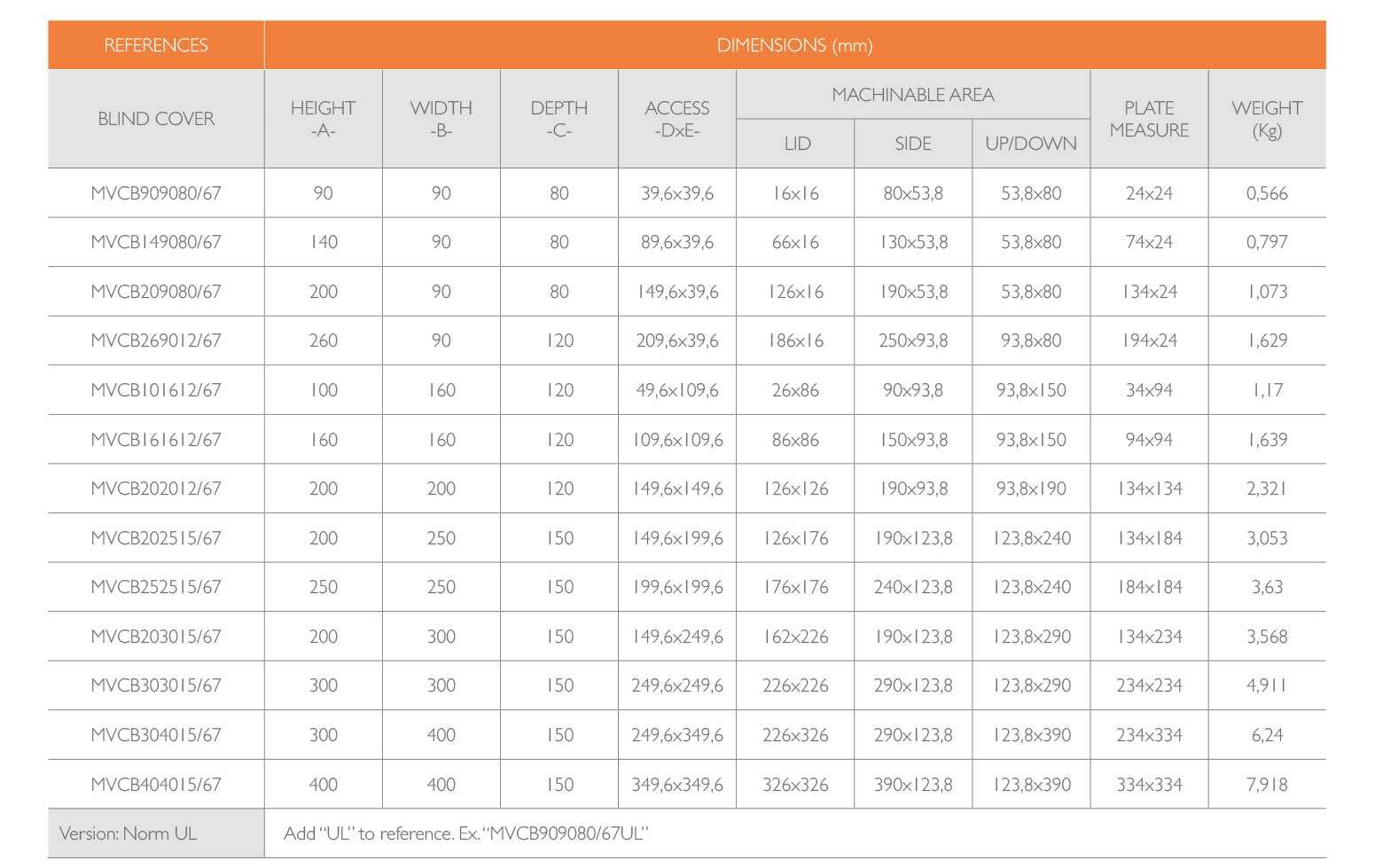

References

Show References

Reference	Description	High	Width	Background
MVCB909080/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	90	90	80	MVCB909080/67
MVCB149080/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	140	90	80	MVCB149080/67
MVCB209080/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	200	90	80	MVCB209080/67
MVCB269012/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	260	90	120	MVCB269012/67
MVCB101612/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	100	160	120	MVCB101612/67
MVCB161612/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	160	160	120	MVCB161612/67
MVCB202012/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	200	200	120	MVCB202012/67
MVCB202515/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	200	250	150	MVCB202515/67
MVCB252515/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	250	250	150	MVCB252515/67
MVCB203015/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	200	300	150	MVCB203015/67
MCVB289080/67	STAINLESS STEEL TERMINAL BOXES GEO SERIES IP67	280	90	80	MCVB289080/67
MVCB303015/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	300	300	150	MVCB303015/67
MVCB304015/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	300	400	150	MVCB304015/67
MVCB404015/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	400	400	150	MVCB404015/67
MVCB909080P/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	90	90	80	MVCB909080P/67
MVCB149080P/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	140	90	80	MVCB149080P/67
MVCB209080P/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	200	90	80	MVCB209080P/67
MVCB269012P/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	260	90	120	MVCB269012P/67
MVCB101612P/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	100	160	120	MVCB101612P/67
MVCB161612P/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	160	160	120	MVCB161612P/67
MVCB202012P/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	200	200	120	MVCB202012P/67
MVCB202515P/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	200	250	150	MVCB202515P/67
MVCB252515P/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	250	250	150	MVCB252515P/67
MCVB289080P/67	STAINLESS STEEL TERMINAL BOXES PERFORATED GEO SERIES IP67	280	90	80	MCVB289080P/67
MVCB203015P/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	200	300	150	MVCB203015P/67
MVCB303015P/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	300	300	150	MVCB303015P/67
MVCB304015P/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	300	400	150	MVCB304015P/67
MVCB404015P/67	JUNCTION STAINLESS STEEL BOXES IP67 GEO	400	400	150	MVCB404015P/67
