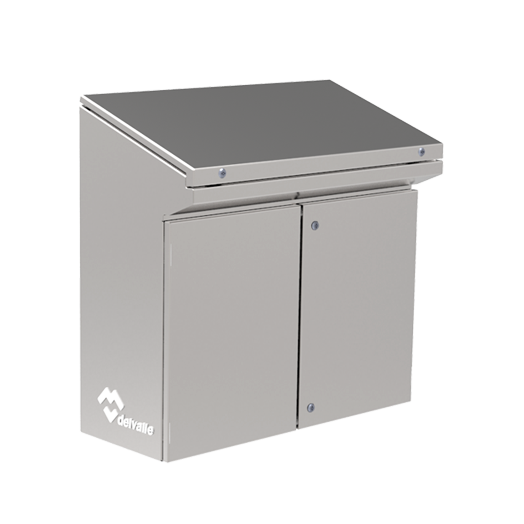

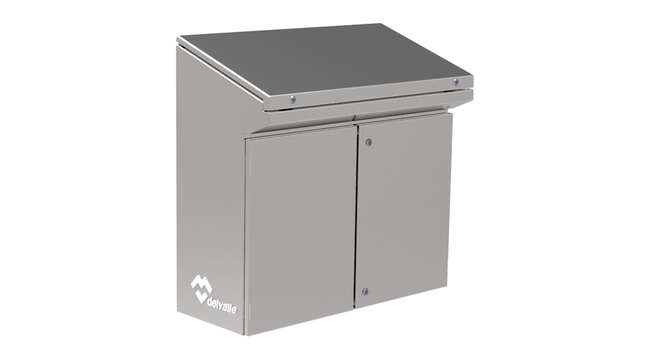

Stainless Steel Console Riviera IP66

RIVIERA SERIES

Riviera Console Series, elegant, functional consoles manufactured in  nely polished AISI 304L, EN14306 stainless steel, easily accessed, with a design which allows for IP55 protection in two doors and IP66 for one door maximum resistance of IK10.
Top door with shock absorbers which make opening easier, with dismountable bottom and hidden hinges throughout It comes with a galvanized mounting plate.
Its drainage channels ensure liquids don’t come into contact with the polyverthone joint sealings. Front door opening to 130º making easy access.

Stainless Steel Console Riviera IP66 · Delvalle Box
Stainless Steel Console Riviera IP66 · Delvalle Box
Stainless Steel Console Riviera IP66 · Delvalle Box
Stainless Steel Console Riviera IP66 · Delvalle Box

Description

Riviera Console Series, elegant, functional consoles manufactured in  nely polished AISI 304L, EN14306 stainless steel, easily accessed, with a design which allows for IP55 protection in two doors and IP66 for one door maximum resistance of IK10.

Top door with shock absorbers which make opening easier, with dismountable bottom and hidden hinges throughout It comes with a galvanized mounting plate.
Its drainage channels ensure liquids don’t come into contact with the polyverthone joint sealings. Front door opening to 130º making easy access.

Achieve all the safety and security you need

  • Logo CE · Delvalle Box
    CE
  • Logo EMC · Delvalle Box
    EMC
  • Logo IK10 · Delvalle Box
    IK10
  • Logo IP55 · Delvalle Box
    IP55
  • Logo IP66 · Delvalle Box
    IP66
  • Logo ROHS · Delvalle Box
    ROHS
  • Logo 10 year anti-corrosion · Delvalle Box
    10 year anti-corrosion
  • Logo 5 year mechanical parts · Delvalle Box
    5 year mechanical parts
  • Logo Chemical resistant · Delvalle Box
    Chemical resistant
  • Logo Corrosion resistant · Delvalle Box
    Corrosion resistant
  • Logo Scrach resistant · Delvalle Box
    Scrach resistant
  • Logo Waterproof · Delvalle Box
    Waterproof

Discover the advantages

Spacious assembly area giving great accessibility.
Great external strength.
Door opens to 130°.
Standard quarter-turn double bit fasteners.
Perfect sealing thanks to gaskets used in the joints.
Great versatility, enables its use in almost any eld.
Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.
Wide variety of accessories.
Top door with shock absorbers.
Front door opens to 130°.
Total accessibility.
Stainless steel AISI 304L or AISI 316L.

Regulations

  • From IP55 to IP66 Norm IEC EN 62208 EN 60529.
  • DIN 40050-9 - IP69K extend IEC 60529.
  • DIN EN ISO 14159 Machine safety – hygiene requirements pertaining to the design of machinery.
  • Machinery Directive 2006/42/EC. Food machinery and cosmetic or pharmaceutic production.
  • EHEDG Guideline Hygienic Design doc.13 machinery for open processes.
  • DIN EN 1672-2-2005 for food industry machinery.
  • Maximum IK10 resistance Norm         IEC 62208 and EN 50102.
  • Our electrical panels are built to CE standards 2006/95/CE.
  • Comply with rules on materials intended to come into contact with food EC 1935/2004.
  • RoHs compliant.
  • Maximum voltage 1000V.
  • Temperature resistant: -40°C +100°C (short time +160°C).
  • Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

• Officially approved for food.
• Chemical.
• Pharmaceutical.
• Transformer and telecommunication industries for use both inside and outside, due to its advantages of high resistance to chemical agents and its durability.

Custom Made Solutions
We offer multiple solutions

Stainless Steel Console Riviera IP66 · Delvalle Box
Do you need solutions?
2018 product catalogues
  • Custom made based on your needs.
  • IP69K according IEC EN 60529.
  • Plinths/base.
  • All types of ventilation and temperature control.
  • Cable entry cover in front door.
  • Metal leg or wheels.
  • Transparent polycarbonate or tempered glass door (no IP69K).
  • Manufactured in stainless steel AISI 316L. EN 14404.
  • Mounting plate insulator (bakelite) or stainless steel.
  • EMC version according to EEC 89/336 of electromagnetic compatibility.
  • Option painted galvanized steel finish in RAL 7035 or another color.
Customize this product with the following components:
Lighting for Electrical Enclosures · Delvalle BoxDelvalle Box
Delvalle compact luminaires are specially designed for use in electrical cabinets. We have low...
Security lock · Delvalle BoxDelvalle Box
Security lock for placement it in electrical cabinets.
Locks · Delvalle BoxDelvalle Box
Depending on the enclosure and its use, we look for the best closure suited to the customer’s...
Assembly Frame · Delvalle BoxDelvalle Box
Chassis modular cabinets. Used to divide the front of the cabinets into several sections for quick...
Thermal Insulation Enclosures TermoTisa · Delvalle BoxDelvalle Box
The thermal insulation Termotisa is ideal when it is necessary thermal insulate in...
Cable Entry Cover · Delvalle BoxDelvalle Box
Ideal accessory supplement, removable to make holes comfortably to suit your needs, and fitted so...
Mounting Plates · Delvalle BoxDelvalle Box
Different mounting plates for multiple uses in electrical cabinets Delvalle.
Levelling Feet and Wheels · Delvalle BoxDelvalle Box
For enclosures that need to be leveled or have to be moved regularly.
Data Pocket · Delvalle BoxDelvalle Box
Useful to keep electrical drawings, maintenance records, etc.....
Sockets · Delvalle BoxDelvalle Box
Stainless steel plinthbase 100 and 200 mm high. Allows cabinet to be raised and get extra ...
Transportation Angle · Delvalle BoxDelvalle Box
The transportation angles add strength in handling loading and unloading of the cabinets.
Switchboard Graffiti-Proof Paint · Delvalle BoxDelvalle Box
In Delvalle all cabinets may suminstrarse with a protective transparent anti-graffiti paint and...
Anti-Insect System · Delvalle BoxDelvalle Box
We know the problem for the placement of cooling systems posed by the entry of insects inside the...
Perforated Mounting Plate · Delvalle BoxDelvalle Box
Perforated plates for quick installation of electrical components.
Stainless Steel Ventilation Plugs IP68 · Delvalle BoxDelvalle Box
Stainless steel ventilation plugs IP68 reduce the adverse effects of humidity in the environment...
Separating Plate · Delvalle BoxDelvalle Box
Fixed directly to the cabinet structure, to get separation as well as being a shelf for objects.
Ventilation Brackets · Delvalle BoxDelvalle Box
Placed both in the front enclosure and on the side, allowing a perfect flow of air inside.
DIN tray · Delvalle BoxDelvalle Box
Directly fixed to the structure. Galvanized 1.5 mm thick steel. Dimensions: 35mm by 7.5 or 5mm.
Safety Lock · Delvalle BoxDelvalle Box
Typically used in enclosures with temporary changes of user. You can also use the padlock seal,...
Open Door Security Device · Delvalle BoxDelvalle Box
This device prevents accidents, alerts the operator that the electrical system is functioning...
Limit Switches for Electrical Enclousure · Delvalle BoxDelvalle Box
Limit switches provided with support and fixings for direct fixing....
Sliding Cable Covers · Delvalle BoxDelvalle Box
These caps allow cable entry between them.
Cross Cable Guide · Delvalle BoxDelvalle Box
With this guide inside the door we get a perfectly ordered wiring. Ideal for the passage of...
Protection Frame Window · Delvalle BoxDelvalle Box
It is used to provide maximum viewing capacity of the indication elements and protection of the...
Waterproof Seal · Delvalle BoxDelvalle Box
Injected waterproof seal UL, TÜV, CE certified. ...
Stainless Steel Console Riviera IP66 · Delvalle Box

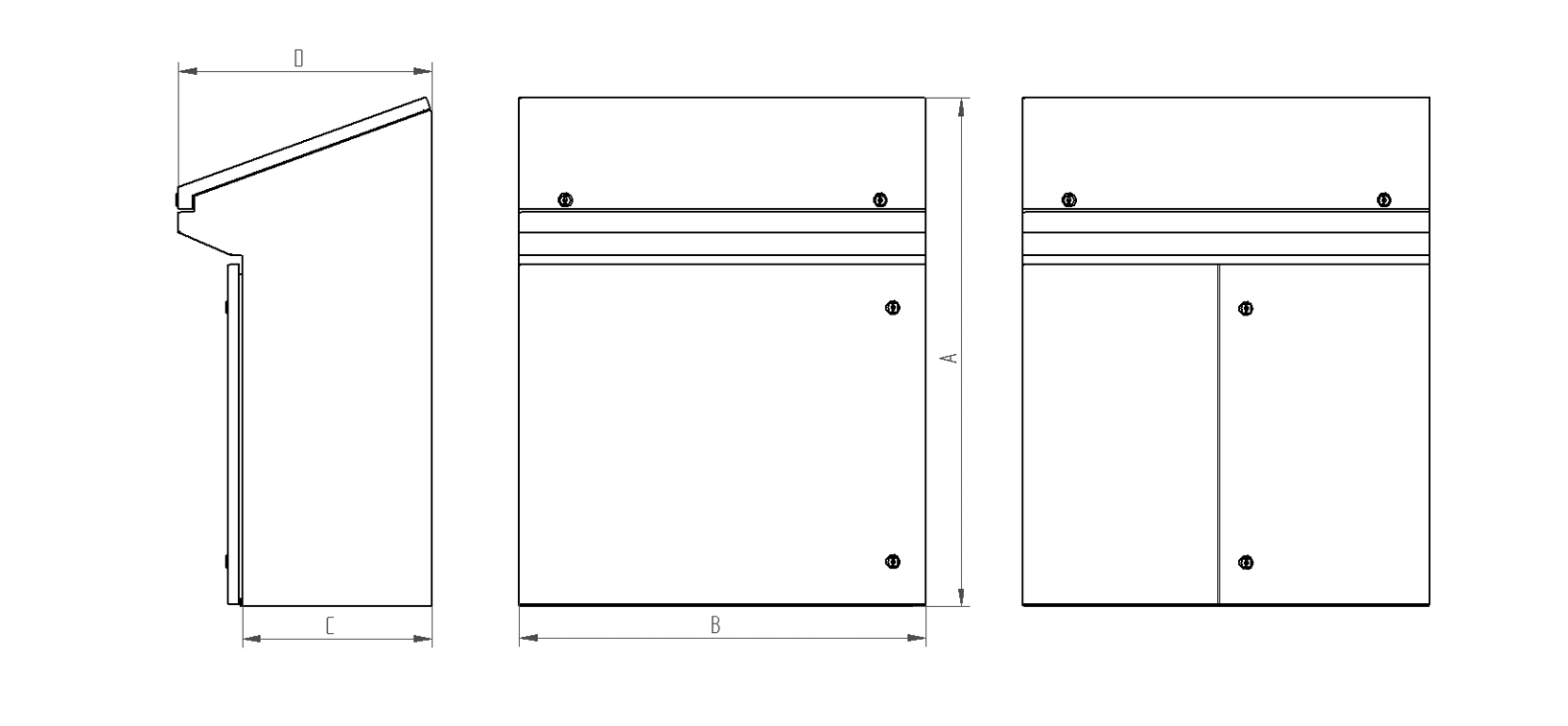

Sketches

Stainless Steel Console Riviera IP66 · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVPA106038STAINLESS STEEL CONSOLE IP66 RIVIERA1000600380MVPA106038
MVPA108038STAINLESS STEEL CONSOLE IP66 RIVIERA1000800380MVPA108038
MVPA101038STAINLESS STEEL CONSOLE IP66 RIVIERA10001000380MVPA101038
MVPA101238STAINLESS STEEL CONSOLE IP66 RIVIERA10001200380MVPA101238
MVPA101438STAINLESS STEEL CONSOLE IP66 RIVIERA10001400380MVPA101438
MVPA101638STAINLESS STEEL CONSOLE IP66 RIVIERA10001600380MVPA101638
MVZA106038Sockets100600380MVZA106038
MVZA206038Sockets200600380MVZA206038
MVZA108038Sockets100800380MVZA108038
MVZA208038Sockets200800380MVZA208038
MVZA101038Sockets1001000380MVZA101038
MVZA201038Sockets2001000380MVZA201038
MVZA101238Sockets2001200380MVZA101238
MVZA201238Sockets2001200380MVZA201238
MVZA101438Sockets1001400380MVZA101438
MVZA201438Sockets2001400380MVZA201438
MVZA101638Sockets1001600380MVZA101638
MVZA201638Sockets2001600380MVZA201638
Official Supplier of CERN ( Large Hadron Collider) · Delvalle Box
Delvalle habe been approved for the supplier to CERN of Stainless steel Industrial Enclosures....
New Metro Line in Guadalajara (Mexico) · Delvalle Box
The construction of line 3 of Guadalajara subway (Mexico) has began. This is one of the most...
New Port of Doha · Delvalle Box
Delvalle are suppliers to the firms making this new port on Doha, capital of Qatar....
Motorway C-16 · Delvalle Box
At Delvalle we are suppliers of outdoor electrical cabinets for protecting the C-16 data...
AVE Monforte del Cid–Murcia · Delvalle Box
We are the supplier of the electrical cabinets for the high speed rail line between Monforte and...
Danone Yogurt Factory in EEUU, Ohio · Delvalle Box
We supply stainless steel enclosures hygienic design series this factory, one of the highest north...
Wikinger, The largest Deep sea offshore windfarm · Delvalle Box
At Delvalle we have customized a solution to guarantee the sealing and maximum resistance in such a...
Nuclear Power Stations · Delvalle Box
Delvalle is very conscious to any possible risks that may have nuclear power....
Enlargement of the Port of Barcelona · Delvalle Box
A special and different port. Commercial, citizen, energy and logistical use....
Oran Tamway (Algeria) · Delvalle Box
We supplied cabinets meeting the demanding French specifications....
Ferrovial Tunnel Under the Marmara Sea · Delvalle Box
Delvalle built custom cabinets that passed an electromagnetic tests.
AVE Madrid-Valencia · Delvalle Box
Electrical cabinets for transmission of a multitude of data to the main data centre....

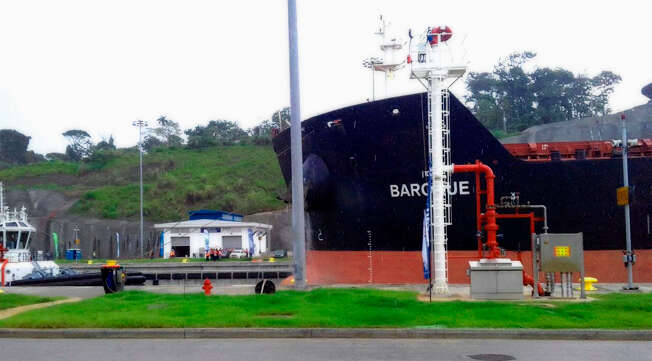

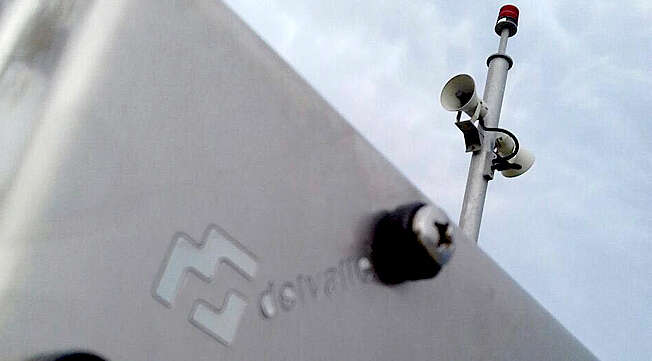

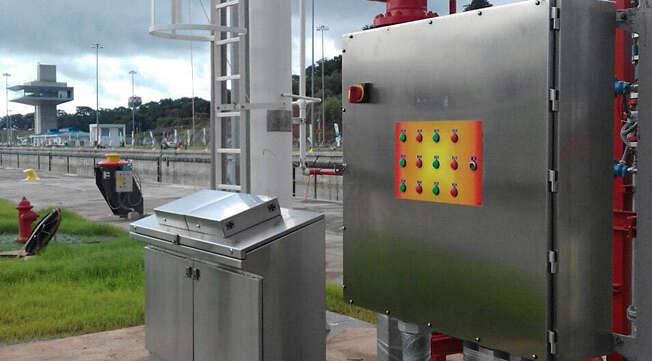

The Panama Channel Expansion Project · Delvalle Box
