Stainless Steel Fire Extinguisher Enclosure IP66

The stainless steel fire extinguisher enclosure IP66(W) is a security equipment to provide a fire extinguisher aimed to users, when they need it in an emergency. Directed to companies such as in food processing, food industry, tunnels,...
It’s a perfect equipment when the fire extinguisher needs to be sealed from the outside to avoid dust and contamination.

Stainless Steel Fire Extinguisher Enclosure IP66 · Delvalle BoxDelvalle Box
Stainless Steel Fire Extinguisher Enclosure IP66 · Delvalle BoxDelvalle Box

This product has the following certificates

  • Logo CE · Delvalle Box
  • Logo IK10 · Delvalle Box
  • Logo IP66 · Delvalle Box
  • Logo IP69K · Delvalle Box
  • Logo ROHS · Delvalle Box
  • Logo UL NEMA 1 · Delvalle Box
  • Logo UL NEMA 12 · Delvalle Box
  • Logo UL NEMA 3R · Delvalle Box
  • Logo UL NEMA 4X · Delvalle Box
  • Logo 10 year anti-corrosion · Delvalle Box
  • Logo 5 year mechanical parts · Delvalle Box
  • Logo Anti grafiti option · Delvalle Box
  • Logo Chemical resistant · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box
  • Logo Easy to clean · Delvalle Box
  • Logo Scrach resistant · Delvalle Box
  • Logo Waterproof · Delvalle Box

Description

The stainless steel fire extinguisher enclosure IP66(W) is a security equipment to provide a fire extinguisher aimed to users, when they need it in an emergency. Directed to companies such as in food processing, food industry, tunnels,...
It’s a perfect equipment when the fire extinguisher needs to be sealed from the outside to avoid dust and contamination.
The main goal of the fire extinguisher enclosure, is to provide a quick and safe access to the extinguishing equipment, before such emergency, with a sloping roof design that avoids the placement on top of materials and bacteria.
The quick access is made with two T closures.

Discover the advantages

Opening of the door at 120 °. Standard opening to the left.
Transparent polycarbonate door, self-extinguishing according to the fire.
The fire extinguisher enclosure is a security equipment which has a bracket to support the fire extinguisher. This bracket is secured to the plate to allow a quick use of the extinguishing equipment.
The fire extinguisher enclosure is installed in enabled tunnel’s areas to host the security equipment.
The sloping roof made design avoids the placement objects on the top of the box. It’s has a polished surface finish in vertical direction. The design also avoids the proliferation problems caused from bacteria and virus in the box’s surface.
Hygienic store and water protection.
It’s possible to visualize the security equipment because of the transparent glass screen.
Fast door access, caused by the two T closures, which allow an easy and simple operation.
IP66(W) protection.
It’s advisable the use of wall supports.

Regulations

  • IP66(W) by IEC 60529 rule.
  • DIN EN ISO 14 159 Hygienic security to set up the machine function.
  • Food industry machine directive (2006/42/CE).
  • EHEDG Guideline Hygienic Design apart. 13 of devices for open processes.
  • DIN EN 1672-2:2006 Machinery requirements for the food industry.
  • Impact resistance IK10, IEC62262.
  • Obey with RoHs regulations.
  • Food industry rules, materials which are in contact with food (CE 1935/2004).
  • Obey with low tension directive 2014/35/UE.
  • UL Nema 4x, 12, 3r and I certificate upon request. Nº File E342220.
  • Maximum voltage 1000 V.
  • Temperature resistance: From -40 ºC to +100 ºC (reduced exposure +160 ºC).
  • Sillicone gasket is optional: From -60 ºC to +180 ºC (reduced exposure +350 ºC).

Applications

  • Food processing industry
  • Tunnel
  • White rooms
  • Oil & Gas industry
  • Petrochemistry
  • Industry
  • Food industy

Custom Made Solutions
We offer multiple solutions

Stainless Steel Fire Extinguisher Enclosure IP66 · Delvalle Box
Do you need solutions?
2020 product catalogues
  • Custom made based on your needs.
  • Manufactured in stainless steel AISI 316L EN 14404.
  • Transparent glass door.
  • It’s possible to be wider for two fire extinguishers.
  • Up to IP69K -DIN 40050-9.
Customers also bought:
Stainless Steel Wall Enclosure Luxor IP66 · Delvalle BoxDelvalle Box
Electrical enclosures Luxor Series with improved design and materials used robust, easy to open,...
Stainless Steel Free-Standing Enclosure Tribeca IP66 · Delvalle BoxDelvalle Box
Tribeca compact enclosure Tribeca IP66 with improved design, robust, easy opening by rotating handle...
Roadside Enclosures · Delvalle BoxDelvalle Box
Stainless steel Roadside panels consist an emergency station aimed at users and the tunnel’s...
Stainless Steel Fire Extinguisher Enclosure IP66 · Delvalle Box

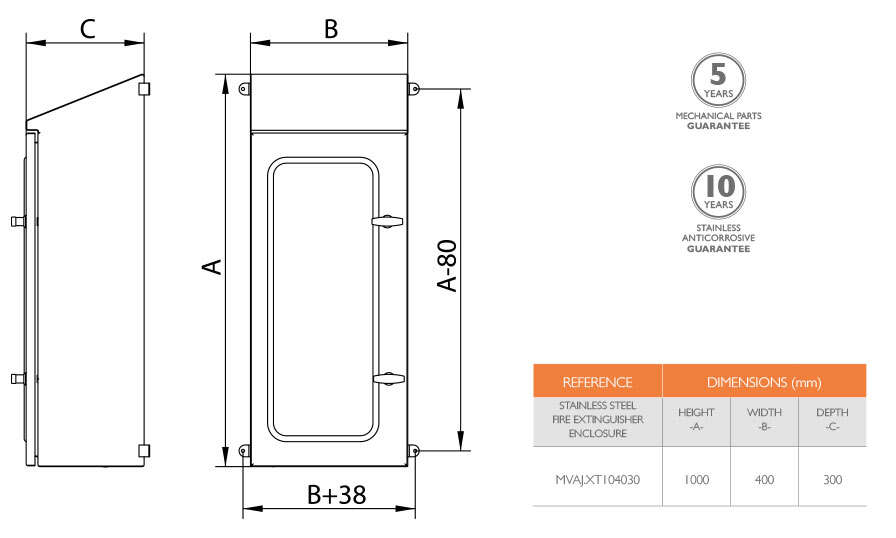

Sketches
