Stainless Steel Wall Enclosure IP66
LUXOR Series

Electrical enclosures Luxor series with improved design and materials used, robust, easy to open, smoothly turning and opening, flexibility, maximum opening of the doors (up to 120 °), maximum working width for your assemblies, easily removable, unique performance with cutting-edge polished surface finish.

LUXOR Serie · Delvalle Box
Stainless Steel Wall Enclosure IP66 · Delvalle Box
Stainless Steel Wall Enclosure IP66 · Delvalle Box
Stainless Steel Wall Enclosure IP66 · Delvalle Box
Stainless Steel Wall Enclosure IP66 · Delvalle Box
Stainless Steel Wall Enclosure IP66 · Delvalle Box
Stainless Steel Wall Enclosure IP66 · Delvalle Box

Description

Electrical enclosures Luxor series with improved design and materials used, robust, easy to open, smoothly turning and opening, flexibility, maximum opening of the doors (up to 120°), maximum working width for your assemblies, easily removable, unique performance with cutting-edge polished surface finish. All approvals necessaries to ensure safety in their electrical installations. Furthermore, each component has exceeded several test under extreme conditions guaranteeing a long lifetime in electrical assembly.

Achieve all the safety and security you need

  • Logo IK10 · Delvalle Box
    IK10
  • Logo IP66 · Delvalle Box
    IP66
  • Logo ROHS · Delvalle Box
    ROHS
  • Logo UL NEMA 1 · Delvalle Box
    UL NEMA 1
  • Logo UL NEMA 12 · Delvalle Box
    UL NEMA 12
  • Logo UL NEMA 3R · Delvalle Box
    UL NEMA 3R
  • Logo UL NEMA 4X · Delvalle Box
    UL NEMA 4X
  • Logo 5 year mechanical parts · Delvalle Box
    5 year mechanical parts

Discover the advantages

Supplied protective film wrapped to prevent scratches and abrasions during handling.
The manufacture of the stainless steel monobloc gives 100% sealing and maximum resistance.
With flushing channel that avoids any contact with liquids, polyurethane joints and hidden hinges.
The standard control panel comes with stainless steel double-bit locking handles.
Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.
Up to IP67.

Regulations

• IP66 (IP55 two doors) Norm IEC EN 60529.
• Maximum IK10 resistance Norm IEC 62262.
• Manufactured following EU low voltage ruling 2006/95/CE.
• Materials intended to come into contact with food EC 1935/2004.
• Maximum voltage 1000 V.
RoHs compliant.
UL approval Nema 4x, 12, 3r, 1. NºFile E342220.

Applications

• Specially designed for automatic meter positioning, machine controls, and offering where necessary a smart look, high quality and durability.
Electrical control panel approved for food, chemical and pharmaceutical industries, processing plants, telecommunication centers and outdoor use because of its high durability and chemical product resistance.

Custom Made Solutions
We offer multiple solutions

Stainless Steel Wall Enclosure IP66 · Delvalle Box
Do you need solutions?
2017 product catalogues

• Custom made based on your needs.
IP67 according IEC EN 62208 and EN 60529 (see next page).
• Possibility of two doors (from 800x600).
• 170° hinge that allows maximum opening for easy access to the cabinet without removing the door.
• Plinths at base.
• Metal legs.
Wall support (not included in the standard model).
• Transparent polycarbonate door.
• Transparent safety glass door.
• Manufactured in stainless steel AISI 316L EN 14404.
• Mounting plate insulation (bakelite) or stainless steel.
EMC version according to EEC 89/336 of electromagnetic compatibility.
• Available opening with 3-locking point handle.

Customize this product with the following components:
Lighting for Electrical Enclosures · Delvalle BoxDelvalle Box
Delvalle compact luminaires are specially designed for use in electrical cabinets. We have low...
Security lock · Delvalle BoxDelvalle Box
Security lock for placement it in electrical cabinets.
Locks · Delvalle BoxDelvalle Box
Depending on the enclosure and its use, we look for the best closure suited to the customer’s...
Assembly Frame · Delvalle BoxDelvalle Box
Chassis modular cabinets. Used to divide the front of the cabinets into several sections for quick...
Thermal Insulation Enclosures TermoTisa · Delvalle BoxDelvalle Box
The thermal insulation Termotisa is ideal when it is necessary thermal insulate in...
Cable Entry Cover · Delvalle BoxDelvalle Box
Ideal accessory supplement, removable to make holes comfortably to suit your needs, and fitted so...
Clear Glass Door · Delvalle BoxDelvalle Box
All our cabinets are available with transparent exterior and interior doors for perfect vision of...
Roofs for Outdoor · Delvalle BoxDelvalle Box
In Delvalle we offer the possibility to ask for self-ventilated roofs....
Mounting Plates · Delvalle BoxDelvalle Box
Different mounting plates for multiple uses in electrical cabinets Delvalle.
Data Pocket · Delvalle BoxDelvalle Box
Useful to keep electrical drawings, maintenance records, etc.....
Pedestal Stands · Delvalle BoxDelvalle Box
Steel foot bracket to fix the cabinets to the floor.
Switchboard Graffiti-Proof Paint · Delvalle BoxDelvalle Box
In Delvalle all cabinets may suminstrarse with a protective transparent anti-graffiti paint and...
Anti-Insect System · Delvalle BoxDelvalle Box
We know the problem for the placement of cooling systems posed by the entry of insects inside the...
Perforated Mounting Plate · Delvalle BoxDelvalle Box
Perforated plates for quick installation of electrical components.
Ventilation Plugs IP68 · Delvalle BoxDelvalle Box
Ventilation plugs (polyamide, nickel plated and stainless steel) reduce the adverse effects of...
Shock Absorbers for Electrical Enclosures · Delvalle BoxDelvalle Box
With the shock absorbers we get a better grip on the doors, and we define the opening angle of the...
Separating Plate · Delvalle BoxDelvalle Box
Fixed directly to the cabinet structure, to get separation as well as being a shelf for objects.
Pivot Frame · Delvalle BoxDelvalle Box
The ideal solution for the placement of all instrumentation, with easy and comfortable access from...
Ventilation Brackets · Delvalle BoxDelvalle Box
Placed both in the front enclosure and on the side, allowing a perfect flow of air inside.
DIN tray · Delvalle BoxDelvalle Box
Directly fixed to the structure. Galvanized 1.5 mm thick steel. Dimensions: 35mm by 7.5 or 5mm.
Safety Lock · Delvalle BoxDelvalle Box
Typically used in enclosures with temporary changes of user. You can also use the padlock seal,...
Set With Inner Door · Delvalle BoxDelvalle Box
Interior door designed for direct placement in the enclosure.
Open Door Security Device · Delvalle BoxDelvalle Box
This device prevents accidents, alerts the operator that the electrical system is functioning...
Designs / Doors · Delvalle BoxDelvalle Box
The possibility of placing a double door in the cabinet is given to meet the customer’s need to...
Limit Switches for Electrical Enclousure · Delvalle BoxDelvalle Box
Limit switches provided with support and fixings for direct fixing....
Reinforcing Frame · Delvalle BoxDelvalle Box
Using a reinforced frame in our enclosure gives us more confidence and consistency, especially in...
Sliding Cable Covers · Delvalle BoxDelvalle Box
These caps allow cable entry between them.
Pole Mount · Delvalle BoxDelvalle Box
Delvalle offers the solution for post mounting, providing a perfect fixing of the enclosure.
Cross Cable Guide · Delvalle BoxDelvalle Box
With this guide inside the door we get a perfectly ordered wiring. Ideal for the passage of...
Outdoor air conditioner Electrical Enclosures · Delvalle Box
The largest range of IP54 air conditioners electrical enclosures refrigerators in the market,...
Roof fan · Delvalle BoxDelvalle Box
Roof Fan, specially designed for extracting heat from the top of the cabinet, for achieving...
Thermostats and Thermo-Hygrostats · Delvalle BoxDelvalle Box
Thermostats and Hygrostats for small siza racks and cabinets, dual function, heat, cold, etc... All...
Waterproof Seal · Delvalle BoxDelvalle Box
Injected waterproof seal UL, TÜV, CE certified. ...
Wall Mounting Brackets · Delvalle BoxDelvalle Box
They are fixed from the outside and can be positioned either vertically or horizontally.
Stainless Steel Wall Enclosure IP66 · Delvalle Box

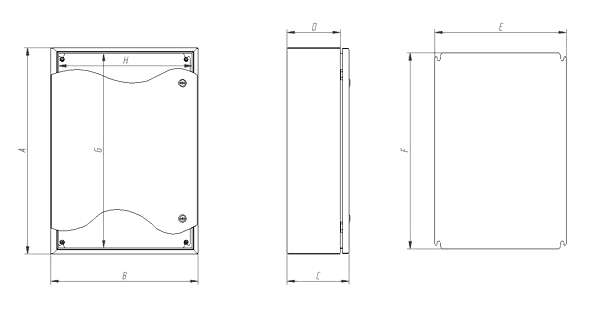

Sketches

Stainless Steel Wall Enclosure IP66 · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVAB302015ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR300200155MVAB302015
MVAB383015ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR380300155MVAB383015
MVAB383021ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR380300210MVAB383021
MVAB404021ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR400400210MVAB404021
MVAB504021ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR500400210MVAB504021
MVAB505021ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR500500210MVAB505021
MVAB705021ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR700500210MVAB705021
MVAB604021ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR600400210MVAB604021
MVAB605021ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR600500210MVAB605021
MVAB606021ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR600600210MVAB606021
MVAB806030ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR800600300MVAB806030
MVAB808030ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR800800300MVAB808030
MVAB108030ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR1000800300MVAB108030
MVAB128030ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR1200800300MVAB128030
MVAB101030ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR10001000300MVAB101030
MVAB121230ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR12001200300MVAB121230
MVAB121030ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR12001000300MVAB121030
MVAB101230ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR10001200300MVAB101230
MVAB302015TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO300200155MVAB302015T
MVAB383015TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO380300155MVAB383015T
MVAB383021TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO380300210MVAB383021T
MVAB404021TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO400400210MVAB404021T
MVAB504021TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO500400210MVAB504021T
MVAB505021TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO500500210MVAB505021T
MVAB705021TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO700500210MVAB705021T
MVAB604021TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO600400210MVAB604021T
MVAB605021TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO600500210MVAB605021T
MVAB606021TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO600600210MVAB606021T
MVAB806030TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO800600300MVAB806030T
MVAB808030TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO800800300MVAB808030T
MVAB108030TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO1000800300MVAB108030T
MVAB128030TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO1200800300MVAB128030T
MVAB101030TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO10001000300MVAB101030T
MVAB121030TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO12001000300MVAB121030T
MVAB121230TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO12001200300MVAB121230T
MVAB101230TARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO10001200300MVAB101230T
MVAB302015TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA300200155MVAB302015TC
MVAB383015TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA380300155MVAB383015TC
MVAB383021TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA380300210MVAB383021TC
MVAB404021TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA400400210MVAB404021TC
MVAB504021TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA500400210MVAB504021TC
MVAB505021TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA500500210MVAB505021TC
MVAB705021TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA700500210MVAB705021TC
MVAB604021TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA600400210MVAB604021TC
MVAB605021TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA600500210MVAB605021TC
MVAB606021TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA600600210MVAB606021TC
MVAB806030TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA800600300MVAB806030TC
MVAB808030TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA800800300MVAB808030TC
MVAB108030TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA1000800300MVAB108030TC
MVAB128030TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA1200800300MVAB128030TC
MVAB101030TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA10001000300MVAB101030TC
MVAB121030TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA12001000300MVAB121030TC
MVAB121230TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA12001200300MVAB121230TC
MVAB101230TCARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR PUERTA POLICARBONATO + CONTRAPUERTA10001200300MVAB101230TC
MVAB806030DARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR DOBLE PUERTA800600300MVAB806030D
MVAB808030DARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR DOBLE PUERTA800800300MVAB808030D
MVAB108030DARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR DOBLE PUERTA1000800300MVAB108030D
MVAB128030DARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR DOBLE PUERTA1200800300MVAB128030D
MVAB101030DARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR DOBLE PUERTA10001000300MVAB101030D
MVAB121030DARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR DOBLE PUERTA12001000300MVAB121030D
MVAB121230DARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR DOBLE PUERTA12001200300MVAB121230D
MVAB302015/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L300200155MVAB302015/316
MVAB383015/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L380300155MVAB383015/316
MVAB383021/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L380300210MVAB383021/316
MVAB404021/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L400400210MVAB404021/316
MVAB504021/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L500400210MVAB504021/316
MVAB505021/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L500500210MVAB505021/316
MVAB705021/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L700500210MVAB705021/316
MVAB604021/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L600400210MVAB604021/316
MVAB606021/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L600600210MVAB606021/316
MVAB606021/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L600600210MVAB606021/316
MVAB806030/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L800600300MVAB806030/316
MVAB808030/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L800800300MVAB808030/316
MVAB108030/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L1000800300MVAB108030/316
MVAB128030/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L1200800300MVAB128030/316
MVAB101030/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L10001000300MVAB101030/316
MVAB121030/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L12001000300MVAB121030/316
MVAB121230/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L12001200300MVAB121230/316
MVAB101230/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR A316L10001200300MVAB101230/316
MVAB806030D/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR DOBLE PUERTA A316L800600300MVAB806030D/316
MVAB808030D/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR DOBLE PUERTA A316L800800300MVAB808030D/316
MVAB108030D/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR DOBLE PUERTA A316L1000800300MVAB108030D/316
MVAB128030D/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR DOBLE PUERTA A316L1200800300MVAB128030D/316
MVAB101030D/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR DOBLE PUERTA A316L10001000300MVAB101030D/316
MVAB121030D/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR DOBLE PUERTA A316L12001000300MVAB121030D/316
MVAB121230D/316ARMARIO INOXIDABLE MURAL IP66 SERIE LUXOR DOBLE PUERTA A316L12001200300MVAB121230D/316
New Metro Line in Guadalajara (Mexico) · Delvalle Box
The construction of line 3 of Guadalajara subway (Mexico) has began. This is one of the most...
New port of Doha · Delvalle Box
Delvalle are suppliers to the firms making this new port on Doha, capital of Qatar....
Autopista C-16 · Delvalle Box
At Delvalle we are suppliers of outdoor electrical cabinets for protecting the C-16 data...
AVE MONFORTE DEL CID – MURCIA · Delvalle Box
We are the supplier of the electrical cabinets for the high speed rail line between Monforte and...
DANONE YOGURT FACTORY IN EEUU OHIO · Delvalle Box
We supply stainless steel enclosures hygienic design series this factory, one of the highest north...
Wikinger, The largest Deep sea offshore windfarm · Delvalle Box
At Delvalle we have customized a solution to guarantee the sealing and maximum resistance in such a...
Nuclear Power Stations · Delvalle Box
Delvalle is very conscious to any possible risks that may have nuclear power.
ENLARGEMENT OF THE PORT OF BARCELONA · Delvalle Box
A special and different port. Commercial, citizen, energy and logistical use.
Oran Tamway (Algeria) · Delvalle Box
We supplied cabinets meeting the demanding French specifications.
Ferrovial tunnel under the Marmara Sea · Delvalle Box
Delvalle built custom cabinets that passed an electromagnetic tests.
AVE Madrid-Valencia · Delvalle Box
Electrical cabinets for transmission of a multitude of data to the main data centre.
The Panama Channel Expansion Project · Delvalle Box
Manufacture and installation of watertight and hurricanes resistant IP67 nema 4x enclosures....
Kuwait desalination plant · Delvalle Box
Special cabinets to support the special characteristics of this harsh desert area.
