Junction Box Geo Fresh IP66

FRESH SERIES

Geo Series push-button and junction boxes, elegant watertight boxes made wholly in finely polished AISI304L EN-14306 stainless steel available in plain or bored covers (22.5).

Specially designed for placing push-buttons in food procesing industry.

Junction Box Geo Fresh IP66 · Delvalle Box

Description

Geo Series push-button and junction boxes, elegant watertight boxes made wholly in finely polished AISI 304L EN-14306 stainless steel available in plain or bored covers (22.5).
Specially designed for placing push-buttons.

Achieve all the safety and security you need

CE
IK10
IP66
ROHS
UL NEMA 1
UL NEMA 12
UL NEMA 3R
UL NEMA 4X
10 year anti-corrosion
5 year mechanical parts
Chemical resistant
Corrosion resistant
Scrach resistant
Temperature resistant
Waterproof

Download all documents and certificates

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Discover the advantages

Unlimited options.
Supplied with protective film which prevents scratches and abrasions during handling.
The manufacture of the stainless steel monobloc allows sealing and ensures maximum resistance.
Water channel to prevent liquids coming into contact with the polyurethane seal and hidden hinges giving perfect sealing.
Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.
Temperature resistant: -40°C +100°C (short time +160°C).
Option silicone gasket: from -60°C to +180°C (short time up to +350°C).
Up to IP67or IP69K.

Regulations

IP66 Norm IEC 60529 (IP67 on request).
DIN 40050-9 - IP69K.
DIN EN ISO 14159 Machine safety – hygiene requirements pertaining to the design of machinery.
Machinery Directive 2006/42/EC. Food machinery and cosmetic or pharmaceutic production.
EHEDG Guideline Hygienic Design doc.13 machinery for open processes.
DIN EN 1672-2:2006 for food industry machinery.
Maximum IK10 resistance Norm IEC 62262.
Manufactured following EU low voltage ruling 2014/35/UE.
RoHS Directive 2011/65/UE compliant.
UL approval Nema 4x, 12, 3r, 1. Nº File E342220.
Maximum voltage 1000 V.
Temperature resistant: -40°C +100°C (short time +160°C).
Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Especially designed and officially approved for food, chemical, pharmaceutical, transformer and telecommunication industries for use both inside and outside, due to the advantages of high resistance to chemical agents and durability.

Custom Made Solutions
We offer multiple solutions

Do you need solutions?

Delvalle Box has the solution

2019 product catalogues

Download Zone

Custom made based on your needs.
IP67 or IP69K according IEC EN 62208 and EN 60529.
Manufactured in stainless steel AISI 316L EN 14404.
Metal legs.
Unloosable screws.
Finished in textured paint RAL on request.
Mounting plate insulator (bakelite) or painted steel.
EMC version according to 2014/30/UE of electromagnetic compatibility.
We have hygienic glands on request.
Option painted galvanized steel finish in RAL 7035 or another color.

Customize this product with the following components:

Electrical Wall Enclosure Luxor Fresh IP66

Electrical enclosure Fresh Series, specially designed for the food industry. No openings where...

Floor Mount Sloped Roof Enclosure

Electrical Hygienic Fresh Tribeca Series enclosure with a large capacity, specially designed for the...

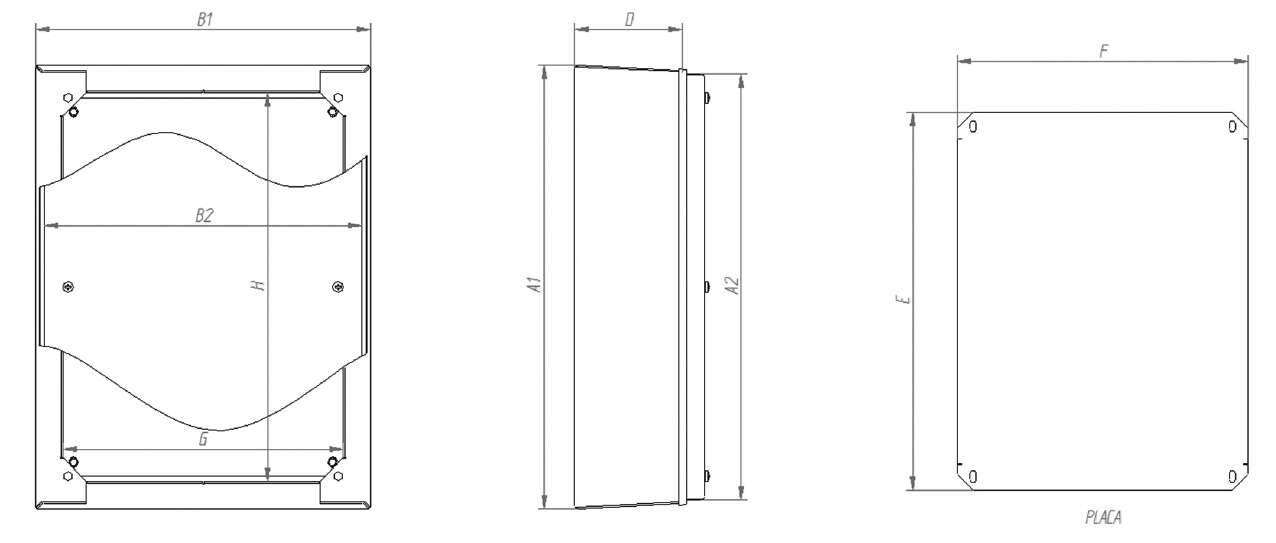

Sketches

References

Show References

Reference	Description	High	Width	Background
MVCJB909080	Geo fresh IP66. Blind cover	90	90	80	MVCJB909080
MVCBJ149080	Geo fresh IP66. Blind cover	90	90	80	MVCBJ149080
MVCBJ209080	Geo fresh IP66. Blind cover	200	90	80	MVCBJ209080
MVCBJ269012	Geo fresh IP66. Blind cover	260	90	120	MVCBJ269012
MVCBJ101612	Geo fresh IP66. Blind cover	100	160	120	MVCBJ101612
MVCBJ161612	Geo fresh IP66. Blind cover	160	160	120	MVCBJ161612
MVCBJ202012	Geo fresh IP66. Blind cover	200	200	120	MVCBJ202012
MVCBJ202515	Geo fresh IP66. Blind cover	200	250	150	MVCBJ202515
MVCBJ252515	Geo fresh IP66. Blind cover	250	250	150	MVCBJ252515
MVCBJ203015	Geo fresh IP66. Blind cover	200	300	150	MVCBJ203015
MVCBJ303015	Geo fresh IP66. Blind cover	300	300	150	MVCBJ303015
MVCBJ304015	Geo fresh IP66. Blind cover	300	400	150	MVCBJ304015
MVCBJ404015	Geo fresh IP66. Blind cover	400	400	150	MVCBJ404015
MVCBJ909080P	Geo fresh IP66. Perforated lid	90	90	80	MVCBJ909080P
MVCBJ149080P	Geo fresh IP66. Perforated lid	140	90	80	MVCBJ149080P
MVCBJ209080P	Geo fresh IP66. Perforated lid	200	90	80	MVCBJ209080P
MVCBJ269012P	Geo fresh IP66. Perforated lid	260	90	120	MVCBJ269012P
MVCBJ101612P	Geo fresh IP66. Perforated lid	100	160	120	MVCBJ101612P
MVCBJ161612P	Geo fresh IP66. Perforated lid	160	160	120	MVCBJ161612P
MVCBJ202012P	Geo fresh IP66. Perforated lid	200	200	120	MVCBJ202012P
MVCBJ202515P	Geo fresh IP66. Perforated lid	200	250	150	MVCBJ202515P
MVCBJ252515P	Geo fresh IP66. Perforated lid	250	250	150	MVCBJ252515P
MVCBJ203015P	Geo fresh IP66. Perforated lid	200	300	150	MVCBJ203015P
MVCBJ303015P	Geo fresh IP66. Perforated lid	300	300	150	MVCBJ303015P
MVCBJ304015P	Geo fresh IP66. Perforated lid	300	400	150	MVCBJ304015P
MVCBJ404015P	Geo fresh IP66. Perforated lid	400	400	150	MVCBJ404015P
