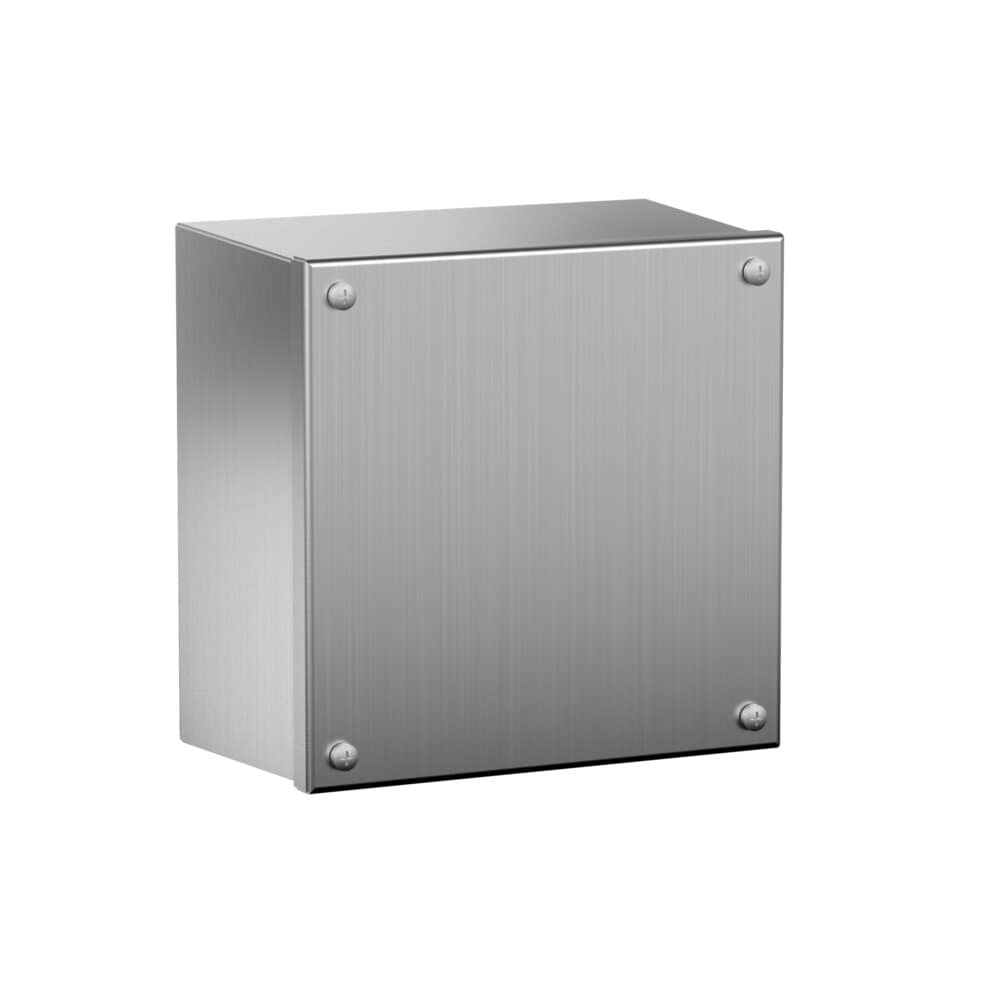

Junction box geo fresh IP66

FRESH GEO IP66

Geo Series push-button and junction boxes, elegant watertight boxes made wholly in finely polished AISI304L EN-14306 stainless steel available in plain or bored covers (22.5).

Specially designed for placing push-buttons in food procesing industry.

TECHNICAL DATA

Minimum Measurements	A=90-400mm B=90-400mm P=80-150mm
Minimum Plate Measurements	A=60-370mm
Minimum Plate Measurements	B=70-380mm
Body Thickness	1.2 mm \| 12/10 mm 0.0472 " \| 18 Gauge
Door Type	Blind door
Opening Type	Screwed
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Door	Door with polycarbonate panel, Door with safety glass
Interior Plate Material	Stainless steel mounting plate, Insulating mounting plate (Bakelite)
Alternative Gaskets	silicone (-60°C to +180°C), EMC
Machinable Area	48x48 - 358x358

IP67 or IP69K under IEC 60529 Standard

In stainless steel AISI 316L EN 14404

Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand

Fixed Metal Legs or Wheels

Safety screws

Textured paint finish with other RAL colors on request

Electromagnetic Protection Gasket EMC between Frame and Surfaces

Delivered with protective film that prevents scratches during handling

Impact resistance rating IK10 according to IEC 62262 standard

The monobloc design achieves perfect watertightness thanks to the seals used in the joints and impact resistance

Delvalle manufactures any size on request that suits your needs, including holes, channels, and shapes, both on the door and the enclosure

Temperature resistance: from -40°C to +100°C (reduced exposure +160ºC)

Silicone Gasket Option: from -60°C to +180°C (reduced exposure up to +350°C)

Specially designed and certified for the food, chemical, pharmaceutical industries, transformation centers, telecommunications, and outdoor use due to its durability advantages

IP Protection Ratings for Cabinets

IP69K protection rating

DIN EN ISO 14159

RoHS Directive 2011/65/EU

DIN EN 1672-2:2005

IK10 protection rating according to IEC 62262 standard

UL NEMA 4X, 12, 3R, and 1 standards

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

REFERENCES		DIMENSIONS (mm)
STAINLESS STEEL AISI 304L	STAINLESS STEEL AISI 316L	HEIGHT -A-	WIDTH -B-	DEPTH -C-
MVF1515	MVF1515316	150	150	100
MVF1520	MVF1520316	150	200	100
MVF2020	MVF2020316	200	200	100
MVF2030	MVF2030316	200	300	100
MVF2040	MVF2040316	200	400	100
MVF3030	MVF3030316	300	300	100
MVF3040	MVF3040316	300	400	100
MVF4040	MVF4040316	400	400	120
MVF4060	MVF4060316	400	600	120
