Rack Galvanized Steel Outdoor 19
STORM

The Storm Series is designed for installation in urban and inter-urban areas, protecting the electronic equipment required for lighting, signage and video surveillance.

Rack Galvanized Steel Outdoor 19 · Delvalle Box

Description

The STORM Series is designed for installation in urban and inter-urban areas, protecting the electronic equipment required for lighting, signage and video surveillance.

The STORM series are characterized by their high strength and spacious interior, with its manufacturing, getting width and height than the rest useful. They are equipped with waterproof seal on exterior doors approved allowing sealing and internal stability ideal for placement in areas of extreme temperatures and harsh weather environments temperature.

It is made of painted galvanized steel RAL 7035 and incorporates a vandal handle made of a highly resistant material against vandalism and forced openings. The interior design allows easy placement of racks, mounting plates or separators.



Achieve all the safety and security you need

  • Logo CE · Delvalle Box
    CE
  • Logo IP66 · Delvalle Box
    IP66
  • Logo UL NEMA 1 · Delvalle Box
    UL NEMA 1
  • Logo UL NEMA 12 · Delvalle Box
    UL NEMA 12
  • Logo UL NEMA 3R · Delvalle Box
    UL NEMA 3R
  • Logo UL NEMA 4 · Delvalle Box
    UL NEMA 4

Discover the advantages

Very good mechanical properties and high resistance to shape distorsion.
With water repellent injected seal.
Door retained with stoppers.
The enclosure includes anti-vandalism locks and handles suitable for semi-cylindrical profile locks.
Delvalle can adapt this design to the measurements required by the client, retaining the fundamentals of insulation, sealing and safety.

Regulations

• EN 62208 and EN 60529 norms. IP66 degree.
• UL approval Nema 1, 3r, 4 y 12. Nº File E342220.
• IEC 62262 norm. Maximum IK10 resistance.
• EN 61969-3. Mechanical Structures for Electronic Equipment - outdoor enclosures -.
• IEC 60068-2-30 and IEC 60068-2-11 norms.
• 2006/95/CE directive.
• EN 60439-5 . Shock resistant against sharp objects.
• Maximum voltage 1000 V
• Temperature resistant: -40°C +100°C (short time +160°C).
• Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Our cabinets ROAD series are specially designed for outdoor use. As its name suggests, its placement on roads is common for either signaling or lighting, as well as their use in monitoring in urban or interurban meteorological weather stations, telecommunications, telephony, fiber optic video.

Custom Made Solutions
We offer multiple solutions

Rack Galvanized Steel Outdoor 19 · Delvalle Box
Do you need solutions?
2017 product catalogues

• Designs available on request.
• Plinths at base for enclosures of any size. They allow enclosures to stand over the floor, with extra room for cable entry. Available 100mm (standard) and 200mm high.
Ventilation KIT (Fan, resistance heating and dual thermostat)
• Graffiti-proof protective paint.
• EMC version according to EEC 89/336 of electromagnetic compatibility.

Customize this product with the following components:
Outdoor Telecom 19 Storm · Delvalle Box
Outdoor telecom 19" rack cabinet "Storm" Series enclosure, designed to be placed in outdoor areas,...
Rack Galvanized Steel Outdoor 19 · Delvalle Box

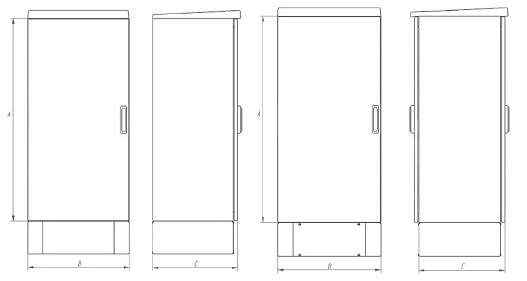

Sketches

Rack Galvanized Steel Outdoor 19 · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
RDG606040GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 12U600600400RDG606040
RDG606050GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 12U600600500RDG606050
RDG606060GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 12U600600600RDG606060
RDG606080GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 12U600600800RDG606080
RDG806040GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 17U800600400RDG806040
RDG806060GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 17U800600600RDG806060
RDG106060GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 22U1000600600RDG106060
RDG126040GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 24U1200600400RDG126040
RDG126050GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 24U1200600500RDG126050
RDG126060GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 24U1200600600RDG126060
RDG126080GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 24U1200600800RDG126080
RDG146040GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 30U1450600400RDG146040
RDG146050GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 30U1450600500RDG146050
RDG146060GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 30U1450600600RDG146060
RDG146080GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 30U1450600800RDG146080
RDG148040GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 30U1450800400RDG148040
RDG148050GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 30U1450800500RDG148050
RDG148060GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 30U1450800600RDG148060
RDG148080GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 30U1450800800RDG148080
RDG168080GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 35U1600800800RDG168080
RDG159080GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 33U1500900800RDG159080
RDG196040GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 40U1900600400RDG196040
RDG196050GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 40U1900600500RDG196050
RDG196060GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 40U1900600600RDG196060
RDG196080GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 40U1900600800RDG196080
RDG198040GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 40U1900800400RDG198040
RDG198050GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 40U1900800500RDG198050
RDG198060GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 40U1900800600RDG198060
RDG198080GALVANIZED STEEL OUTDOOR RACK ROAD 1 DOOR 40U1900800600RDG198080
RDG606080PGALVANIZED STEEL OUTDOOR RACK ROAD FRONT DOOR AND REAR DOOR 12U600600800RDG606080P
RDG126080PGALVANIZED STEEL OUTDOOR RACK ROAD FRONT DOOR AND REAR DOOR 24U1200600800RDG126080P
RDG146080PGALVANIZED STEEL OUTDOOR RACK ROAD FRONT DOOR AND REAR DOOR 30U1450600800RDG146080P
RDG148040PGALVANIZED STEEL OUTDOOR RACK ROAD FRONT DOOR AND REAR DOOR 30U1450800400RDG148040P
RDG148050PGALVANIZED STEEL OUTDOOR RACK ROAD FRONT DOOR AND REAR DOOR 30U1450800500RDG148050P
RDG148060PGALVANIZED STEEL OUTDOOR RACK ROAD FRONT DOOR AND REAR DOOR 30U1450800600RDG148060P
RDG148080PGALVANIZED STEEL OUTDOOR RACK ROAD FRONT DOOR AND REAR DOOR 30U1450800800RDG148080P
RDG196080PGALVANIZED STEEL OUTDOOR RACK ROAD FRONT DOOR AND REAR DOOR 40U1900600800RDG196080P
RDG198040PGALVANIZED STEEL OUTDOOR RACK ROAD FRONT DOOR AND REAR DOOR 40U1900800400RDG198040P
RDG198050PGALVANIZED STEEL OUTDOOR RACK ROAD FRONT DOOR AND REAR DOOR 40U1900800500RDG198050P
RDG198060PGALVANIZED STEEL OUTDOOR RACK ROAD FRONT DOOR AND REAR DOOR 40U1900800600RDG198060P
RDG198080PGALVANIZED STEEL OUTDOOR RACK ROAD FRONT DOOR AND REAR DOOR 40U1900800800RDG198080P
