Roadside Enclosures

Stainless Steel SOS

Stainless steel Roadside panels consist an emergency station aimed at users and the tunnel’s staff, which allows to notify and communicate about any incident happened.
The main goal of the SOS Post is to provide a security team in an emergency, by means of the provision of an emergency telephone and alarm button to allow bidirectional verbal communication between the user and the surveillance staff of the control center.  The emergency station should be equipped minimally with an emergency telephone and two fire extinguishers.

Roadside Enclosures · Delvalle BoxDelvalle Box
Roadside Enclosures · Delvalle BoxDelvalle Box
Roadside Enclosures · Delvalle BoxDelvalle Box
Roadside Enclosures · Delvalle BoxDelvalle Box

This product has the following certificates

  • Logo IK10 · Delvalle Box
  • Logo IP66 · Delvalle Box
  • Logo ROHS · Delvalle Box
  • Logo UL NEMA 1 · Delvalle Box
  • Logo UL NEMA 12 · Delvalle Box
  • Logo UL NEMA 3R · Delvalle Box
  • Logo UL NEMA 4X · Delvalle Box
  • Logo 10 year anti-corrosion · Delvalle Box
  • Logo 5 year mechanical parts · Delvalle Box
  • Logo Chemical resistant · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box
  • Logo Scrach resistant · Delvalle Box
  • Logo Waterproof · Delvalle Box

Description

The Stainless steel Roadside panels consist an emergency station aimed at users and the tunnel’s staff, which allows to notify and communicate about any incident happened.
The main goal of the SOS Post is to provide a security team in an emergency, by means of the provision of an emergency telephone and alarm button to allow bidirectional verbal communication between the user and the surveillance staff of the control center.  The emergency station should be equipped minimally with an emergency telephone and two fire extinguishers.

  • The SOS Post is an emergency station a minimum security equipment:
    • 1 emergency telephone
    • 2 fire extinguishers
  • The SOS Post are installed inside the tunnel, in a specific and safety cells, housed the tunnel’s wall. Normally, they are separated every 60 m, in alternative way. Also, they should be located in outsides areas, close to the accesses.
  • The equipment will be powered to the electrical network 230 V at 60 Hz, with the corresponding protection equipment. In addition, the cabinet will have an auxiliary power supply.

TWO MODULES DESIGN

This model consists in an electric cabinet with 2 independent doors.

  • 1 SSA cabinet with double BIT closure, designed for the storage of electronic equipment that allows operation of the emergency station.  Access to authorized personnel is only allowed (maintenance personnel and montrol menter staff).
  • 1 SOS cabinet with double wing close, which allows users to use the security team in an emergency.  There is a minimum security equipment.  The SOS cabinet has a transparent glass door to permit visibility of the safety equipment.

THREE MODULES DESIGN

This model consists in an electric cabinet with 3 independent doors.

  • 1 SSA cabinet with double BIT closure, designed for the storage of electronic equipment that allows operation of the emergency station.  Access to authorized personnel is only allowed (maintenance personnel and control center staff). It’s a roomy cabinet to storage equipment to guarantee perfect and fast communication with the staff in an emergency.
  • 2 independent SOS cabinets, both with a wing lock. The first cabinet allows the service of communication with the personnel of the control center.  The second cabinet gives the extinguishing equipment.

Regulations

Directive 2004/54/EC safety requirements for tunnels in the Trans-European Road
IEC EN 62208 and EN 60529. IP66 (IP55 double door without mounting, IP66 with central welded bar mounting).
DIN 40050-9 - IP69K extiend IEC 60529.
Manufactured following EU low voltage ruling 2014/35/UE.
Normative IEC 62208 and EN 62262. IK10 resistance.
Certificate UL Nema 4x, 12, 3r, 1. Nº File E342220.

Applications

The SOS Post consist an emergency station aimed at users and the tunnel’s staff, which allows to notify and communicate about any incident happened.

Custom Made Solutions
We offer multiple solutions

Roadside Enclosures · Delvalle Box
Do you need solutions?
2021 product catalogues

Manufactured in stainless steel AISI 316L  EN 14404.
Option painted galvanized steel finish in  RAL 7035 or another color.
Possibility of realization of two or three modules.

Customers also bought:
EMC Wall Mount Enclosure · Delvalle BoxDelvalle Box
EMC enclosures Luxor with an EPDM conductive gasket between frame and contact surface, ensure a...
EMC Free-Stand Enclosures · Delvalle BoxDelvalle Box
EMC enclosures Tribeca with an EPDM conductive gasket between frame and contact surface, ensure a...
EMC Filter Fans Prius IP54-55 · Delvalle BoxDelvalle Box
EMC fan with fitted filter and EMC conductive gasket. High performance, low power, and silent...
EMC Junction Boxes · Delvalle BoxDelvalle Box
EMC push-button and junction Geo Series with an EPDM conductive gasket between frame and contact...
Roadside Enclosures · Delvalle Box

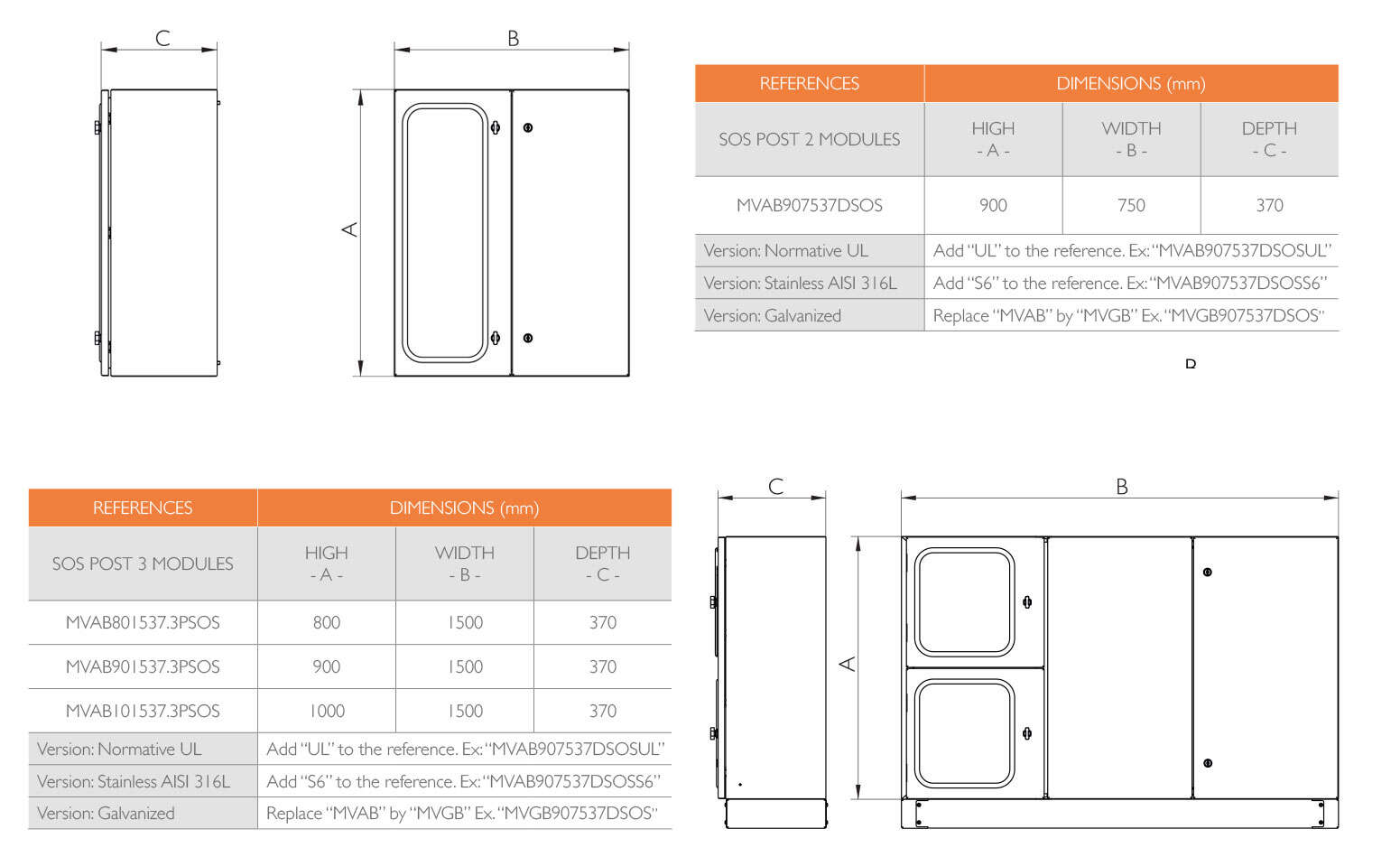

Sketches

DIMEBSIONS AND REFERENCES · Delvalle Box
