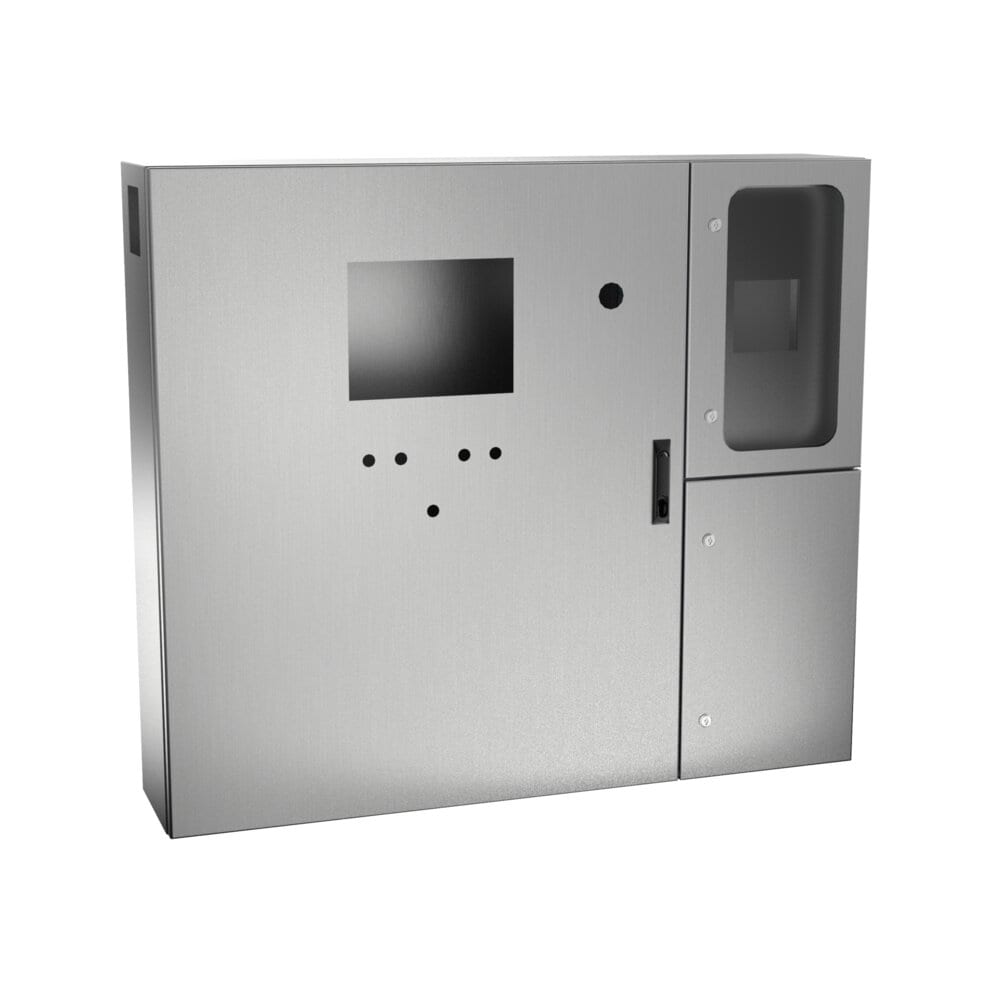

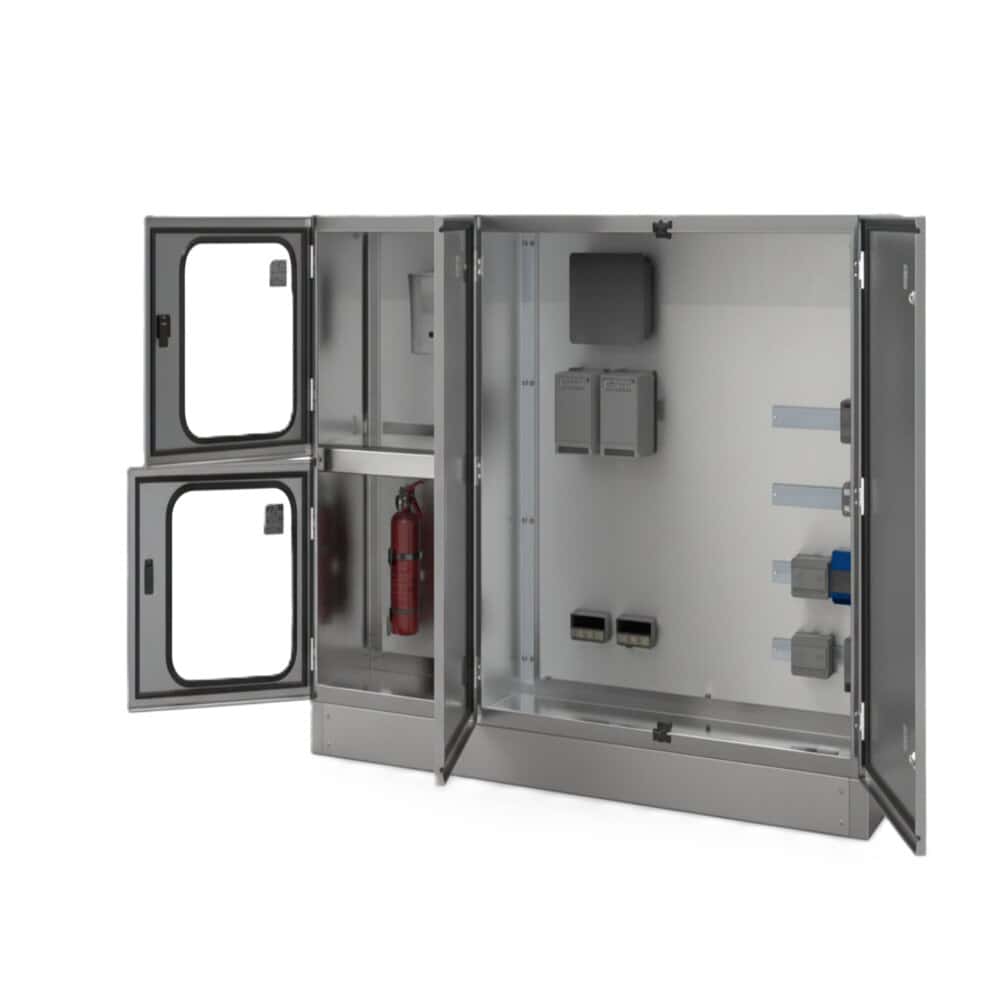

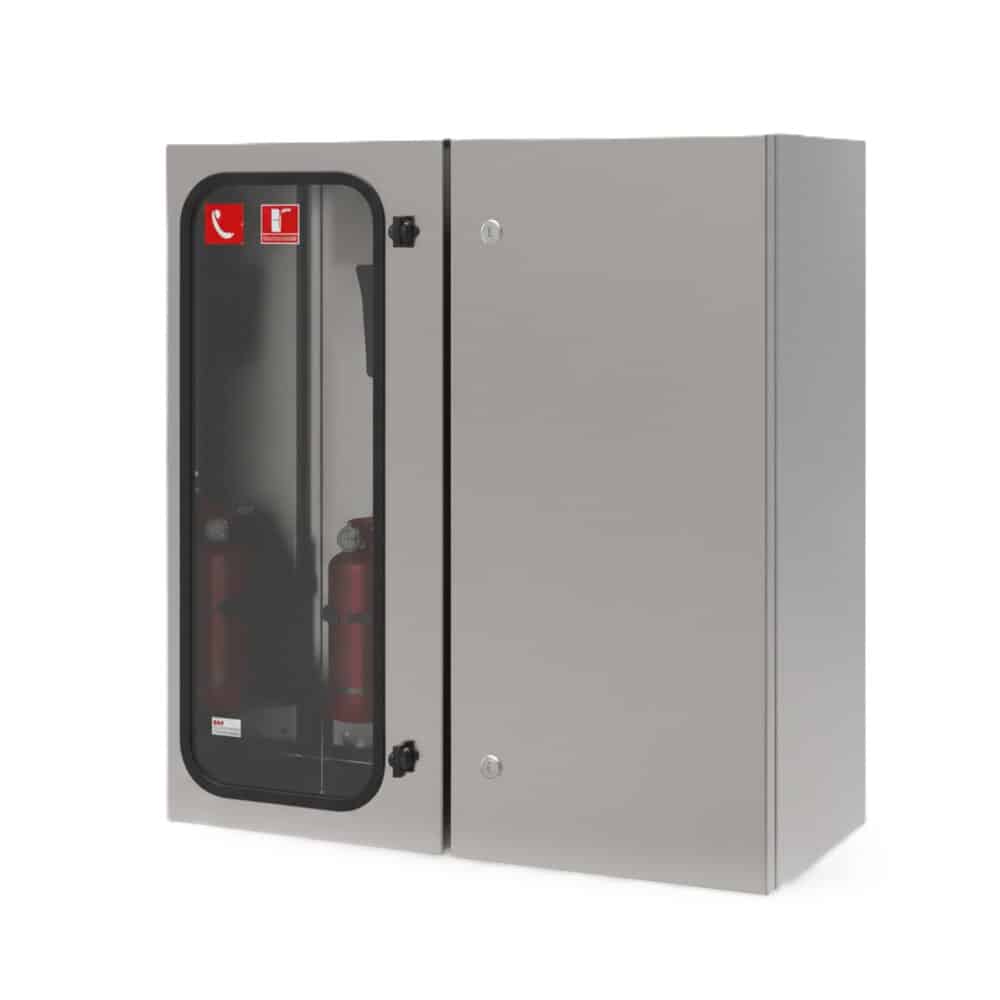

A locking system for compact enclosures with several doors. The main door blocks the access to secondary doors.
After the system is unblocked on the main doors, the access to secondary doors is allowed. At the same time, the system prevents the main door from being locked if secondary doors have not been previously locked.
| Minimum Measurements | A=900-1000mm B=750-1500mm P=370-370mm |
|---|---|
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Type | Blind door, Door with polycarbonate panel, Door with safety glass |
| Opening Type | Swivel with concealed hinges |
| Closing System | Double-bit quarter-turn locks |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Alternative Door Opening | Con cierres de palomilla |
Croquis:
