Geo EMC junction boxes

EMC

Geo EMC Series push-button and junction box with an EPDM conductive gasket between frame and contact surface, ensure a perfect electrical connection and superior shielding. Compact design offering complete protection and resistance to impact.

2014/30/UE certified

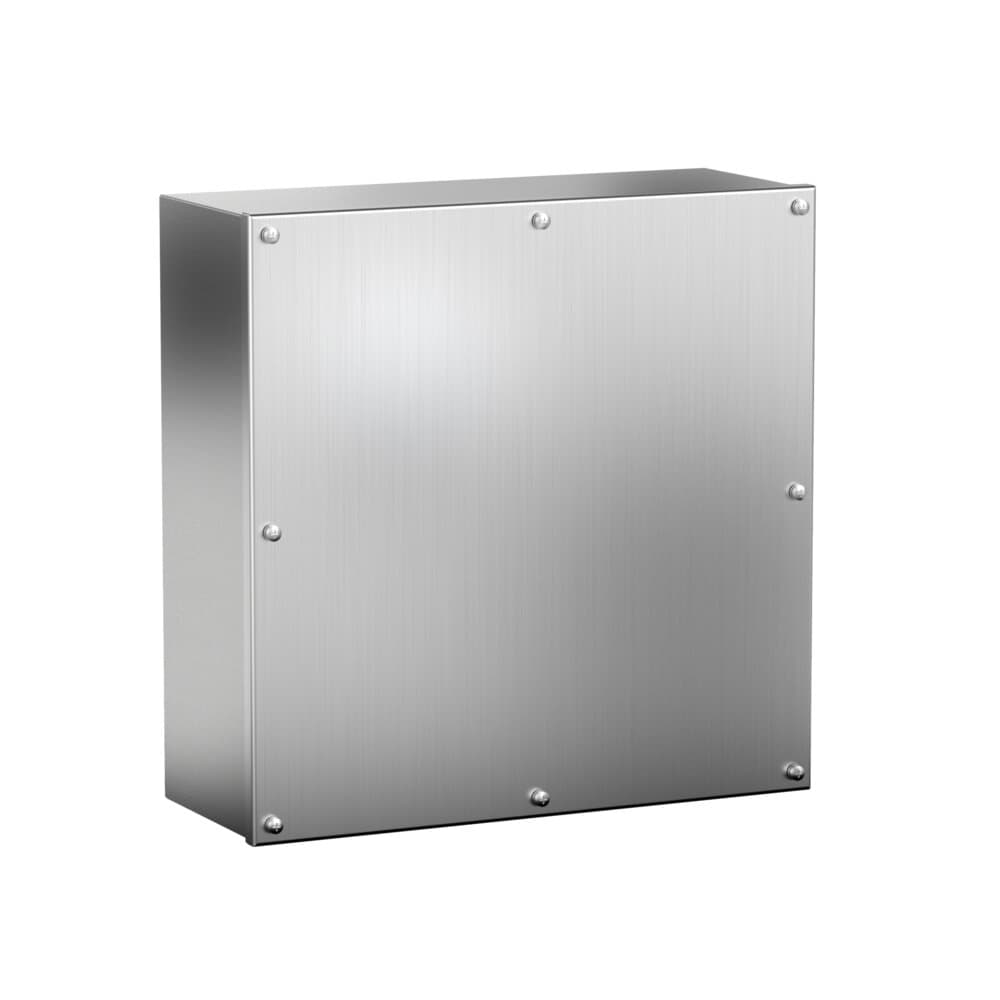

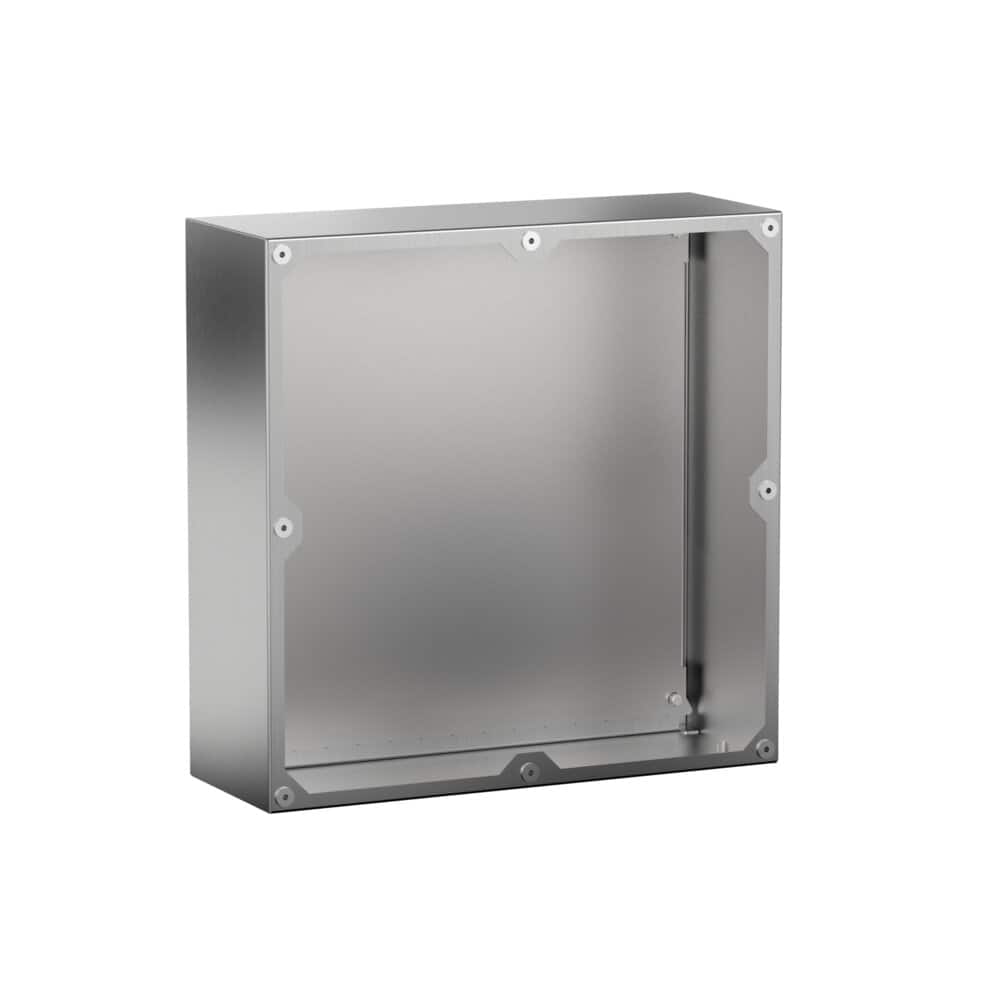

Geo EMC junction boxes: detail view of the product

TECHNICAL DATA

Minimum Measurements	A=90-400mm B=90-400mm P=80-150mm
Minimum Plate Measurements	A=60-370mm
Minimum Plate Measurements	B=70-380mm
Body Thickness	1.2 mm \| 12/10 mm 0.0472 " \| 18 Gauge
Door Type	Blind door
Opening Type	Screwed
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	EMC
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Interior Plate Material	Stainless steel mounting plate, Insulating mounting plate (Bakelite)
Alternative Gaskets	Polyurethane, silicone (-60°C to +180°C)

Made to Measure According to Your Needs

In stainless steel AISI 316L EN 14404

Textured paint finish with other RAL colors on request

Electromagnetic protection EMC gasket between frame and contact surfaces. Ensuring a perfect electrical connection. CEE Standard 89/336

Conductive EPDM EMC Gasket Coated with Cu and Sn and Shore 60 Hardness

Excellent attenuation levels

Delivered with protective film that prevents scratches and abrasions during handling.

Monobloc construction that achieves perfect sealing and impact resistance

With gutter channel to prevent liquid contact with the EPDM gasket and concealed hinges

Delvalle manufactures any custom size tailored to your needs

EMC, RFI, and EMI Compliance

Electrical Cabinet for Critical Installations

Delvalle cabinets with IP55 certification

IK10 Protection Rating

Low Voltage Directive 2006/95/EC

RoHS Directive 2002/95/EC

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

RoHS and EMC Compliance for Cabinets

REFERENCES			DIMENSIONS (mm)
STAINLESS STEEL (AISI 304L)	GALVANIZED STEEL	ALUMINUM	HEIGHT -A-	WIDTH -B-	DEPTH -C-	ACCESS OPENING -DxE-	MACHINABLE AREA	PLATE DIMENSIONS
MVCB9090BOM	MVCBG9090BOM	MVCBA909080M	90	90	80		48×48	60×70
	MVCBG149080M	MVCBA149080M	140	90	80			110×70
MVCB209080M	MVCBG209080M		200	90	80	176×66	158×48	170×70
MVCB269012M	MVCBG269012M	MVCBA269012M	260	90	120	236×66	218×48	230×70
MVCB101612M	MVCBG101612M	MVCBA101612M	100	160	120	76×136	58×118	70×140
MVCB161612M	MVCBG161612M	MVCBA161612M	160	160	120	136×136	118×118	130×140
MVCB202012M	MVCBG202012M	MVCBA202012M	200	200	120	176×176	158×158	170×180
MVCB202515M	MVCBG202515M	MVCBA202515M	200	250	150	176×226		170×230
MVCB252515M	MVCBG252515M	MVCBA252515M	250	250	150	226×226	208×208	220×230
MVCB203015M	MVCBG203015M	MVCBA203015M	200	300	150	176×276	158×258	170×280
MVCB303015M	MVCBG303015M	MVCBA303015M	300	300	150	276×276	258×258	270×280
MVCB304015M		MVCBA304015M	300	400	150	276×376	258×358	270×380
MVCB404015M	MVCBG404015M	MVCBA404015M	400	400	150	376×376	358×358	370×380
