Aluminium free-standing enclosure

SERIE TRIBECA IP66

Tribeca compact electric cabinet with improved design, robust, easy to open by rotating handle with four locking points, smooth opening, easy installation on the floor itself, flexible, maximum working width. Made in aluminum painted RAL 7035 paint finish.

Aluminium free-standing enclosure: main view of the product

TECHNICAL DATA

Minimum Measurements	A=1650-2000mm B=600-1000mm P=400-500mm
Maximum Double Door Measurements	A=2000mm B=1600mm P=500mm
Minimum Plate Measurements	A=1540-1890mm
Minimum Plate Measurements	B=490-1490mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Rotary handle with 4 locking points
Useful Depth	375-475 mm
Material	Painted aluminum
Finish	Painted
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC).
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Finishes	Painted RAL 7035
Alternative Door	Door with polycarbonate panel, Door with safety glass
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	silicone (-60°C to +180°C), EMC
Machinable Area	Puerta: 1524,8x474x8 - 1800x800, Lateral: 1640x365 - 1990x465

Made to Measure According to Your Needs

With option for two doors

protective roof

EMC Version according to EEC 2014/30/EU Electromagnetic Compatibility Standard

Automatically cools down, due to the design conception and the aluminum used in its construction

Spacious Design for Electrical Components

Weight three times lighter than a normal cabinet

Monobloc construction that achieves perfect sealing and impact resistance

With drip edge channel that prevents liquids from contacting the polyurethane seal and hidden hinges

Door opening at 90°. Standard opening to the left, specify if right opening is desired

The electrical panel comes standard with a four-point lever lock and concealed hinges made of stainless steel.

Delvalle manufactures any size on request that suits your needs, including holes, channels, and shapes, both on the door and the enclosure

Specially designed for the installation of automation, machine controls, meters, heating, air conditioning, control systems, electrical distribution, industrial networks.

Electrical panel approved for the wind and solar industry, transformer stations, telecommunications and outdoors, due to its advantages of durability and resistance against agents.

IK10 Protection Rating

Low Voltage Directive 2014/35/EU

UL NEMA 4X, 12, 3R, and 1 standards

REFERENCES 1 DOOR		DIMENSIONS (mm)
SOLID DOOR (x)	POLYCARBONATE DOOR (not IP69K)	HEIGHT -A-	WIDTH -B-	DEPTH -C-
MVALC166040	MVALCT166040	1650	600	400
MVALC168040	MVALCT168040	1650	800	400
MVALC161040	MVALCT161040	1650	1000	400
MVALC186040	MVALCT186040	1800	600	400
MVALC188040	MVALCT188040	1800	800	400
MVALC188050	MVALCT188050	1800	800	500
MVALC181040	MVALCT181040	1800	1000	400
MVALC181050	MVALCT181050	1800	1000	500
MVALC206040	MVALCT206040	2000	600	400
MVALC208040	MVALCT208040	2000	800	400
MVALC208050	MVALCT208050	2000	800	500
MVALC201040	MVALCT201040	2000	1000	400
MVALC201050	MVALCT201050	2000	1000	500
Version: UL Standard Nema 4x, 12, 3r and 1	Add "UL" to the reference.
Version: IP67	Add "67" to the reference.
Version: IP69K	Add "/69" to the reference.

* Aluminum Compact Cabinet Tribeca Design IP66 Backplate separation 20mm

REFERENCES 2 DOORS		DIMENSIONS (mm)
SOLID DOOR (x)	POLYCARBONATE DOOR (not IP69K)	HEIGHT -A-	WIDTH -B-	DEPTH -C-
MVALC161240	MVALCT161240	1650	1200	400
MVALC181240	MVALCT181240	1800	1200	400
MVALC181250	MVALCT181250	1800	1200	500
MVALC201240	MVALCT201240	2000	1200	400
MVALC201250	MVALCT201250	2000	1200	500
MVALC201440	MVALCT201440	2000	1400	400
MVALC201450	MVALCT201450	2000	1400	500
MVALC201640	MVALCT201640	2000	1600	400
MVALC201650	MVALCT201650	2000	1600	500
Version: UL Standard Nema 4x, 12, 3r and 1	Add "UL" to the reference.
Version: IP67	Add "67" to the reference.
Version: IP69K	Add "/69" to the reference.

* Aluminum Compact Cabinet Tribeca Design IP66 Backplate separation 20mm

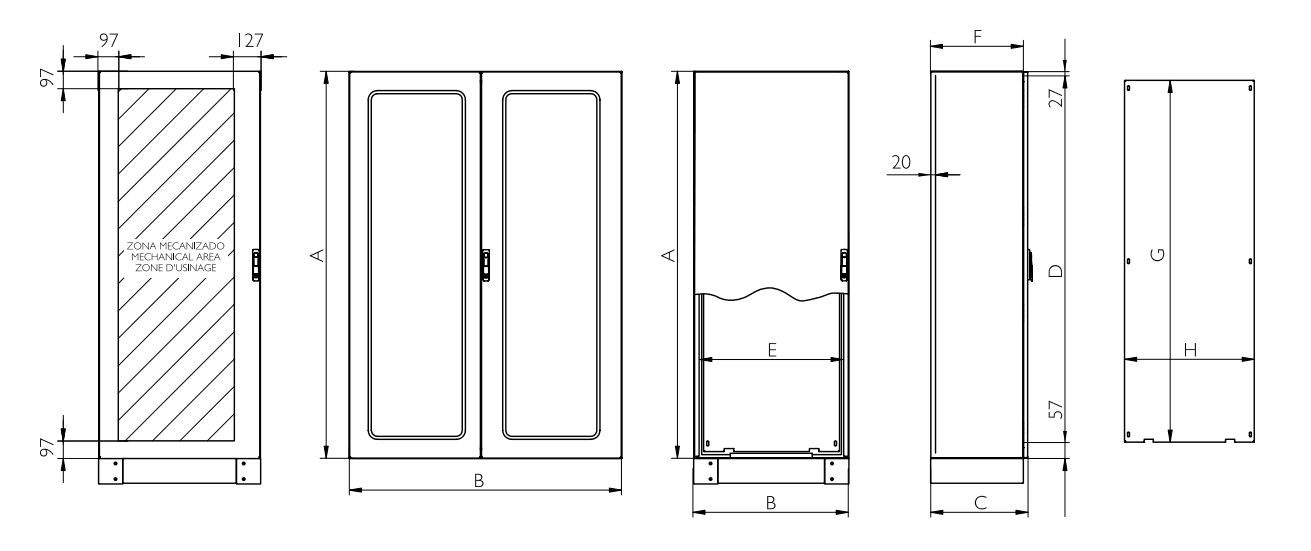

Croquis:
