Stainless steel junction box geo IP66

SERIE GEO IP66

The world's leading manufacturer of stainless steel electrical enclosures. Stainless steel junction boxes Geo Series, elegant watertight IP66 made wholly in finely polished AISI 304L – EN-14306 or AISI 316L stainless steel.
Offering a huge selection of configurations, sizes, styles and finishes, you are sure to find Junction boxes to meet the demands of your installation.
Full Ranges – Shroud Protected – Slimline – Flush-Mounted Pharma or Traditional Enclosures – Various Configurations – Junction Boxes – Push-Button Enclosures – Huge Stocks & Quick Delivery

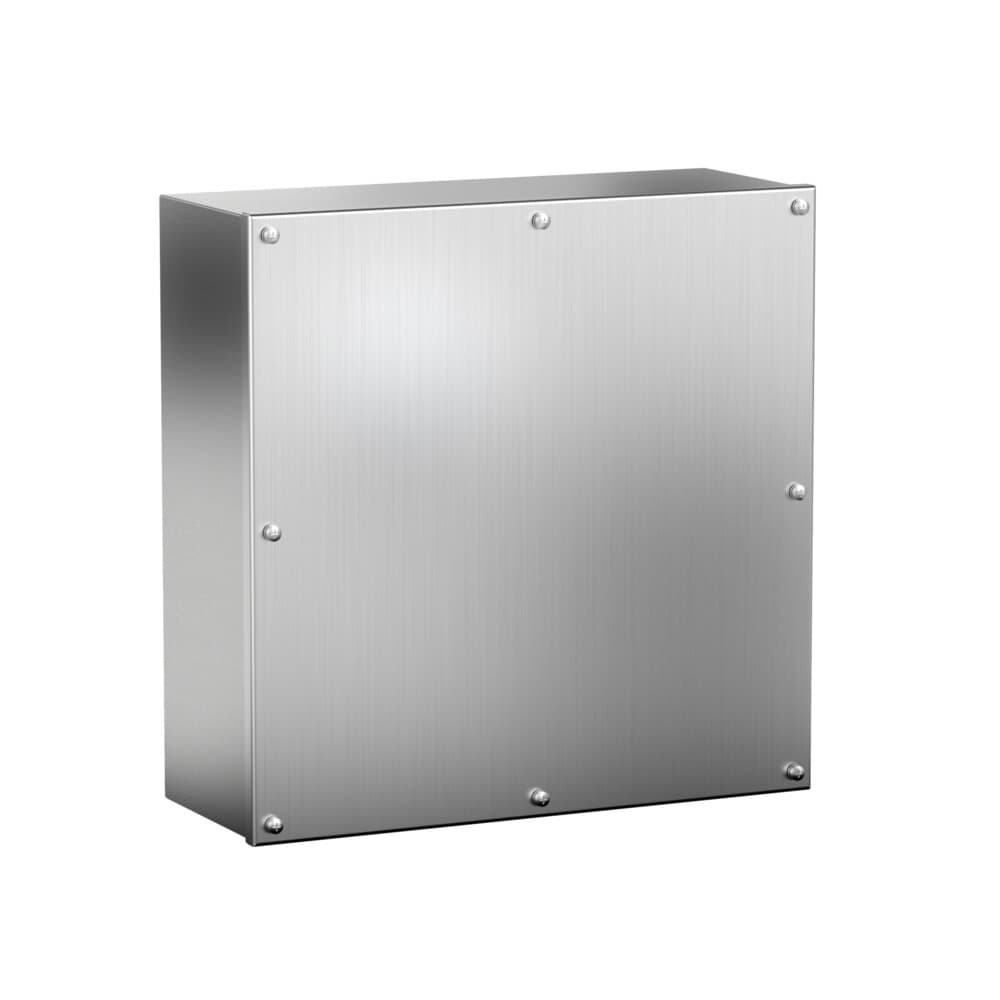

Stainless steel junction box geo IP66 · main view

TECHNICAL DATA

Minimum Measurements	A=90-1000mm B=90-100mm P=80-1000mm
Minimum Plate Measurements	A=60-370mm
Minimum Plate Measurements	B=70-380mm
Body Thickness	1.2 mm \| 12/10 mm 0.0472 " \| 18 Gauge
Door Type	Blind door
Opening Type	Screwed
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	Polyurethane
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Door	Door with polycarbonate panel, Door with safety glass
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	silicone (-60°C to +180°C), EMC
Machinable Area	Tapa: 52x52-370x363, Lateral: 80x57-390x127, Sup/Inf: 80x41-390x111

Made to Measure According to Your Needs

Protection rating IP67, IP68, and up to IP69K - DIN 40050-9

In stainless steel AISI 316L EN 14404

Fixed Metal Legs or Wheels

Safety screws

Textured paint finish with other RAL colors on request

Electromagnetic Protection Gasket EMC between Frame and Surfaces

Possibility of manufacture in galvanized steel sheet painted in RAL 7035 or another color on demand

Very Robust Design

Corrosion and Impact Resistance

Ideal for weathering and/or adverse conditions

Stainless Steel AISI 304L or AISI 316L

Large dimensions available

Up to 1000 x 100 x 1000 mm

Strength and durability

Custom Special Solutions

Monobloc Design

In AISI 304L or AISI 316L stainless steel

Endless Options

Protective Film

Scratch and Scuff Resistance

Monobloc construction that achieves perfect sealing and impact resistance

Perfect watertightness due to the gaskets used in the joints

Delvalle manufactures any size made to order to suit your needs, including holes, channels, shapes, both on the door and on the enclosure

Protección IP67 e IP69K

Specially designed and certified for the food, chemical, pharmaceutical industries, transformation centers, telecommunications, and outdoor use due to its durability advantages

IP Protection Ratings for Cabinets

IK10 protection rating according to IEC 62262 standard

UL NEMA 4X, 12, 3R, and 1 standards

RoHS Directive 2011/65/EU

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

REFERENCES		COVER	DIMENSIONS (mm)
SOLID COVER	PERFORATED COVER	Nº OF PERFORATIONS	HEIGHT – A –	WIDTH – B –	DEPTH – C –	ACCESS – DxE –	MACHINABLE AREA	MOUNTING PLATE – FxG –	WEIGHT (Kg)	VOLUME (m³)
MVCB909080	MVCB909080P	1	90	90	80	66×66	48×48	60×70	0.68	0.001
MVCB149080	MVCB149080P	2	140	90	80	116×66	98×48	110×70	0.92	0.001
MVCB209080	MVCB209080P	3	200	90	80	176×66	158×48	170×70	1.2	0.002
MVCB269012	MVCB269012P	4	260	90	120	236×66	218×48	230×70	1.75	0.004
MCVB289080	MCVB289080P	5	280	90	80	256×66	238×48	250×70	1.6	0.002
MVCB101612	MVCB101612P	3	100	160	120	76×136	58×118	70×140	1.29	0.003
MVCB161612	MVCB161612P	4	160	160	120	136×136	118×118	130×140	1.81	0.004
MVCB202012	MVCB202012P	6	200	200	120	176×176	158×158	170×180	2.53	0.006
MVCB202515	MVCB202515P	12	200	250	150	176×226	158×208	170×230	3.25	0.009
MVCB252515	MVCB252515P	16	250	250	150	226×226	208×208	220×230	3.87	0.012
MVCB203015	MVCB203015P	15	200	300	150	176×276	158×258	170×280	3.75	0.011
MVCB303015	MVCB303015P	25	300	300	150	276×276	258×258	270×280	5.16	0.016
MVCB304015	MVCB304015P	35	300	400	150	276×376	258×358	270×380	6.64	0.022
MVCB404015	MVCB404015P	49	400	400	150	376×376	358×358	370×380	8.41	0.028
Version: UL Standard			Add "UL" to the reference. Ex: "MVCB909080UL"
Version: IP67			Add "67" to the reference. Ex: "MVCB90908067"
Version: IP69K			Add "/69" to the reference. Ex: "MVCB909080/69"
