Modular cabinet for building infrastructure (RIT).

RIT Series modular cabinet. Infrastructure for residential buildings, constructed from 1.5mm thick sheet metal and featuring double doors with a 3-point locking swing handle; it has a standard RAL 7035 paint finish.

Technical Downloads Product
Modular cabinet for building infrastructure (RIT).: main view of the product
TECHNICAL DATA
Minimum Measurements A=1650-2000mm   B=600-1000mm   P=400-500mm
Maximum Double Door Measurements A=2000mm   B=1600mm   P=500mm
Minimum Plate Measurements A=1520-1870mm
Minimum Plate Measurements B=470-1470mm
Body Thickness 1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door Opening 120 °
Door Type Blind door
Opening Type Swivel with concealed hinges
Closing System Rotary handle with 3 locking points
Useful Depth 375-475 mm
Material AISI 304L/AISI 316L
FinishSatin finish
Plate Material Galvanized
Sealing Gasket Polyurethane
Working Temperature -40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage 1000 V
ALTERNATIVE OPTIONS
Alternative Materials AISI 316L, Galvanized, Aluminum
Alternative Finishes Painted RAL 7035
Alternative Door Door with polycarbonate panel, Door with safety glass
Interior Plate Material Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets EMC, silicone (-60°C to +180°C)
Machinable Area -15 mm por lado
Made to Measure According to Your Needs
Option to combine multiple modules.
Kickboards
Eyebolts (not included in standard)
All Types of Ventilation and Air Conditioning
Electromagnetic protection EMC gasket between frame and contact surfaces. Ensuring a perfect electrical connection. CEE Standard 89/336
6mm thick bakelite mounting plate, depth-adjustable.
Ample mounting space and high accessibility
Welded Delivery, Giving It Great Robustness
Door Opening at 120º
Perfect watertightness due to the gaskets used in the joints
Delvalle manufactures any size on request that suits your needs, including holes, channels, and shapes, both on the door and the enclosure
Resistance, Durability, and Long Service Life
Wide variety of accessories
Detachable to Facilitate Installation on Terraces, Rooftops, or Hard-to-Access Areas
Specially designed to have maximum flexibility regarding its use
Delvalle cabinets with IP55 certification
IK10 Protection Rating
Low Voltage Directive 2006/95/EC
Voltage withstand capacity of cabinets
Temperature resistance: from -40°C to +100°C (short-term exposure up to +160°C).
Delvalle cabinets silicone gaskets temperature resistance

MONOBLOC CONSTRUCTION REFERENCES

SOLID DOOR

POLYCARBONATE DOOR

Nº OF DOORS

HEIGHT

-A-

WIDTH

-B-

DEPTH

-C-

MVHC201050

MVHCT201050

2

2000

1000

500

MVHC201250

MVHCT201250

1200

MODULAR PROFILE REFERENCES

SOLID DOOR

Nº OF DOORS

HEIGHT

-A-

WIDTH

-B-

DEPTH

-C-

AMCF201050/2

2

2000

1000

500

AMCF201250/2

1200

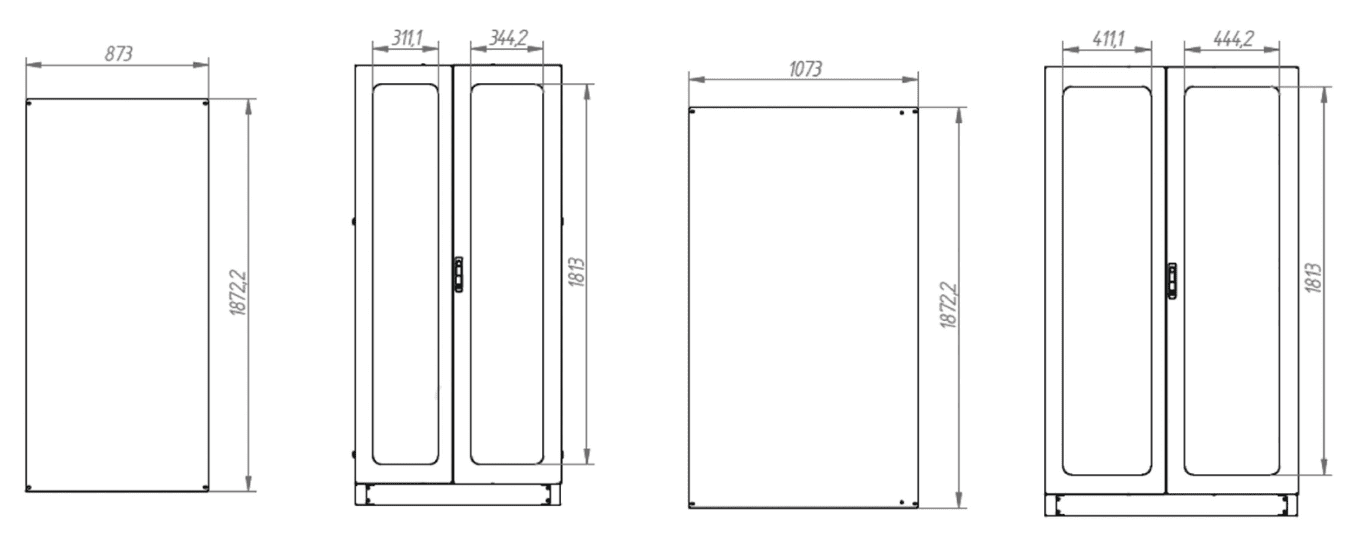

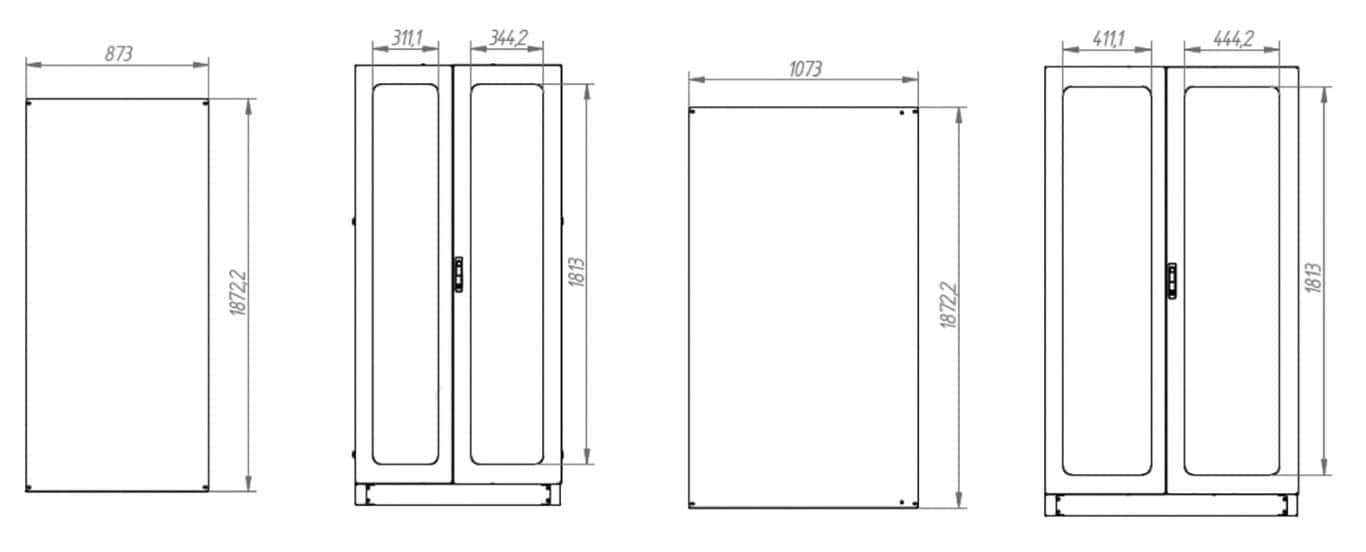

Croquis:

croquis del producto

Accessories:

Tribeca IP66 compact steel cabinet.: main view of the product

Tribeca IP66 compact steel cabinet

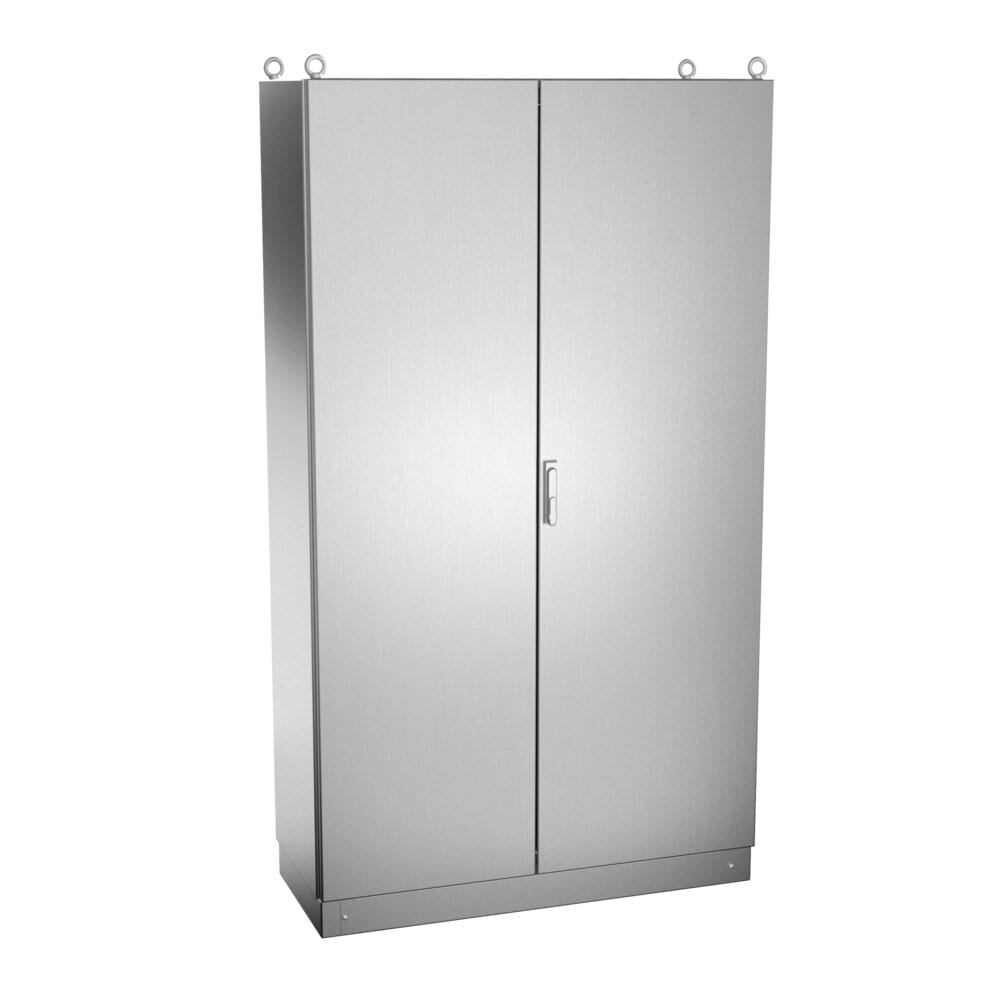

Titan IP66 combinable modular cabinet.
