Stainless Steel Cabinet IP68 Luxor
LUXOR SERIES

New range IP68 heavy duty wall electrical enclosure made of stainless steel AISI 304L & AISI 316L, combine a number of features ideal for electrical and electronic applications where security and perfect sealing against dust and inmersion water are essential. Luxor IP68 series of enclosures are widely used for housing vital electronic control and test equipment.
The protection of IP68 allows this equipment to be inmersion in to 1 meters of water without ingress during 7 days. The most popular characteristic is the ease of dismantling by screws, with a revolving left door which allows the performance inside the frame without removal or loss of the door.

Stainless Steel Cabinet IP68 Luxor · Delvalle BoxDelvalle Box
Stainless Steel Cabinet IP68 Luxor · Delvalle BoxDelvalle Box
Stainless Steel Cabinet IP68 Luxor · Delvalle BoxDelvalle Box

Description

New range IP68 heavy duty wall electrical enclosure made of stainless steel AISI 304L & AISI 316L, combine a number of features ideal for electrical and electronic applications where security and perfect sealing against dust and inmersion water are essential. Luxor IP68 series of enclosures are widely used for housing vital electronic control and test equipment.
The protection of IP68 allows this equipment to be inmersion in to 1 meters of water without ingress during 7 days. The most popular characteristic is the ease of dismantling by screws, with a revolving left door which allows the performance inside the frame without removal or loss of the door.

Achieve all the safety and security you need

  • Logo CE · Delvalle Box
    CE
  • Logo IK10 · Delvalle Box
    IK10
  • Logo IP68 · Delvalle Box
    IP68
  • Logo ROHS · Delvalle Box
    ROHS
  • Logo UL NEMA 1 · Delvalle Box
    UL NEMA 1
  • Logo UL NEMA 12 · Delvalle Box
    UL NEMA 12
  • Logo UL NEMA 3R · Delvalle Box
    UL NEMA 3R
  • Logo UL NEMA 4 · Delvalle Box
    UL NEMA 4
  • Logo UL NEMA 4X · Delvalle Box
    UL NEMA 4X
  • Logo 10 year anti-corrosion · Delvalle Box
    10 year anti-corrosion
  • Logo 5 year mechanical parts · Delvalle Box
    5 year mechanical parts
  • Logo Easy to clean · Delvalle Box
    Easy to clean
  • Logo Temperature resistant · Delvalle Box
    Temperature resistant

Discover the advantages

Sealing allows total protection against dust and water in 1 meter during 7 days.
This type of boxes combine corrosion resistance and the highest market impact IK10.
The manufacture of the stainless steel monobloc allows sealing and the maximum resistance.
With flashing channel that avoids contact with the liquid polyurethane gasket.
Supplied with protective film prevents
scratches and abrasions during handling.
Total protection against dust and water.
The most robust solution.
Inox AISI 304L or AISI 316L.
IP68 Approval.
Maximum voltage 1000 V
Temperature resistant: -40°C +100°C (short time +160°C).

Regulations

IP68 Norm IEC EN 62208 and EN 60529. Submersible 1 meter during 7 days.
Maximum IK10 resistance Norm IEC 62208 and EN 50102
CE standards Low Voltage Directive 2006/95/UE.
RoHs compliant.

Applications

This combination of strength and sealing characteristics make it ideal for electronic and electrical inner housing equipment in adverse environments outdoors.

Custom Made Solutions
We offer multiple solutions

Stainless Steel Cabinet IP68 Luxor · Delvalle Box
Do you need solutions?
2017 product catalogues
  • Order by measure based on your needs.
  • We recommended using our stainless steel IP68 cable gland for cable entry.
  • Manufactured in stainless steel AISI 316L EN 14404.
  • Finished in textured paint other RAL colours on request.
  • Mounting plate insulator (bakelite) or stainless steel.
Stainless Steel Cabinet IP68 Luxor · Delvalle Box

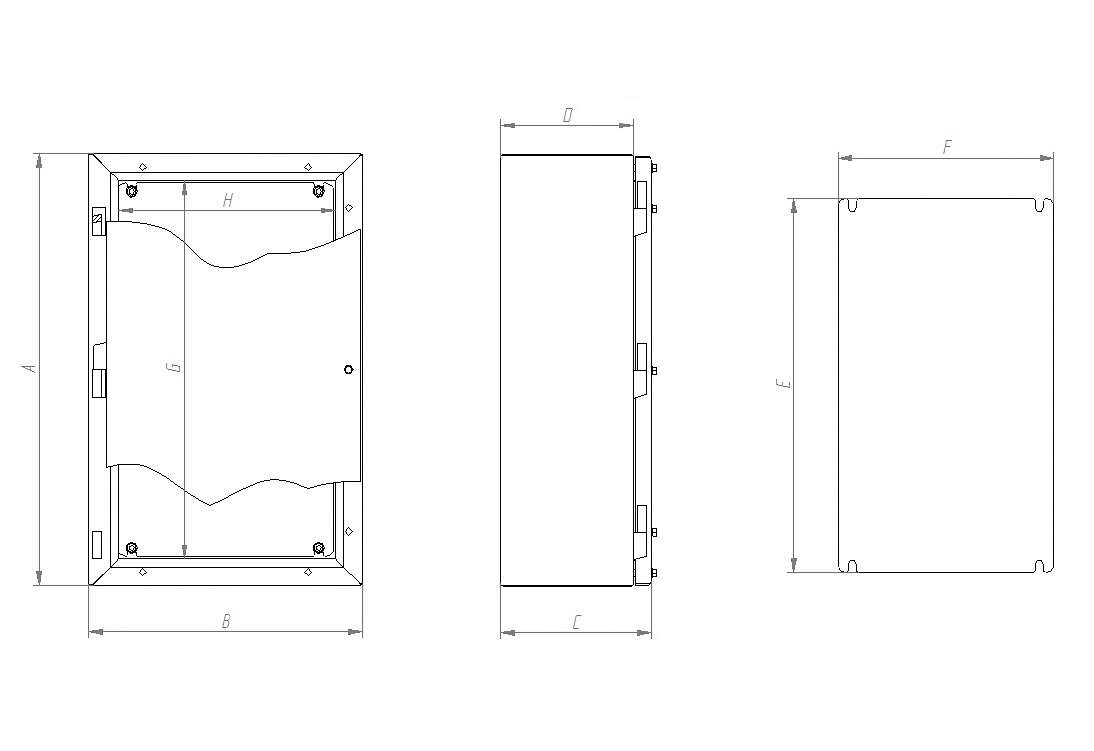

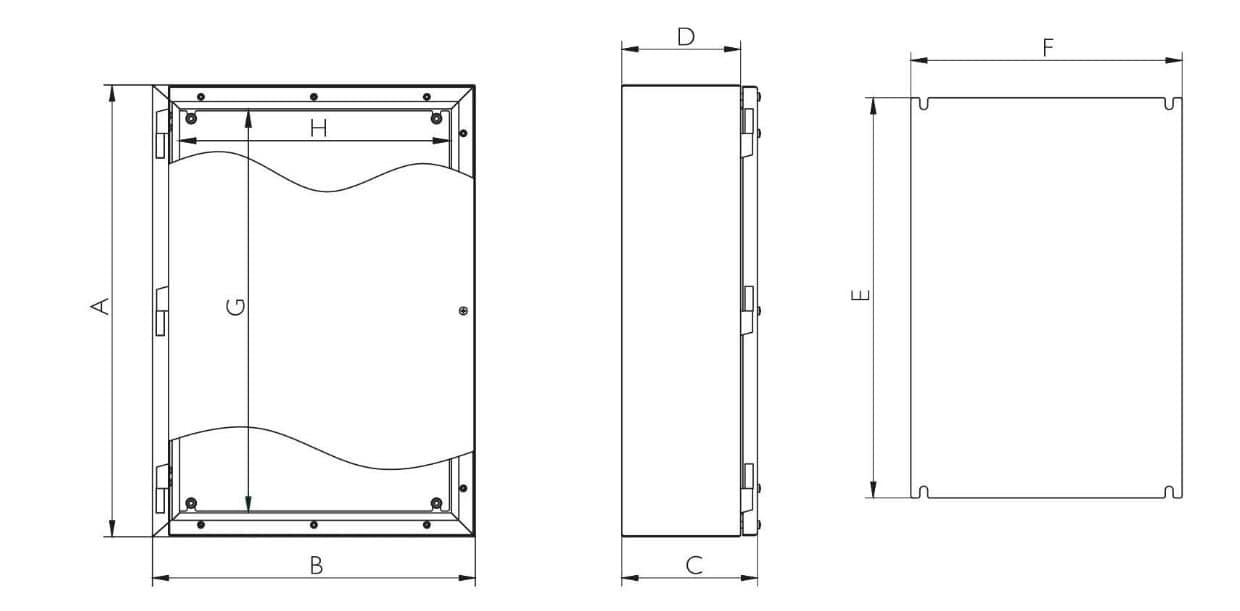

Sketches

PLANE · Delvalle Box

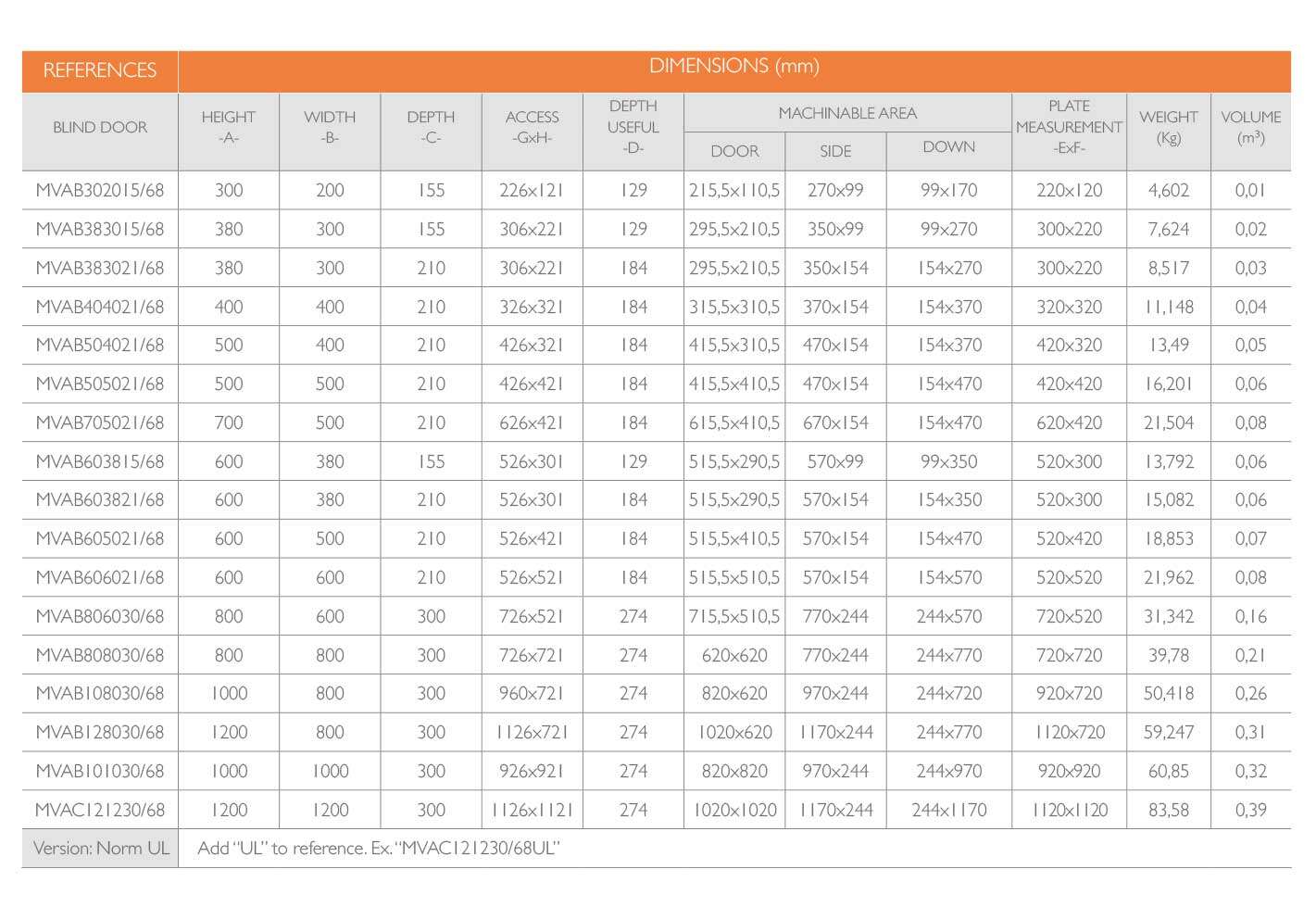

References

Show References
ReferenceDescriptionHighWidthBackground
MVAB302015/68STAINLESS STEEL CABINET IP68 LUXOR300200155MVAB302015/68
MVAB383015/68STAINLESS STEEL CABINET IP68 LUXOR380300155MVAB383015/68
MVAB383021/68STAINLESS STEEL CABINET IP68 LUXOR380300210MVAB383021/68
MVAB404021/68STAINLESS STEEL CABINET IP68 LUXOR400400210MVAB404021/68
MVAB504021/68STAINLESS STEEL CABINET IP68 LUXOR500400210MVAB504021/68
MVAB505021/68STAINLESS STEEL CABINET IP68 LUXOR500500210MVAB505021/68
MVAB705021/68STAINLESS STEEL CABINET IP68 LUXOR700500210MVAB705021/68
MVAB604021/68STAINLESS STEEL CABINET IP68 LUXOR600400210MVAB604021/68
MVAB605021/68STAINLESS STEEL CABINET IP68 LUXOR600500210MVAB605021/68
MVAB606021/68STAINLESS STEEL CABINET IP68 LUXOR600600210MVAB606021/68
MVAB806030/68STAINLESS STEEL CABINET IP68 LUXOR800600300MVAB806030/68
MVAB808030/68STAINLESS STEEL CABINET IP68 LUXOR800800300MVAB808030/68
MVAB108030/68STAINLESS STEEL CABINET IP68 LUXOR1000800300MVAB108030/68
MVAB128030/68STAINLESS STEEL CABINET IP68 LUXOR1200800300MVAB128030/68
MVAB101030/68STAINLESS STEEL CABINET IP68 LUXOR10001000300MVAB101030/68
MVAB121030/68STAINLESS STEEL CABINET IP68 LUXOR12001000300MVAB121030/68
MVAB121230/68STAINLESS STEEL CABINET IP68 LUXOR12001200300MVAB121230/68
MVAB101230/68STAINLESS STEEL CABINET IP68 LUXOR10001200300MVAB101230/68
